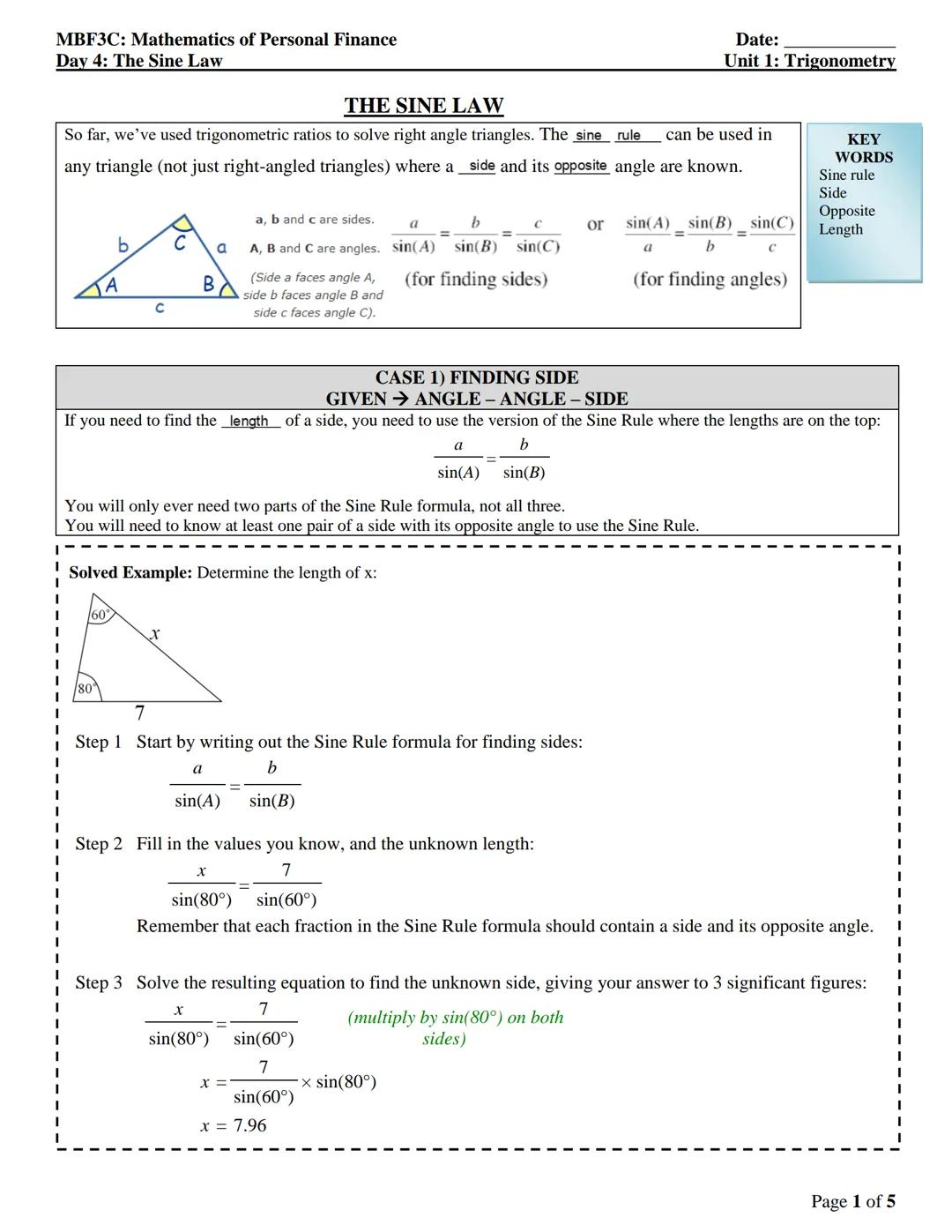

Understanding the Sine Law

Ever wondered how to solve triangles that aren't right-angled? The Sine Law is your answer! This formula creates a relationship between the sides of any triangle and their opposite angles.

The Sine Law can be written two ways depending on what you need to find:

• For finding sides: $\frac{a}{\sin(A)} = \frac{b}{\sin(B)} = \frac{c}{\sin(C)}$
• For finding angles: $\frac{\sin(A)}{a} = \frac{\sin(B)}{b} = \frac{\sin(C)}{c}$

When using the Sine Law, remember that each side pairs with its opposite angle (side a faces angle A). You only need to work with two pairs at a time, not all three.

💡 Quick Tip: Think of the Sine Law as a proportion - if you know one side-angle pair, you can find another side or angle using that relationship.

Let's see it in action! To find the unknown side x in a triangle with angles 80° and 60° and side length 7, we set up: $\frac{x}{\sin(80°)} = \frac{7}{\sin(60°)}$. Solving for x gives us 7.96 units.

Finding Missing Angles Using the Sine Law

Now let's flip things around and use the Sine Law to find missing angles. When you know two sides and an angle opposite one of them, you can discover the missing angle.

For finding angles, we rearrange the formula to: $\frac{\sin(A)}{a} = \frac{\sin(B)}{b}$. This version puts the angles in the numerator position, making it easier to solve for an unknown angle.

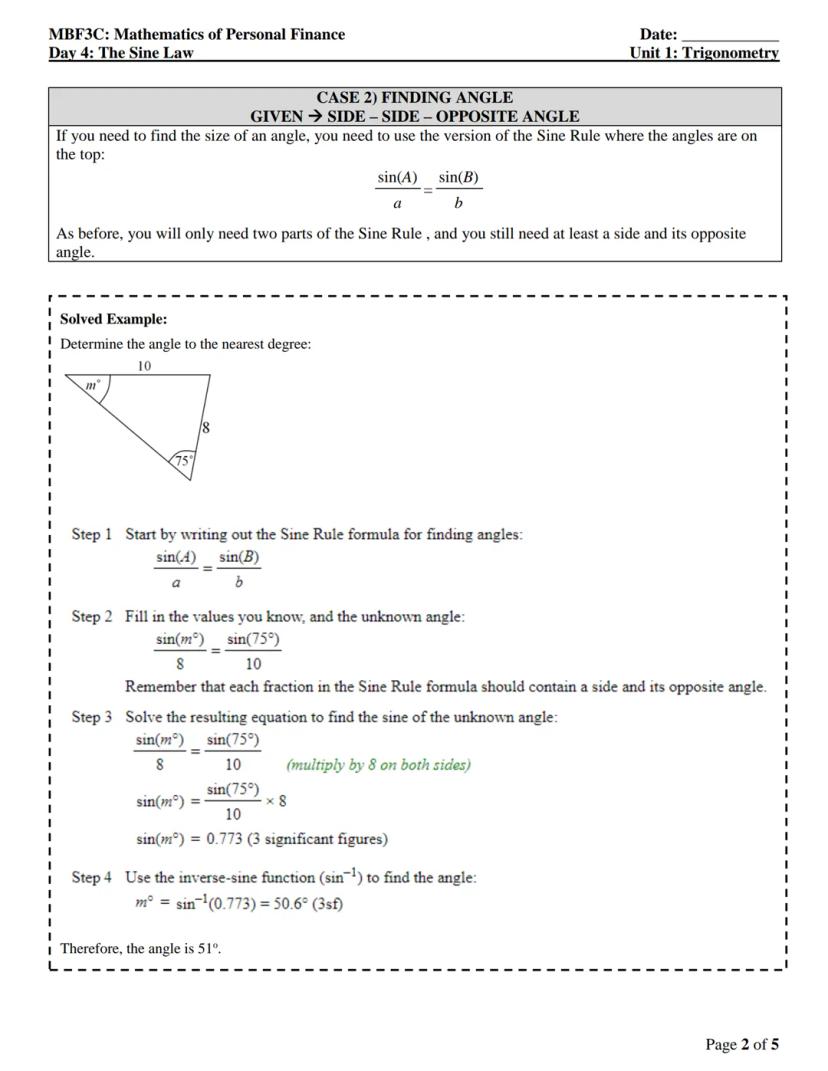

Here's how to solve a problem: Imagine a triangle with sides 8 and 10, and an angle of 75° opposite the side of length 10. To find the angle m opposite the side of length 8, we set up: $\frac{\sin(m°)}{8} = \frac{\sin(75°)}{10}$

Solving step by step:

1. Multiply both sides by 8: $\sin(m°) = \frac{\sin(75°)}{10} \times 8 = 0.773$
2. Use the inverse sine function: $m = \sin^{-1}(0.773) = 50.6°$
3. Round to the nearest degree: 51°

🔍 Remember: When solving for angles, you'll need to use the inverse sine function $\sin^{-1}$ or arcsin on your calculator to convert from the sine value back to degrees.

Practice Problems with the Sine Law

The best way to master the Sine Law is through practice! Let's look at some example problems that show different scenarios where the Sine Law comes in handy.

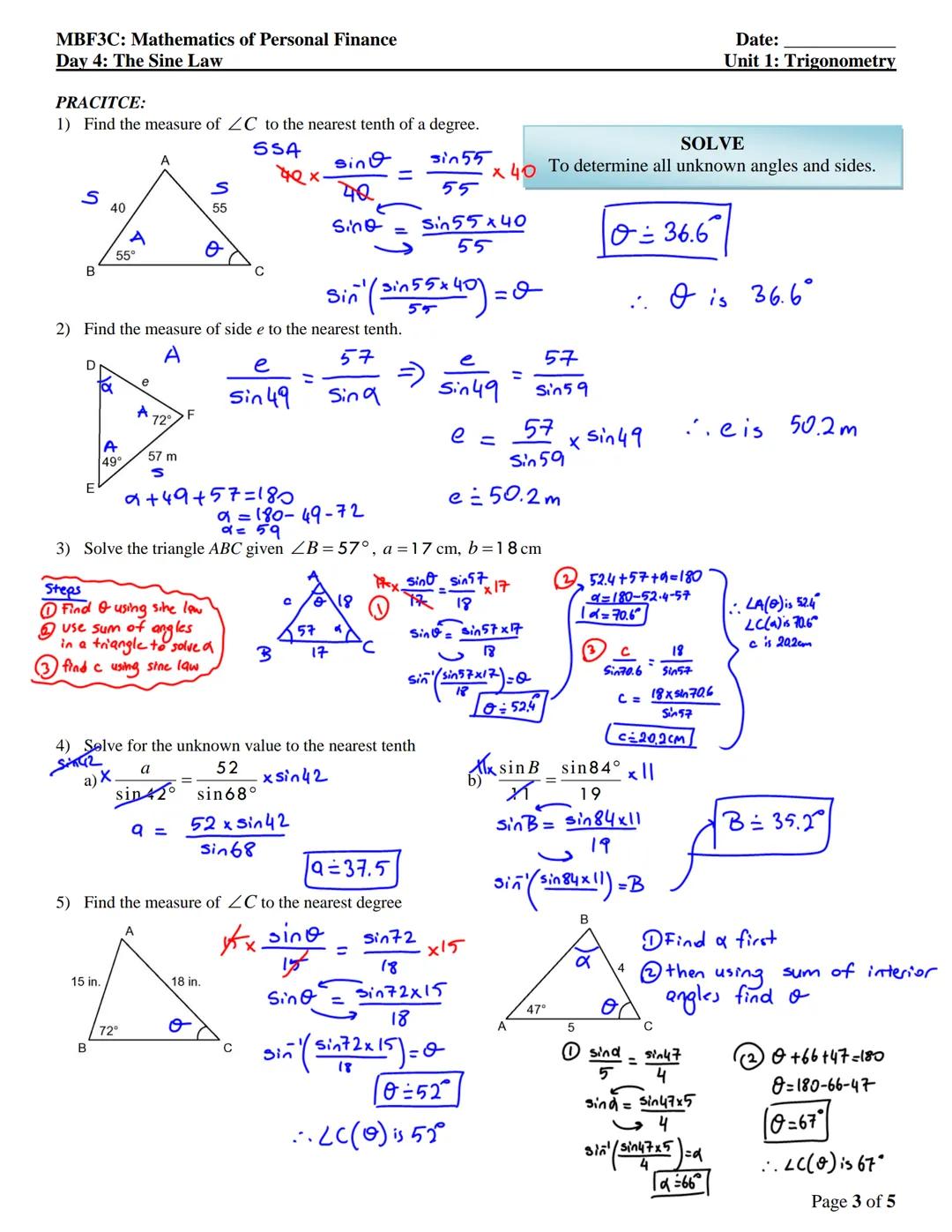

When finding an unknown angle like in problem 1, set up your proportion with the sine of your unknown angle on one side: $\frac{\sin(\theta)}{40} = \frac{\sin(55°)}{55}$. Solving gives $\theta = 36.6°$.

For finding an unknown side like in problem 2, use: $\frac{e}{\sin(49°)} = \frac{57}{\sin(59°)}$. This gives e ≈ 50.2 m after calculation.

When solving a complete triangle (like problem 3), follow a strategic approach:

1. First find the missing angle using the fact that angles in a triangle sum to 180°
2. Then use the Sine Law to find remaining sides
3. Double-check your work by seeing if all parts fit together logically

⭐ Strategy Tip: When solving a triangle completely, first determine what you know (SSA, AAS, etc.), then use the most direct path to find missing values—sometimes this means finding an angle first, sometimes a side.

More Practice and Complex Applications

Ready to challenge yourself? Let's tackle some more complex applications of the Sine Law.

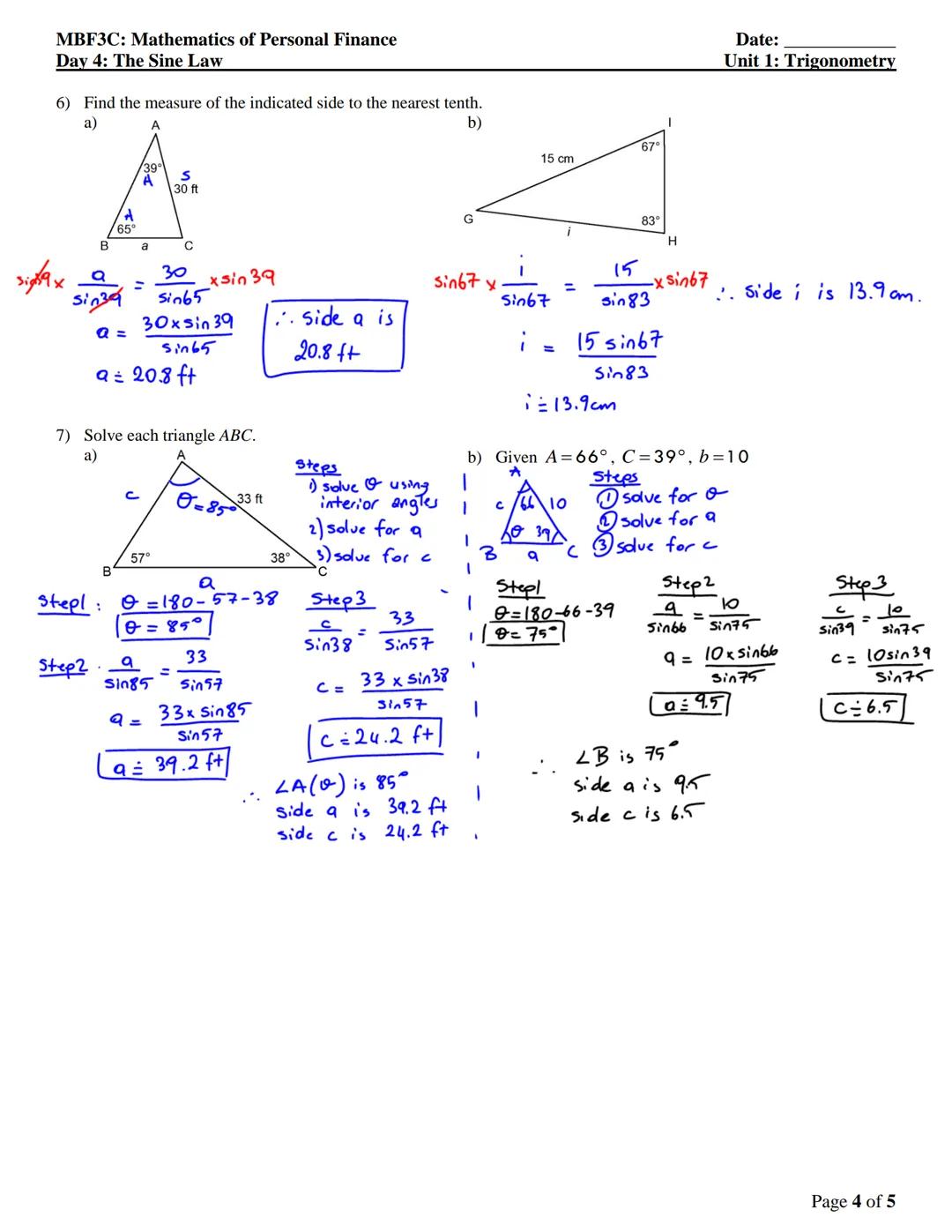

For problem 6a, we're looking for side a in a triangle where we know one side (30 ft) and two angles (39° and 65°). Using the Sine Law: $\frac{a}{\sin(39°)} = \frac{30}{\sin(65°)}$, which gives us a ≈ 20.8 ft.

In problem 7, we're solving complete triangles. This requires a systematic approach:

1. First find any missing angles using the fact that angles in a triangle sum to 180°
2. Then use the Sine Law to find each unknown side
3. Organize your work step-by-step to avoid confusion

For triangle 7a with angles 57° and 38° and side 33 ft:

• The third angle must be 85° $since 180° - 57° - 38° = 85°$
• Side a ≈ 39.2 ft using $\frac{a}{\sin(85°)} = \frac{33}{\sin(57°)}$
• Side c ≈ 24.2 ft using $\frac{c}{\sin(38°)} = \frac{33}{\sin(57°)}$

🧩 Problem-Solving Tip: When solving complete triangles, draw and label all the known information clearly first. This visual approach helps prevent errors and clarifies which formula to use.

Real-World Applications of the Sine Law

The Sine Law isn't just for math class—it helps solve real problems like finding distances and heights that can't be measured directly.

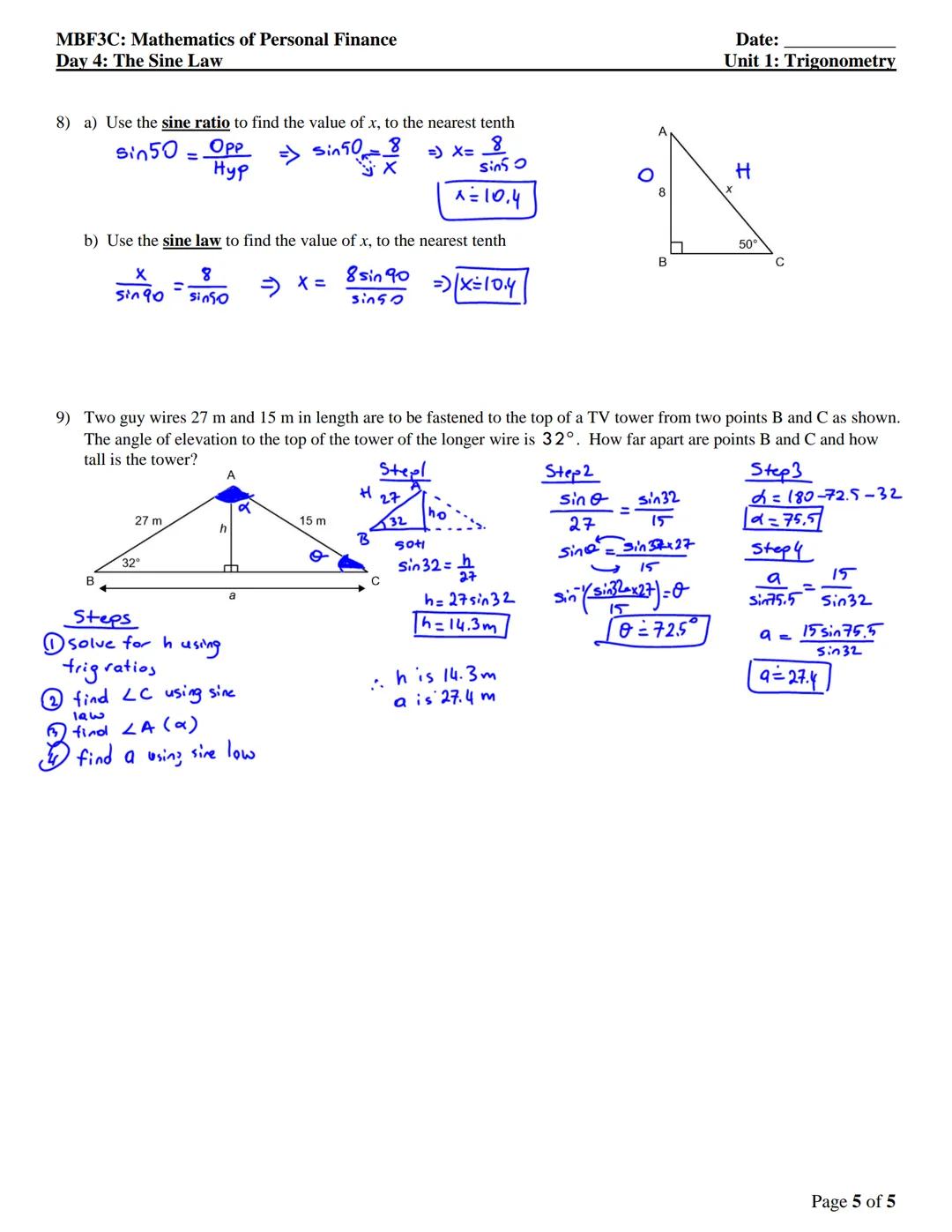

Problem 8 shows how the Sine Law connects to the basic sine ratio you already know. In a right triangle, finding x using $\sin(50°) = \frac{8}{x}$ gives x ≈ 10.4. The Sine Law approach $\frac{x}{\sin(90°)} = \frac{8}{\sin(50°)}$ yields the same result—proving these concepts are related!

Problem 9 tackles a practical scenario with a TV tower and guy wires. We can find both the tower height and distance between anchor points:

1. First, find the tower height using basic trigonometry: $h = 27\sin(32°) = 14.3$ m
2. Use the Sine Law to find the angle at point C: $\frac{\sin(\theta)}{27} = \frac{\sin(32°)}{15}$, giving $\theta = 72.5°$
3. Find angle A using the fact that angles in a triangle sum to 180°: $75.5°$
4. Finally, find distance a using the Sine Law: $a = \frac{15\sin(75.5°)}{\sin(32°)} = 27.4$ m

🌟 Real-World Connection: Engineers and surveyors use the Sine Law regularly to calculate distances and angles that can't be measured directly—like determining the height of structures or distances across terrain that's difficult to traverse.
