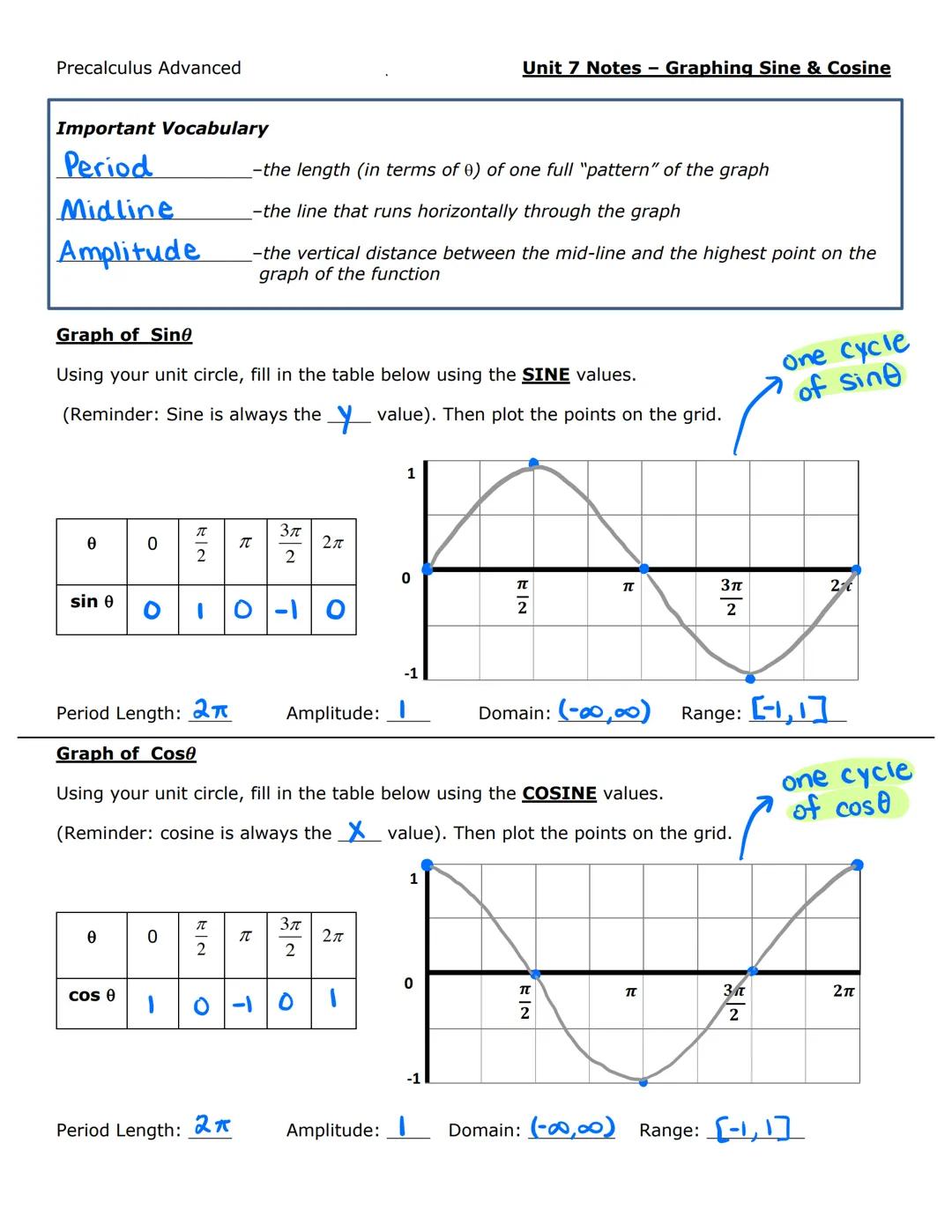

Graphing Sine and Cosine Functions
When you plot the sine function, you create a smooth wave that oscillates between -1 and 1. The sine value comes from the y-coordinate on the unit circle, creating a pattern that repeats every 2π units.
The period of sine is 2π, which means the pattern completes one full cycle over this interval. The amplitude is 1, representing the distance from the midline to the highest point of the wave. This creates a range of [-1, 1], while the domain extends infinitely.
The cosine function follows a similar wave pattern but starts at a different position. Unlike sine, cosine begins at its maximum value (1) when θ = 0. Cosine represents the x-coordinate on the unit circle, creating a wave that's shifted compared to sine.
Quick Tip: Remember that sine starts at 0 and reaches its peak at π/2, while cosine starts at its peak (1) and reaches 0 at π/2. This 90° phase difference is key to understanding their relationship!
Both sine and cosine have the same period (2π) and amplitude (1), giving them identical ranges of [-1, 1] and infinite domains. The main difference is their starting positions on the coordinate plane.
2
of 2

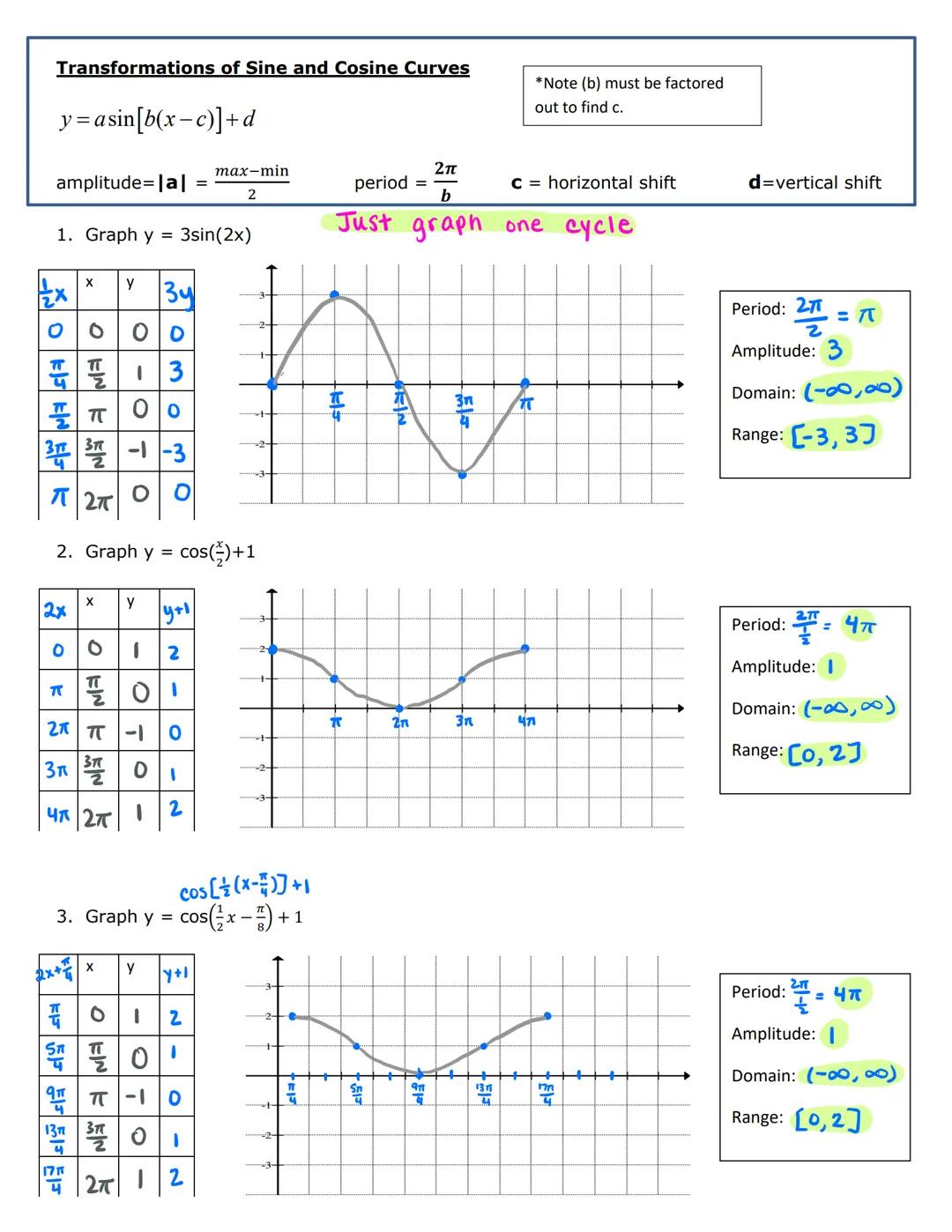

Transformations of Sine and Cosine
You can change how sine and cosine graphs look using the formula y = a·sin+d (or cosine instead of sine). Each letter in this formula controls a different aspect of the wave's appearance.
The value a determines the amplitude (height) of the wave. For example, y = 3sin(2x) has an amplitude of 3, meaning the wave stretches 3 units above and below its midline. The period is controlled by b using the formula 2π/b. In y = 3sin(2x), the period is π, making the wave complete its cycle faster than normal.
Horizontal shifts (c) move the entire wave left or right, while vertical shifts (d) move it up or down. In y = cos+1, the amplitude stays 1, but the period extends to 4π (making a wider wave), and the entire graph shifts up 1 unit, giving a range of [0, 2].
Remember: When working with transformed trig functions, start by identifying each component (a, b, c, d) and understand how each affects the graph. Period = 2π/b is especially important for determining wave width!
When graphing these transformations, calculate key points over one complete cycle. This gives you enough information to sketch the entire function, since the pattern will repeat infinitely in both directions.
