Introduction to Civil Engineering
Civil engineering structures are designed systems that support loads and resist forces. These structures form the backbone of our infrastructure, transferring loads and moments while maintaining their integrity.
When you look at bridges, dams, and towers, you're seeing civil engineering at work. Each structure requires careful planning and analysis to ensure it performs as intended.
Think of structures as problem-solvers - they're specifically designed to overcome challenges like spanning rivers, holding back water, or providing safe transportation routes.
Did You Know? Civil engineering is one of the oldest engineering disciplines, dating back to when humans first built shelters and bridges. Today's civil engineers use advanced computer modeling alongside fundamental principles that have been understood for centuries.
2
of 10

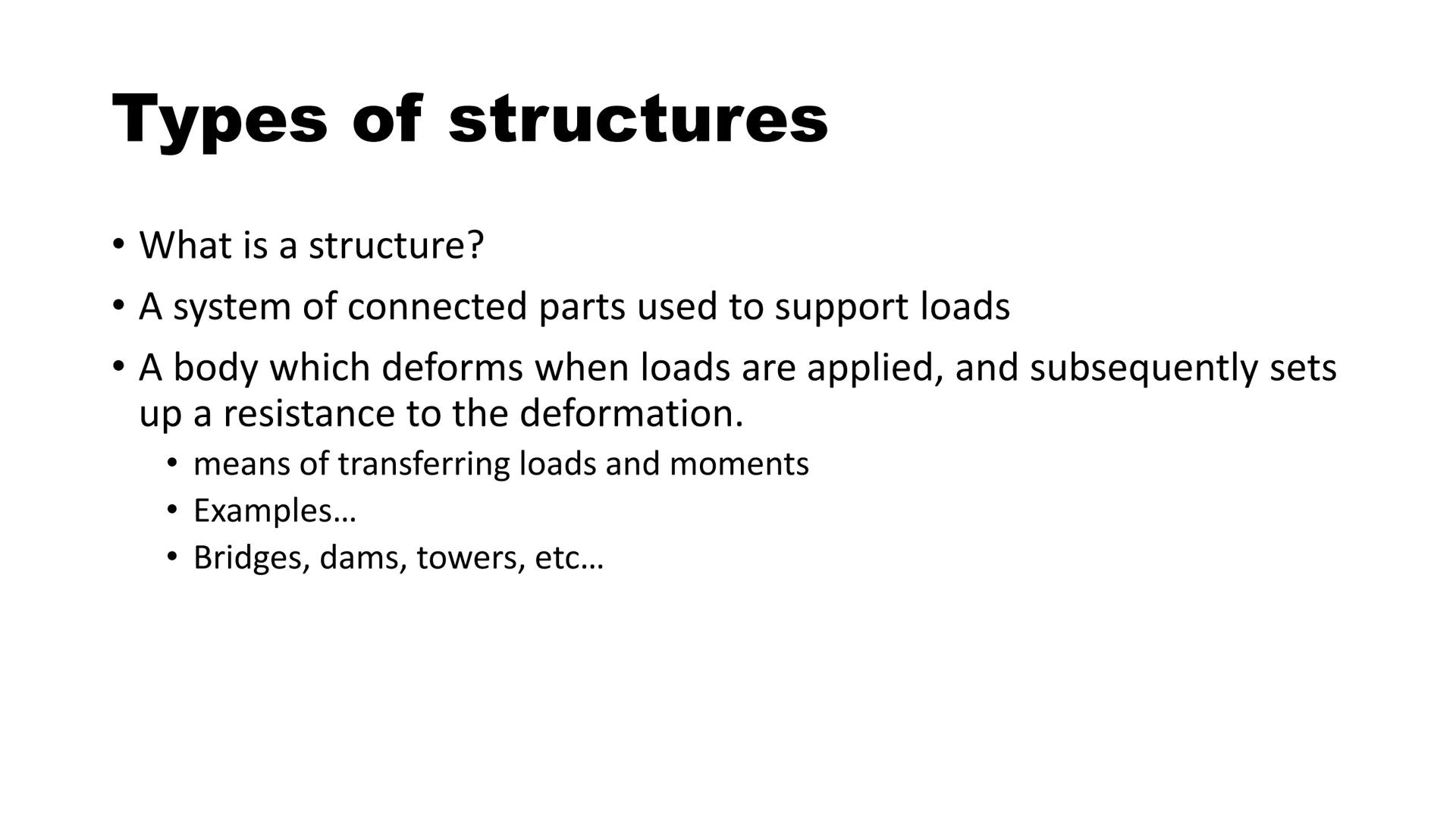

Types of Structures
A structure is essentially a system of connected parts that supports loads. When forces are applied to a structure, it deforms slightly and sets up resistance to that deformation - this is the basic principle behind all civil engineering works.
Civil structures serve as the means of transferring loads and moments safely to the ground. Bridges distribute the weight of vehicles, dams resist water pressure, and buildings channel forces through columns and beams.
Every structure you encounter in daily life - from the water tower in your town to the highway overpass - follows these same basic principles, though they might look completely different.
Remember: Understanding how forces move through structures is key to civil engineering - it's all about creating systems that can safely resist loads without failing.
3
of 10

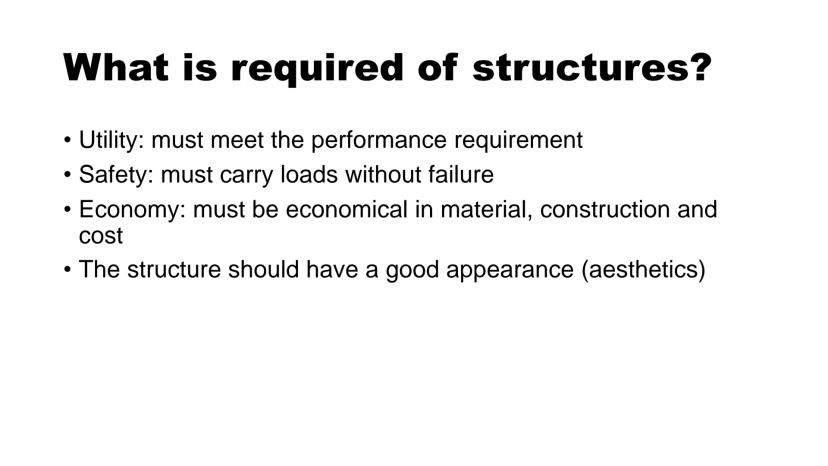

What is Required of Structures?
Civil engineering structures must satisfy four key requirements to be considered successful designs. First is utility - the structure must perform its intended function effectively, whether that's supporting traffic or storing water.
Safety is non-negotiable - structures must carry their expected loads without failure. This means designing with appropriate safety factors to account for unexpected conditions.
Good structures also demonstrate economy by efficiently using materials and construction methods to minimize cost. Engineering isn't just about what works, but what works efficiently.
Pro Tip: The fourth requirement, aesthetics, is increasingly important. Beautiful structures like the Golden Gate Bridge or Millau Viaduct show that engineering can be both functional and visually stunning.
4
of 10

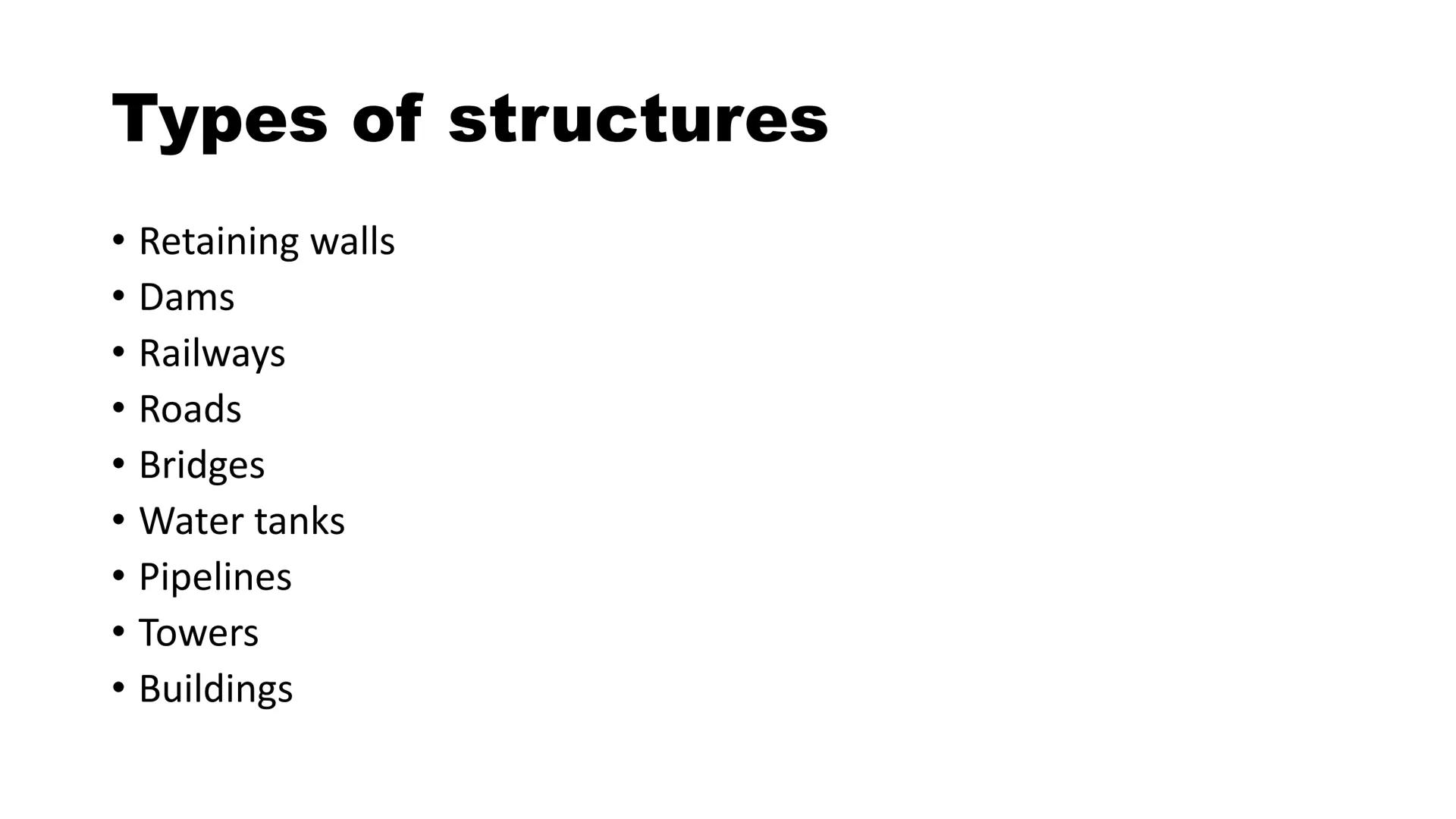

Types of Civil Engineering Structures
Civil engineering structures come in incredible variety, each designed for specific purposes. Common examples include retaining walls to hold back soil and dams to control water flow and generate power.
Transportation infrastructure like railways, roads, and bridges form critical networks connecting communities. These structures require careful planning for safety, durability, and efficient movement.
Water-related structures such as tanks and pipelines manage our water resources, while towers and buildings provide space for various activities. Each structure type has its own design challenges and requirements.
Fun Fact: The tallest building in the world, the Burj Khalifa, stands at 2,717 feet and required innovative civil engineering solutions to withstand wind forces and support its own massive weight.
5
of 10

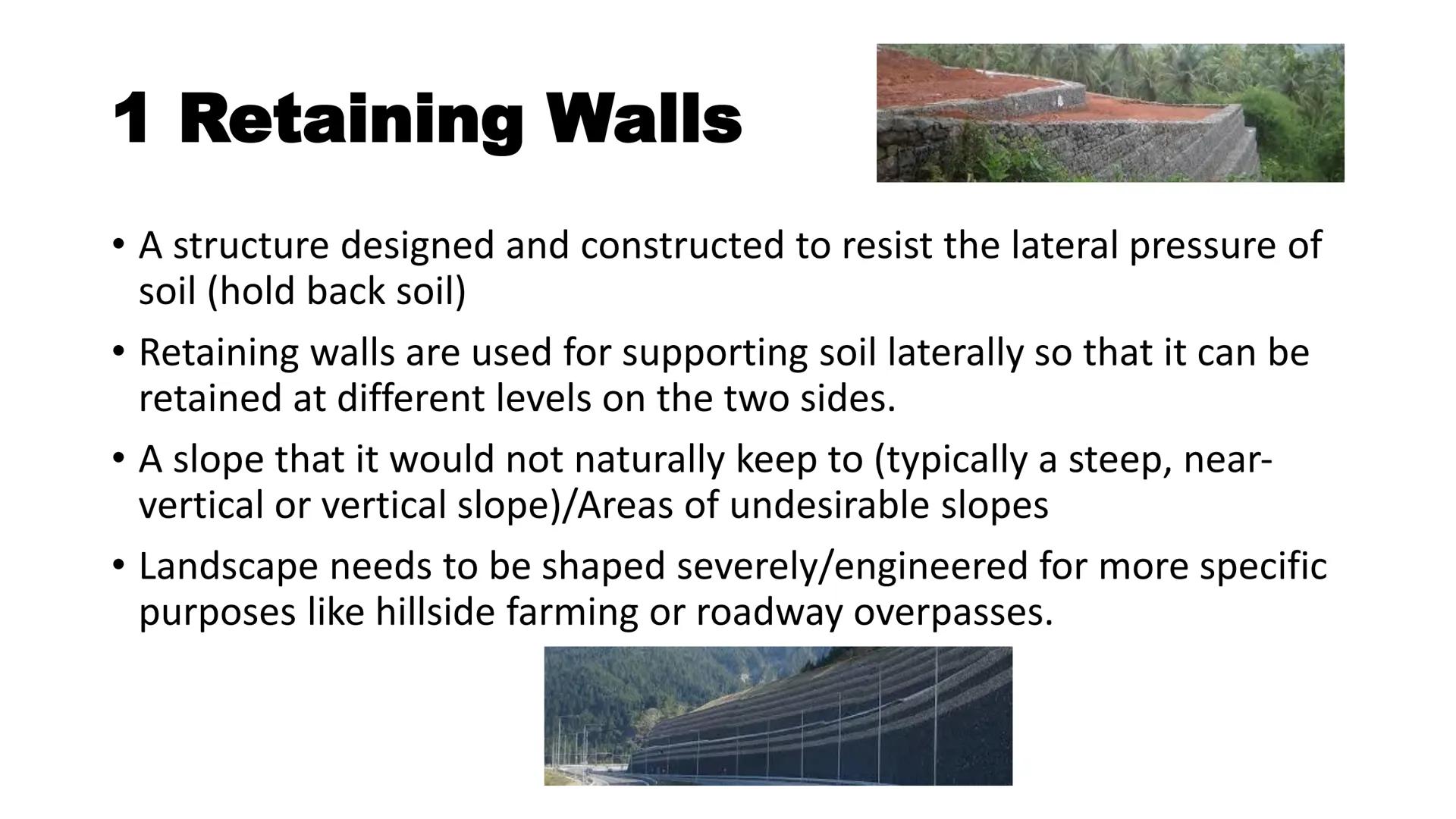

Retaining Walls
Retaining walls are structures specifically designed to resist the lateral pressure of soil, allowing for different ground levels on either side. You'll see these walls everywhere from highway overpasses to terraced gardens.
These essential structures hold back soil at angles steeper than it would naturally maintain. Without retaining walls, many construction projects on sloped terrain would be impossible. They create usable flat areas in otherwise challenging topography.
Engineers design retaining walls for hillside farming, roadway construction, and countless other applications where natural slopes need to be modified. The walls must withstand constant pressure from the soil they retain, making their design critical.
Important: The most common cause of retaining wall failure is poor drainage. Without proper drainage systems, water pressure can build up behind the wall and eventually cause it to fail.
6
of 10

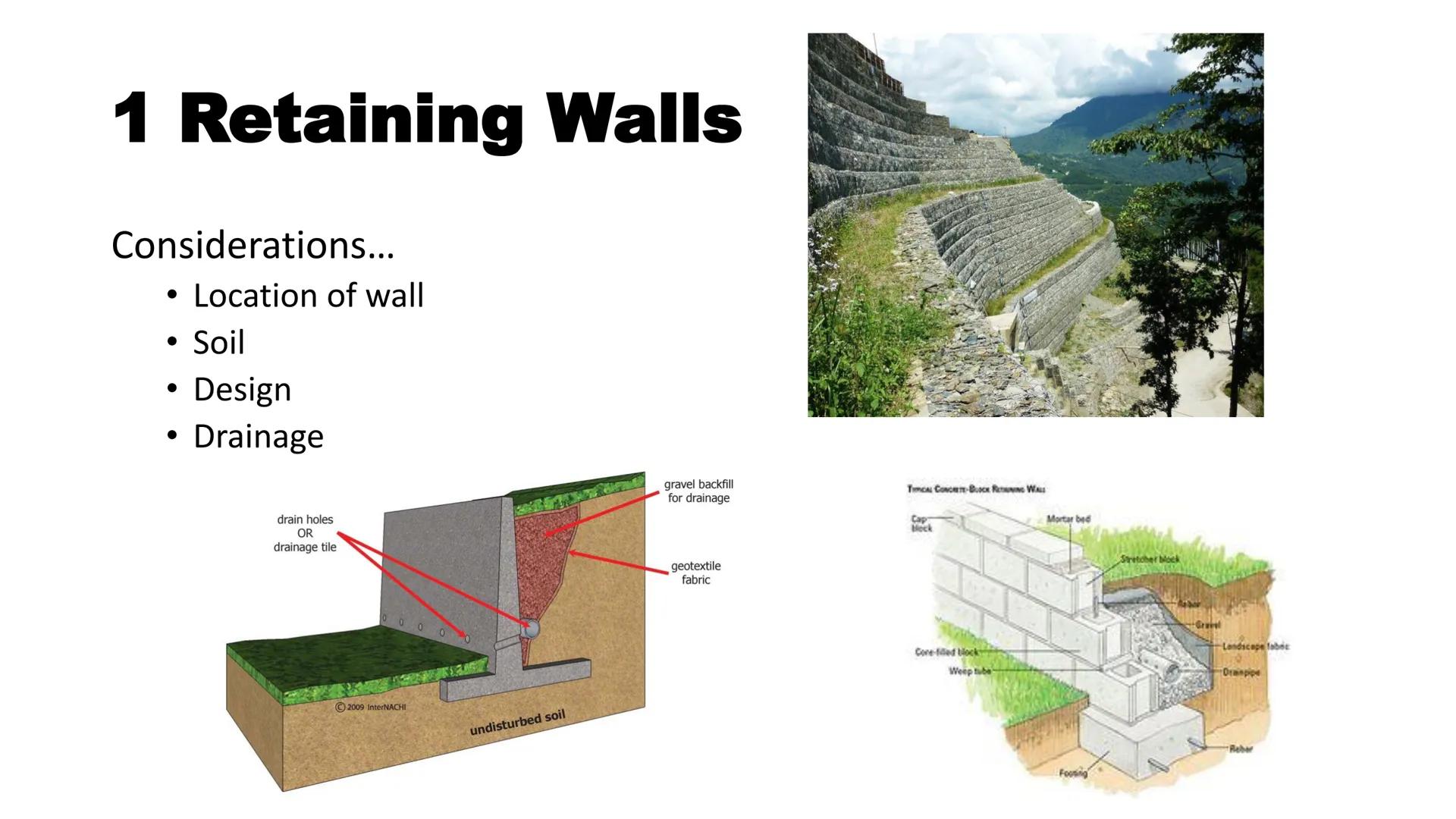

Retaining Wall Considerations
Designing effective retaining walls requires attention to several key factors. The location determines exposure to elements and accessibility for construction, while soil type affects pressure and drainage needs.
Design considerations include wall height, materials, and reinforcement methods. Engineers must carefully calculate forces to prevent failure. The most critical factor is often drainage - properly designed drain holes or drainage tiles prevent water buildup behind the wall.
Retaining walls typically include components like gravel backfill, geotextile fabric, weep tubes, and sometimes reinforcing bars. These elements work together to create a stable structure that can last for decades.
Design Tip: Good retaining walls often incorporate a slight backward lean (called "batter") to increase stability against the lateral earth pressure they're designed to resist.
7
of 10

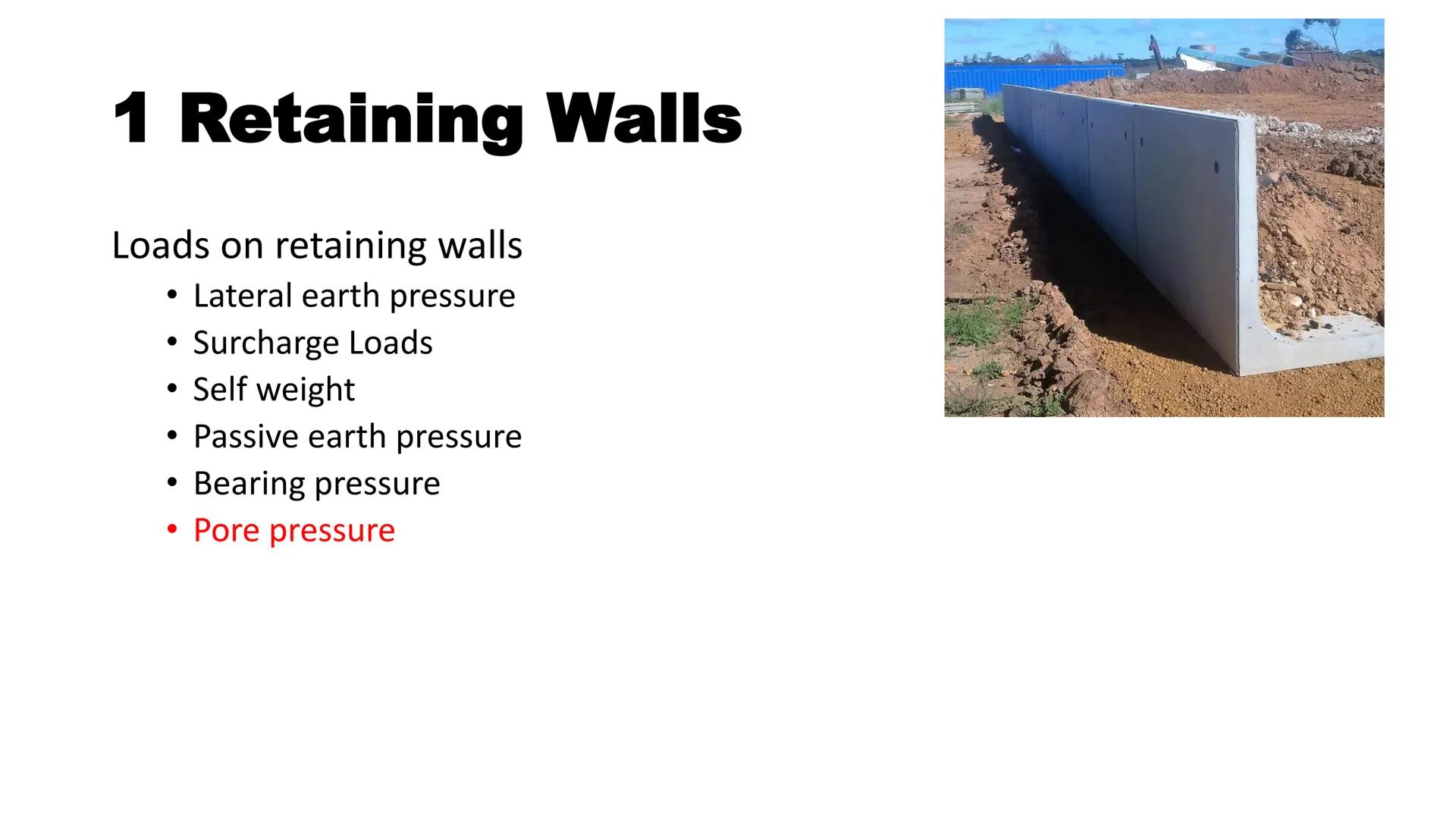

Loads on Retaining Walls
Retaining walls must resist several types of forces. The primary force is lateral earth pressure from the soil being retained, which pushes horizontally against the wall.
Surcharge loads come from additional weight above the retained soil, like vehicles or buildings. The wall's self-weight actually helps stabilize it against overturning. Meanwhile, passive earth pressure from soil in front of the wall's base provides resistance against sliding.
Bearing pressure transfers the wall's weight to the foundation soil, while pore pressure from water in the soil can significantly increase forces on the wall. Engineers must account for all these forces in their designs.
Physics in Action: The weight of a retaining wall creates a moment that resists overturning, which is why gravity walls are made from such heavy materials.
8
of 10

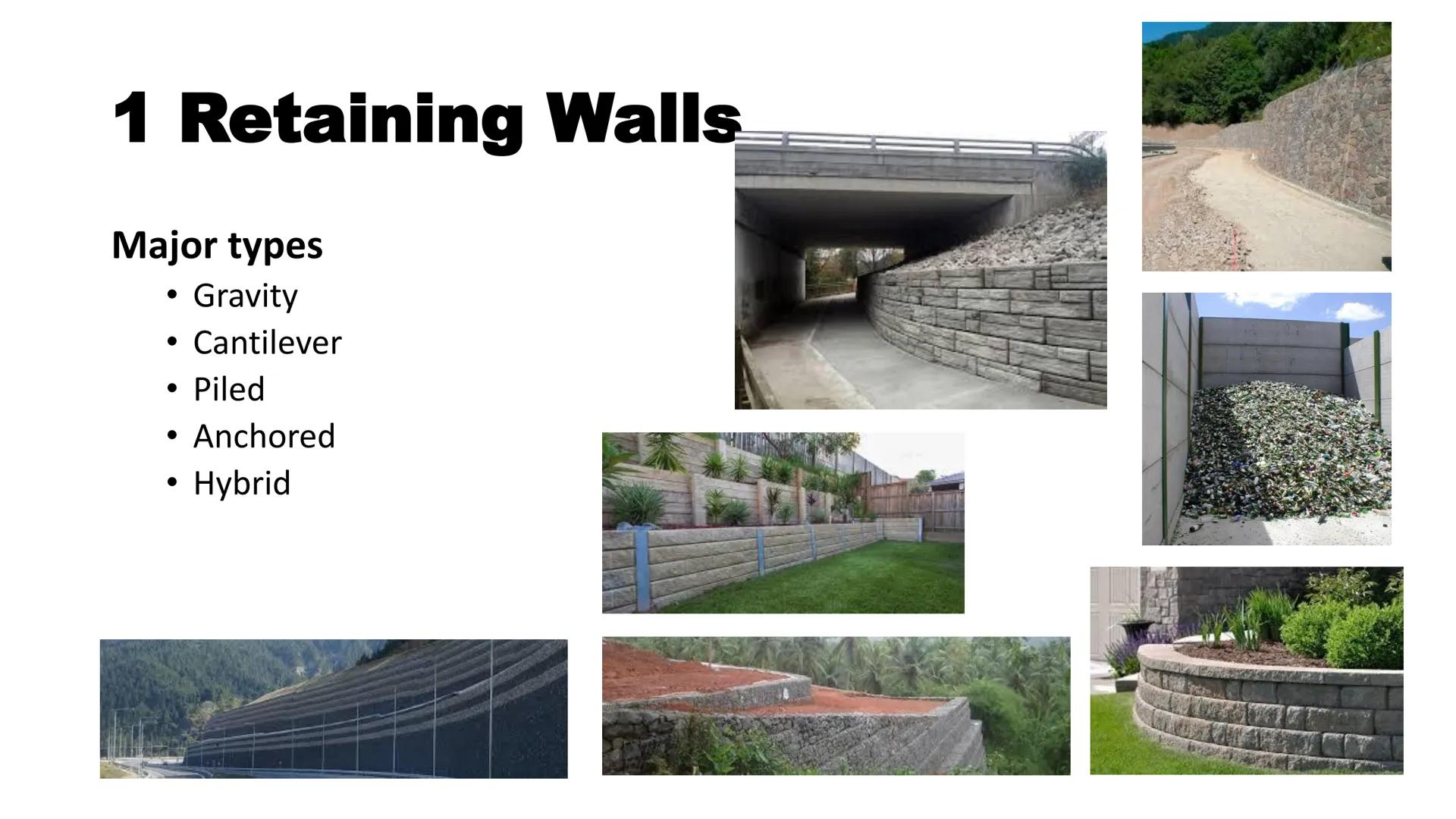

Major Types of Retaining Walls
Civil engineers choose between several retaining wall types based on height requirements, soil conditions, and space constraints. Gravity walls use their massive weight to resist soil pressure, while cantilever walls leverage the weight of backfill soil for stability.
Piled walls use driven concrete elements that extend deep into the ground for support. For especially challenging conditions, anchored walls incorporate cables or rods driven sideways into the earth to provide additional resistance.
Hybrid walls combine features from multiple wall types to address specific site challenges. Each type has optimal applications and economic height ranges.
Engineering Choice: The type of retaining wall selected depends heavily on space constraints, soil conditions, height requirements, and budget - there's no one-size-fits-all solution in retaining wall design.
9
of 10

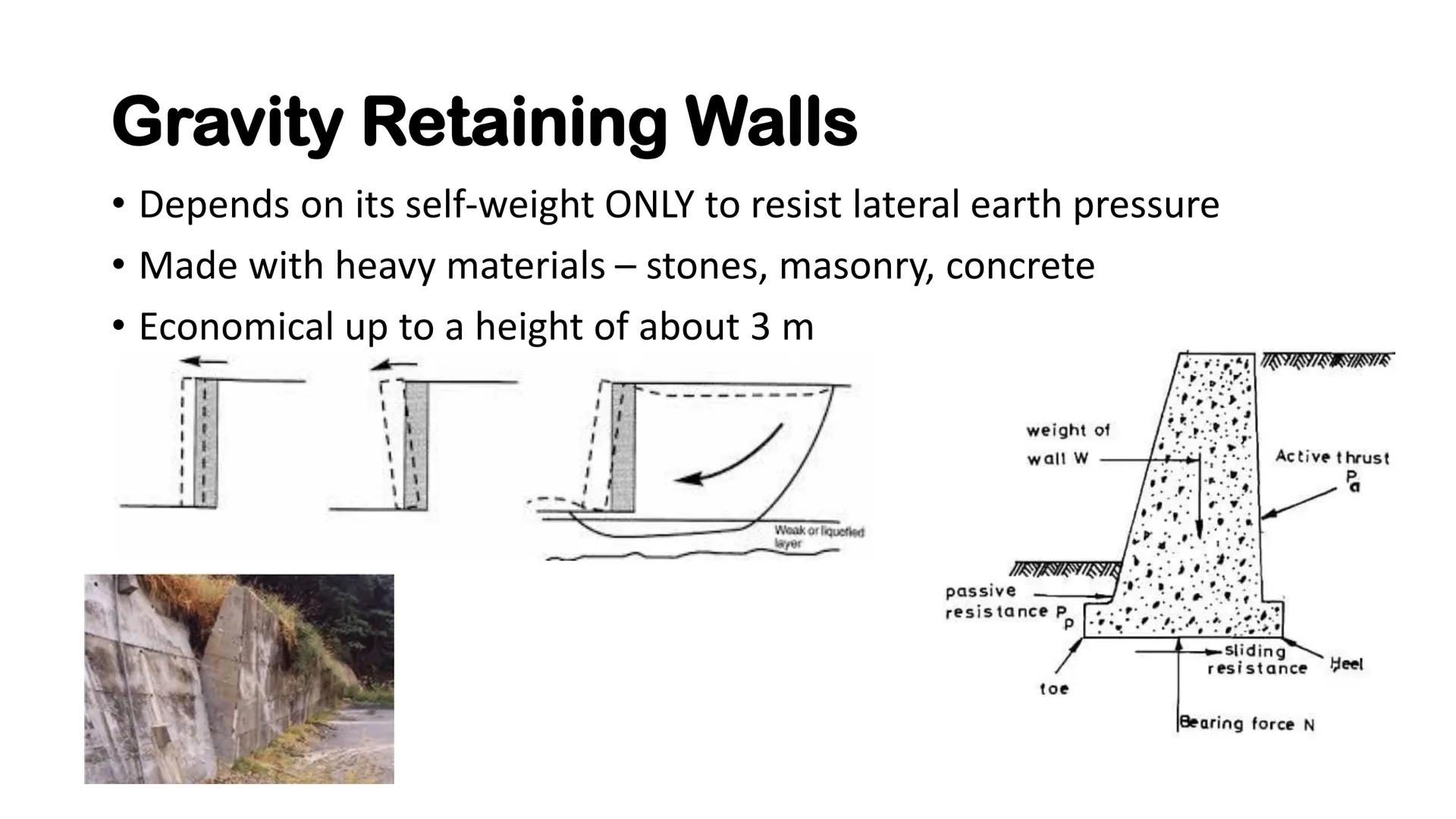

Gravity Retaining Walls
Gravity retaining walls rely entirely on their self-weight to resist lateral earth pressure. You'll recognize these walls by their substantial mass - they're typically made from heavy materials like stone, masonry, or concrete.
These straightforward structures work by creating enough weight to prevent overturning and sliding. The mass of the wall generates friction against the base soil, resisting horizontal movement. Gravity walls are particularly economical for heights up to about 3 meters.
Engineers must carefully calculate the wall's dimensions to ensure adequate resistance against active thrust forces. The wall's weight must create sufficient moment to prevent rotation around the toe and enough friction to prevent sliding.
Historical Note: Gravity retaining walls are among the oldest engineered structures, with examples dating back thousands of years that are still standing today - a testament to the effectiveness of their simple design principle.
10
of 10

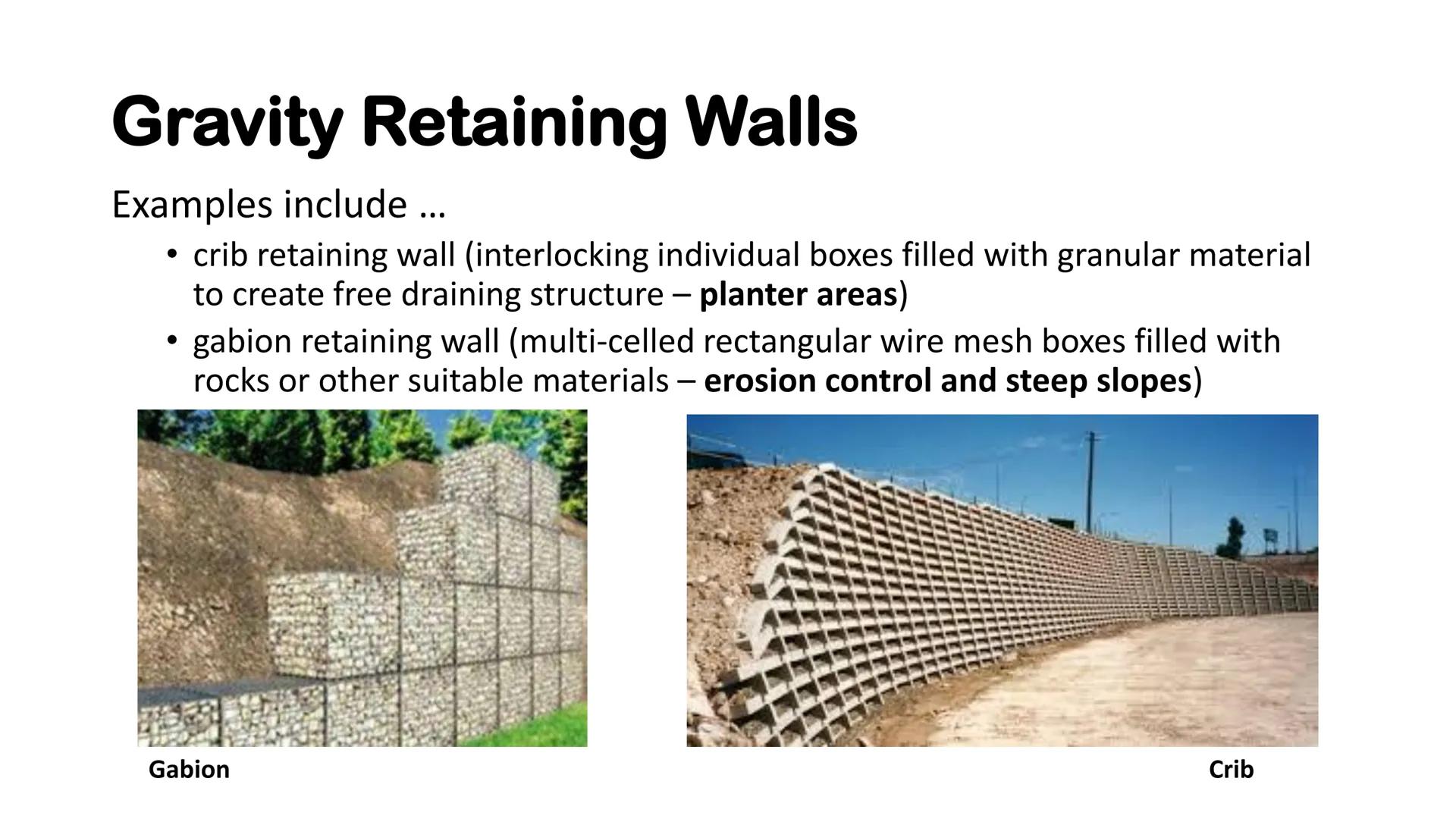

Gravity Retaining Wall Examples
Two popular types of gravity retaining walls offer unique advantages for specific applications. Crib retaining walls consist of interlocking boxes filled with granular material, creating free-draining structures that can also incorporate planting areas.
Gabion retaining walls use multi-celled rectangular wire mesh boxes filled with rocks or other suitable materials. These are excellent for erosion control and stabilizing steep slopes because they're permeable, allowing water to pass through while retaining soil.
Both wall types use the weight of their fill material to create stability. They're particularly useful in landscaping applications where aesthetics and drainage are important considerations.
Environmental Benefit: Gabion walls can provide excellent habitat for small wildlife and plants, making them an eco-friendly choice compared to solid concrete structures.
