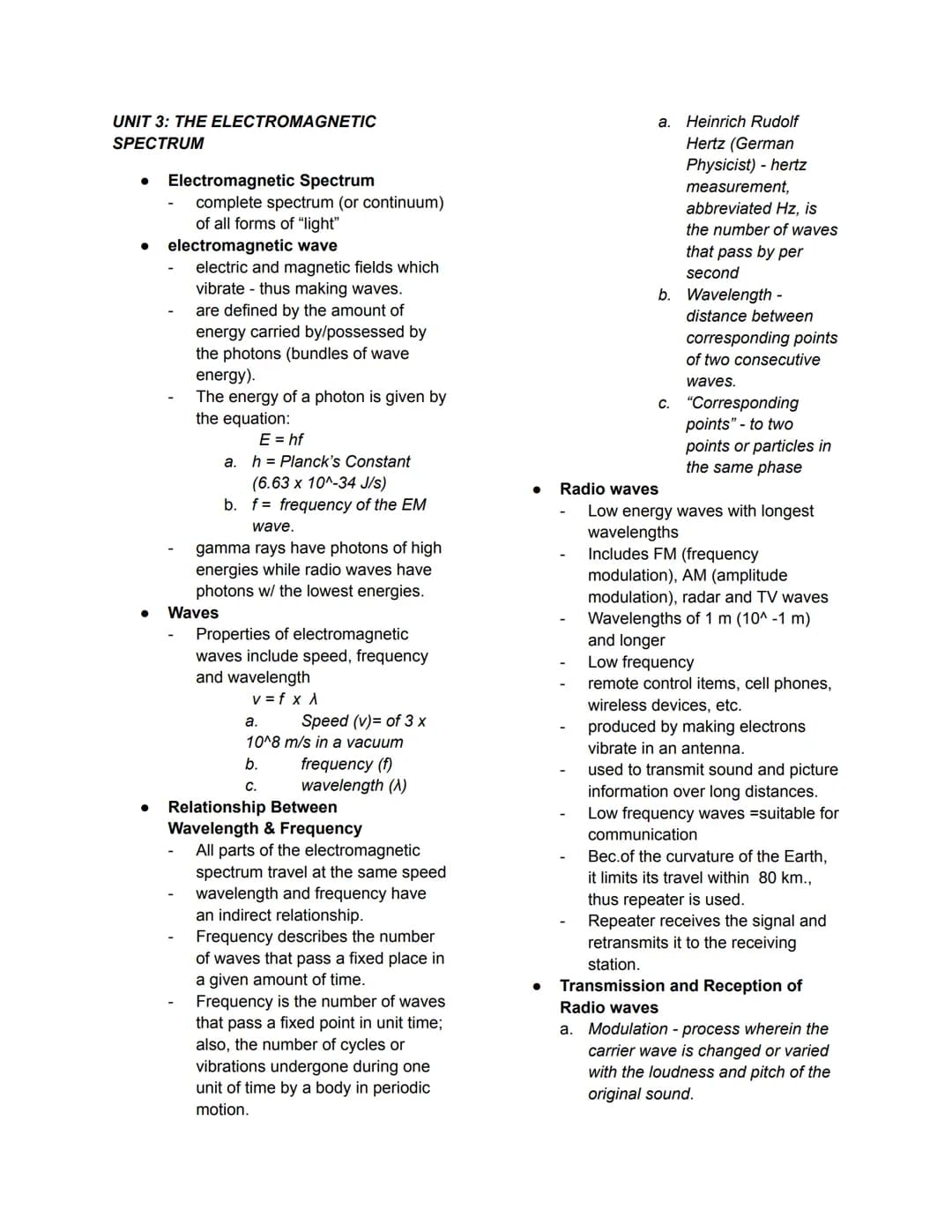

Understanding the Electromagnetic Spectrum
Electromagnetic waves are electric and magnetic fields that vibrate, creating waves with different amounts of energy. The energy of a photon (bundle of wave energy) is calculated using E = hf, where h is Planck's Constant and f is frequency. Gamma rays have the highest energy photons, while radio waves have the lowest.
All electromagnetic waves share key properties: speed, frequency, and wavelength, related by the equation v = f × λ. In a vacuum, all electromagnetic waves travel at the same speed , but their wavelengths and frequencies differ with an inverse relationship - as wavelength increases, frequency decreases.
Radio waves have the longest wavelengths (1 meter or longer) and lowest energy in the spectrum. They're produced by making electrons vibrate in antennas and are crucial for transmitting sound and images over long distances. You interact with radio waves daily through cell phones, wireless devices, TV signals, and remote controls.
Fun Fact: Radio waves are named after Heinrich Rudolf Hertz, who proved their existence. That's why frequency is measured in Hertz (Hz), representing how many waves pass by per second!
Radio signals can travel in two ways: ground waves that follow Earth's surface and sky waves that bounce off the ionosphere back to Earth. Since Earth's curvature limits direct transmission to about 80 km, repeaters are used to extend signals by receiving and retransmitting them.
2
of 3

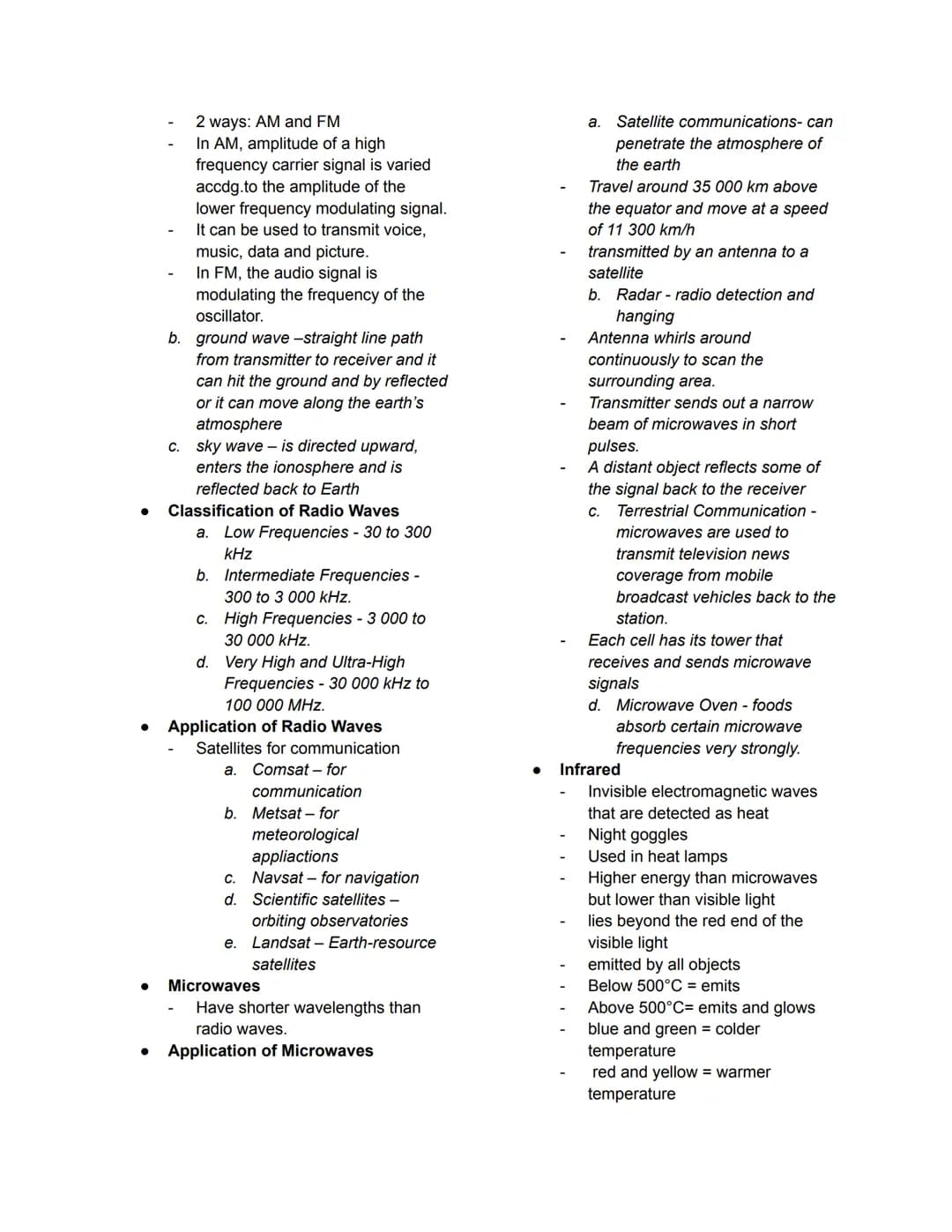

Radio Waves and Microwaves
Radio waves transmit information through modulation - changing a carrier wave to carry sound or data. There are two main types: AM (Amplitude Modulation), where the height of waves varies with the sound, and FM (Frequency Modulation), where the frequency changes to match the audio signal. Radio waves range from low frequencies to ultra-high frequencies (up to 100,000 MHz).
Satellites orbiting Earth use radio waves for various purposes: communication (Comsat), weather tracking (Metsat), navigation (Navsat), scientific research, and Earth resource monitoring (Landsat). These applications have revolutionized how we communicate, navigate, and understand our planet.
Microwaves have shorter wavelengths than radio waves and serve multiple important functions. They power satellite communications by penetrating Earth's atmosphere, enable radar systems to detect objects by reflecting signals, and connect cell phone towers in terrestrial communications networks. Your microwave oven works because food absorbs certain microwave frequencies, converting them to heat.
Did You Know? Communication satellites orbit about 35,000 km above Earth's equator at speeds of 11,300 km/h, constantly receiving and transmitting microwave signals to keep us connected!

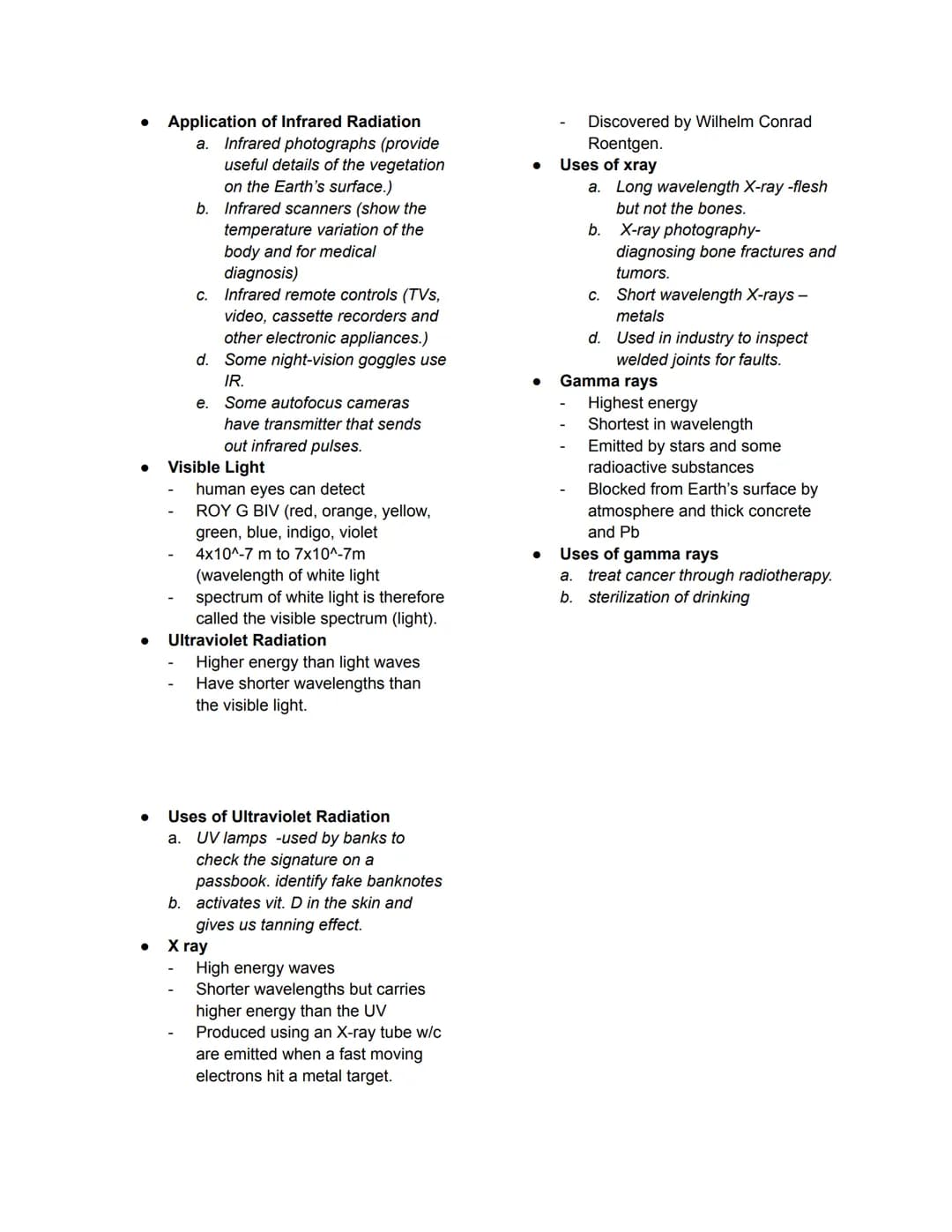

Infrared radiation sits between microwaves and visible light on the spectrum. Though invisible to our eyes, we can detect it as heat. All objects emit infrared radiation - cooler objects emit blue-green wavelengths, while warmer objects emit red-yellow wavelengths. This principle enables night vision goggles, remote controls, medical scanning, and specialized photography.
3
of 3
Visible Light and Beyond
Visible light is the only part of the electromagnetic spectrum our eyes can detect. It spans wavelengths from about 4×10^-7 m to 7×10^-7 m and includes all the colors of the rainbow (ROY G BIV: red, orange, yellow, green, blue, indigo, and violet). When combined, these colors form white light, which is why a prism can split white light into its component colors.
Ultraviolet (UV) radiation carries more energy than visible light but has shorter wavelengths. While too much UV exposure can damage skin, moderate amounts help our bodies produce vitamin D. UV light has practical applications too - banks use UV lamps to verify signatures and detect counterfeit money by revealing hidden security features.
X-rays pack even more energy with shorter wavelengths than UV radiation. They're produced when fast-moving electrons hit a metal target in an X-ray tube. X-rays revolutionized medicine by allowing doctors to see inside the body without surgery. Long-wavelength X-rays can pass through flesh but not bones, making them perfect for diagnosing fractures, while shorter wavelengths can penetrate metals to inspect industrial welds.
Safety Note: While X-rays and gamma rays have incredible applications, they can damage living cells, which is why technicians leave the room during X-rays and why gamma radiation is used to kill cancer cells.
At the highest-energy end of the spectrum are gamma rays, which have the shortest wavelengths and are emitted by stars and radioactive substances. They're so powerful they can penetrate most materials, requiring thick concrete or lead for shielding. Despite their danger, gamma rays have valuable applications in cancer treatment through radiotherapy and in sterilizing drinking water and medical equipment.
