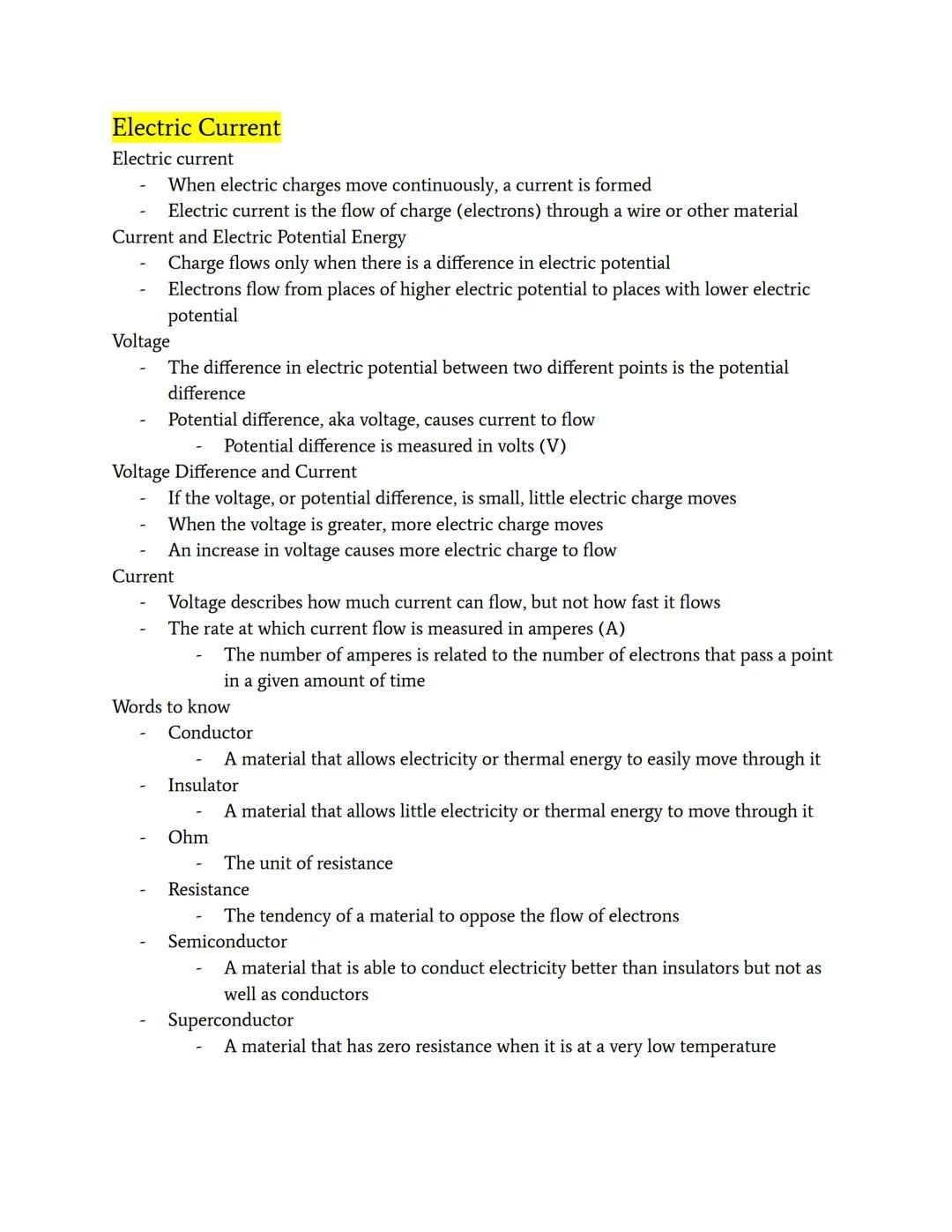

Electric Current Fundamentals
Electric current forms when electric charges (typically electrons) move continuously through a material. These electrons only flow when there's a difference in electric potential energy between two points.
Voltage, also called potential difference, is what drives current flow and is measured in volts (V). Think of voltage like electrical "pressure" - the greater the voltage, the more electric charge flows. Small voltage differences result in little movement of charge, while larger voltage differences push more charge through a circuit.
Current describes the actual rate at which electric charge flows, measured in amperes (A). The ampere measurement tells you how many electrons pass a point in a given amount of time.
💡 Quick Tip: Imagine water flowing through pipes - voltage is like the water pressure pushing the water, while current is the actual flow rate of the water passing through the pipe.
Important terms to know include conductors (materials that easily allow electricity to flow), insulators (materials that resist electrical flow), resistance , semiconductors (materials with conductivity between insulators and conductors), and superconductors (materials with zero resistance at extremely low temperatures).
2
of 3

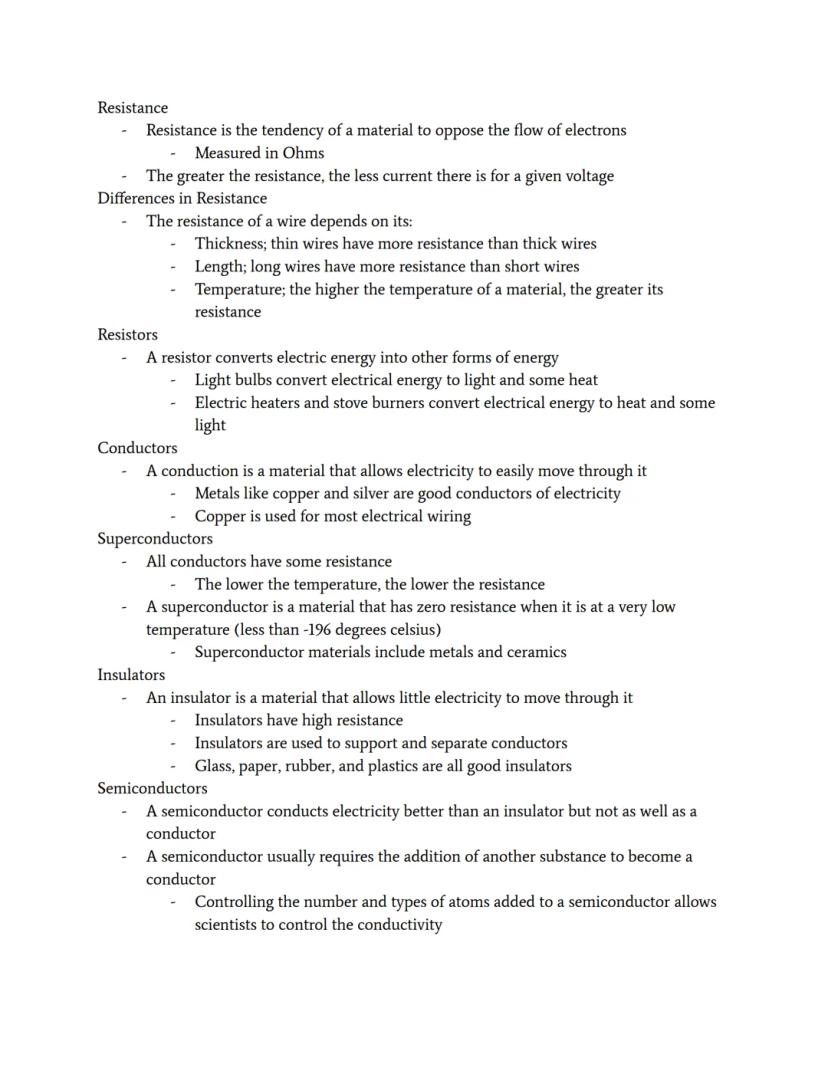

Resistance and Conductivity
Resistance opposes the flow of electrons through a material and is measured in ohms. For a given voltage, higher resistance results in less current flow. Several factors affect a wire's resistance: thinner wires have more resistance than thick ones, longer wires have more resistance than short ones, and hotter materials generally have greater resistance.
Resistors are components that deliberately convert electrical energy into other forms. Light bulbs transform electricity into light and some heat, while electric heaters convert electrical energy primarily to heat. These conversions happen because of the resistance in these devices.
Materials conduct electricity differently. Conductors like copper and silver allow electricity to flow easily, which is why copper is commonly used in electrical wiring. Insulators such as glass, rubber, and plastics have high resistance and block electrical flow, making them perfect for supporting and separating conductors.
🔍 Real-world connection: Your phone charger has insulated wires to prevent shocks and short circuits - the copper inside conducts electricity while the plastic coating insulates it!
Semiconductors occupy the middle ground between conductors and insulators. They can be modified by adding specific atoms to control their conductivity, which is why they're crucial in modern electronics. At extremely low temperatures , certain metals and ceramics become superconductors with zero electrical resistance.
