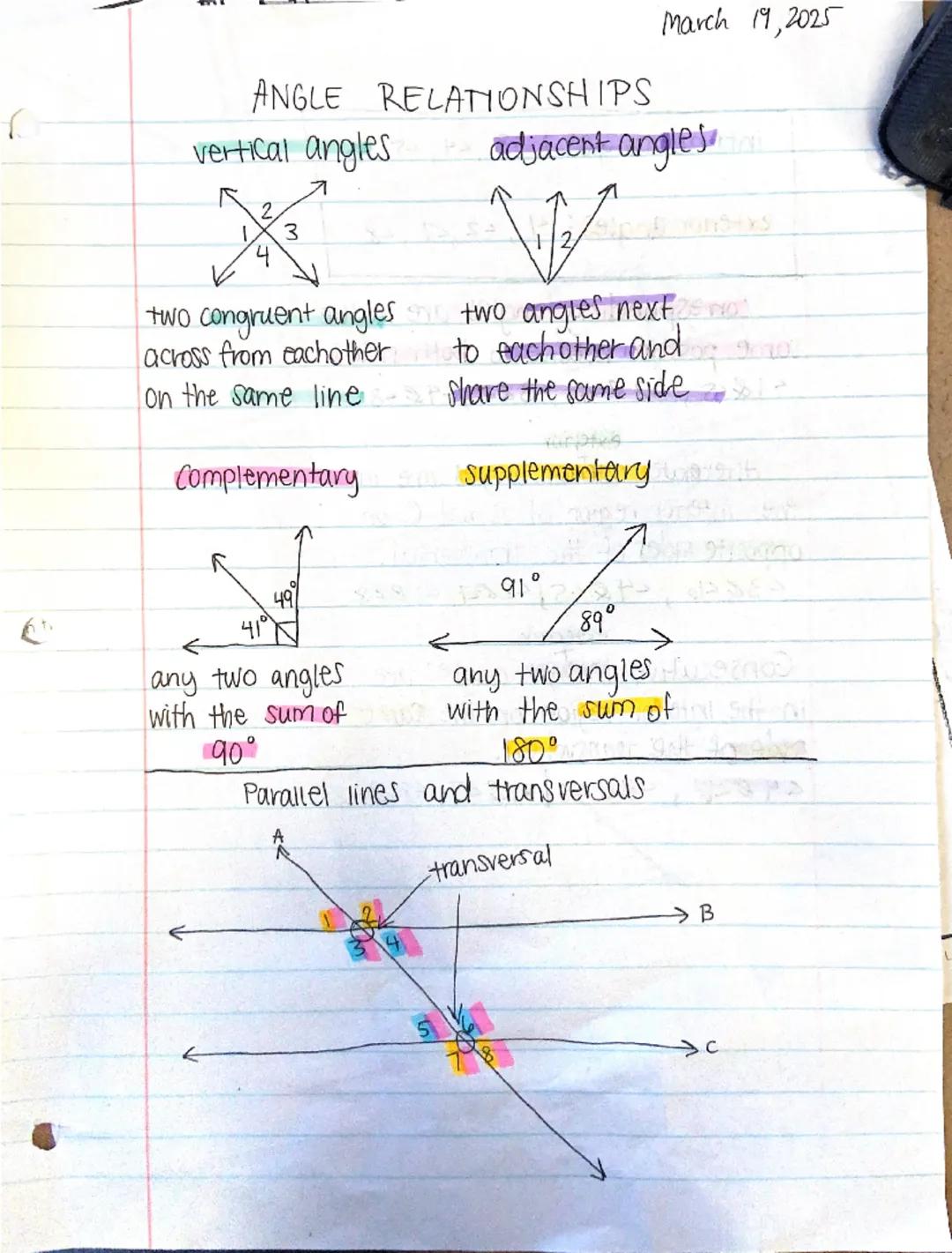

Basic Angle Relationships
When lines intersect, they create specific angle relationships worth knowing. Vertical angles are angles that appear across from each other when two lines cross - these angles are always congruent (equal in measure). Adjacent angles share a side and are on the same line.
Two important angle pairs to remember are complementary and supplementary angles. Complementary angles are any two angles whose measures add up to 90° (like 41° and 49°). Supplementary angles are any two angles whose measures add up to 180° (like 91° and 89°).
When parallel lines are cut by another line (called a transversal), they create eight angles. These angles form special relationships that you'll explore on the next page.
Quick Tip: To remember complementary vs. supplementary angles, think "C" for Complementary = Corner (90°) and "S" for Supplementary = Straight line (180°).
2
of 2

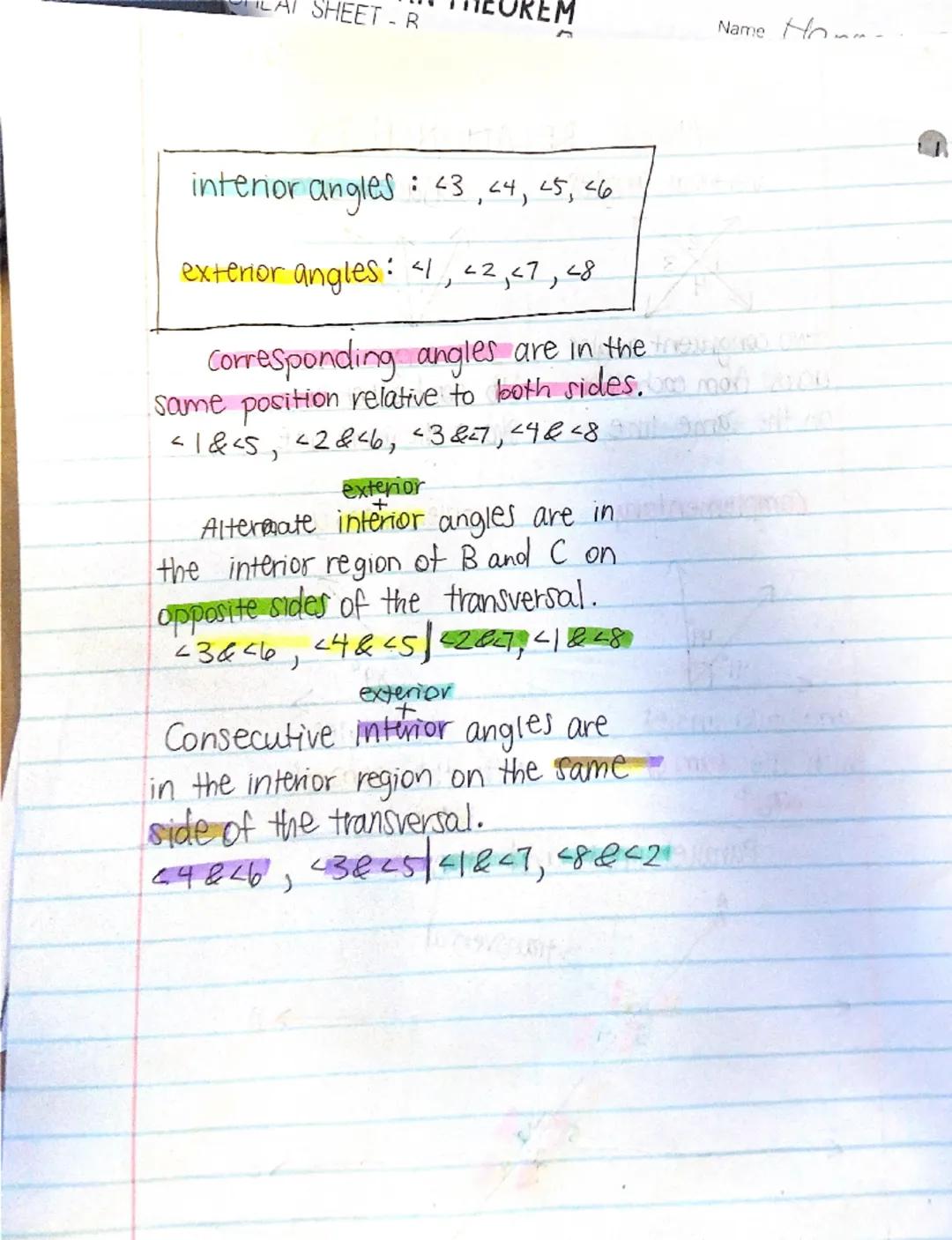

Angles with Parallel Lines
When a transversal cuts across parallel lines, the eight angles created can be divided into interior angles (angles 3, 4, 5, 6) which fall between the parallel lines, and exterior angles (angles 1, 2, 7, 8) which fall outside the parallel lines.
Corresponding angles are angles in the same position relative to both parallel lines (like angles 1 & 5, 2 & 6, 3 & 7, and 4 & 8). These angles are always congruent when the lines are parallel.
Alternate interior angles are angles that lie within the parallel lines but on opposite sides of the transversal (angles 3 & 6, 4 & 5). These are also congruent. Consecutive interior angles are angles inside the parallel lines on the same side of the transversal (like angles 4 & 6, 3 & 5). These angles are supplementary - they add up to 180°.
Remember This: When parallel lines are cut by a transversal, corresponding angles and alternate interior angles are equal, while consecutive interior angles add up to 180°.
