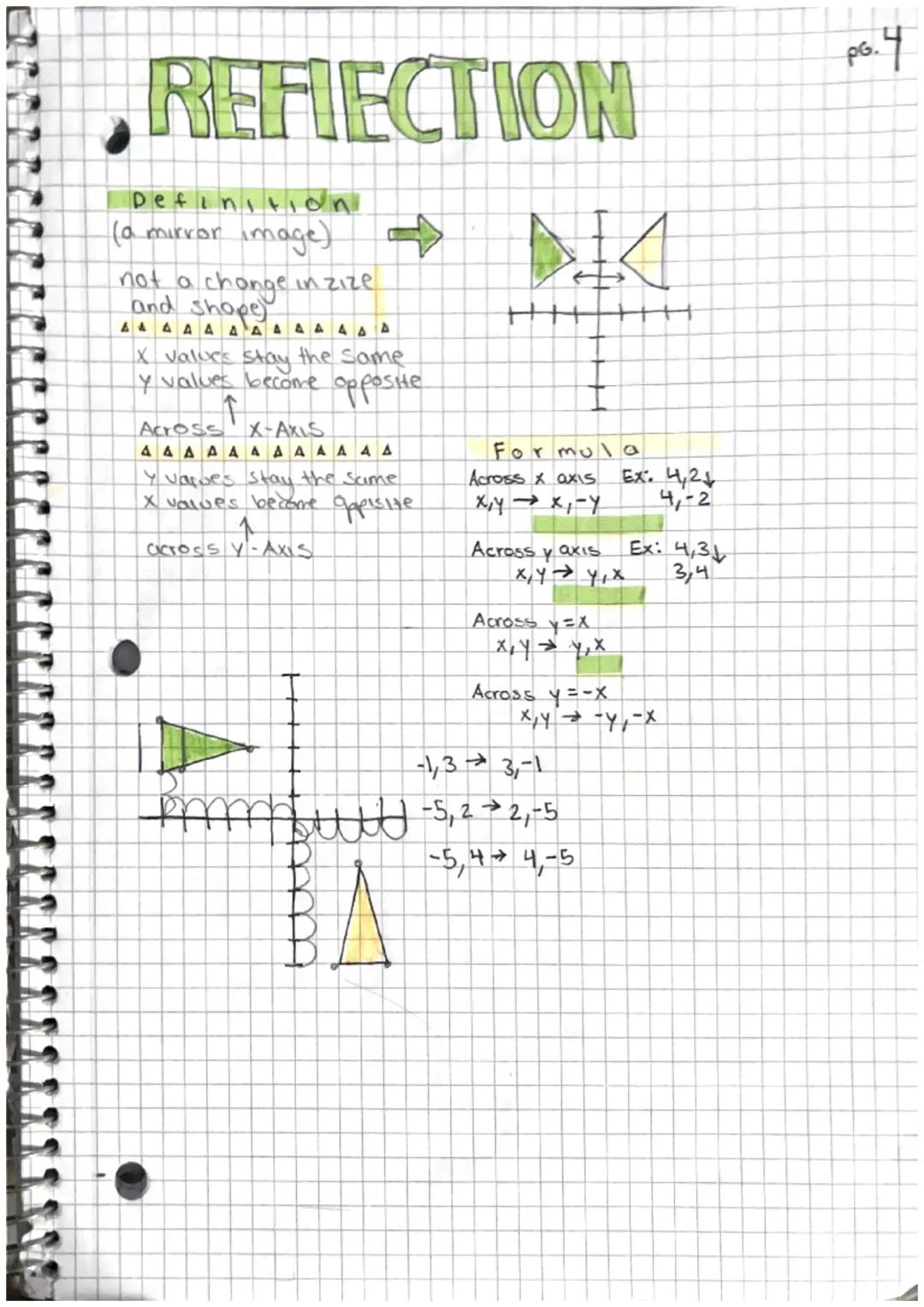

Reflections

Reflections create mirror images of shapes without changing their size. When you reflect a point, its distance from the reflection line stays the same, but it appears on the opposite side.

When reflecting across the x-axis, the y-coordinate changes sign while the x-coordinate remains the same: (x,y) → $x,-y$. For example, point (4,2) becomes (4,-2). When reflecting across the y-axis, the x-coordinate changes sign: (x,y) → $-x,y$.

Reflections can also happen across diagonal lines. Reflecting across y=x swaps the coordinates: (x,y) → (y,x), turning (-1,3) into (3,-1). Reflecting across y=-x gives us (x,y) → $-y,-x$.

💡 Think of reflections like flipping a shape in a mirror - the shape stays the same size and form, but appears reversed across the line of reflection.

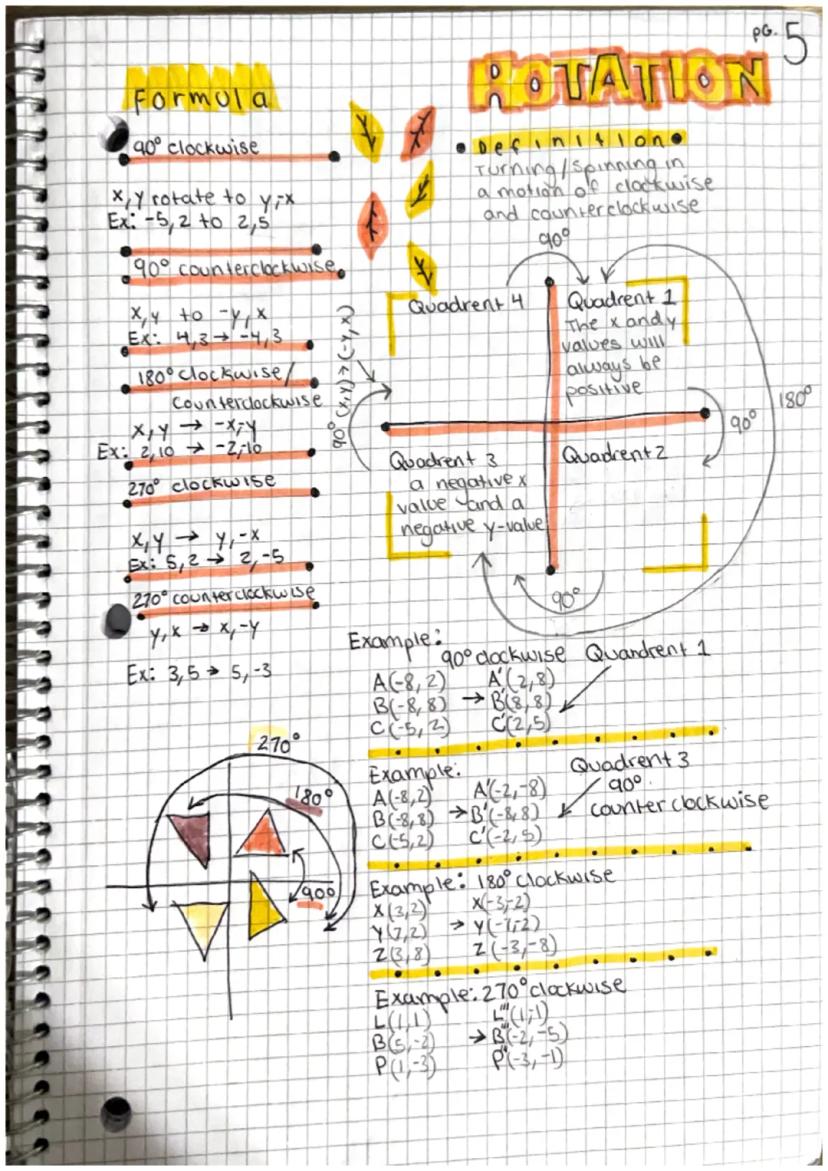

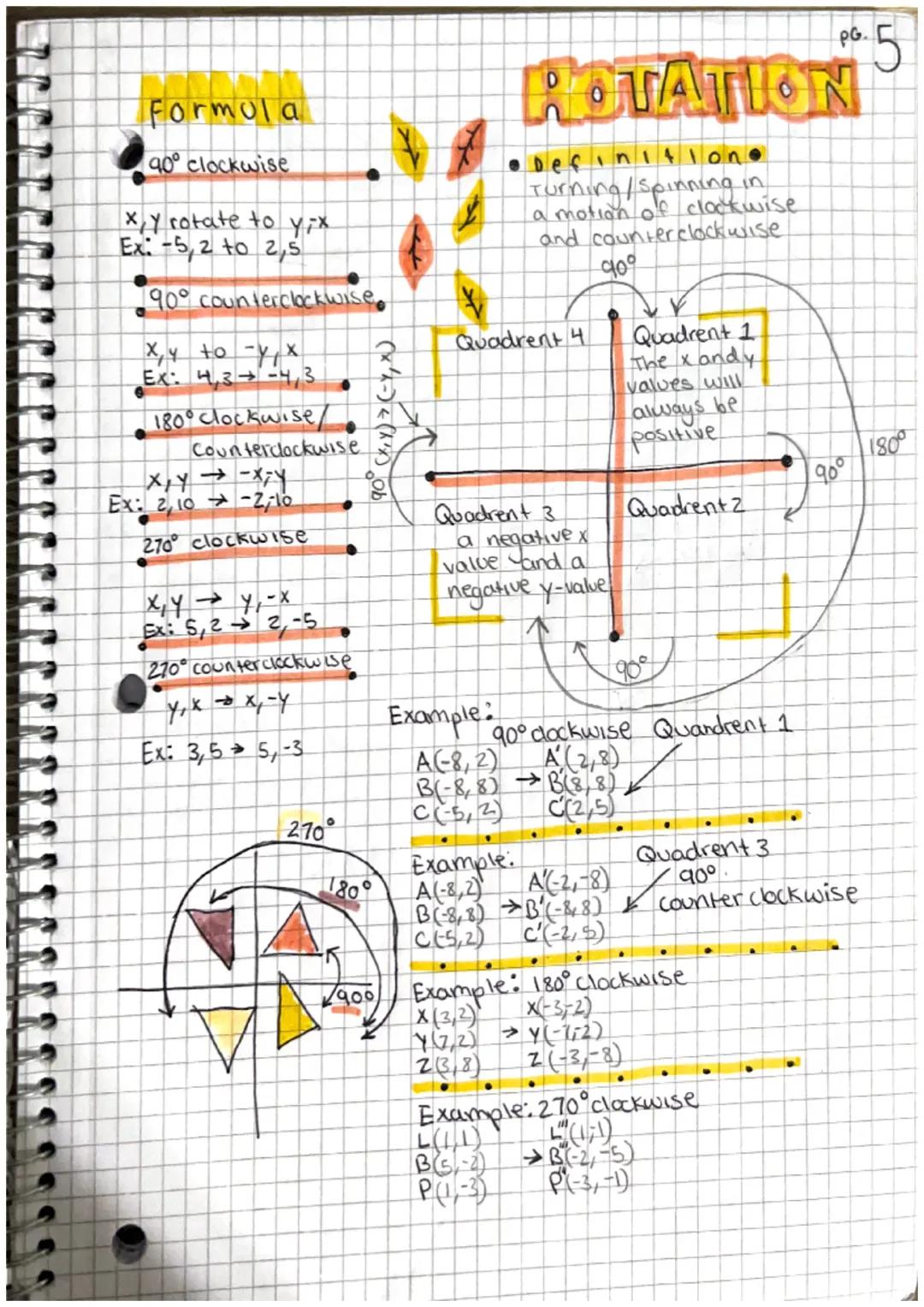

Rotations

Rotations involve turning shapes around a fixed point (usually the origin) by a specific angle. The shape maintains its size and form while changing position.

For a 90° clockwise rotation, use the formula (x,y) → $y,-x$. For example, (-5,2) becomes (2,5). A 90° counterclockwise rotation transforms coordinates to $-y,x$, so (4,3) becomes (-3,4).

A 180° rotation in either direction flips the signs of both coordinates: (x,y) → $-x,-y$. Point (2,10) becomes (-2,-10). This is like turning something completely upside down.

For 270° rotations, clockwise gives $y,-x$ while counterclockwise gives $x,-y$. Remember that a 270° clockwise rotation is the same as a 90° counterclockwise rotation!

🔄 When rotating points, imagine them circling around the origin. Each 90° movement follows predictable patterns in how coordinates change.

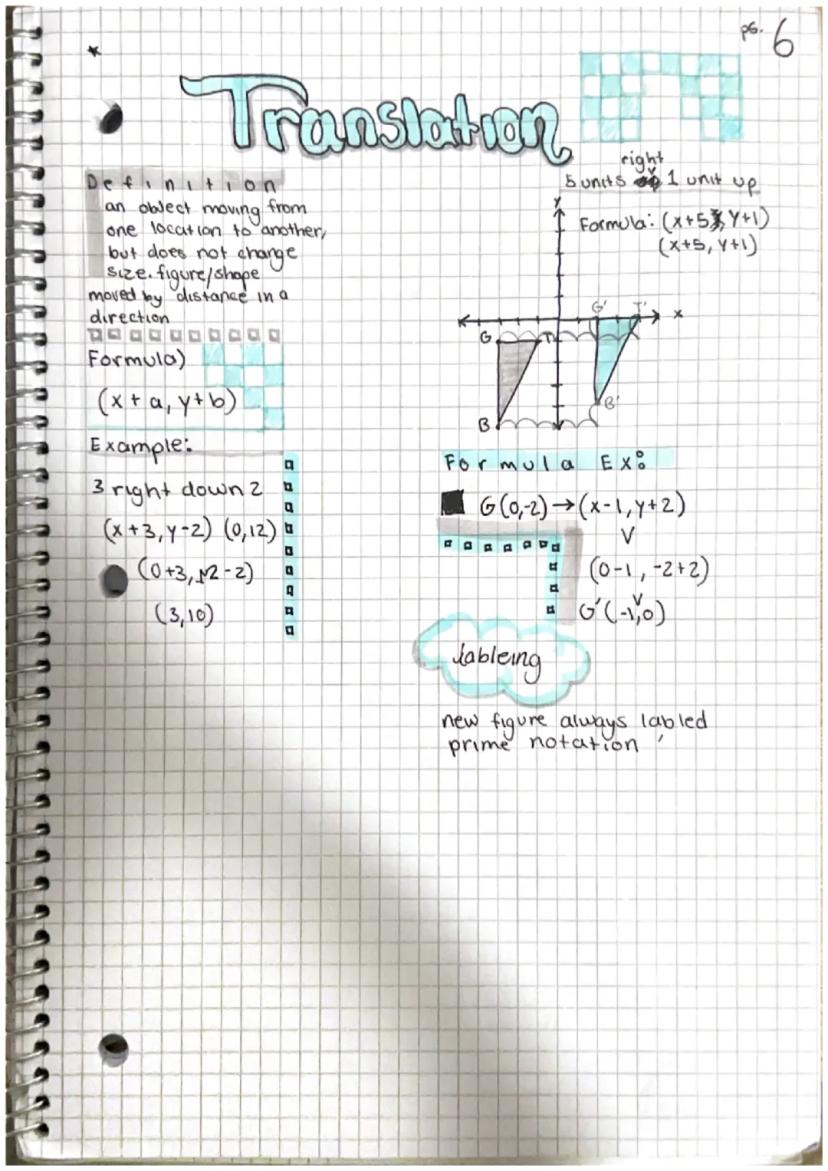

Translations

Translations move shapes from one location to another without changing their size or orientation. Think of sliding a shape across the coordinate plane.

To translate a point, you simply add values to each coordinate using the formula $x+a, y+b$. The values of "a" and "b" tell you how far to move right/left and up/down.

For example, moving a shape 5 units right and 1 unit up means using the formula $x+5, y+1$. If we have point (0,12) and translate it 3 units right and 2 units down, we calculate (0+3, 12-2) to get the new coordinates (3,10).

🏃‍♀️ When labeling translated shapes, use prime notation (like G') to show it's the same shape in a new position. This helps distinguish between the original and the transformed shape.
