Trigonometry connects angles and sides of triangles through special ratios.... Show more
Trigonometry100 views·Updated Jun 2, 2026·3 pagesUnderstanding Angles of Elevation and Depression
1 / 3
1
of 3
Trigonometric Ratios and Angle Calculations
Trigonometry begins with understanding the three basic ratios: sine, cosine, and tangent. These ratios help us find unknown angles and sides in right triangles.
For example, when we have a square with certain measurements, we can find unknown angles by applying trigonometric ratios. In one problem, we discovered that if , then x = 60°, and when , y = 45°.
When working with triangles, we can find missing sides using the appropriate ratios. If we know that a triangle has one side measuring $24\sqrt{3}$ and specific angles, we can determine other sides like BC = 24 by using the tangent ratio.
Remember This! The core trigonometric ratios are always: sine = opposite/hypotenuse, cosine = adjacent/hypotenuse, and tangent = opposite/adjacent. These are your keys to solving most trigonometry problems.
2
of 3

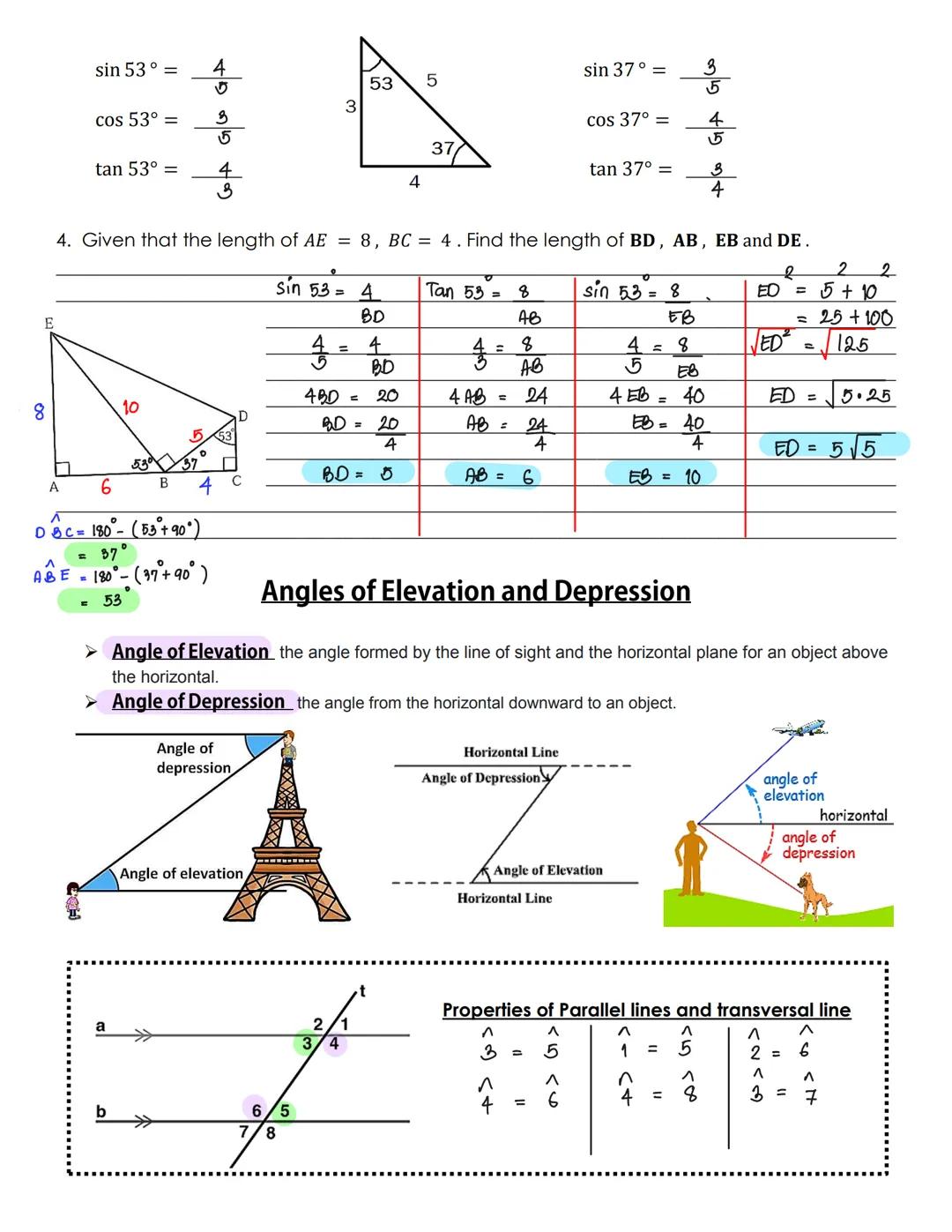

Important Trigonometric Values and Applications
Certain trigonometric values are worth memorizing to solve problems faster. For angles like 37° and 53°, knowing that sin 37° = 3/5 and sin 53° = 4/5 can save you calculation time.
When solving multi-step problems involving triangles, start by identifying what you know and what you need to find. For instance, if you know AE = 8 and BC = 4, you can use trigonometric ratios to find other lengths like BD = 5 and AB = 6.
The angle of elevation is the upward angle from the horizontal to an object above you, while the angle of depression is the downward angle from the horizontal to an object below. These concepts are crucial for solving real-world height and distance problems.
Helpful Tip: When working with parallel lines crossed by a transversal, the corresponding ratios often create proportions that can help you solve for unknown values.
3
of 3

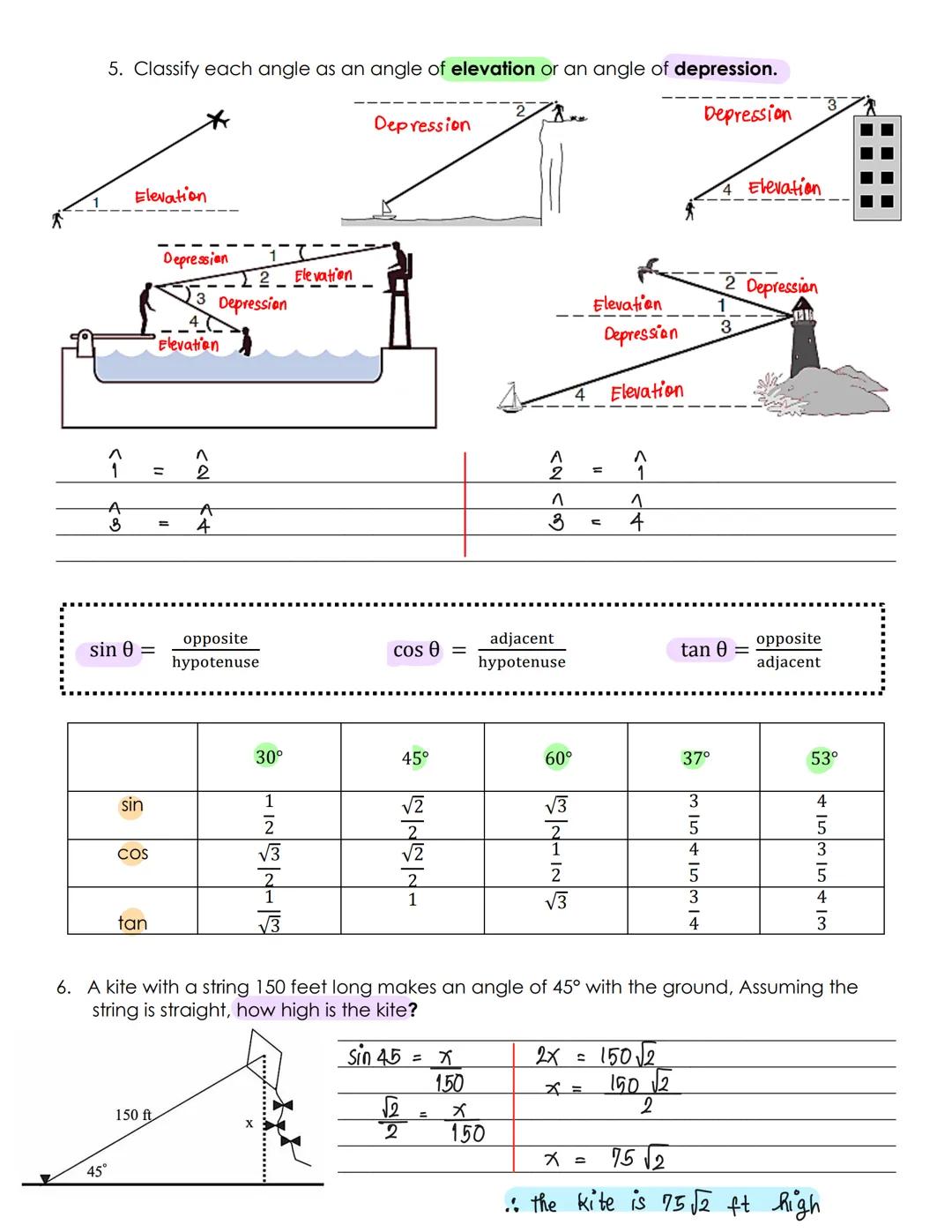

Applying Trigonometry to Real-World Problems
Learning to classify angles as elevation or depression helps you set up problems correctly. This skill is essential when dealing with situations involving heights, like buildings or kites, or depths, like valleys or underwater objects.
The trigonometric values for common angles are worth memorizing. For instance, sin 30° = 1/2, sin 45° = √2/2, and sin 60° = √3/2. Knowing these values speeds up your calculations considerably.
When solving real-world problems, draw a diagram first. For example, with a kite problem, we know the string is 150 feet long at a 45° angle. By using sin 45° = x/150, we can calculate that the kite is 75√2 feet high.
Try This Approach: When tackling a trigonometry word problem, always start by drawing a clear diagram and labeling what you know and what you're trying to find. This makes the math much easier!
