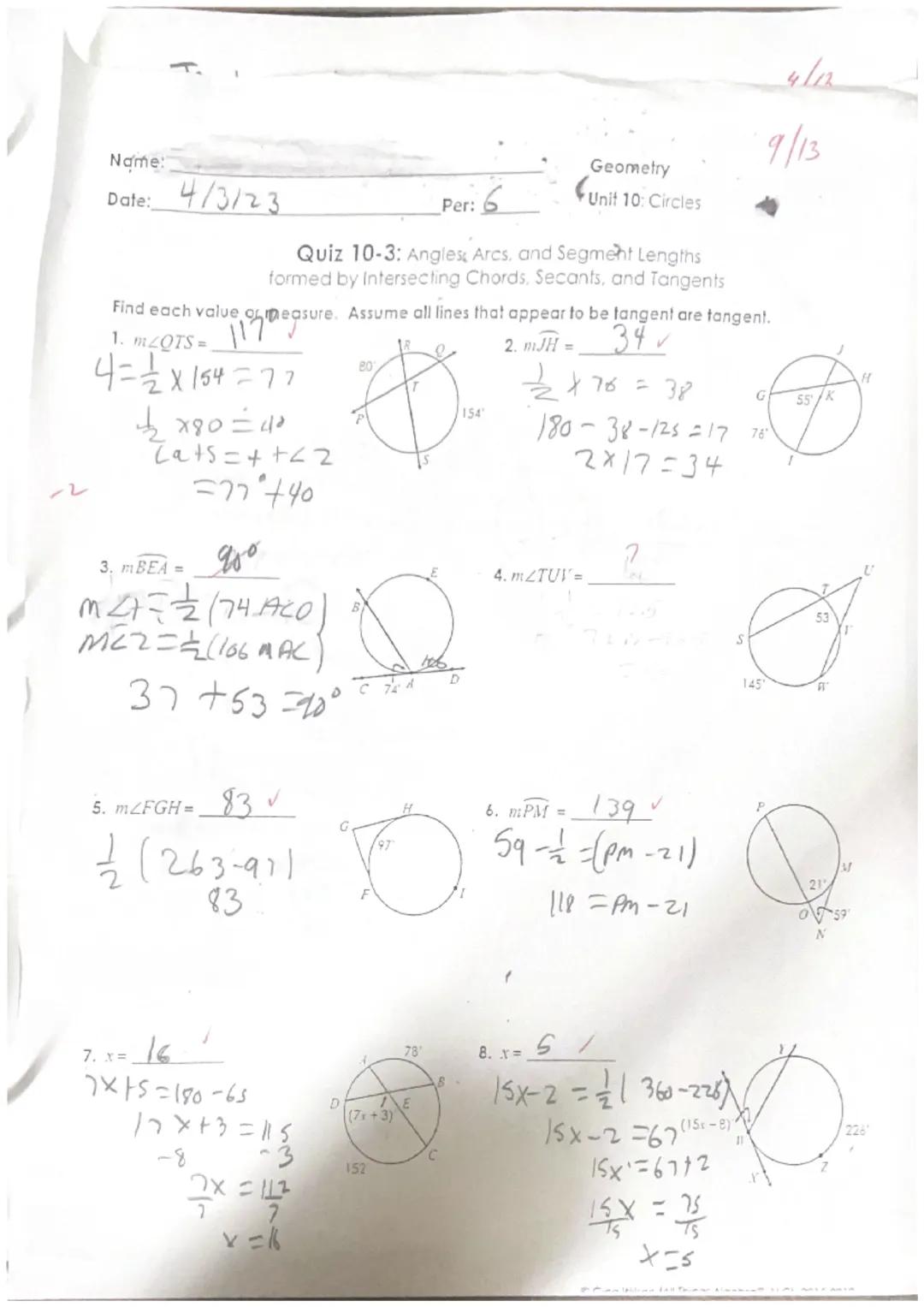

Angles and Arcs in Circles
When lines intersect in and around circles, they create angles with special relationships. An inscribed angle (an angle formed by two chords that meet on the circle) measures half the arc it intercepts.
For angles formed by intersecting chords inside a circle, the measure equals half the sum of the intercepted arcs. When an angle is formed by a tangent and chord (meeting at the point of tangency), that angle measures half the intercepted arc.
Helpful Tip: When you see intersecting lines in circle problems, first identify what type of lines they are (chords, secants, or tangents) and where they intersect (inside, on, or outside the circle).
When working with angles formed by secants or tangents from an external point, the angle measure equals half the difference of the intercepted arcs. These patterns might seem complex at first, but they follow consistent rules that make solving circle problems straightforward once you recognize the pattern.
For circle problems involving variables, set up your equation using these angle relationships, then solve algebraically. Remember that a full circle contains 360°, which can help you find missing arc measures.
2
of 2

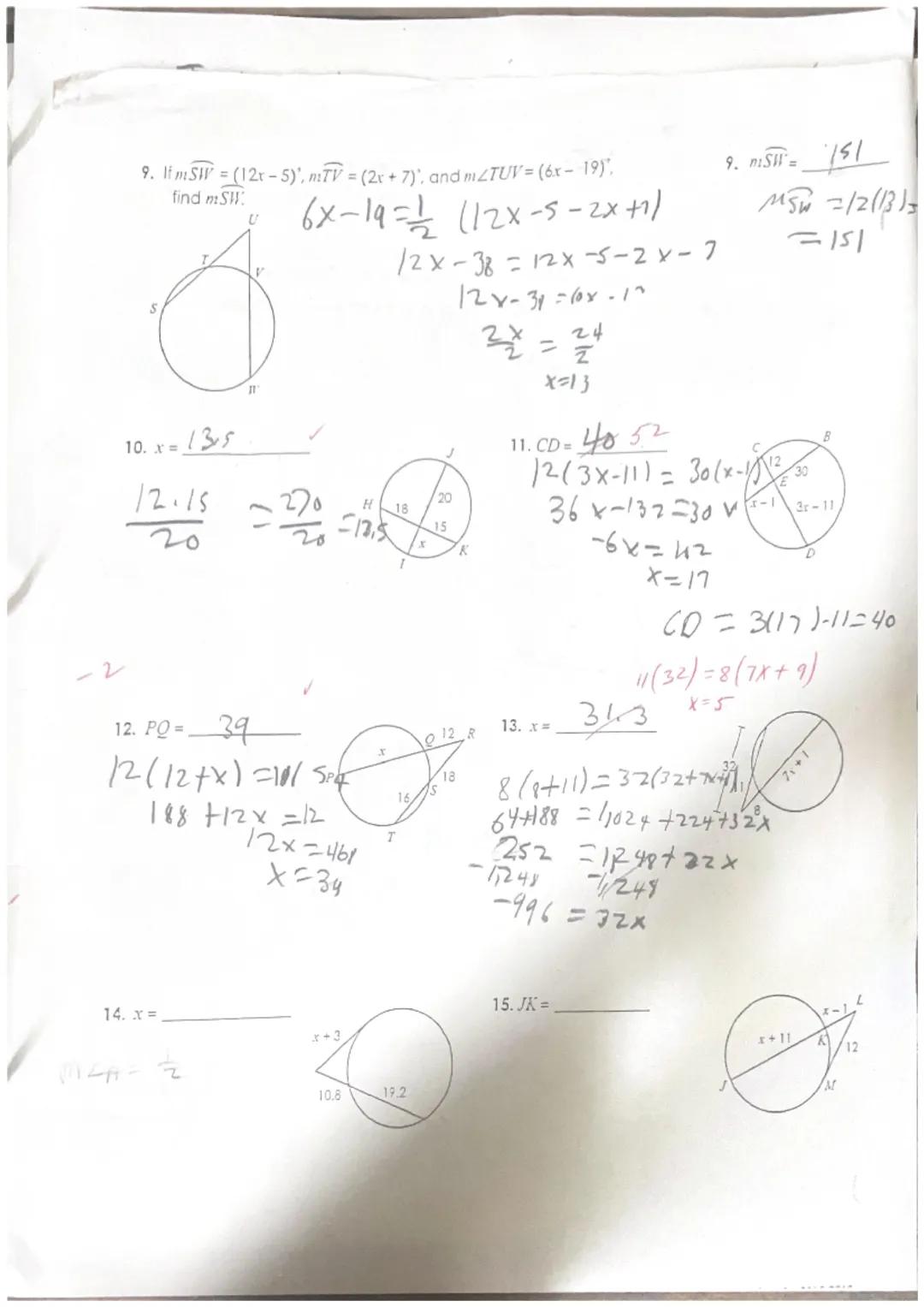

Segment Lengths in Circles
When chords, secants, and tangents intersect, they create segments with interesting length relationships. If two chords intersect inside a circle, the products of the segments of each chord are equal. This is called the chord-chord power theorem.
For secant segments from an external point, the product of the entire secant and its external part equals the product of the other entire secant and its external part. If one line is a tangent and the other a secant, the square of the tangent length equals the product of the entire secant and its external part.
Remember This: When solving segment length problems, always multiply the entire segment by its external part (the portion outside the circle).
These relationships allow you to set up equations and solve for unknown lengths. For example, if you have the equation 12 = 30, you can solve algebraically to find the value of x, then substitute to find the required segment length.
When working with proportional segments, remember that similar triangles form when secants and tangents intersect. This creates ratios you can use to find unknown lengths, making these problems accessible once you understand the pattern.
