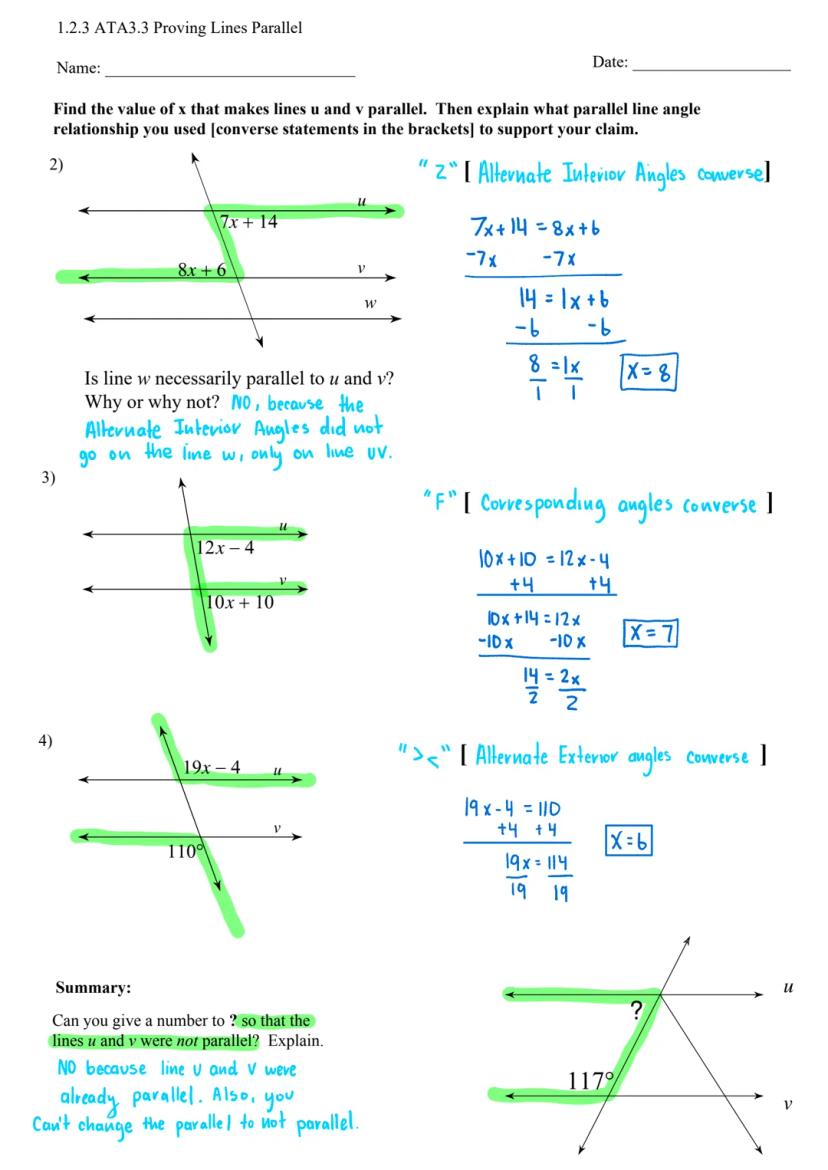

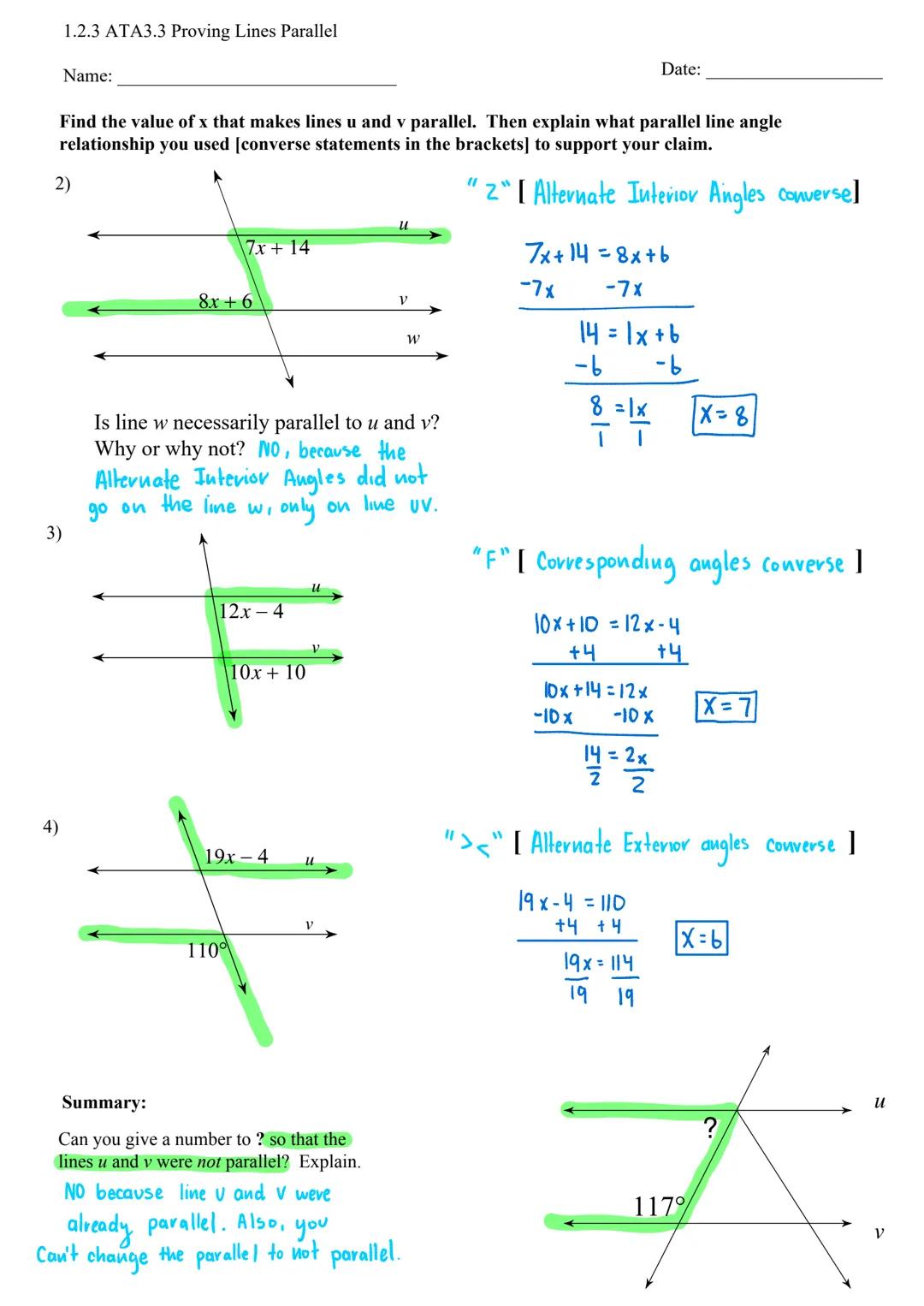

This page demonstrates practical applications of parallel line proofs through algebraic problem-solving.

Example: Finding x-values to make lines parallel using:

• 7x + 14 = 8x + 6 (Alternate Interior Angles)
• 10x + 10 = 12x - 4 (Corresponding Angles)
• 19x - 4 = 110° (Alternate Exterior Angles)

Highlight: The page emphasizes that once lines are proven parallel, they cannot be made non-parallel by changing angle values.

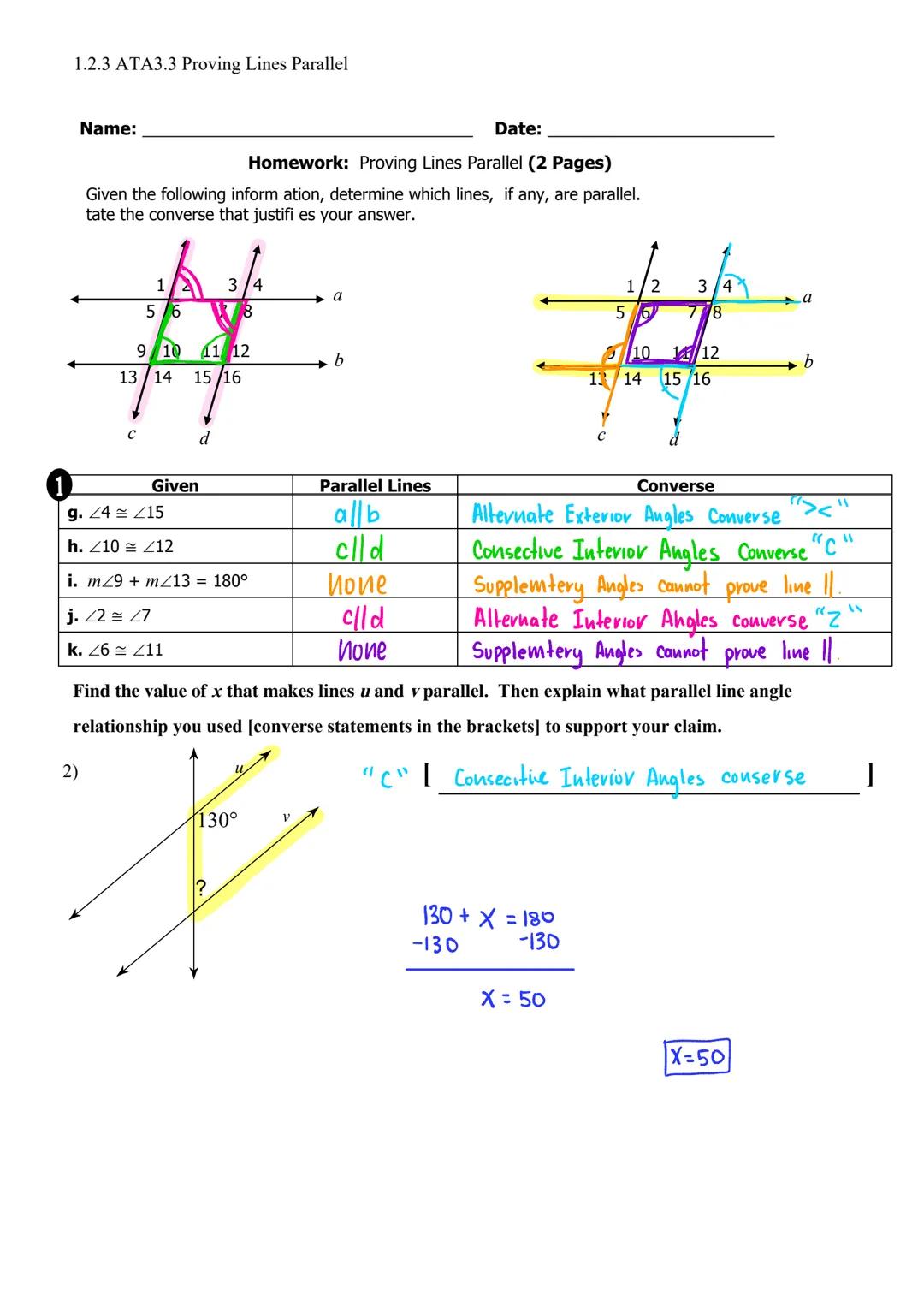

This page presents more complex problems involving parallel line proofs and angle relationships.

Vocabulary: Supplementary angles - Two angles that sum to 180 degrees

Example: Problem solving using consecutive interior angles where 130° + x = 180°, leading to x = 50°

Highlight: The importance of identifying which angle relationships can and cannot prove lines parallel

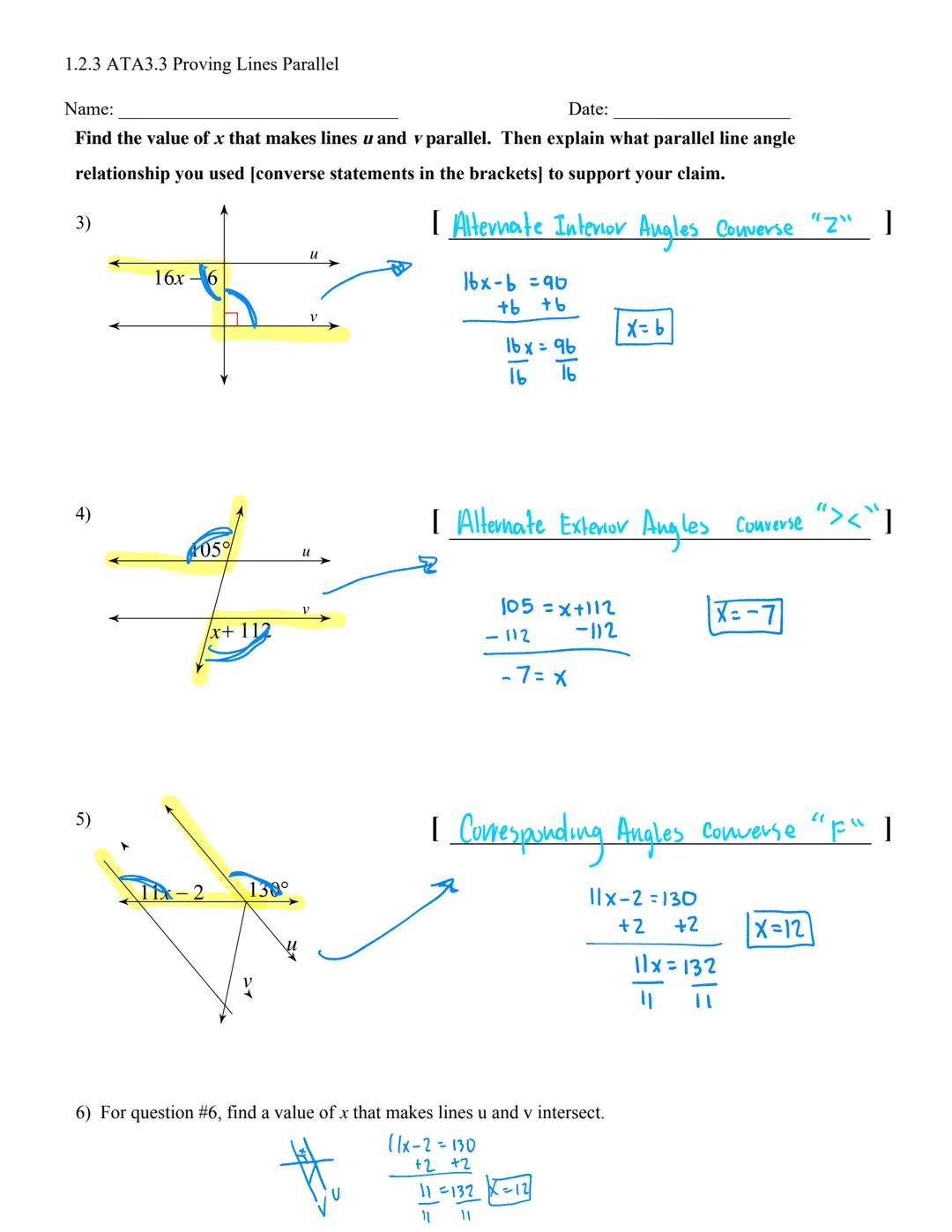

This page focuses on advanced problem-solving techniques using parallel line theorems.

Example: Solving equations like 16x - 6 = 90° using alternate interior angles converse

Highlight: The page demonstrates how to find values that make lines both parallel and intersecting, showing the versatility of these geometric concepts

Definition: Intersecting lines are lines that cross at a single point, forming four angles

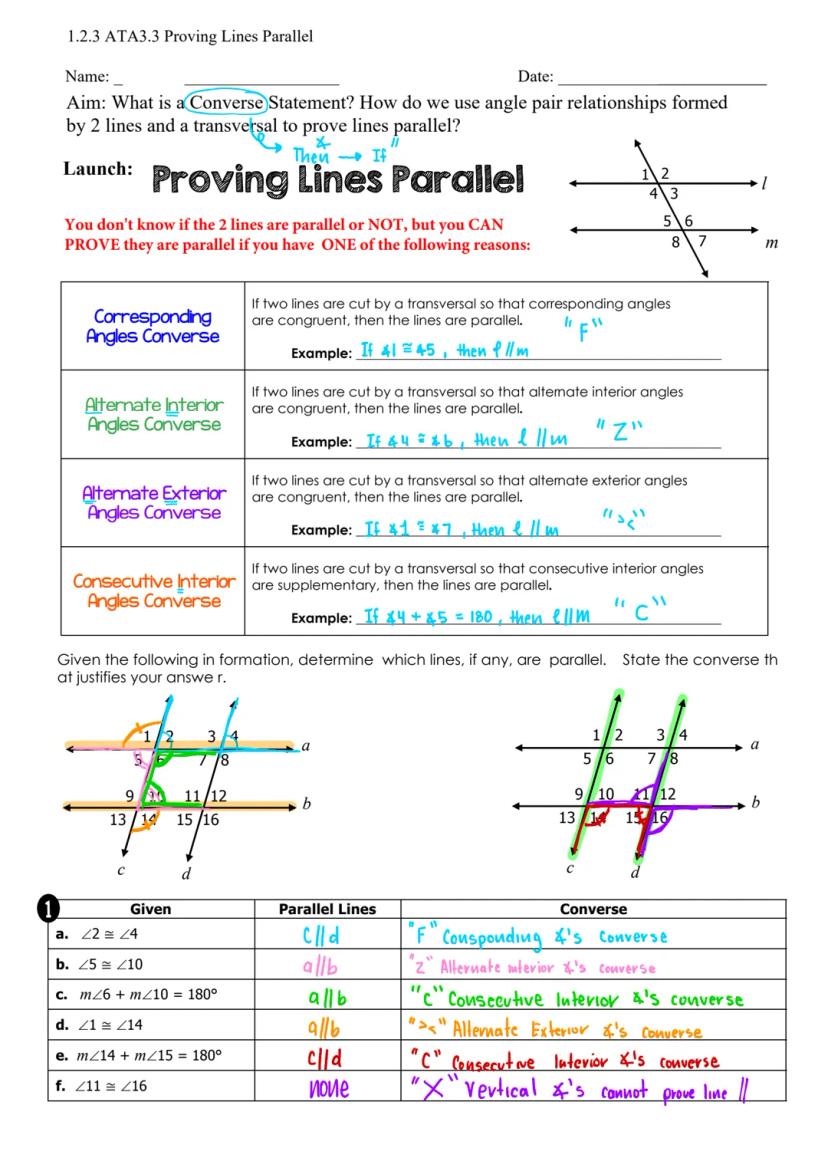

This page introduces the core concepts of parallel line angle relationships lesson notes. The content explains how to prove lines are parallel using four distinct angle pair relationships.

Definition: A converse statement is a reversed if-then statement used to prove geometric relationships.

Highlight: Four main methods to prove lines parallel:

• Corresponding Angles Converse
• Alternate Interior Angles Converse
• Alternate Exterior Angles Converse
• Consecutive Interior Angles Converse

Example: If corresponding angles are congruent (∠4 = ∠5), then the lines are parallel.
