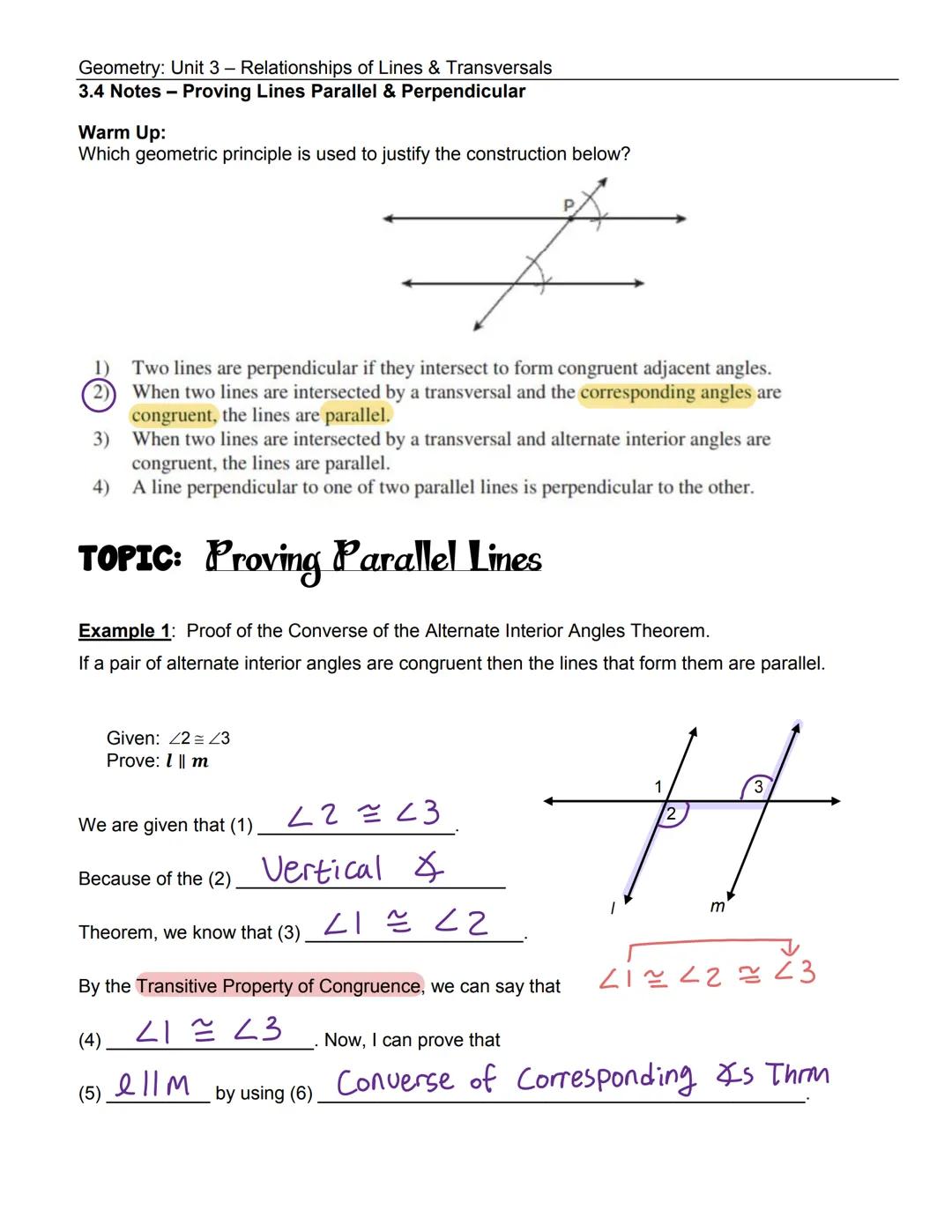

Proving Lines Parallel

Ever wondered how mathematicians can be so certain that lines will never intersect? It's all about the angles!

When two lines are cut by a transversal (a line crossing both), we can use special angle relationships to prove the lines are parallel. The key theorem to remember is: if alternate interior angles are congruent, then the lines are parallel.

Let's see this in action with a proof:

• Given: ∠2 ≅ ∠3 (congruent alternate interior angles)
• Prove: lines l and m are parallel
• Since ∠2 ≅ ∠3 (given), and ∠1 ≅ ∠2 (by Vertical Angles Theorem), we can use the Transitive Property to conclude that ∠1 ≅ ∠3
• Therefore, l ∥ m by the Converse of Corresponding Angles Theorem

Quick Tip: Whenever you see congruent angles in specific positions (corresponding, alternate interior, or alternate exterior), think "parallel lines" right away!

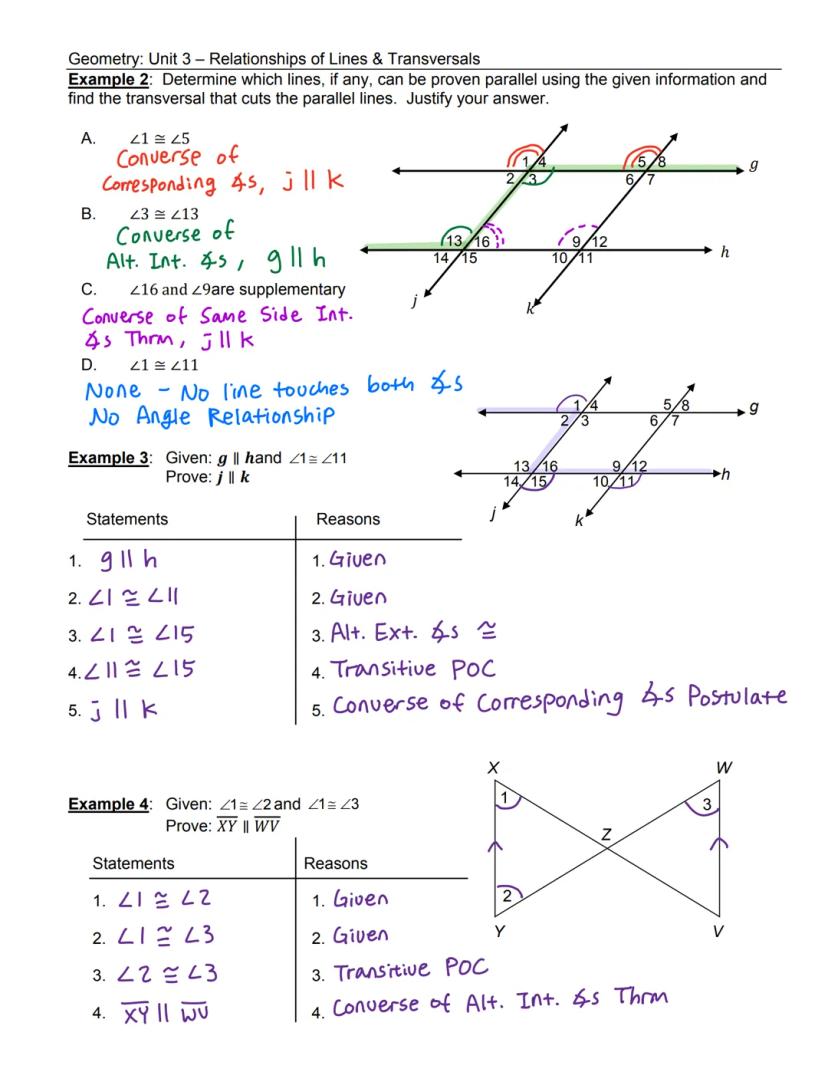

Identifying Parallel Lines

You'll often need to determine which lines are parallel based on given angle relationships. Here's how to approach these problems:

When examining a diagram with multiple lines and angles, look for these key relationships:

• Corresponding angles that are congruent (like ∠1 ≅ ∠5) tell us the lines are parallel
• Alternate interior angles that are congruent (like ∠3 ≅ ∠13) also indicate parallel lines
• Same-side interior angles that are supplementary work too

In a proof, you'll often use these angle relationships along with the transitive property to establish parallelism. For example, if we know g ∥ h and ∠1 ≅ ∠11, we can prove j ∥ k by showing that ∠11 ≅ ∠15 (a corresponding angle with j and k).

Sometimes you'll need to build a chain of angle relationships. If ∠1 ≅ ∠2 and ∠1 ≅ ∠3, then by the Transitive Property, ∠2 ≅ ∠3, which proves the lines are parallel by the Converse of Alternate Interior Angles Theorem.

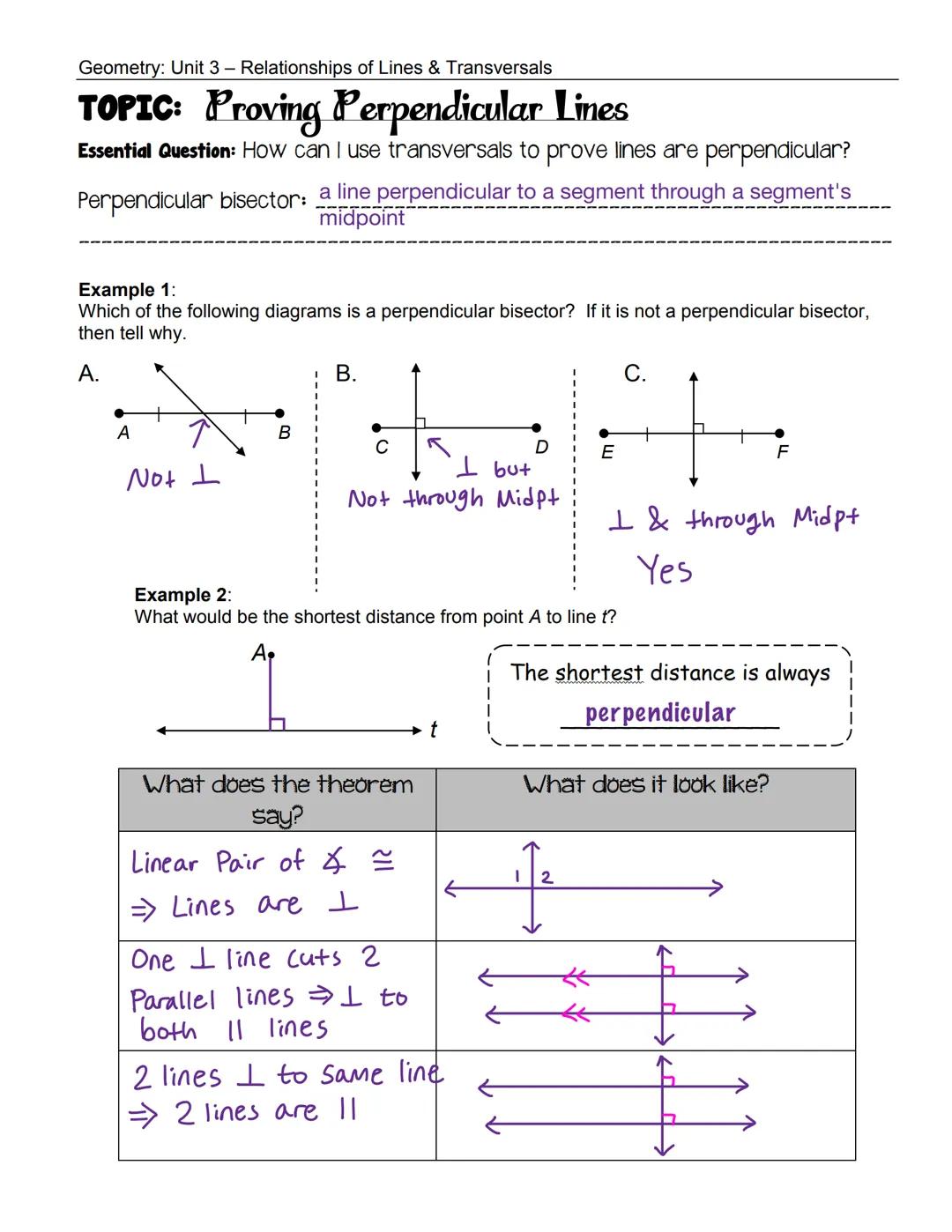

Proving Perpendicular Lines

Right angles are everywhere in geometry! Being able to prove lines are perpendicular is a crucial skill.

A perpendicular bisector is a special line that's perpendicular to a segment and passes through its midpoint. This concept comes up frequently in constructions and proofs. Remember that a true perpendicular bisector must satisfy both conditions - being perpendicular AND passing through the midpoint.

When finding the shortest distance from a point to a line, you always draw a perpendicular line from the point to the line. This is a fundamental principle used in many geometric applications.

Remember this! If a pair of angles forms a linear pair (adjacent angles on a straight line) and they're congruent, then the lines forming those angles are perpendicular.

Important theorems about perpendicular lines:

• If one line is perpendicular to one of two parallel lines, it's perpendicular to both
• Two lines perpendicular to the same line are parallel to each other

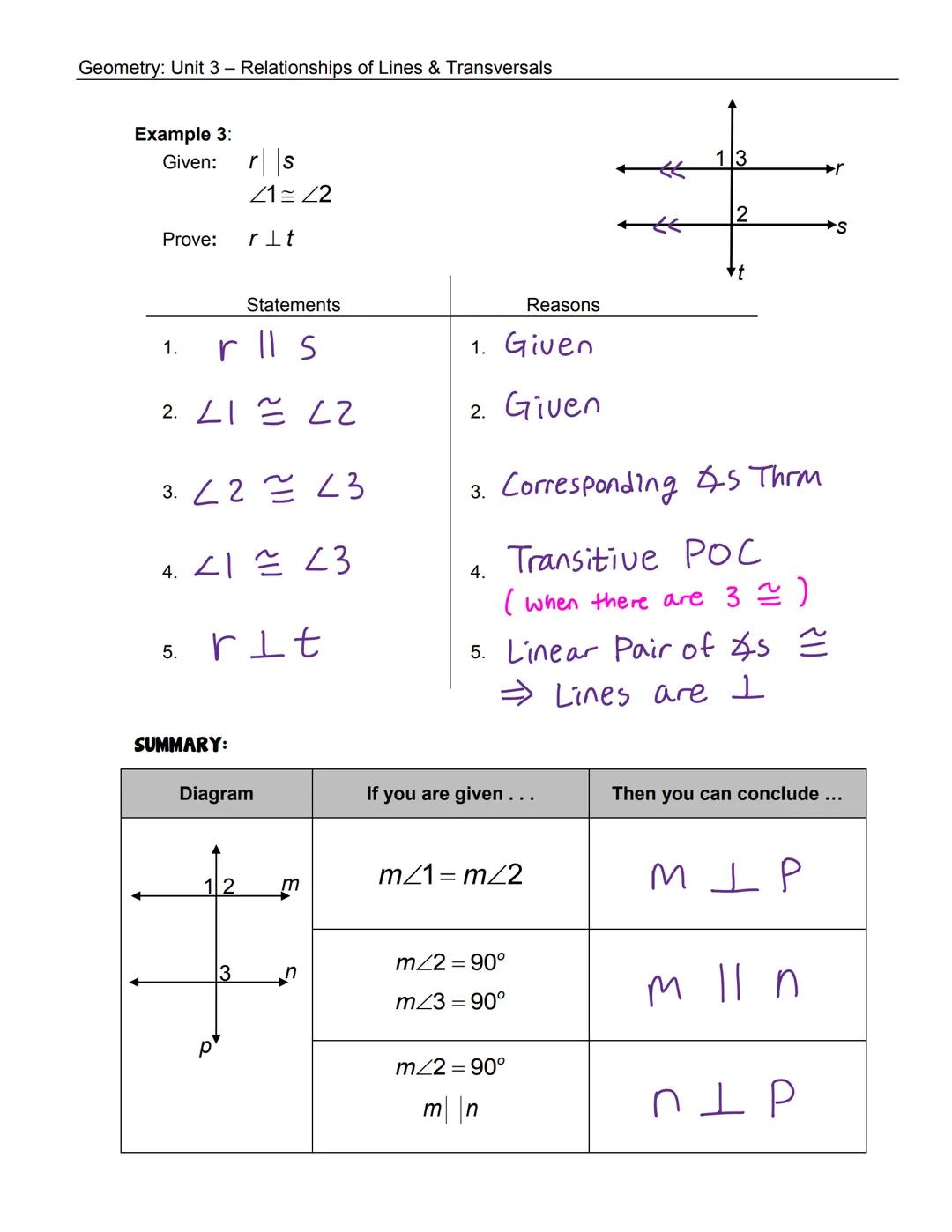

Perpendicular Line Proofs

Proving lines are perpendicular often requires combining multiple theorems about parallel and perpendicular lines.

Let's work through an example proof:

• Given: r ∥ s and ∠1 ≅ ∠2
• Prove: r ⊥ t
• Since r ∥ s, we know ∠2 ≅ ∠3 (Corresponding Angles Theorem)
• Using the Transitive Property, we can say ∠1 ≅ ∠3
• Since ∠1 and ∠3 form a linear pair and are congruent, each angle must be 90°
• Therefore, r ⊥ t

Remember these key relationships for tests:

• If a linear pair of angles are congruent, the lines are perpendicular
• If one line is perpendicular to one of two parallel lines, it's perpendicular to both
• If two lines are each perpendicular to the same line, those two lines are parallel

These relationships form a powerful toolkit for solving complex geometric problems and constructing rigorous proofs.
