Parallel Lines & Transversals Theorems

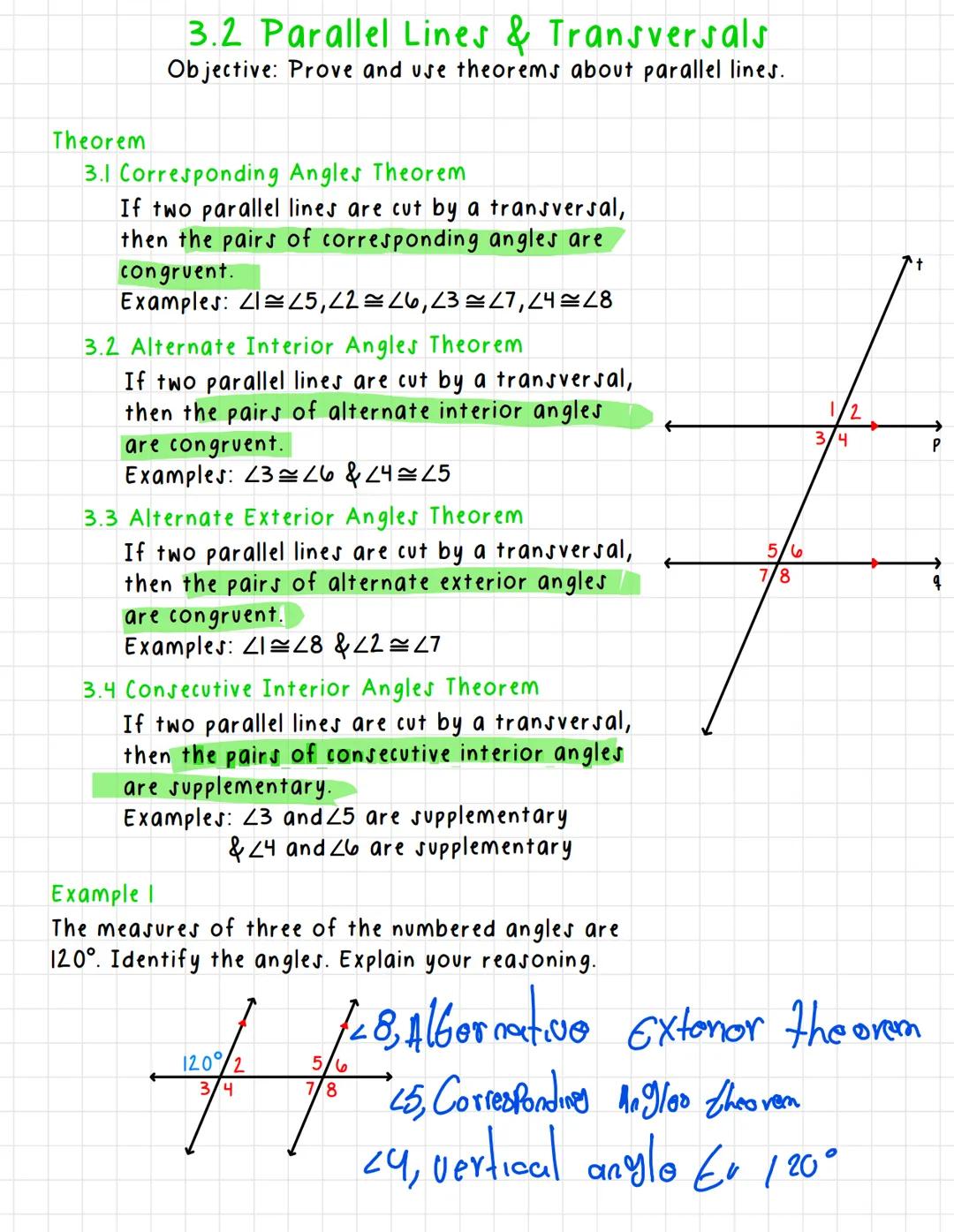

When parallel lines are cut by another line (called a transversal), special angle relationships are formed. These relationships are defined by four key theorems:

The Corresponding Angles Theorem states that when parallel lines are cut by a transversal, corresponding angles (angles in the same position) are congruent. Examples include angles 1 and 5, 2 and 6, 3 and 7, and 4 and 8.

The Alternate Interior Angles Theorem tells us that alternate interior angles (inside the parallel lines but on opposite sides of the transversal) are congruent. This includes angles 3 and 6, as well as 4 and 5.

💡 Think of these theorems as tools in your geometry toolkit - each one gives you a specific way to find congruent or supplementary angles when working with parallel lines!

The Alternate Exterior Angles Theorem states that alternate exterior angles (outside the parallel lines but on opposite sides of the transversal) are congruent. Examples include angles 1 and 8, and angles 2 and 7.

The Consecutive Interior Angles Theorem tells us that consecutive interior angles (inside the parallel lines on the same side of the transversal) are supplementary, meaning they add up to 180°. Examples include angles 3 and 5, and angles 4 and 6.

Applying Parallel Line Theorems

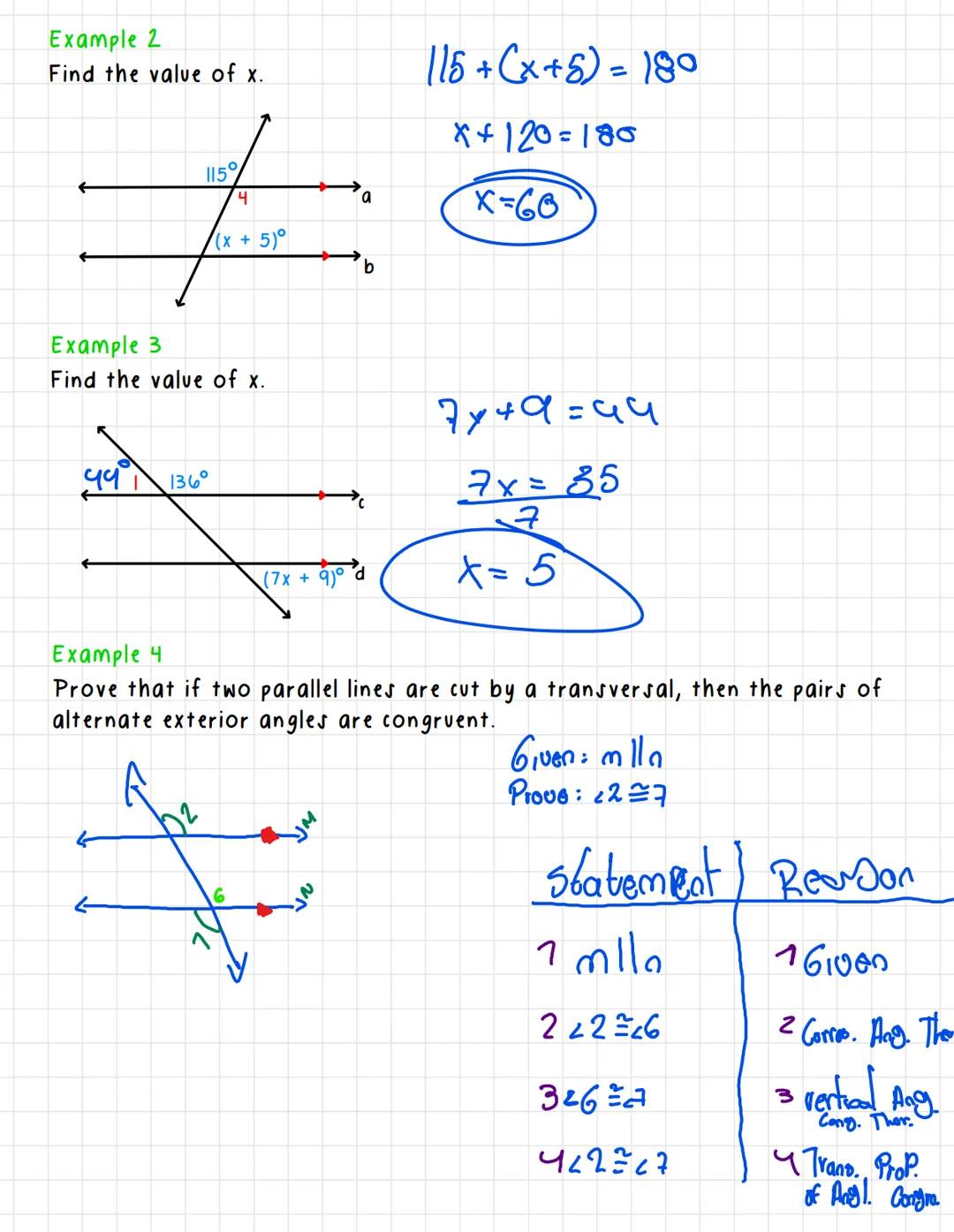

When solving angle problems with parallel lines, you'll often need to find unknown angle values. For example, if one angle is 115° and forms a consecutive interior angle pair with another angle measuring $x+5$°, you can write the equation: 115° + $x+5$° = 180°. Solving this gives x = 60°.

Similarly, when working with more complex expressions like $7x+9$°, you can use the appropriate theorem to set up and solve your equation. If this angle is congruent to a 44° angle based on the alternate exterior angles theorem, then 7x+9 = 44, so x = 5.

🔑 Remember that these theorems can be connected using the transitive property: if angle A ≅ angle B and angle B ≅ angle C, then angle A ≅ angle C!

Proofs involving parallel lines follow a structured format. For example, to prove the Alternate Exterior Angles Theorem, you might start with parallel lines as given, then use the Corresponding Angles Theorem to show that an angle equals a corresponding angle. Then use the Vertical Angles Theorem and finally the Transitive Property to complete the proof.
