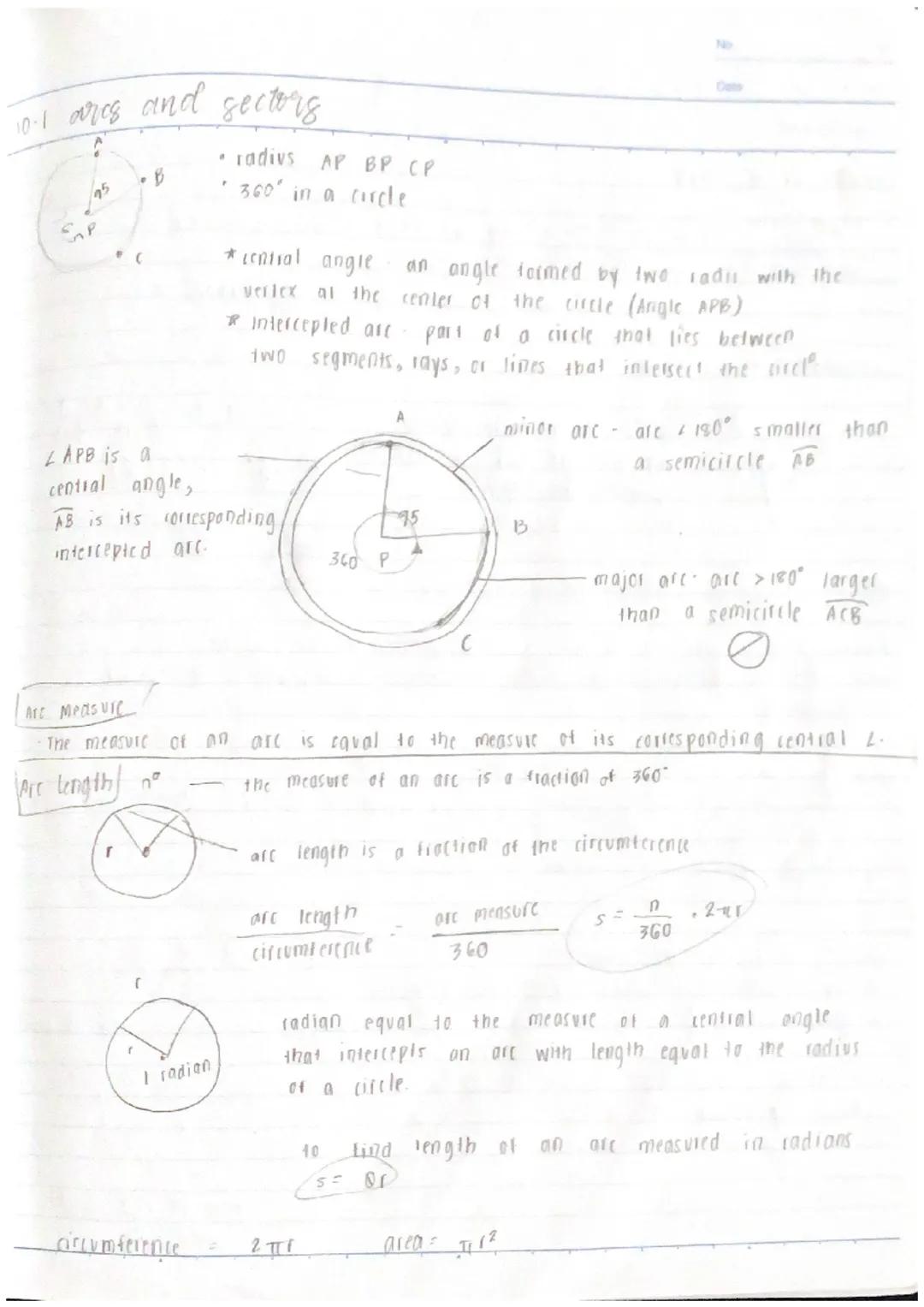

Arcs and Central Angles

When you draw two radii from the center of a circle, they form a central angle. This angle creates an intercepted arc on the circle. For example, if angle APB measures 95°, the arc AB also measures 95° - the arc measure equals its central angle!

Arcs come in two types: minor arcs (less than 180°) and major arcs (greater than 180°). To find the actual length of an arc, you need to calculate what fraction of the circle it represents. The formula is: Arc length = $arc measure/360°$ × 2πr

💡 Think of arc measure as the "angle size" (in degrees), while arc length is the actual distance along the curved edge (like measuring with a string).

When working with radians instead of degrees, things get simpler! A radian equals the angle that creates an arc equal in length to the radius. For arc length in radians: s = rθ, where θ is the angle in radians.

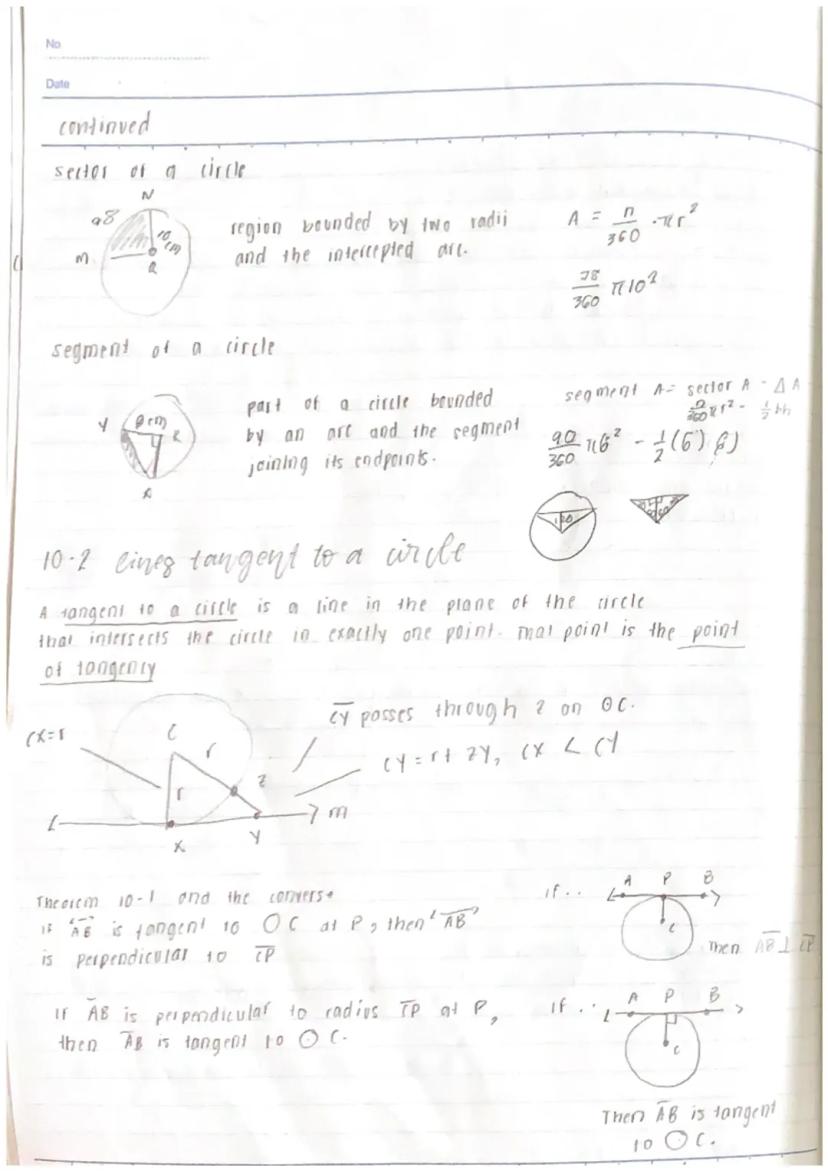

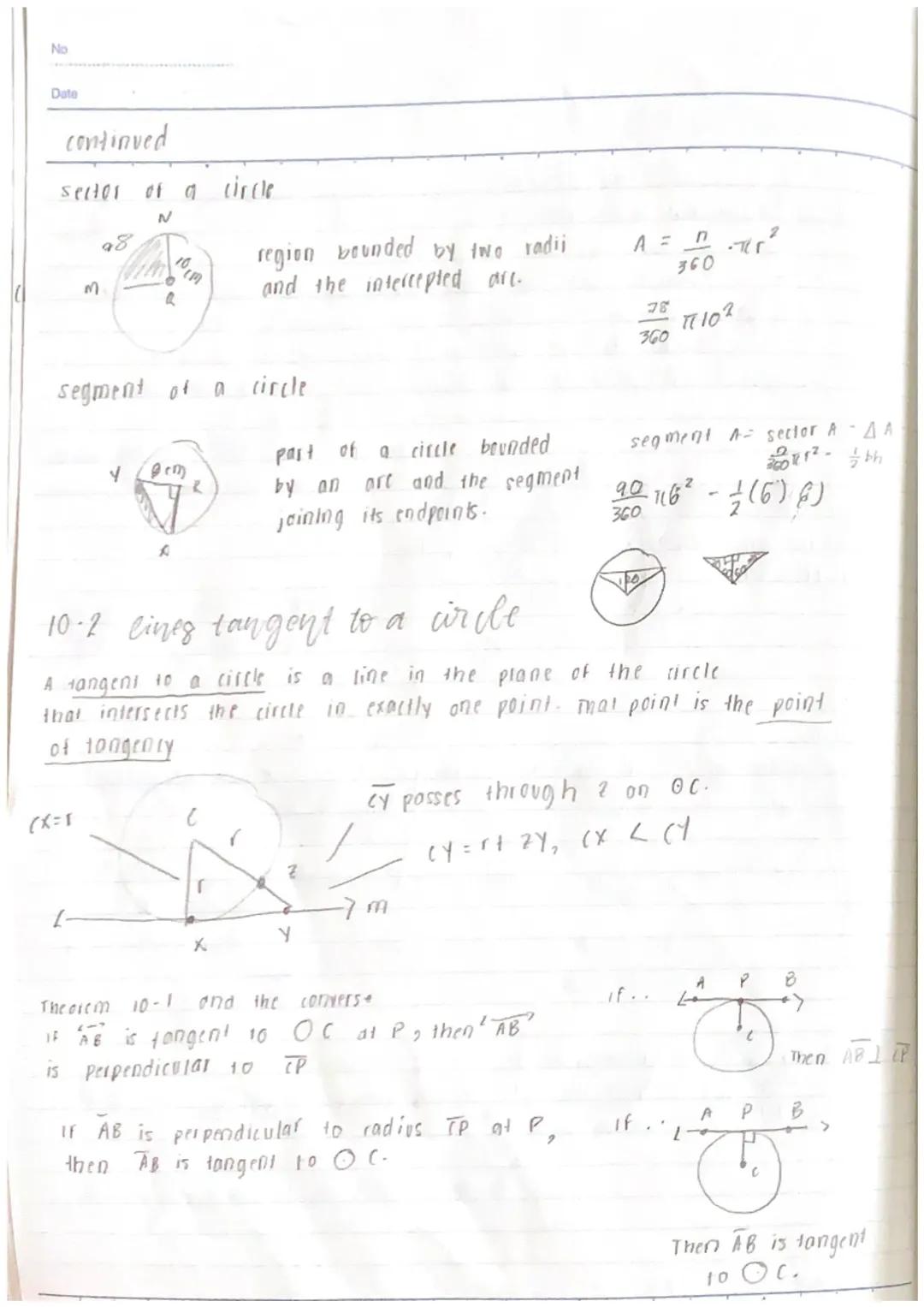

Sectors, Segments, and Tangent Lines

A sector looks like a pizza slice - it's the region bounded by two radii and their intercepted arc. To find its area, use the formula: A = $n/360°$ × πr², where n is the measure of the central angle.

A segment of a circle is different from a sector. It's the region bounded by an arc and the chord joining the arc's endpoints. To find a segment's area, subtract the area of the triangle from the sector: Segment area = Sector area - Triangle area.

Tangent lines touch a circle at exactly one point (the point of tangency). Here's a key rule: a tangent line is always perpendicular to the radius at the point of tangency. If you know a line is perpendicular to a radius at the circle's edge, you can be sure it's tangent to the circle.

💡 Tangent segments drawn from the same external point to a circle are always equal in length. This is super helpful for solving many geometry problems!

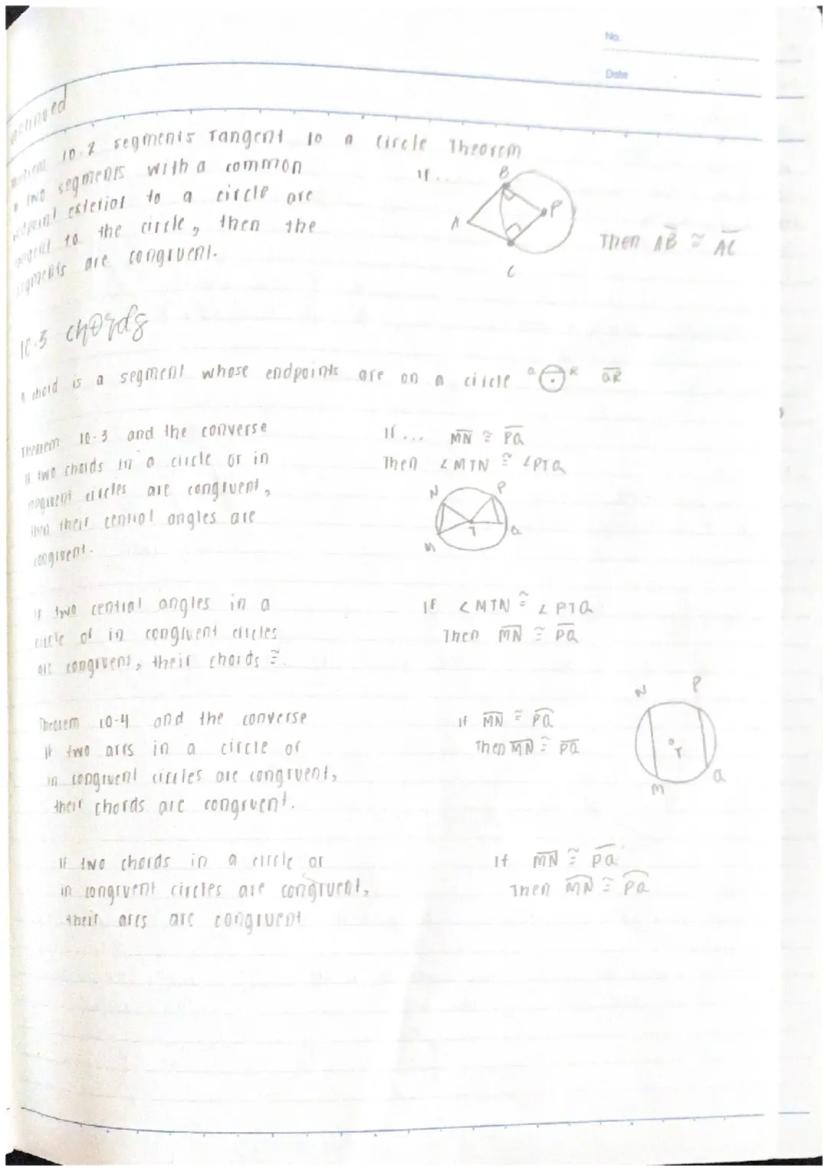

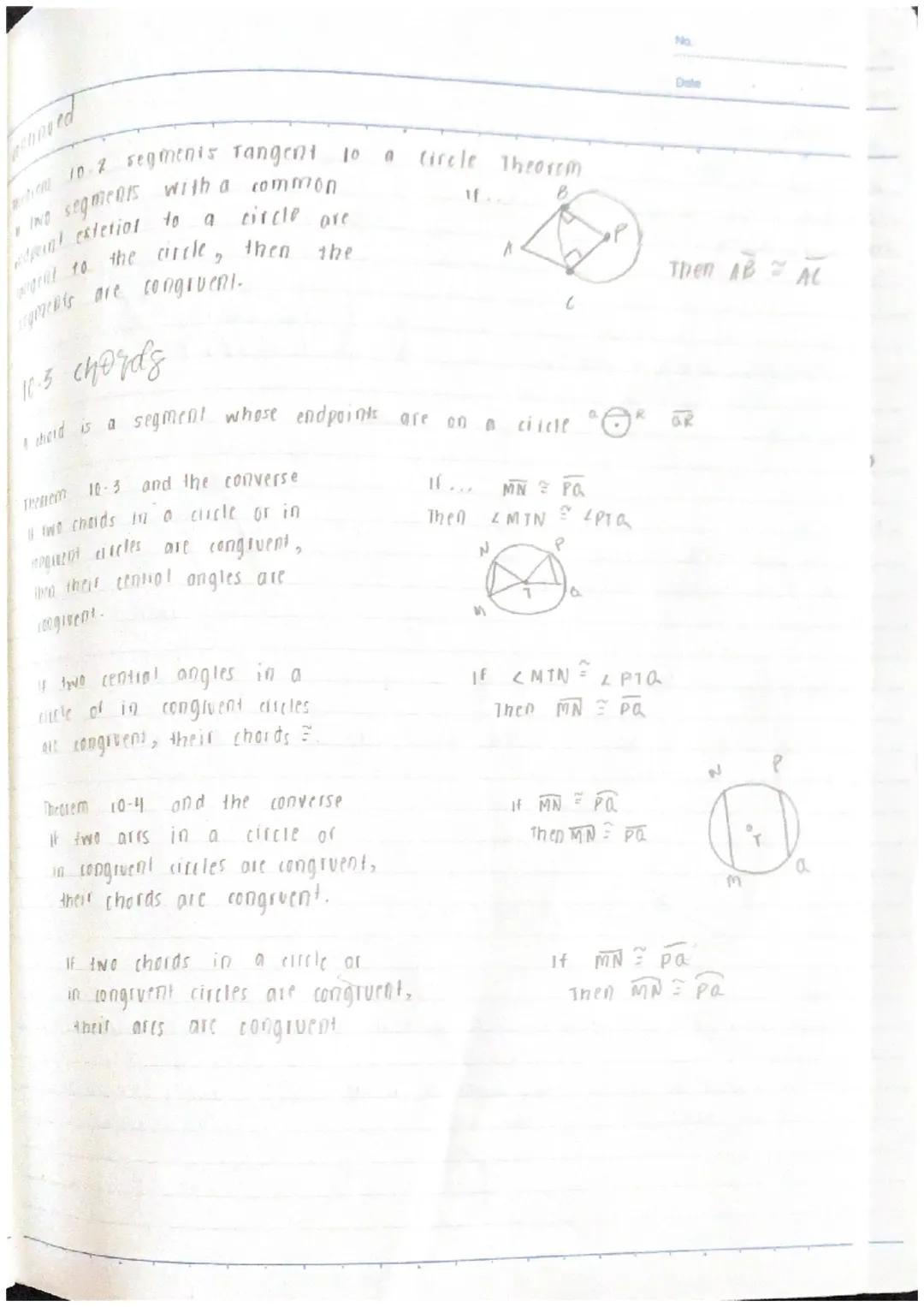

Chords and Their Properties

Chords are segments that connect any two points on a circle. They have several important relationships that help us solve problems:

If two chords in a circle are equal in length, then their central angles are equal too. This works both ways - equal central angles mean equal chords! This relationship extends to arcs as well: equal arcs have equal chords, and equal chords mean equal arcs.

When working with chords, remember these key relationships to help you solve problems faster. These properties are especially useful when you need to find missing lengths or angle measures in circle problems.

💡 Think of chords like guitar strings - when two strings have the same length on the same guitar, they create similar notes (or in our case, similar measurements in the circle).

The relationship between chords and central angles gives us a powerful tool for analyzing circles, especially when comparing different parts of the same circle or comparing similar circles.

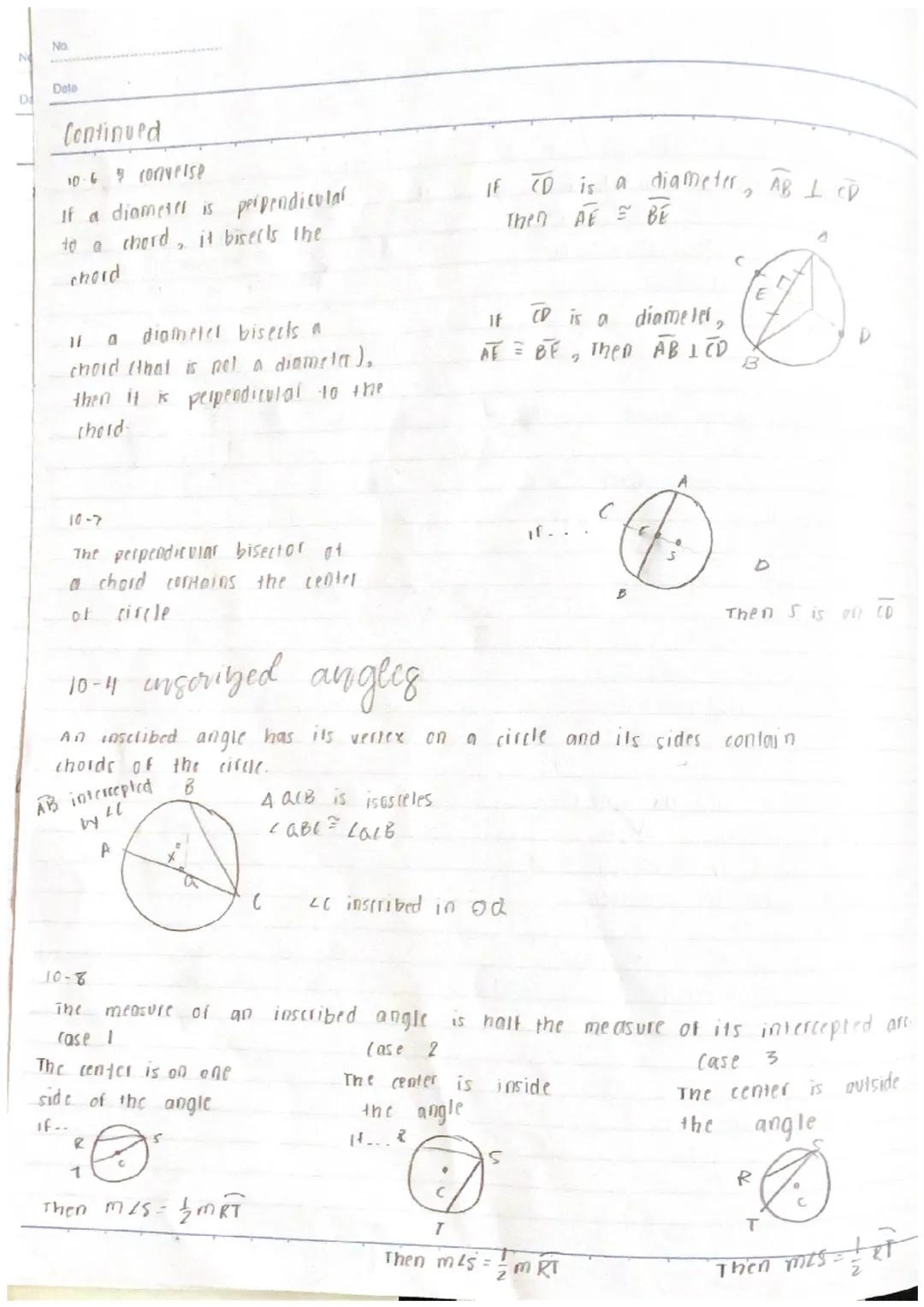

Diameters, Chords and Inscribed Angles

A diameter has special relationships with chords. If a diameter is perpendicular to a chord, it bisects (cuts in half) that chord. This works in reverse too - if a diameter bisects a chord, then it must be perpendicular to that chord.

Another cool fact: the perpendicular bisector of any chord always passes through the center of the circle. You can use this to find a circle's center just by constructing perpendicular bisectors of two chords!

Inscribed angles have their vertex on the circle with sides that contain chords. The measure of an inscribed angle is always half the measure of its intercepted arc. This works in all cases, whether the center is on one side of the angle, inside the angle, or outside it.

💡 Here's an amazing fact: any angle inscribed in a semicircle is a right angle (90°)! This property is super helpful for finding right angles in geometric problems.

A special property of inscribed quadrilaterals $four-sided shapes with all vertices on a circle$: their opposite angles are supplementary, meaning they add up to 180°.

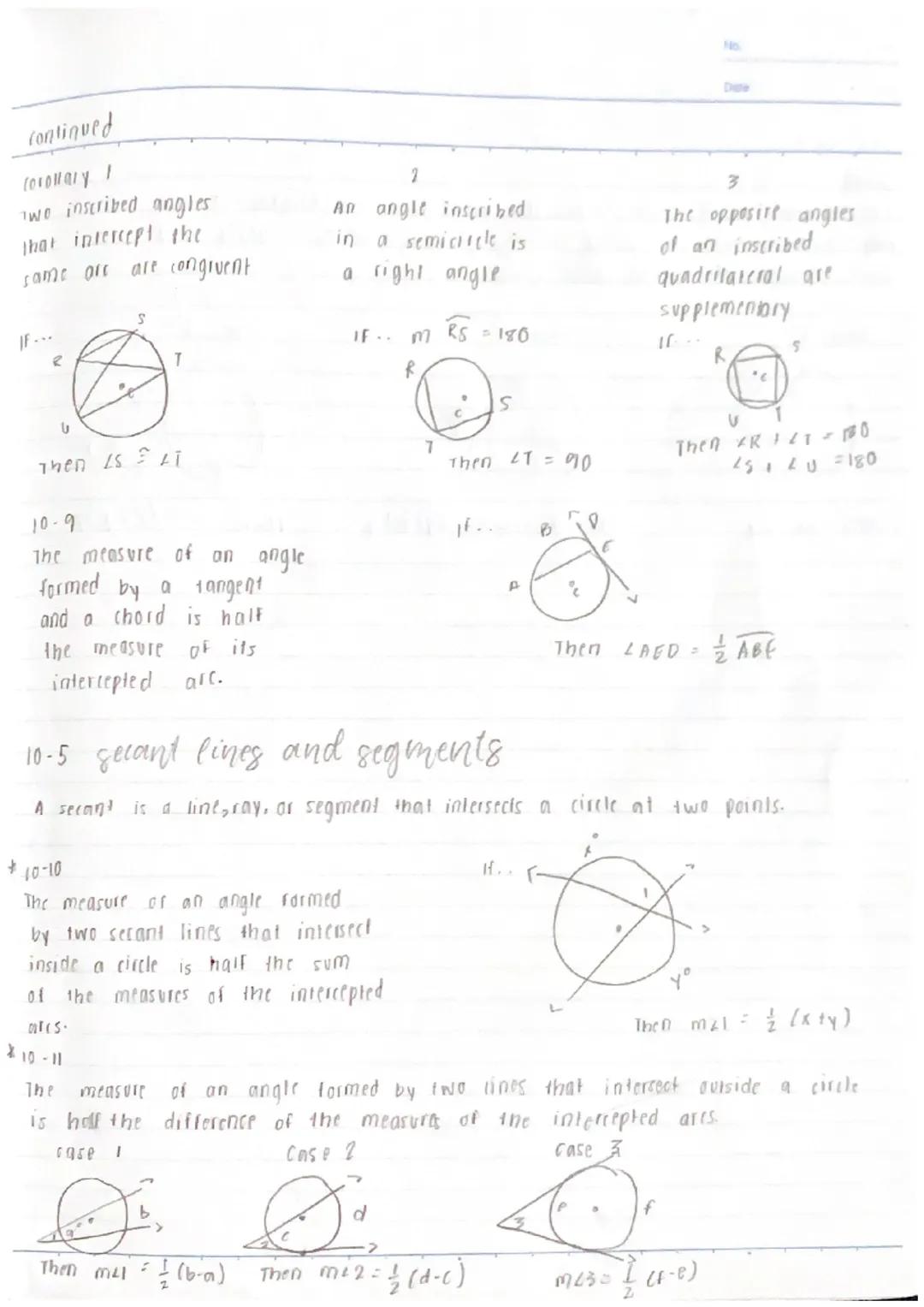

Angles in Circles and Secant Lines

Inscribed angles that intercept the same arc are always equal to each other. This helps us establish relationships between different angles in the same circle.

When a tangent and a chord form an angle, that angle equals half the measure of its intercepted arc. This is similar to the inscribed angle formula but applies specifically to tangent-chord angles.

Secant lines are lines that intersect a circle at two points. When two secants intersect, they form angles with special relationships to the arcs:

• For intersections inside the circle: the angle equals half the sum of the intercepted arcs
• For intersections outside the circle: the angle equals half the difference between the intercepted arcs

💡 Notice the pattern? Whether dealing with inscribed angles, tangent-chord angles, or secant intersections, the angle measure is always related to the intercepted arc(s) by some form of division by 2.

These relationships give us powerful tools to find unknown angles when working with circles in geometric problems.

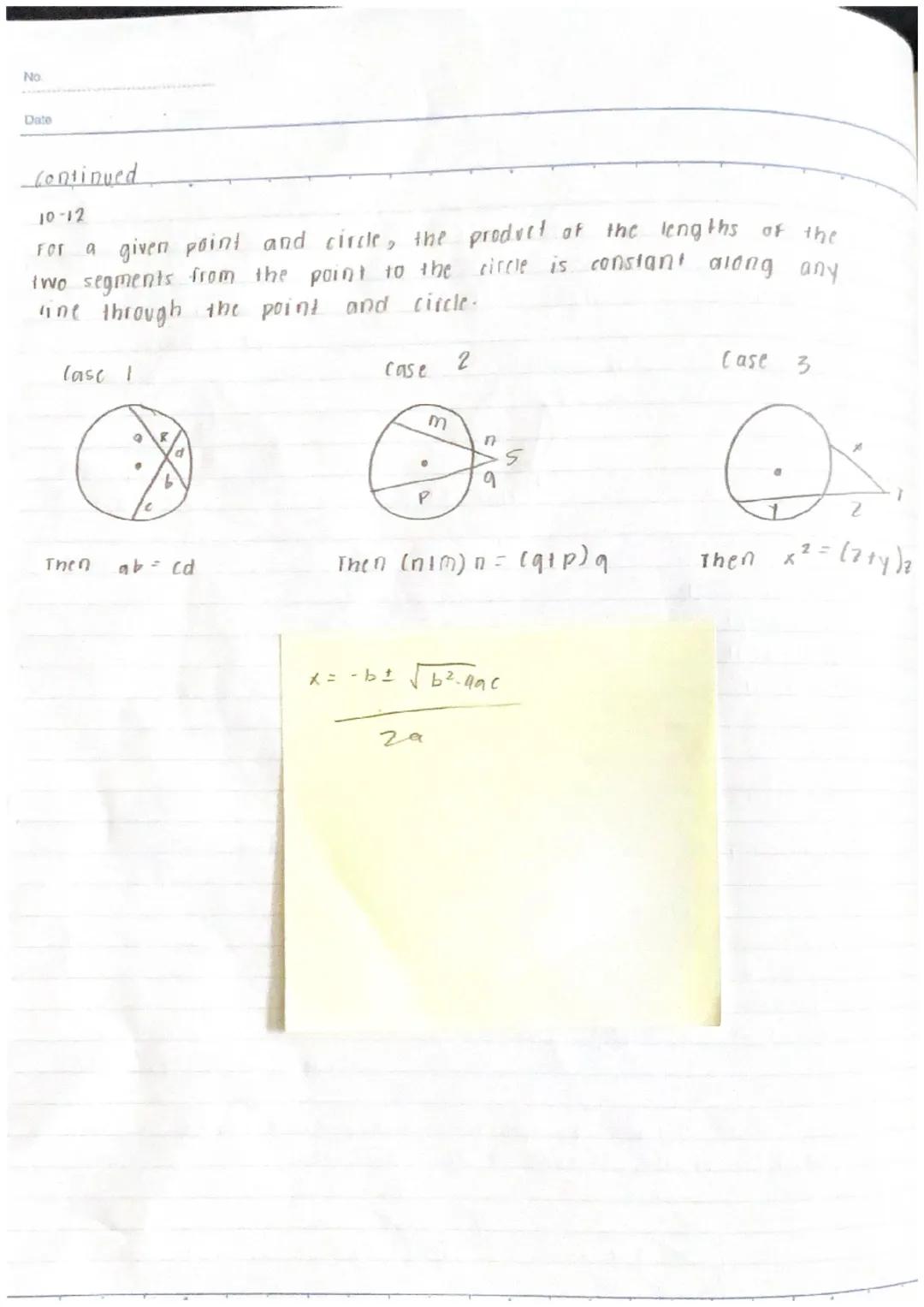

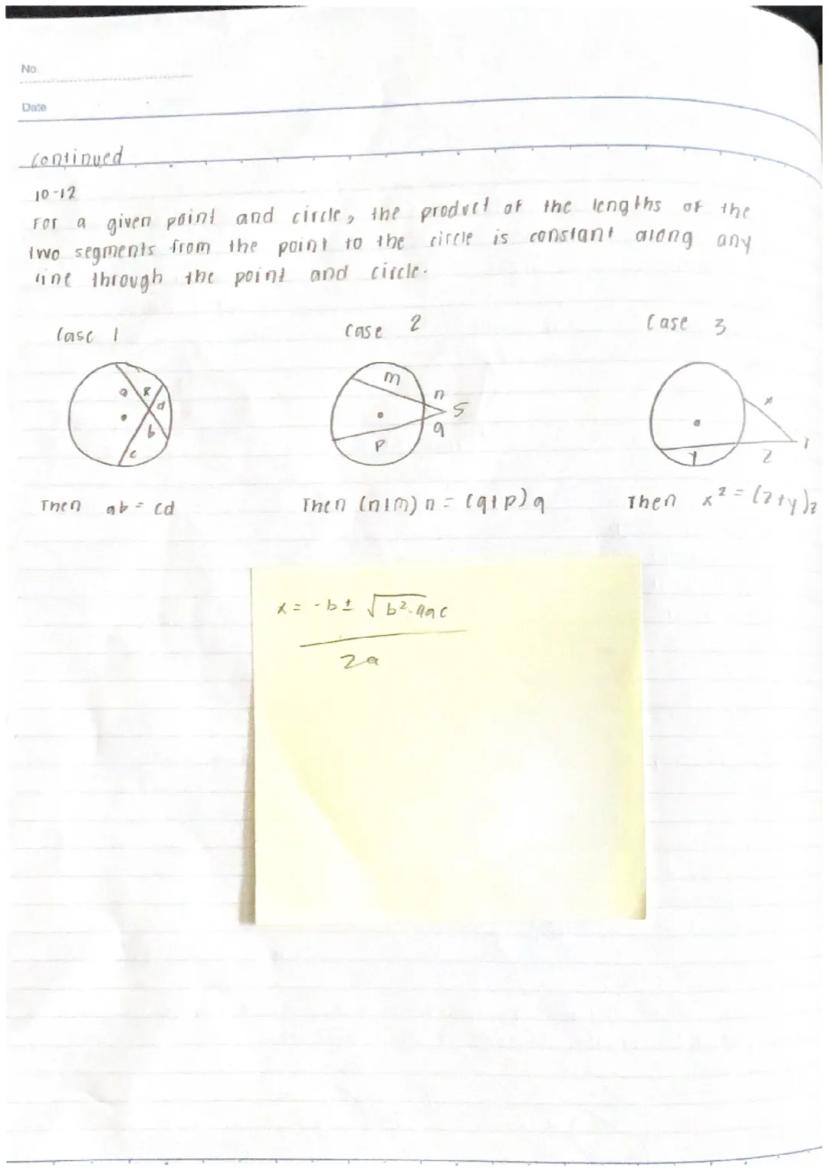

Power of a Point

The power of a point refers to an interesting constant relationship: when any line is drawn through a fixed point and intersects a circle, the product of the lengths of the two segments from that point to the circle remains constant.

This works in three key situations:

1. When the point is outside the circle (using secant lines)
2. When the point is on the circle
3. When the point is inside the circle

For example, if point P is outside the circle and you draw multiple lines through P intersecting the circle, the product of the segments (from P to each intersection point) will be the same for all lines.

💡 The "power of a point" concept is like a hidden superpower in circle geometry! It helps solve complex problems by establishing unexpected relationships between seemingly unrelated segments.

This constant product relationship helps solve many complex geometric problems involving circles and is related to the quadratic formula in algebra.
