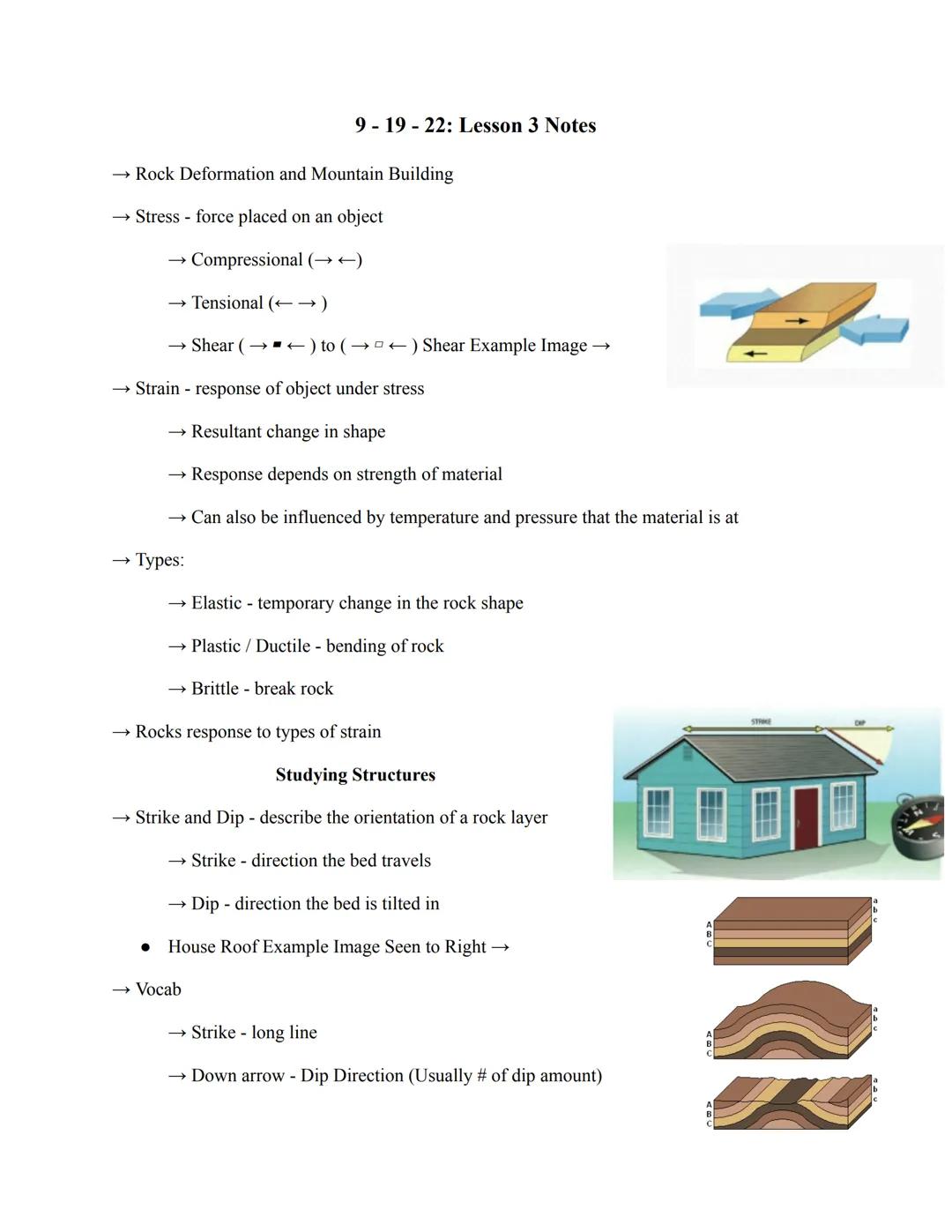

Rock Deformation Basics
Ever wonder how mountains form? It all starts with stress—forces that push, pull, or twist rocks. There are three main types: compressional (pushing together), tensional (pulling apart), and shear (forces moving in opposite directions).
When rocks experience stress, they respond with strain—actual changes to their shape. How a rock responds depends on its strength, temperature, and pressure conditions. Some rocks might temporarily change shape (elastic strain), while others bend permanently or completely break (brittle strain).
Geologists study rock structures using strike and dip measurements. Strike tells us the direction a rock layer travels horizontally, while dip indicates the direction and angle the layer tilts downward—kind of like describing which way a roof slants and how steep it is.
Quick Tip: Think of strike and dip like a book on a table. Strike is the direction along the spine, and dip is which way and how much the book is tilted.
2
of 3
Folds and Faults
When rocks bend without breaking, they create folds—wave-like formations in rock layers. Anticlines fold upward like an arch, while synclines fold downward like a bowl. Some folds enter the earth at an angle (plunging folds), while others remain horizontal .
Faults occur when rocks break under stress, typically in colder, near-surface conditions. They have two sides: the hanging wall (upper side) and footwall (lower side). Different stresses create different fault types: normal faults result from tension with the hanging wall moving down, while reverse faults come from compression with the hanging wall moving up. Strike-slip faults like the San Andreas slide horizontally past each other.
Joints are fractures where rocks crack but don't move significantly. Compression typically creates regular joints, while columnar jointing forms from cooling and shrinking (think Giant's Causeway), and exfoliation jointing happens when pressure is released from deep rocks.
Remember This: The type of fault tells you about the stress that formed it—normal faults indicate pulling apart, reverse faults show compression, and strike-slip faults result from shearing forces.
3
of 3

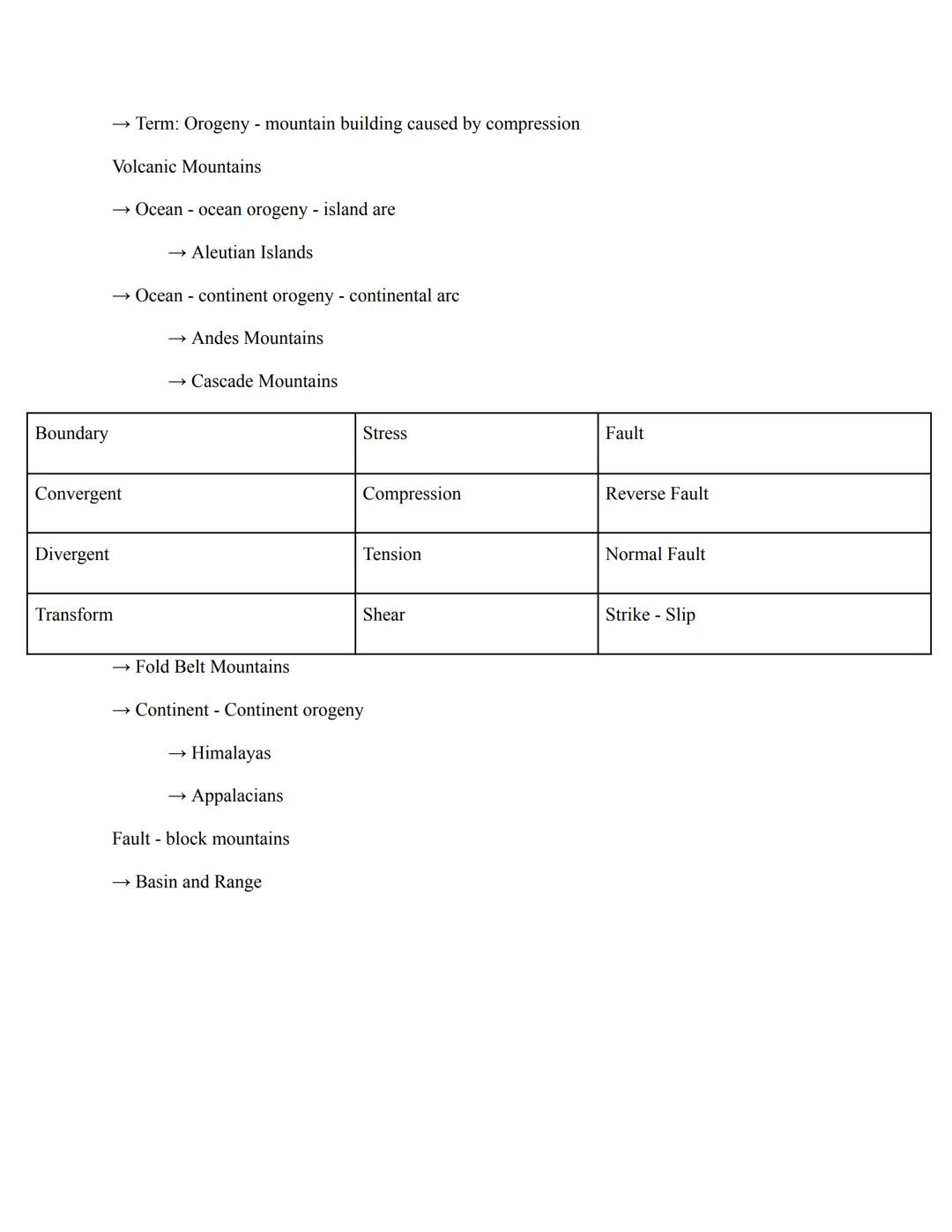

Mountain Building
Mountains don't just appear overnight—they form through orogeny, a process of mountain building typically caused by compression. Different boundary interactions create different mountain types!
Volcanic mountains form along tectonic boundaries. When ocean plates converge with other ocean plates, they create island arcs like the Aleutian Islands. When ocean plates meet continental plates, they form continental arcs like the Andes and Cascades—some of the most impressive mountain chains on Earth.
Fold belt mountains result from continent-to-continent collisions. The Himalayas formed when India crashed into Asia, while the Appalachians resulted from ancient continental collisions. Meanwhile, fault-block mountains like those in the Basin and Range Province form when blocks of crust move along faults.
Cool Connection: The type of tectonic boundary determines the stress pattern and resulting fault type: convergent boundaries create compression and reverse faults, divergent boundaries produce tension and normal faults, and transform boundaries generate shear stress and strike-slip faults.
