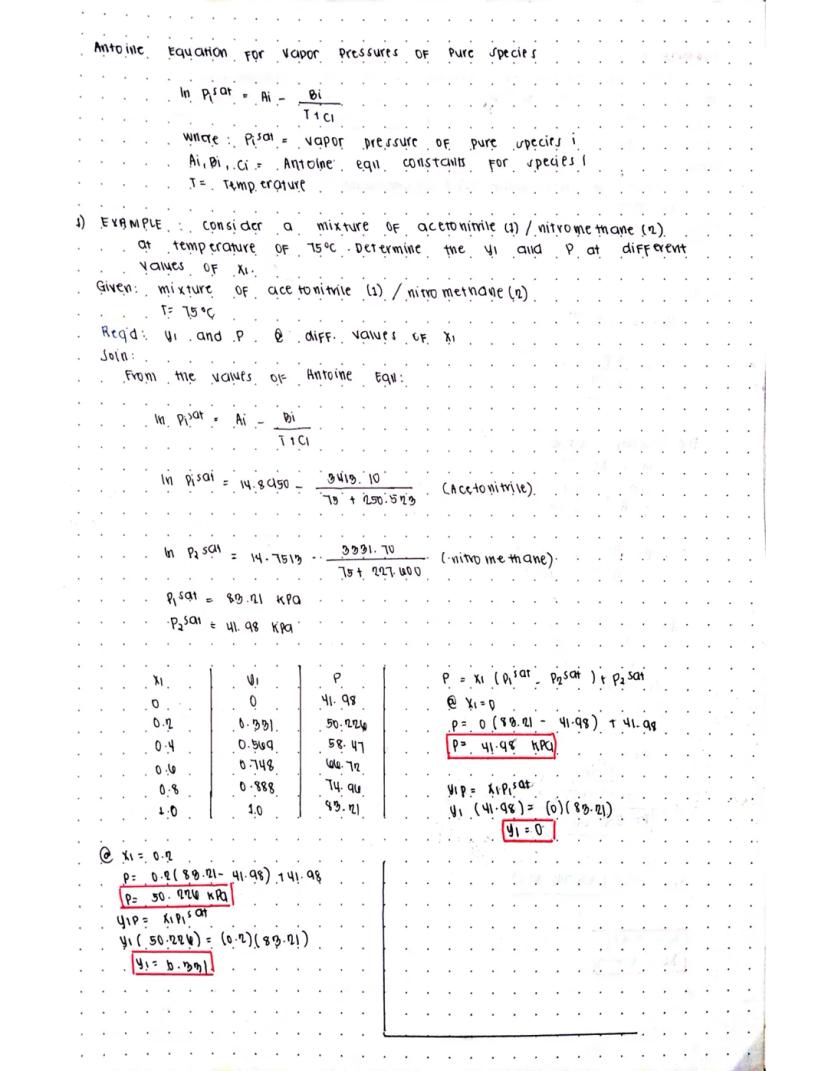

Antoine Equation and Raoult's Law Calculations

This page focuses on the Antoine equation for calculating vapor pressures and provides a detailed example of Raoult's law calculations for a binary mixture.

The Antoine equation is used to calculate vapor pressures of pure species:

ln Pᵢˢᵃᵗ = Aᵢ - Bᵢ / $T + Cᵢ$

Where Aᵢ, Bᵢ, and Cᵢ are Antoine constants specific to each species, and T is the temperature.

Example: The page presents a detailed example of Raoult's law calculations for a mixture of acetonitrile (1) and nitromethane (2) at 75°C.

Given:

• Temperature: 75°C
• Antoine constants for both species

The example demonstrates how to:

1. Calculate pure component vapor pressures using the Antoine equation
2. Determine vapor-phase compositions (yᵢ) and total pressure (P) for different liquid-phase compositions (xᵢ)

For instance, at x₁ = 0.2:

• P₁ˢᵃᵗ = 83.21 kPa
• P₂ˢᵃᵗ = 41.98 kPa
• P = x₁P₁ˢᵃᵗ + x₂P₂ˢᵃᵗ = 50.226 kPa
• y₁ = x₁P₁ˢᵃᵗ / P = 0.331

Highlight: This example illustrates the practical application of Raoult's law for vapor pressure calculations and demonstrates how composition affects the total pressure and vapor-phase composition in a binary mixture.

The page includes a table showing calculated values for different liquid-phase compositions, providing a comprehensive view of how the mixture behaves across its entire composition range.

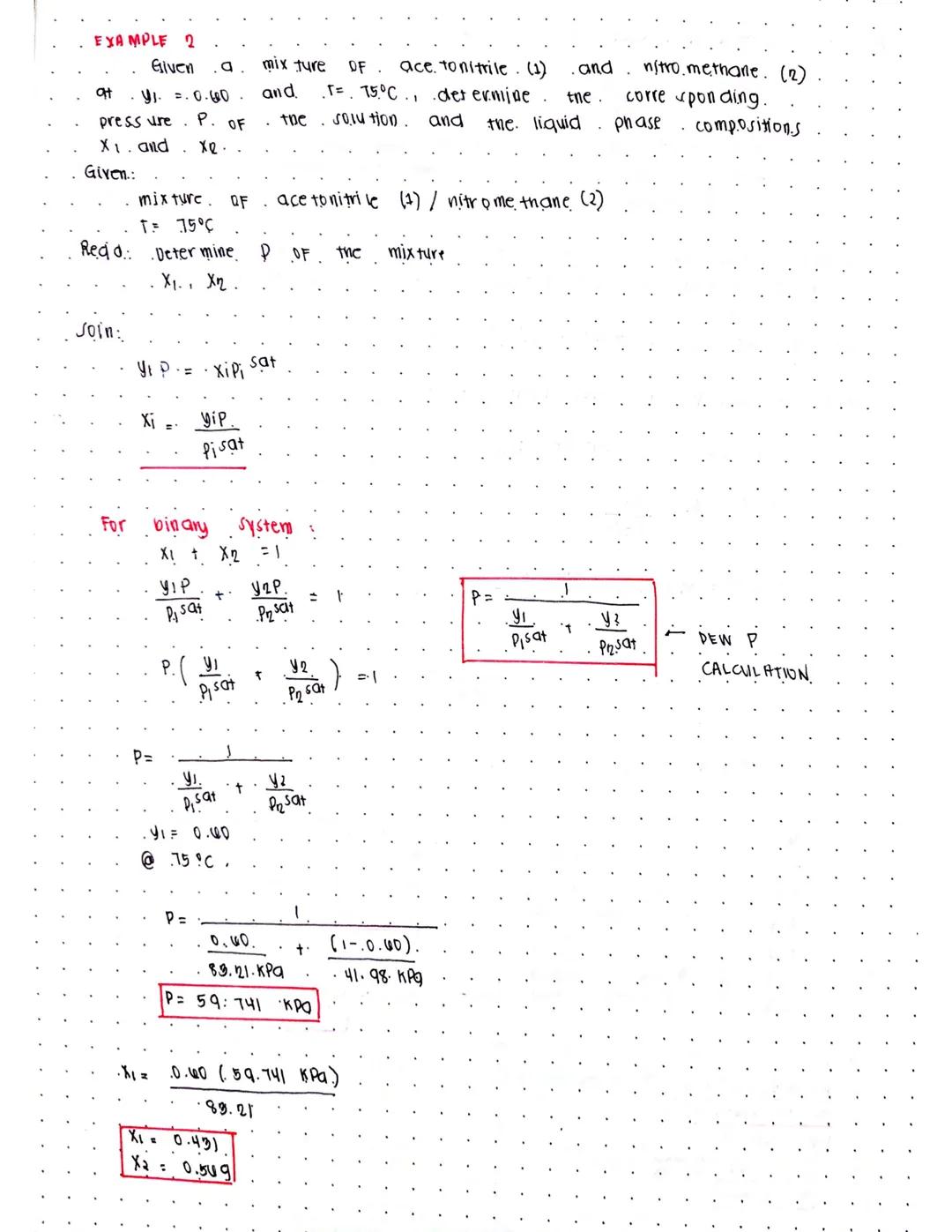

Dew Point Calculations Using Raoult's Law

This page focuses on dew point calculations using Raoult's law, presenting a detailed example for a binary mixture of acetonitrile and nitromethane.

Example: The problem involves determining the liquid-phase compositions (x₁ and x₂) and total pressure (P) for a mixture of acetonitrile (1) and nitromethane (2) at 75°C, given a vapor-phase composition of y₁ = 0.600.

The solution approach involves the following steps:

1. Use Raoult's law equation: y₁P = x₁P₁ˢᵃᵗ
2. Rearrange to solve for x₁: x₁ = y₁P / P₁ˢᵃᵗ
3. Use the fact that for a binary system, x₁ + x₂ = 1
4. Substitute known values and solve for P

Given:

• y₁ = 0.600
• T = 75°C
• P₁ˢᵃᵗ = 83.21 kPa (acetonitrile)
• P₂ˢᵃᵗ = 41.98 kPa (nitromethane)

Calculations yield:

• P = 59.741 kPa
• x₁ = 0.431
• x₂ = 0.569

Highlight: This example demonstrates the application of Raoult's law for dew point calculations, which are crucial in understanding phase behavior and designing separation processes.

The page emphasizes the importance of using the correct form of Raoult's law equation for dew point calculations, where the vapor-phase composition is known, and the liquid-phase composition and total pressure are to be determined.

Vocabulary: Dew point - The temperature at which vapor begins to condense into liquid at a given pressure.

This example provides valuable insight into how Raoult's law can be applied to solve practical problems in chemical engineering and thermodynamics, particularly in the analysis of vapor-liquid equilibria.

Raoult's Law: Assumptions, Applications, and Calculations

This page introduces Raoult's law, its assumptions, applications, and limitations. It also provides the mathematical formulation of the law and outlines various calculations that can be performed using it.

Definition: Raoult's law states that the partial vapor pressure of each component in an ideal mixture is dependent on the liquid-phase mole fraction of the component multiplied by its pure component vapor pressure at a certain temperature.

The law is expressed mathematically as:

yᵢP = xᵢPᵢˢᵃᵗ

Where:

• yᵢ is the vapor-phase mole fraction
• xᵢ is the liquid-phase mole fraction
• P is the total pressure
• Pᵢˢᵃᵗ is the vapor pressure of pure species i

Highlight: Raoult's law is applicable only to species below their critical temperature and at low to moderate pressures.

The page also outlines various calculations that can be performed using Raoult's law, including:

1. Bubble Point Pressure (Bubl P): Calculate {yᵢ} and P given {xᵢ} and T
2. Dew Point Pressure (Dew P): Calculate {xᵢ} given {yᵢ} and P
3. Bubble Point Temperature (Bubl T): Calculate {yᵢ} and T given {xᵢ} and P
4. Dew Point Temperature (Dew T): Calculate {xᵢ} and T given {yᵢ} and P

For a binary system, the total pressure can be calculated using:

P = x₁P₁ˢᵃᵗ + x₂P₂ˢᵃᵗ

Example: This equation can be rearranged to express pressure in terms of x₁: P = x₁$P₁ˢᵃᵗ - P₂ˢᵃᵗ$ + P₂ˢᵃᵗ

This formulation is particularly useful for Raoult's law vapor pressure calculations in binary mixtures.
