Crystallization Process in Chemical Engineering- A comprehensive guide covering... Show more
Chemistry22 views·Updated Jun 1, 2026·5 pagesExamples of Crystallization: Problems and Solutions
1 / 5
1
of 5

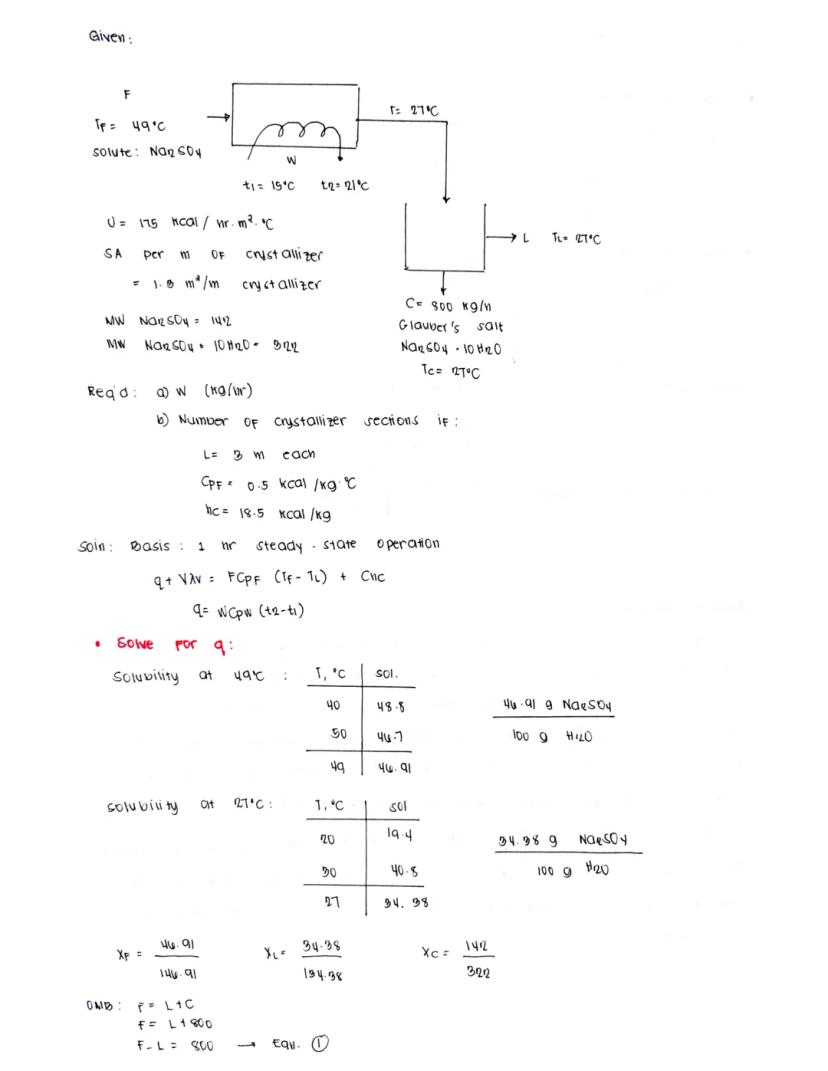

Page 2: Glauber's Salt Crystallization Parameters
This page details the crystallization of Glauber's salt (Na₂SO₄·10H₂O) and associated process parameters.
Vocabulary: Glauber's salt is the decahydrate form of sodium sulfate (Na₂SO₄·10H₂O).
Definition: Solubility curves show the relationship between temperature and dissolved salt concentration.
Example: At 49°C, the solubility is 46.91g Na₂SO₄ per 100g H₂O.
The page includes steady-state mass balance equations and specific heat calculations for the crystallization process.
2
of 5
Page 3: Swenson-Walker Crystallizer Problem
This section presents a detailed problem involving a Swenson-walker crystallizer producing Glauber's salt.
Definition: A Swenson-walker crystallizer is an industrial crystallization unit using controlled cooling for crystal formation.
Example: The problem calculates cooling requirements for producing 800 kg/h of Glauber's salt with specified temperature gradients.
Highlight: The overall heat transfer coefficient is 175 kcal/hr·m²·°C with cooling surface area of 1.3 m² per meter of crystallizer.
3
of 5

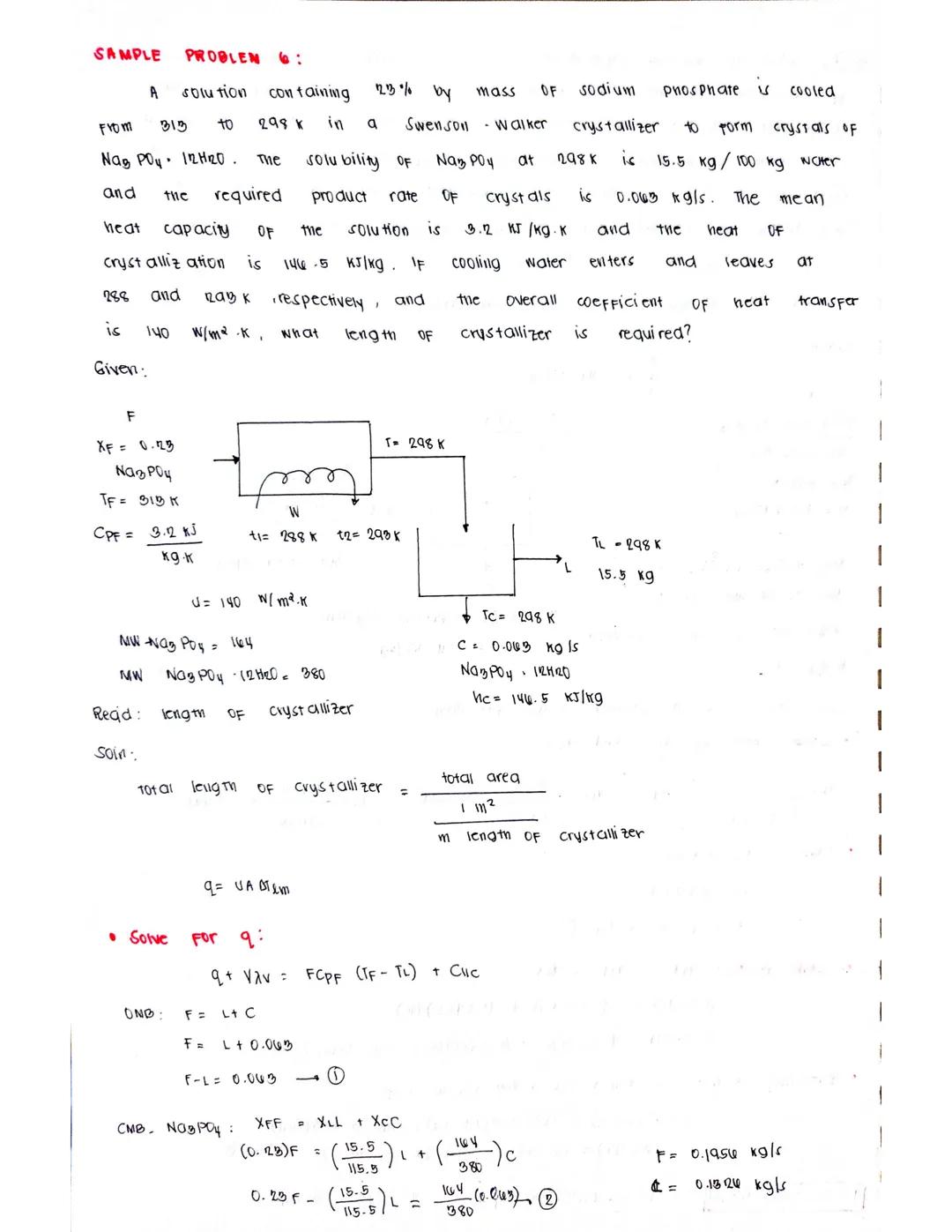

Page 4: Sodium Phosphate Crystallization Analysis
This page covers the crystallization of sodium phosphate dodecahydrate (Na₃PO₄·12H₂O).
Vocabulary: Heat of crystallization represents the energy released during crystal formation.
Example: The problem involves cooling a solution from 313K to 298K with a product rate of 0.063 kg/s.
Highlight: The heat of crystallization is 146.5 KJ/kg with an overall heat transfer coefficient of 140 W/m²·K.
4
of 5

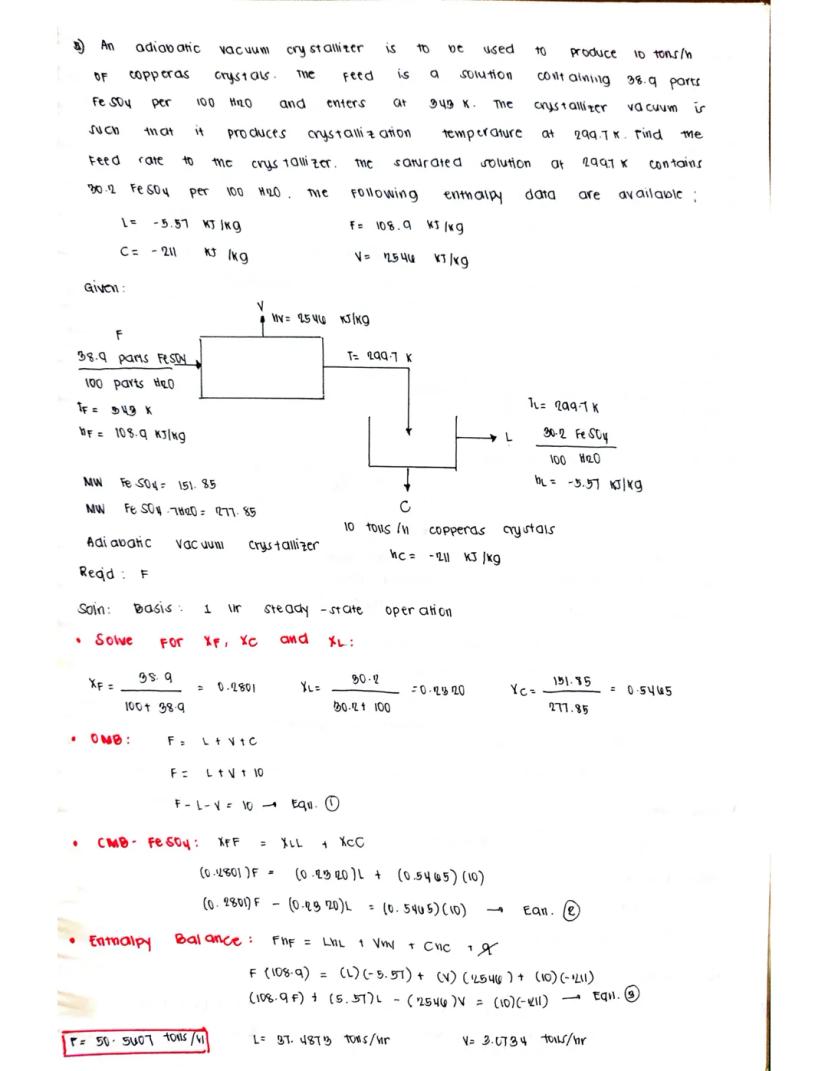

Page 5: Adiabatic Vacuum Crystallizer Operations
This page examines an adiabatic vacuum crystallizer producing copperas (FeSO₄·7H₂O) crystals.
Definition: An adiabatic vacuum crystallizer operates without heat exchange with the surroundings, using vacuum to facilitate crystallization.
Example: The feed contains 38.9 parts FeSO₄ per 100 parts H₂O, producing 10 tons/h of copperas crystals.
Highlight: The process involves complex enthalpy balances and mass transfer calculations at specific vacuum conditions.
5
of 5
Page 1: Heat Transfer Calculations in Crystallizer Design
This page focuses on detailed calculations for a crystallizer system, incorporating heat transfer coefficients and temperature gradients.
Definition: Crystallizer sections are units where controlled cooling facilitates crystal formation and growth.
Example: The calculations show heat transfer analysis for a system processing 800 kg/h with cooling water temperature rising from 15°C to 21°C.
Highlight: The total surface area required for heat transfer is calculated as 12.12468 m², with each crystallizer section being 3m long.
The page demonstrates comprehensive heat balance equations and temperature difference calculations essential for crystallizer design.
