Comprehensive Guide to Atomic Electronic Structure

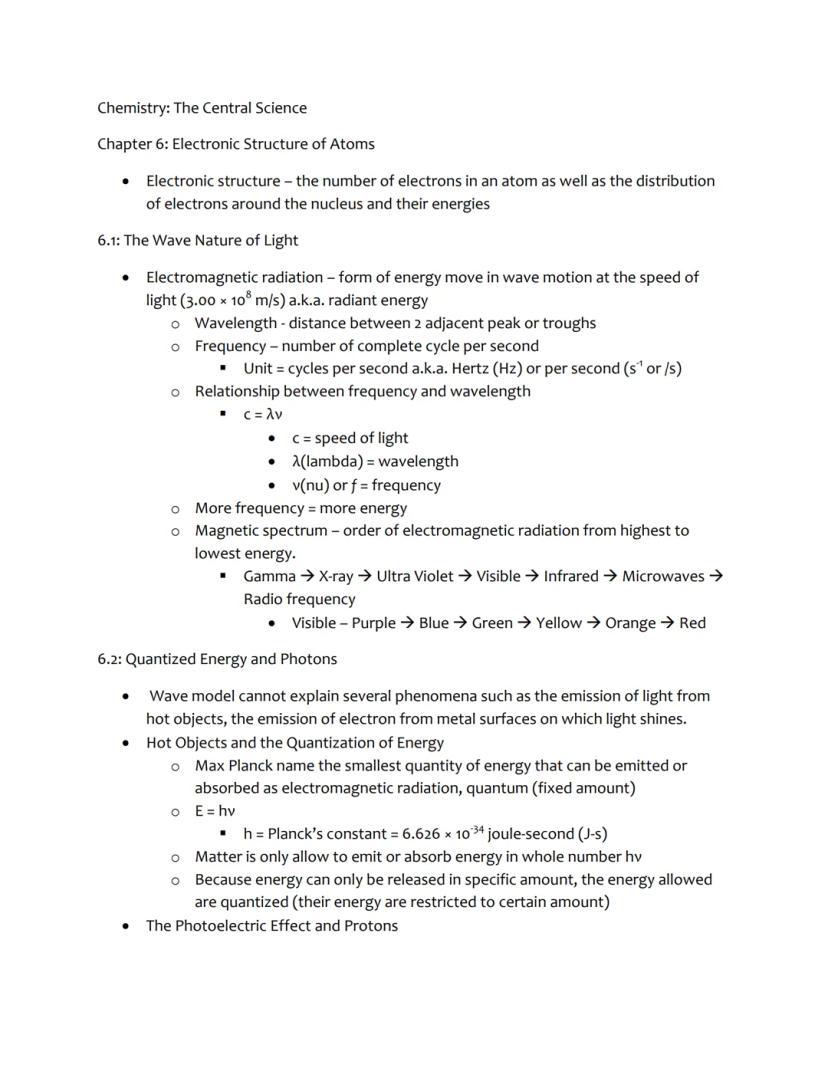

The Wave Nature of Light
Ever wonder why sunlight creates rainbows? It's because light travels as electromagnetic radiation—energy that moves in waves at an incredible 300,000,000 meters per second! These waves have two important properties: wavelength (the distance between peaks) and frequency (how many waves pass per second, measured in Hertz).
The relationship between these properties is simple: speed of light = wavelength × frequency. Higher frequency means more energy. This explains why the electromagnetic spectrum arranges radiation from highest energy (gamma rays) to lowest (radio waves), with visible light somewhere in the middle.
Visible light makes up the colors we see, arranged from purple and blue (higher energy) to orange and red (lower energy). These colors aren't just pretty—they represent different energy levels that affect how light interacts with matter.
Energy Alert! The entire electromagnetic spectrum follows the same basic principles, but only a tiny portion (visible light) can be detected by human eyes. The rest requires special equipment to detect!

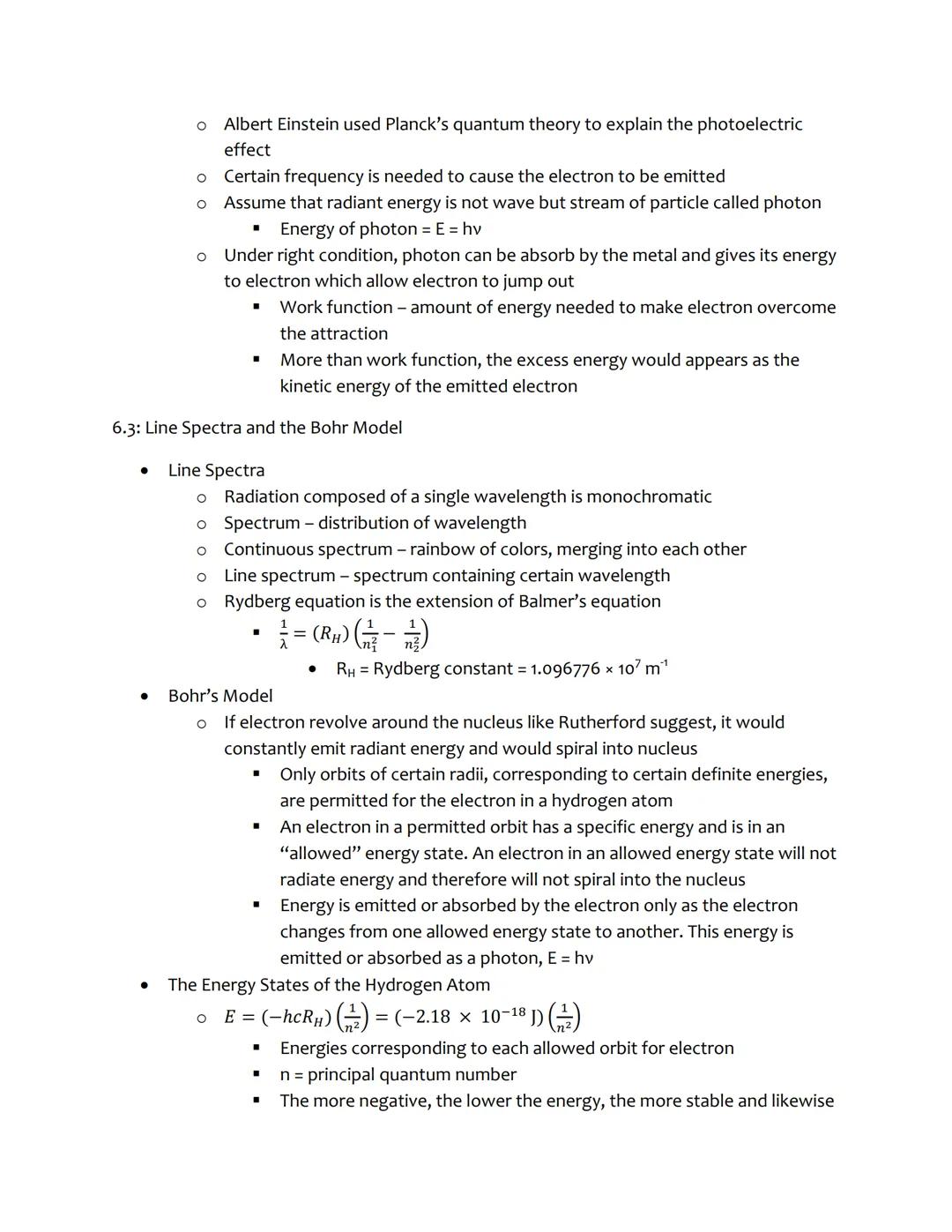

Quantized Energy and Photons
Have you ever wondered why hot metal glows? Traditional wave theories couldn't explain this, but Max Planck revolutionized physics by proposing that energy comes in fixed "packets" called quanta. This means matter can only absorb or emit energy in whole-number multiples of a minimum amount.
The energy equation E = hv shows that energy (E) equals Planck's constant (h) multiplied by frequency (v). This seemingly simple formula changed our understanding of physics! It explains why energy is quantized—restricted to specific amounts rather than flowing continuously.
Albert Einstein built on Planck's work to explain the photoelectric effect—how light causes metals to emit electrons. He proposed that light travels as particles called photons, each carrying a specific energy packet. When a photon hits metal with enough energy to overcome the metal's work function (the energy binding electrons), electrons can escape.
Mind-Blowing Fact: Light behaves as both waves AND particles! This dual nature of light was a revolutionary concept that led to quantum mechanics and modern physics.

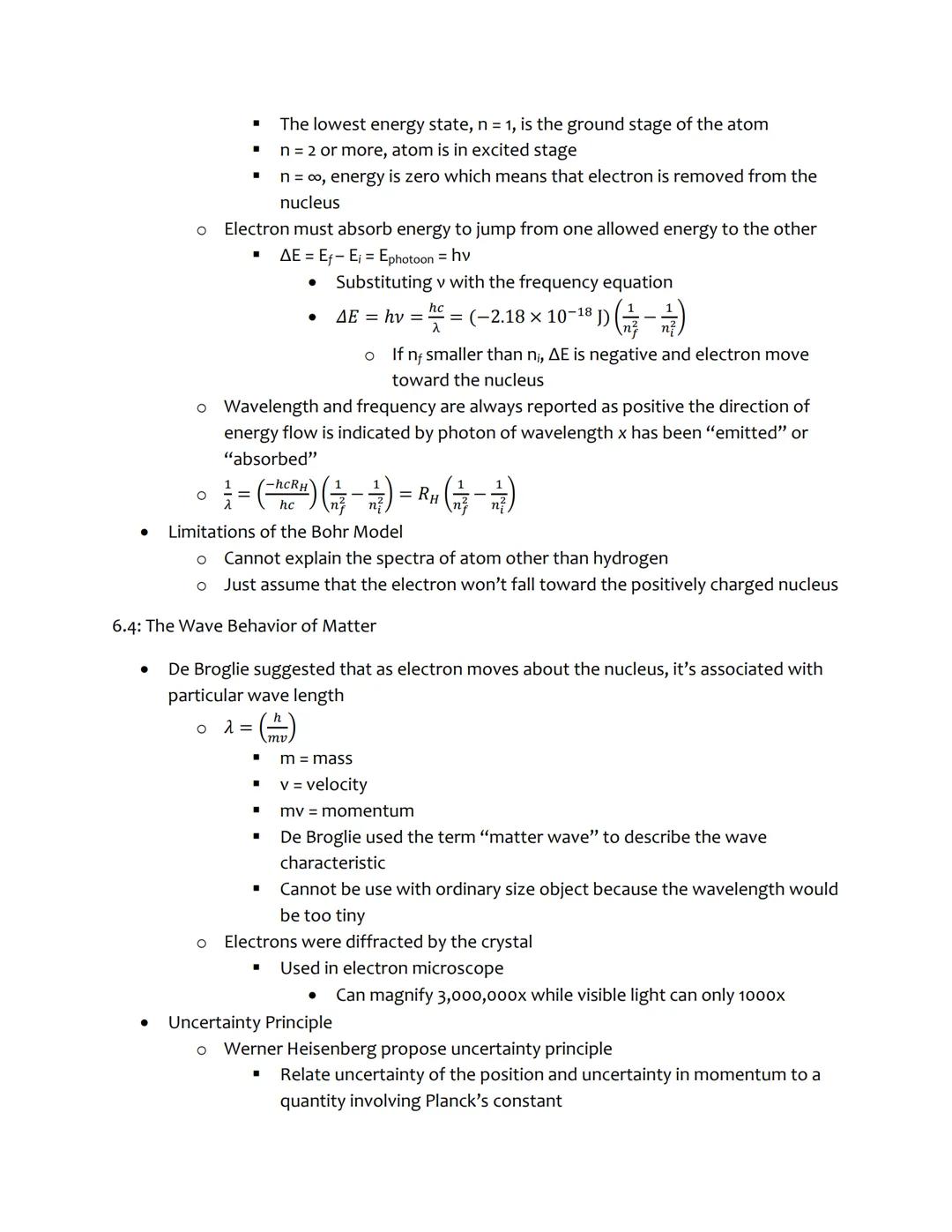

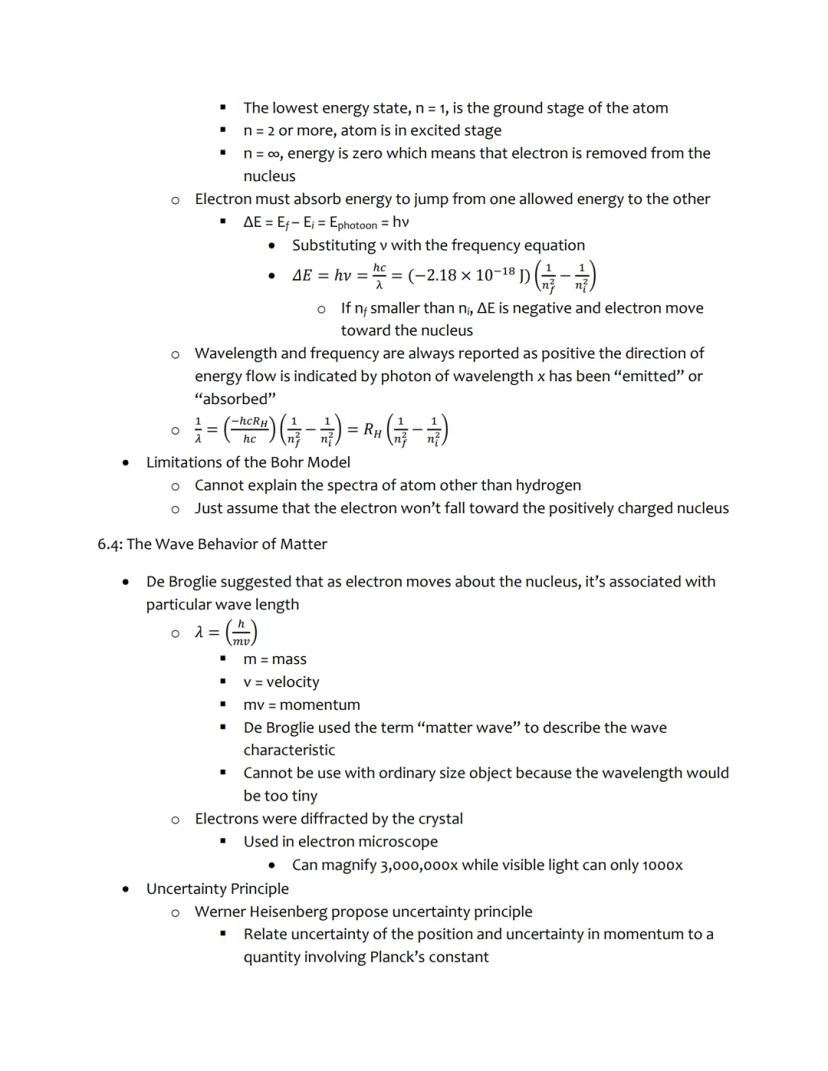

Line Spectra and the Bohr Model
Shine light through a prism and you'll see a rainbow—a continuous spectrum. But heat up certain elements and look at their light through a prism, and you'll see something different: specific lines of color called a line spectrum. Why does this happen?
Niels Bohr proposed a revolutionary model of the atom to explain these line spectra. Unlike Rutherford's model (which suggested electrons would spiral into the nucleus), Bohr proposed that electrons can only orbit at specific allowed energy levels. An electron in an allowed orbit won't radiate energy, so it stays stable rather than crashing into the nucleus.
When an electron jumps between energy levels, it absorbs or emits energy as a photon. The energy of this photon equals the energy difference between levels. Bohr's equation E = shows how these energy states depend on the principal quantum number (n). The ground state has the lowest energy, while excited states (n≥2) have higher energy.
Connect the Dots: When you see fireworks' brilliant colors, you're actually witnessing electrons jumping between energy levels in atoms! Different elements produce different colors because they have different energy level spacing.

The Wave Behavior of Matter
Could something solid like an electron actually behave like a wave? Louis de Broglie thought so! He proposed that moving particles have wave-like properties, with wavelength λ = h/mv (where h is Planck's constant, m is mass, and v is velocity). This concept of matter waves seems strange, but experiments proved him right when electrons showed diffraction patterns just like light waves!
This wave behavior is why electron microscopes can magnify objects up to 3,000,000 times—far beyond the 1,000x limit of light microscopes. The smaller wavelength of electrons allows us to see incredibly tiny structures impossible to view with light.
Werner Heisenberg took this idea further with the uncertainty principle, which states that we can't simultaneously know both the exact position and momentum of a particle. This isn't about measurement limitations—it's a fundamental property of nature! The equation Δx × Δ(mv) ≥ shows this relationship mathematically.
Reality Check: The uncertainty principle doesn't matter much for baseballs and cars, but for tiny particles like electrons, it means we can only talk about probabilities of where they might be—never certainties!

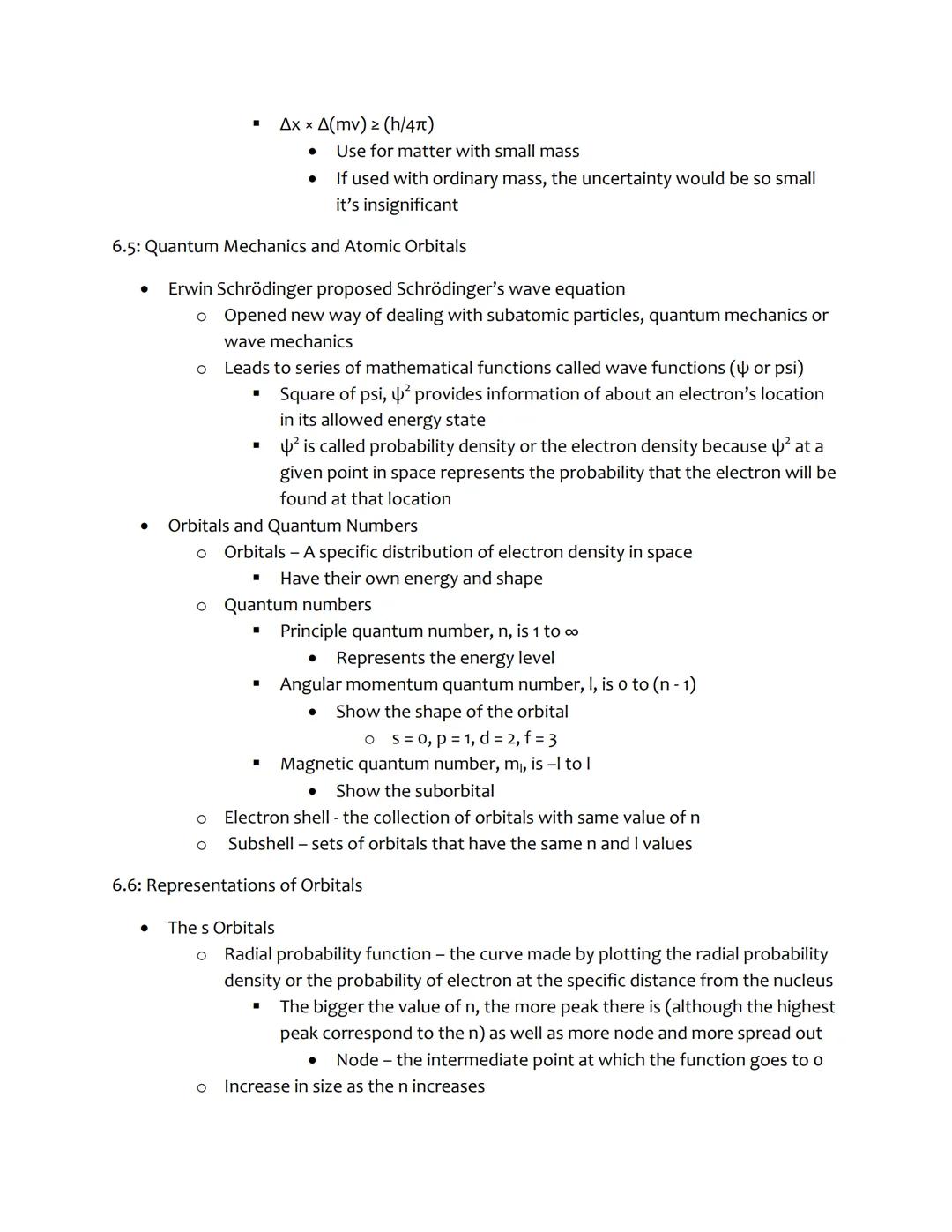

Quantum Mechanics and Atomic Orbitals
Forget the simple Bohr model of electrons circling the nucleus like planets. Erwin Schrödinger introduced a revolutionary equation that transformed our understanding of atoms. His approach, called quantum mechanics, uses mathematical functions (ψ or "psi") that describe electrons as probability clouds rather than precise particles.
The square of psi (ψ²) tells us the probability density—essentially a map showing where we're most likely to find an electron. This led to the concept of orbitals, which are specific distributions of electron density in space. Each orbital has its own energy and shape, determined by quantum numbers:
- Principal quantum number (n): Indicates energy level (1, 2, 3...)
- Angular momentum quantum number (l): Determines orbital shape
- Magnetic quantum number (ml): Shows orbital orientation
Electrons occupy these orbitals in specific ways, with orbitals grouped into shells (same n value) and subshells (same n and l values). This system creates the beautiful complexity of atomic structure.
Visualization Tip: Think of orbitals not as fixed paths but as 3D probability clouds—the denser regions show where electrons are most likely to be found!

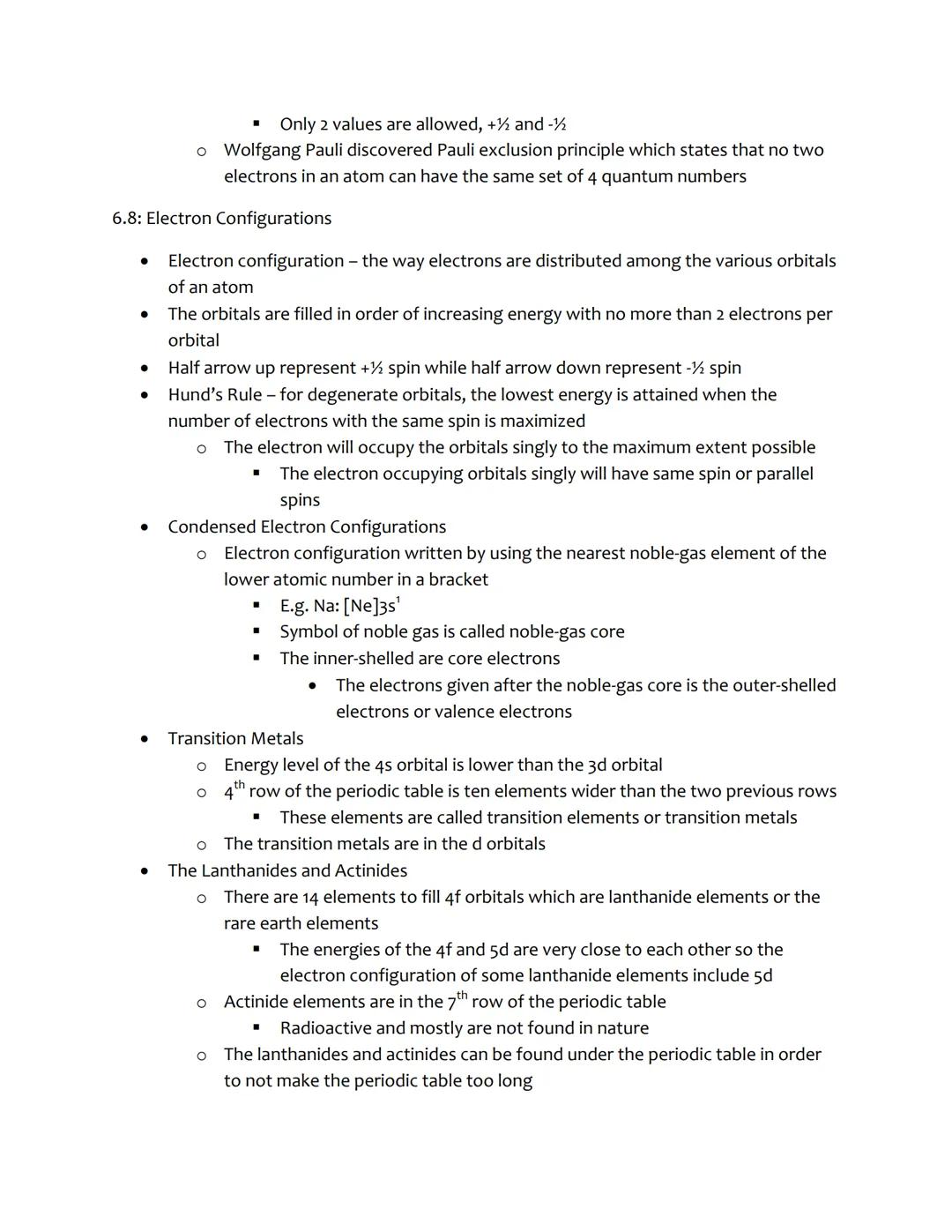

Electron Configurations and the Pauli Principle
How do electrons arrange themselves in atoms? Their distribution follows specific rules that create a kind of atomic architecture. The s orbitals are spherical and increase in size as n increases. The p orbitals have two lobes on opposite sides of the nucleus, with three different orientations (px, py, pz). The d orbitals have more complex shapes, with five different variations, while the seven f orbitals are even more intricate.
In multi-electron atoms, electrons fill orbitals in order of increasing energy. But there's a twist—electrons also have a property called spin, which can be either +½ or -½. This led Wolfgang Pauli to discover a fundamental principle: no two electrons in an atom can have identical sets of all four quantum numbers. This Pauli exclusion principle explains why electrons distribute across different orbitals.
When filling orbitals of equal energy, electrons follow Hund's rule—they occupy empty orbitals first before pairing up. This is why oxygen, with six valence electrons, has four paired and two unpaired electrons. We can write these arrangements as electron configurations, using shorthand like 1s²2s²2p⁴ for oxygen, or even more concisely as [He]2s²2p⁴.
Pattern Power: The electron configuration explains why elements in the same column of the periodic table have similar chemical properties—they have the same number of valence electrons!

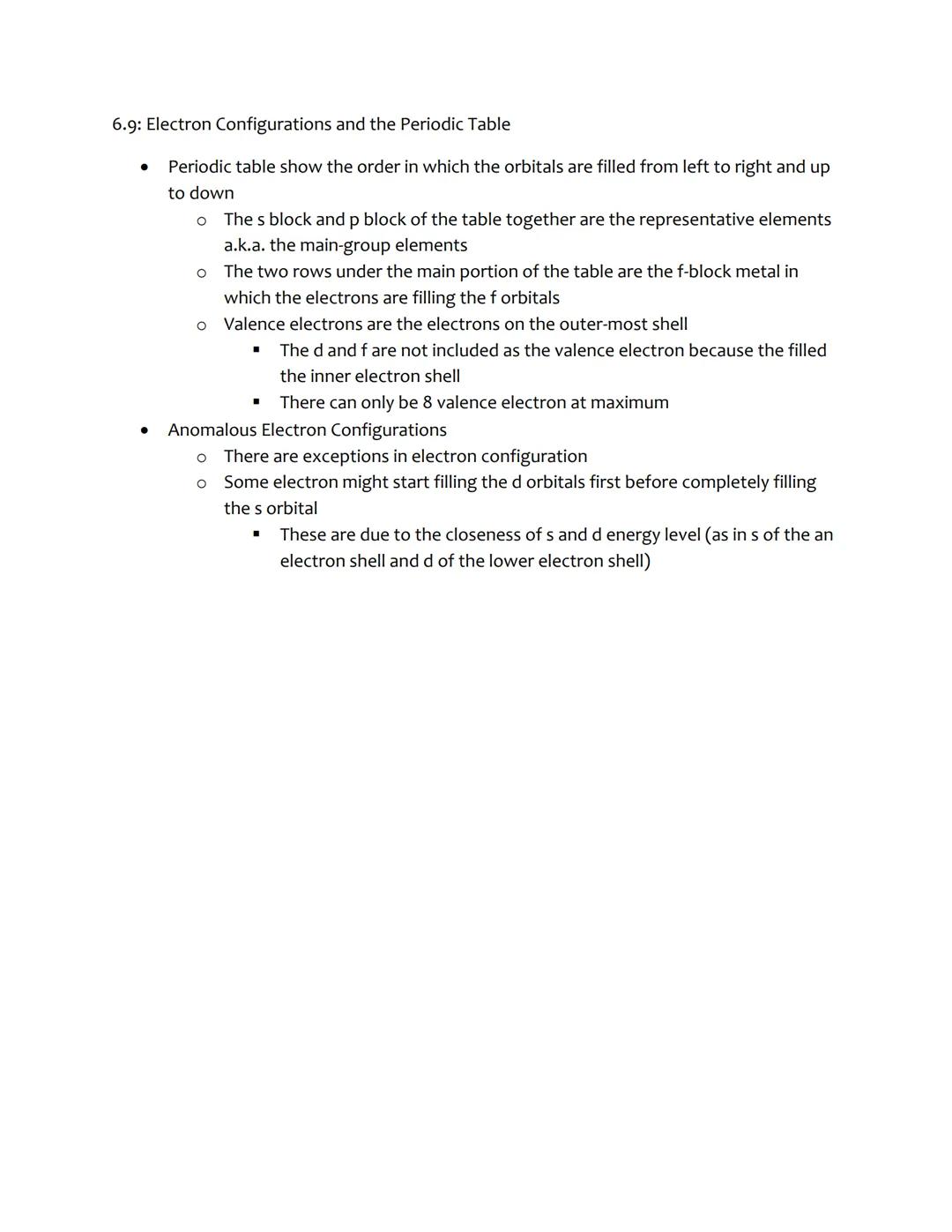

Electron Configurations and the Periodic Table
The periodic table isn't just a random arrangement—it's actually a map of electron configurations! Moving from left to right across the table follows the exact order in which orbitals fill with electrons. The table is divided into blocks based on which orbitals are being filled: the s-block (leftmost columns), p-block (rightmost columns), d-block (middle transition metals), and f-block (lanthanides and actinides below the main table).
Valence electrons—those in the outermost shell—determine chemical behavior and are the reason elements in the same column have similar properties. For main group elements, the group number tells you the number of valence electrons (Group 1 has one valence electron, Group 2 has two, etc.).
Sometimes elements don't follow the expected filling order due to the closeness of energy levels between orbitals. For example, chromium has a configuration of [Ar]3d⁵4s¹ rather than [Ar]3d⁴4s². These anomalous configurations usually occur when having half-filled or completely filled d orbitals provides extra stability.
Connection Maker: Now you can see why the periodic table is organized as it is—it's not arbitrary but reflects the quantum mechanical structure of atoms! This pattern is why Mendeleev could predict properties of undiscovered elements.
