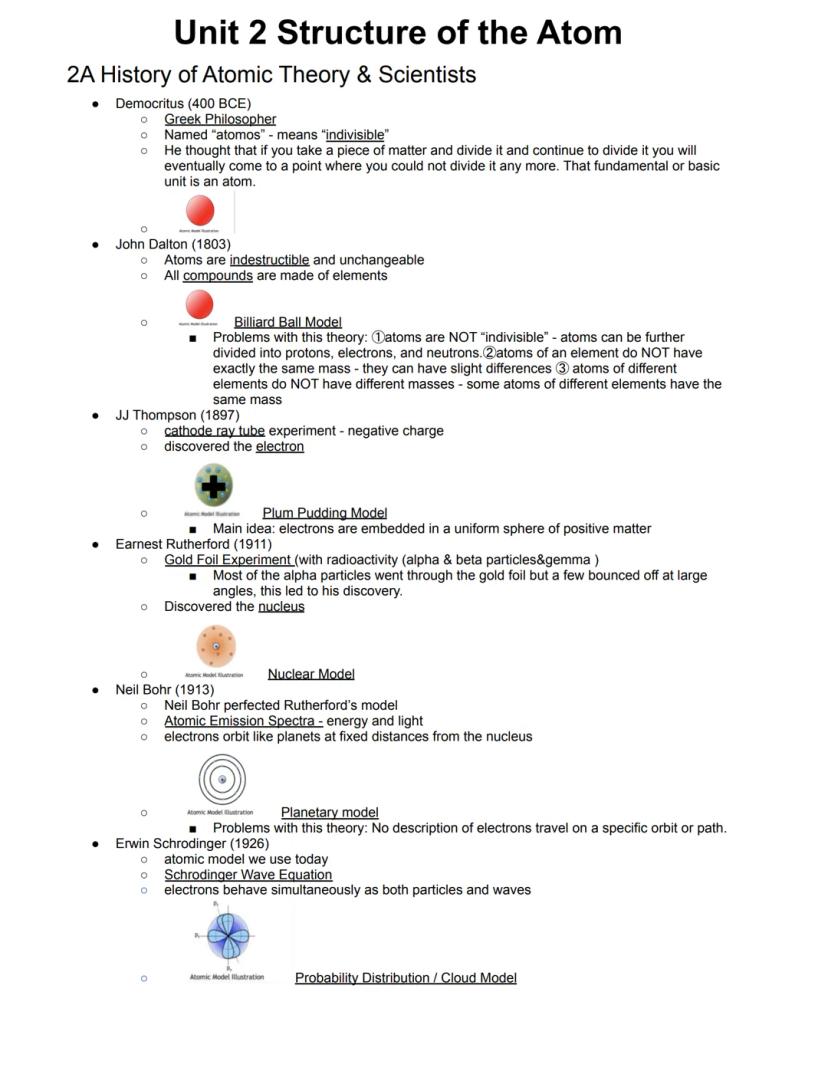

History of Atomic Theory & Scientists
Ever wonder what makes up everything around you? Scientists have been trying to figure this out for over 2,000 years! It all started with Democritus, a Greek philosopher who coined the term "atomos" (meaning "indivisible") around 400 BCE. He believed matter could only be divided so many times before reaching an indivisible unit.
John Dalton took this idea further in 1803 with his Billiard Ball Model, proposing atoms were indestructible and elements had unique atomic masses. Then came a game-changer: J.J. Thompson discovered electrons in 1897 using cathode ray experiments, leading to his Plum Pudding Model where negative electrons were embedded in a positive sphere.
The atomic model dramatically changed when Ernest Rutherford conducted his famous Gold Foil Experiment in 1911. When alpha particles bounced back instead of passing through gold foil, he realized atoms must have a dense, positively-charged nucleus. Neil Bohr refined this in 1913 with his Planetary Model, suggesting electrons orbit the nucleus at fixed distances.
Did you know? The modern atomic model we use today comes from Erwin Schrödinger (1926), who described electrons as both particles and waves existing in a probability cloud rather than fixed orbits!
Our understanding of atoms has evolved from simple indivisible particles to complex systems with protons, neutrons, and electrons behaving in fascinating ways that follow quantum mechanics principles.
2
of 6

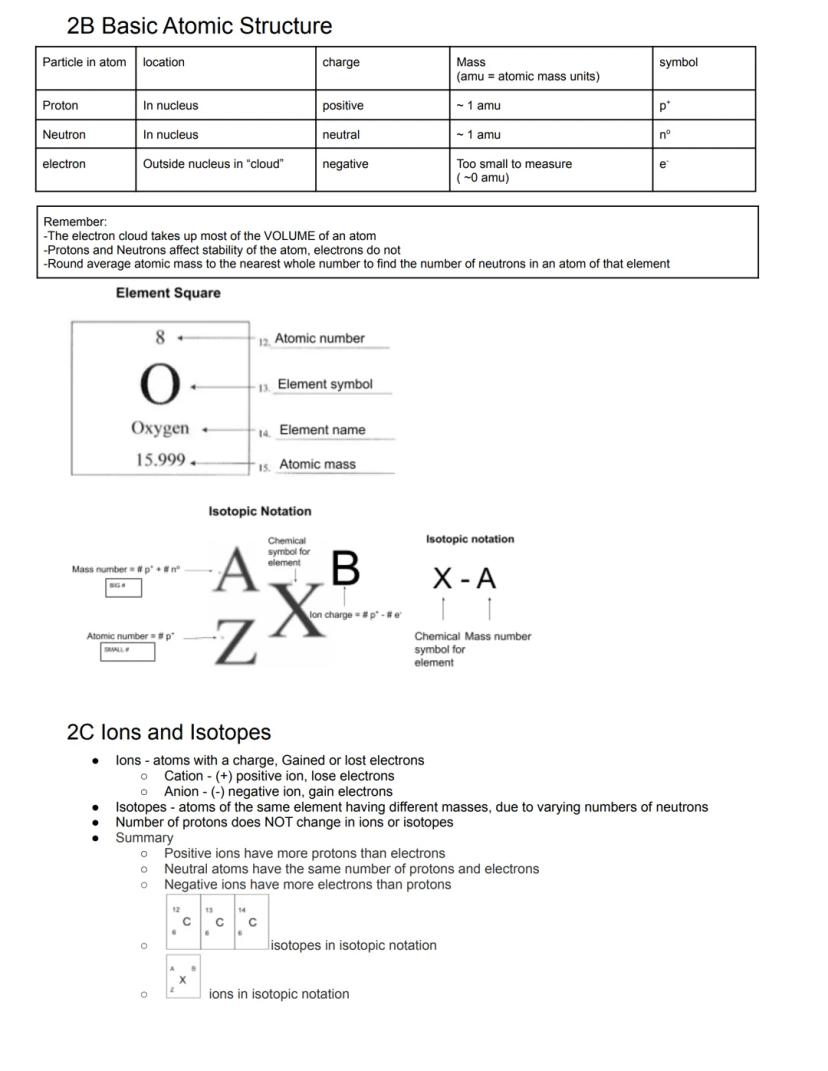

Basic Atomic Structure
Atoms are incredibly small, but they follow simple patterns! Every atom contains three main particles: protons, neutrons, and electrons. Protons are positively charged particles located in the nucleus with a mass of about 1 atomic mass unit (amu). Neutrons sit alongside protons in the nucleus, have no charge, and also have a mass of about 1 amu. Electrons orbit the nucleus in a "cloud," carry a negative charge, and are so tiny their mass is nearly zero.
Even though the nucleus is super small, it contains almost all of an atom's mass. The electron cloud takes up most of an atom's volume, making atoms mostly empty space! The number of protons (atomic number) determines which element an atom is, while the total number of protons and neutrons gives us the mass number.
When reading the periodic table, each element square gives you key information. The atomic number (top) tells you how many protons the atom has. The element symbol and name identify which element it is, and the atomic mass (bottom) helps you calculate the average number of neutrons.
Pro tip: You can quickly find the number of neutrons in an atom by rounding the atomic mass to the nearest whole number and subtracting the atomic number!
Understanding isotopic notation like $^{12}_{6}C$ is super helpful—the small number at the bottom shows protons, while the large number at the top shows the total protons plus neutrons.
3
of 6

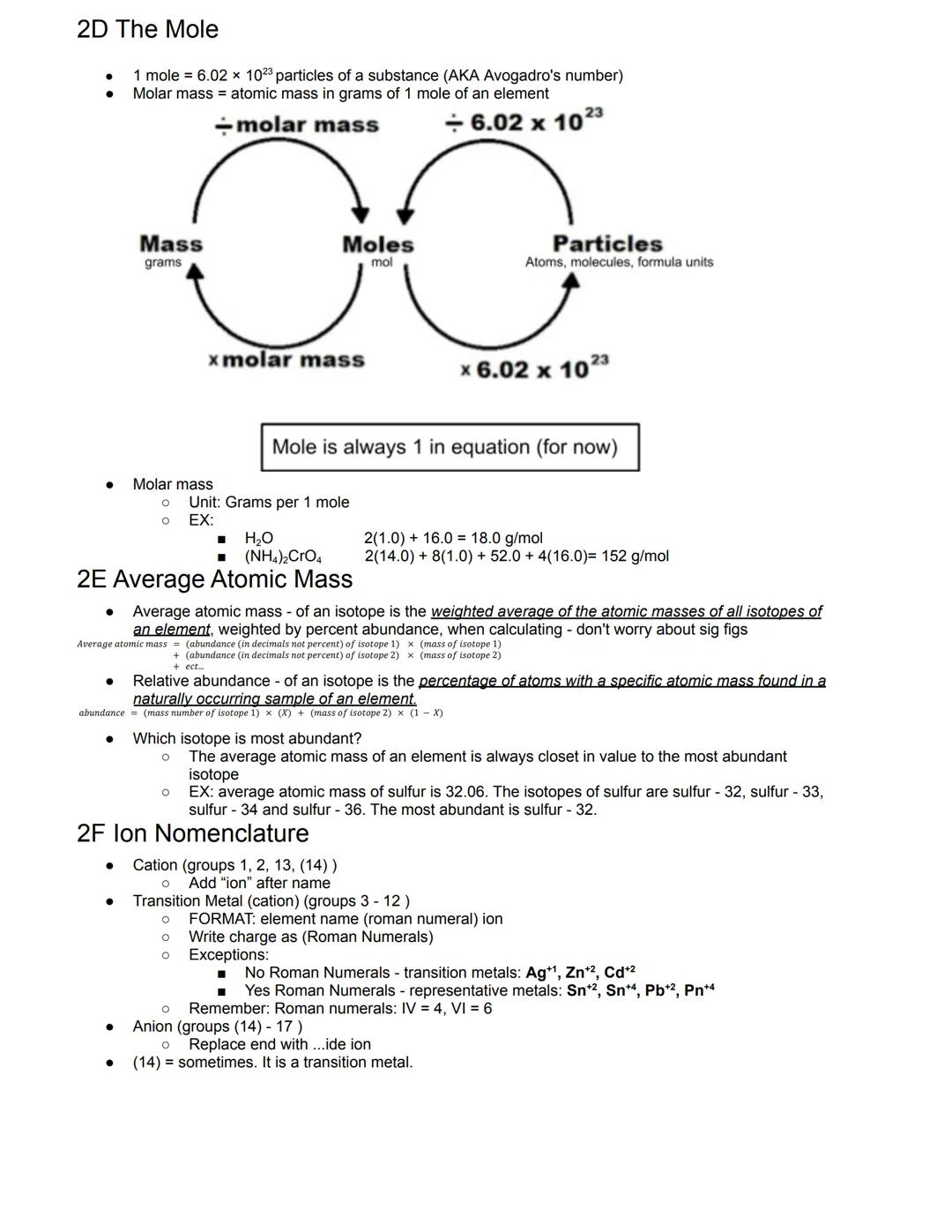

Ions, Isotopes, and The Mole
Did you know atoms can gain or lose electrons? When they do, they become ions with an electrical charge. Atoms that lose electrons form cations with a positive charge, while those that gain electrons form anions with a negative charge. Meanwhile, isotopes are atoms of the same element that have different numbers of neutrons, giving them different masses.
The number of protons never changes in ions or isotopes—that's what makes an element stay the same element. Positive ions have more protons than electrons, neutral atoms have equal numbers, and negative ions have more electrons than protons.
When studying chemistry, we need a way to count extremely tiny particles. That's where the mole comes in! One mole equals 6.02 × 10^23 particles (Avogadro's number) of any substance. The molar mass of an element or compound is simply its atomic mass expressed in grams per mole.
Remember this! The mole connects the microscopic world of atoms to the measurable lab quantities. One mole of water (H₂O) has a mass of 18.0 grams and contains 6.02 × 10^23 water molecules!
To find a compound's molar mass, add up the atomic masses of all its atoms. For example, H₂O has a molar mass of 2(1.0) + 16.0 = 18.0 g/mol. This concept lets you convert between mass, moles, and actual particle count using simple proportions.
4
of 6
Average Atomic Mass and Ion Nomenclature
The weight on the periodic table isn't as simple as it seems! The average atomic mass of an element is a weighted average of all its naturally occurring isotopes. When calculating this value, you multiply each isotope's mass by its relative abundance (expressed as a decimal) and then add these products together.
How can you tell which isotope of an element is most abundant in nature? Just look at the periodic table! The average atomic mass will always be closest to the mass of the most abundant isotope. For example, sulfur's average atomic mass is 32.06, which is closest to sulfur-32, making it the most abundant isotope.
Naming ions follows specific patterns depending on their type. For cations from Groups 1, 2, and 13, simply add "ion" after the element name (like "sodium ion"). Transition metal cations require Roman numerals to show their charge, such as "iron(III) ion." Some common exceptions don't need Roman numerals, including silver (Ag⁺), zinc (Zn²⁺), and cadmium (Cd²⁺).
Helpful hint: For anions , replace the element's ending with "-ide ion." For example, chlorine becomes "chloride ion" when it gains an electron!
Understanding these naming conventions helps you communicate clearly about different ions and compounds in chemistry, which becomes especially important when writing formulas and equations.
5
of 6

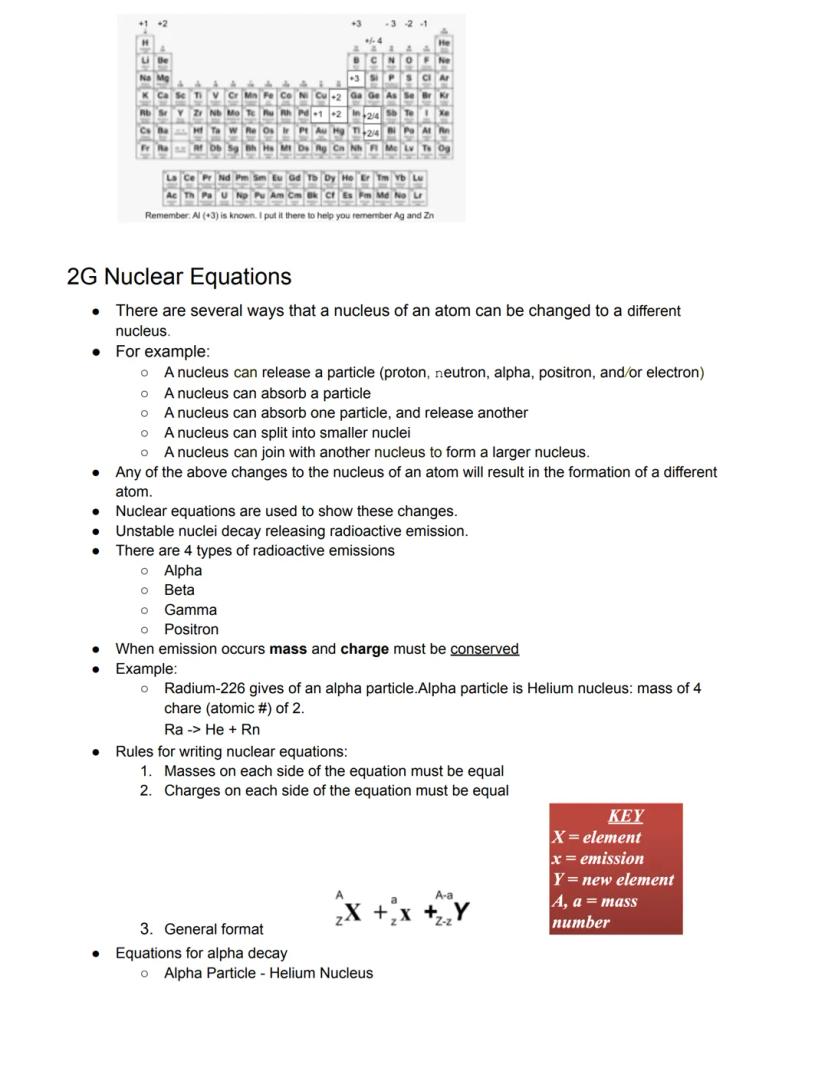

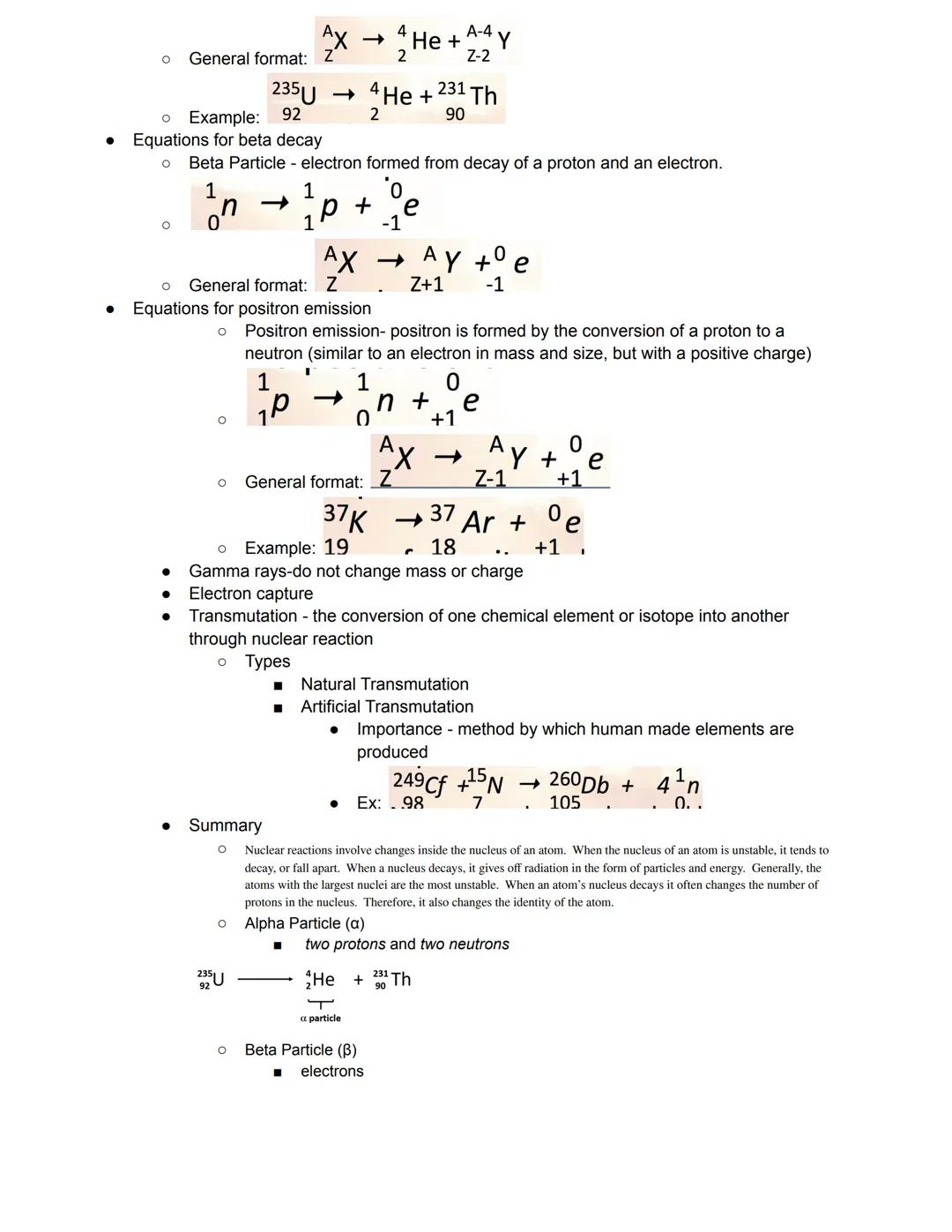

Nuclear Equations and Radioactivity
Atoms can change in dramatic ways through nuclear reactions! Unlike chemical reactions that only involve electrons, nuclear changes alter the nucleus itself. These transformations can happen when a nucleus releases particles, absorbs particles, splits into smaller nuclei, or joins with another nucleus.
Radioactive emissions occur when unstable nuclei decay, releasing particles and energy. The four main types are alpha, beta, gamma, and positron emissions. When writing nuclear equations to show these changes, remember that both mass and charge must be conserved on both sides.
Alpha decay involves the release of a helium nucleus (²⁴He). For example, uranium-235 decays to thorium-231 by emitting an alpha particle: ²³⁵₉₂U → ⁴₂He + ²³¹₉₀Th. Beta decay happens when a neutron converts to a proton and an electron, with the electron being ejected: ¹₀n → ¹₁p + ⁰₋₁e. This increases the atomic number by one while keeping the mass number the same.
Amazing fact: Through a process called transmutation, scientists can actually convert one element into another! This is how we create human-made elements that don't exist naturally in the universe.
Positron emission involves a proton converting to a neutron and emitting a positron (a positively charged electron). Gamma rays are high-energy photons that don't change an atom's mass or charge but release energy as the nucleus transitions to a more stable state.
6
of 6

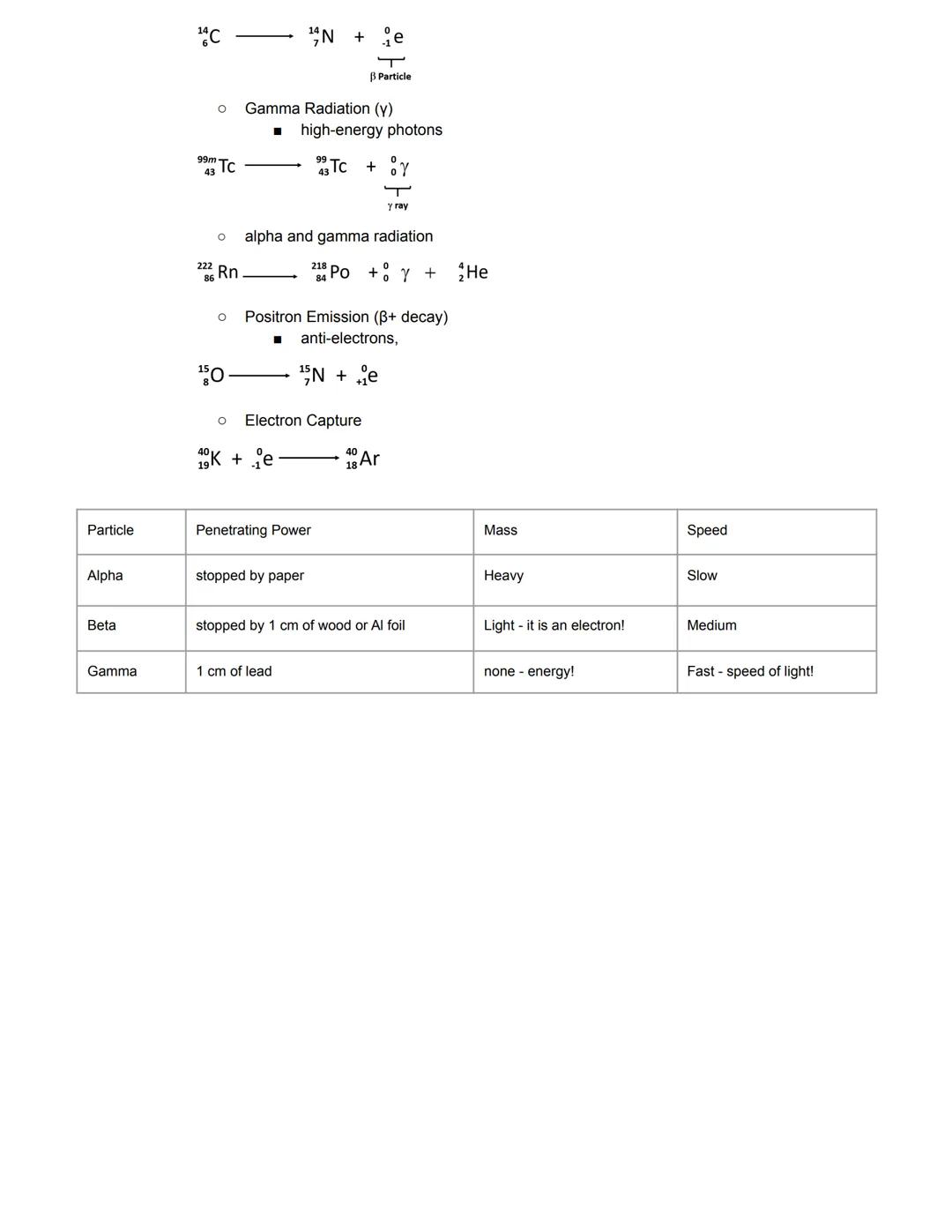

Radiation Types and Their Properties
Different types of radiation have unique characteristics that affect how they interact with matter. Alpha particles contain two protons and two neutrons, making them relatively heavy and slow. Despite being the most massive type of radiation, they're actually the least penetrating—even a sheet of paper can stop them!
Beta particles are simply high-energy electrons ejected from the nucleus. When a neutron converts to a proton, it releases an electron (⁰₋₁e). These lightweight particles move faster than alpha particles and can penetrate further—it takes about 1 cm of wood or aluminum foil to block them.
Gamma rays are pure energy with no mass. These electromagnetic waves travel at the speed of light and are extremely penetrating—you need about 1 cm of lead to shield against them! They often accompany other types of decay, as seen in this reaction: ²²²₈₆Rn → ²¹⁸₈₄Po + ⁰₀γ + ⁴₂He.
Safety first! Understanding the penetrating power of different radiation types is crucial for radiation protection. Alpha particles can't penetrate skin but are extremely dangerous if ingested, while gamma rays can pass right through your body!
Some nuclei undergo positron emission, releasing a positron (⁰₊₁e), which is like an electron but with positive charge. Another interesting process is electron capture, where a nucleus captures an orbital electron, converting a proton to a neutron as in: ⁴⁰₁₉K + ⁰₋₁e → ⁴⁰₁₈Ar.
