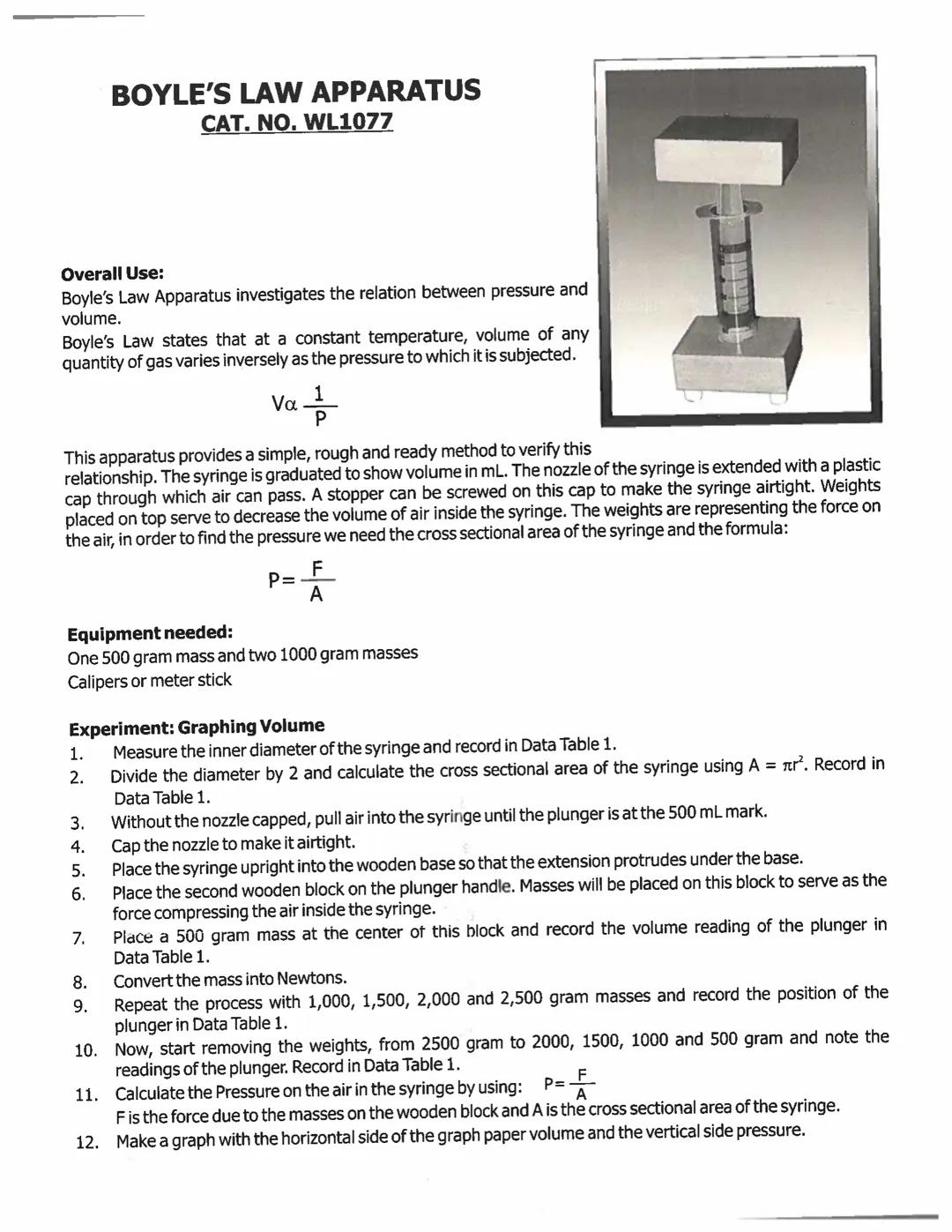

Boyle's Law Apparatus
Ever wondered what happens to air when you squeeze it? That's exactly what Boyle's Law explains! This law states that at constant temperature, the volume of gas varies inversely with pressure. When pressure goes up, volume goes down—and vice versa.
The apparatus uses a simple syringe with volume markings and a cap to create an airtight chamber. By placing weights on the plunger, you apply different forces that compress the air inside. The relationship follows the formula V ∝ 1/P, showing how volume and pressure are related.
To calculate pressure, you'll need to measure the syringe's cross-sectional area using the formula P = F/A. The experiment involves adding various weights (500g to 2500g) to the plunger and recording how the volume changes, then removing weights and observing if the volume returns to its original value.
Try This! After collecting your data, plot pressure vs. volume on a graph. If Boyle's Law holds true, you should see a hyperbolic curve showing the inverse relationship. Does your graph look like this?
2
of 2

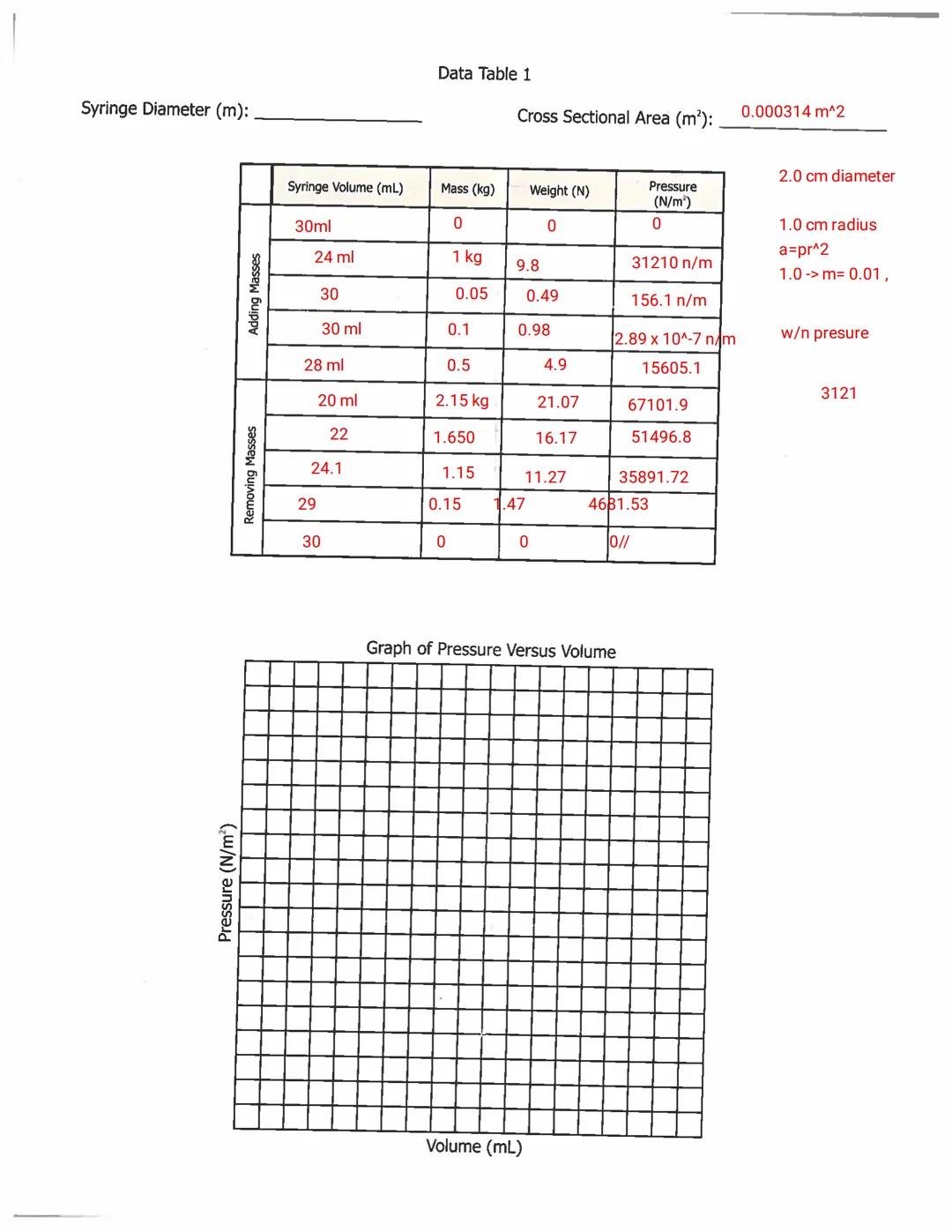

Data Collection and Analysis
Setting up your data table is crucial for seeing Boyle's Law in action. You'll start by measuring the syringe's diameter (typically around 2.0 cm) and calculating its cross-sectional area using A = πr². With a 1.0 cm radius, you get about 0.000314 m².
When collecting data, record both when adding and removing weights. Start with no weight (0 kg) at about 30 mL volume, then add progressively more weight: 0.05 kg (0.49 N), 0.1 kg (0.98 N), 0.5 kg (4.9 N), and so on. For each mass, calculate the pressure using P = F/A.
The example data shows how volume decreases as pressure increases. With no weight, the volume is 30 mL. As weight increases to 2.15 kg (applying 21.07 N of force), the volume compresses to just 20 mL, creating a pressure of 67,101.9 N/m².
Important Note: When you remove weights and record the corresponding volumes, you should get nearly the same values as when adding weights. Any significant differences could indicate experimental error or air leakage from your syringe.
