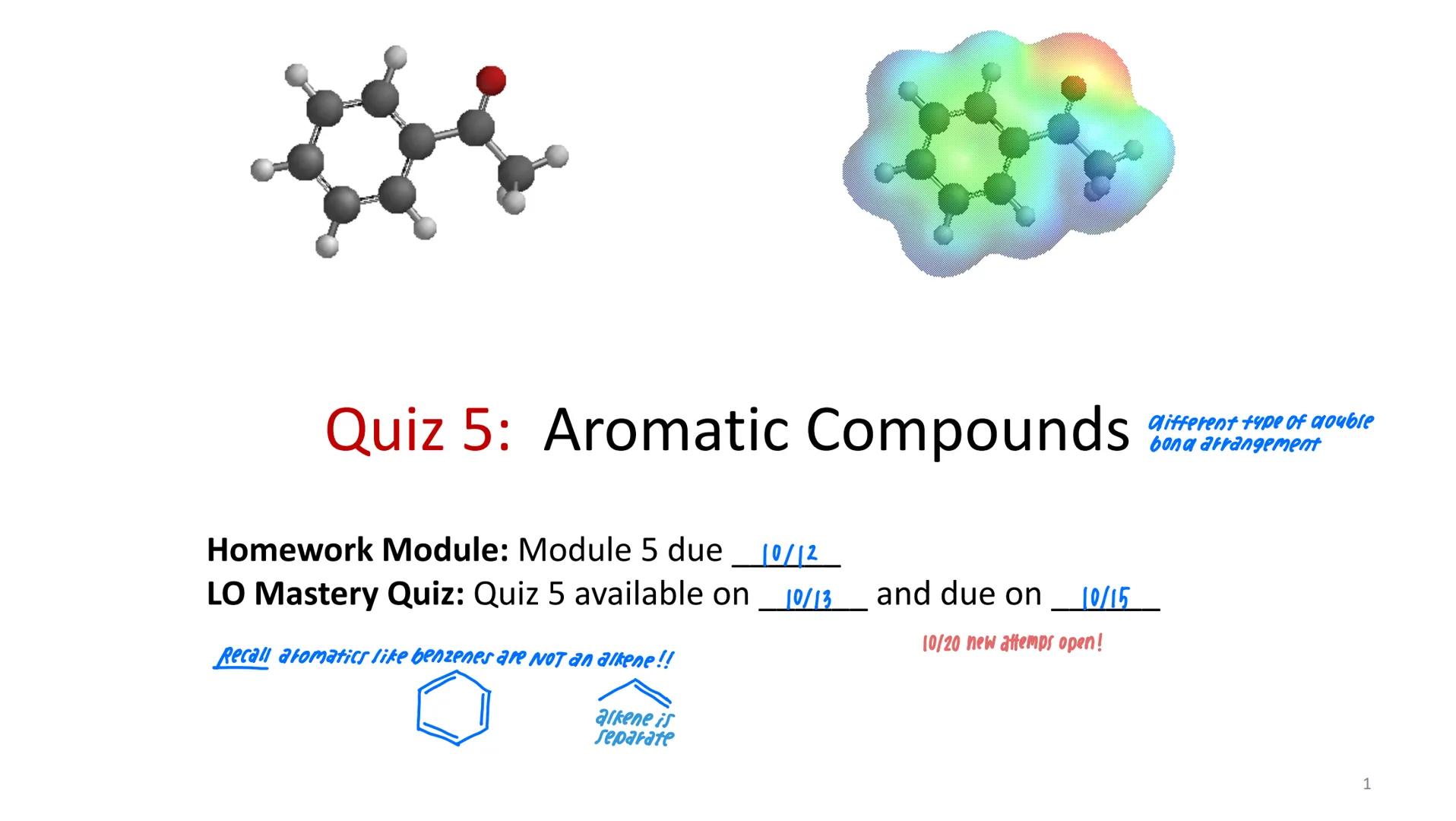

Aromatic Compounds Introduction

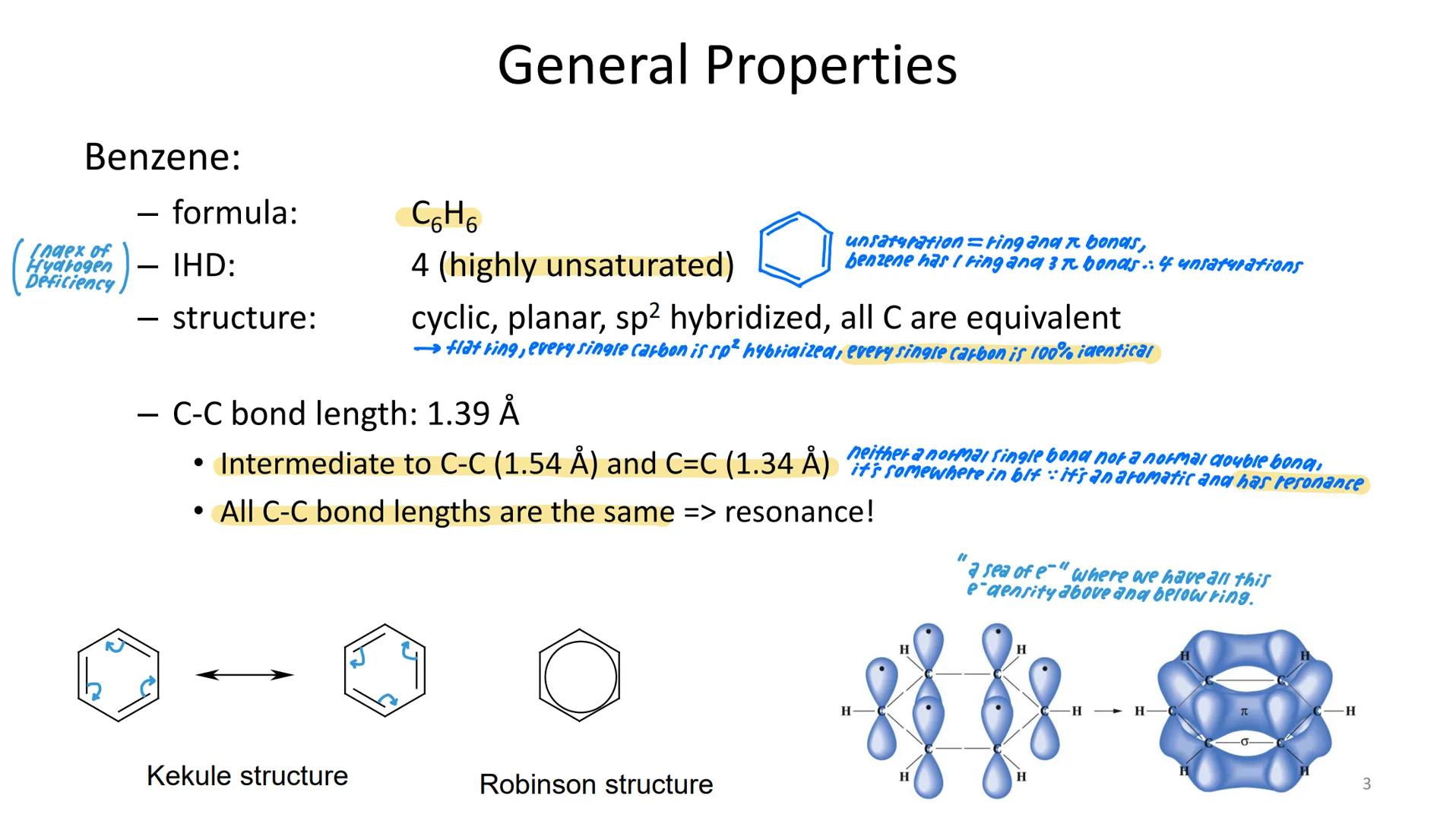

Benzene (C₆H₆) is the simplest aromatic compound, with a planar, cyclic structure where all carbon atoms are equivalent. Unlike alkenes, benzene has resonance stability due to its delocalized pi electrons, making it significantly more stable than you might expect.

The structure of benzene features a 1.39 Å bond length between carbons, which is intermediate between single (1.54 Å) and double bonds (1.34 Å). This indicates that benzene doesn't have alternating single and double bonds, but rather a continuous "sea of electrons" above and below the ring.

With an Index of Hydrogen Deficiency (IHD) of 4, benzene is highly unsaturated, yet it doesn't readily undergo addition reactions like typical alkenes. This exceptional stability comes from its aromatic character - a property you'll recognize throughout organic chemistry.

💡 Think of benzene not as a ring with three double bonds, but as a continuous loop of electron density. This helps explain why it behaves differently from alkenes!

Benzene Nomenclature

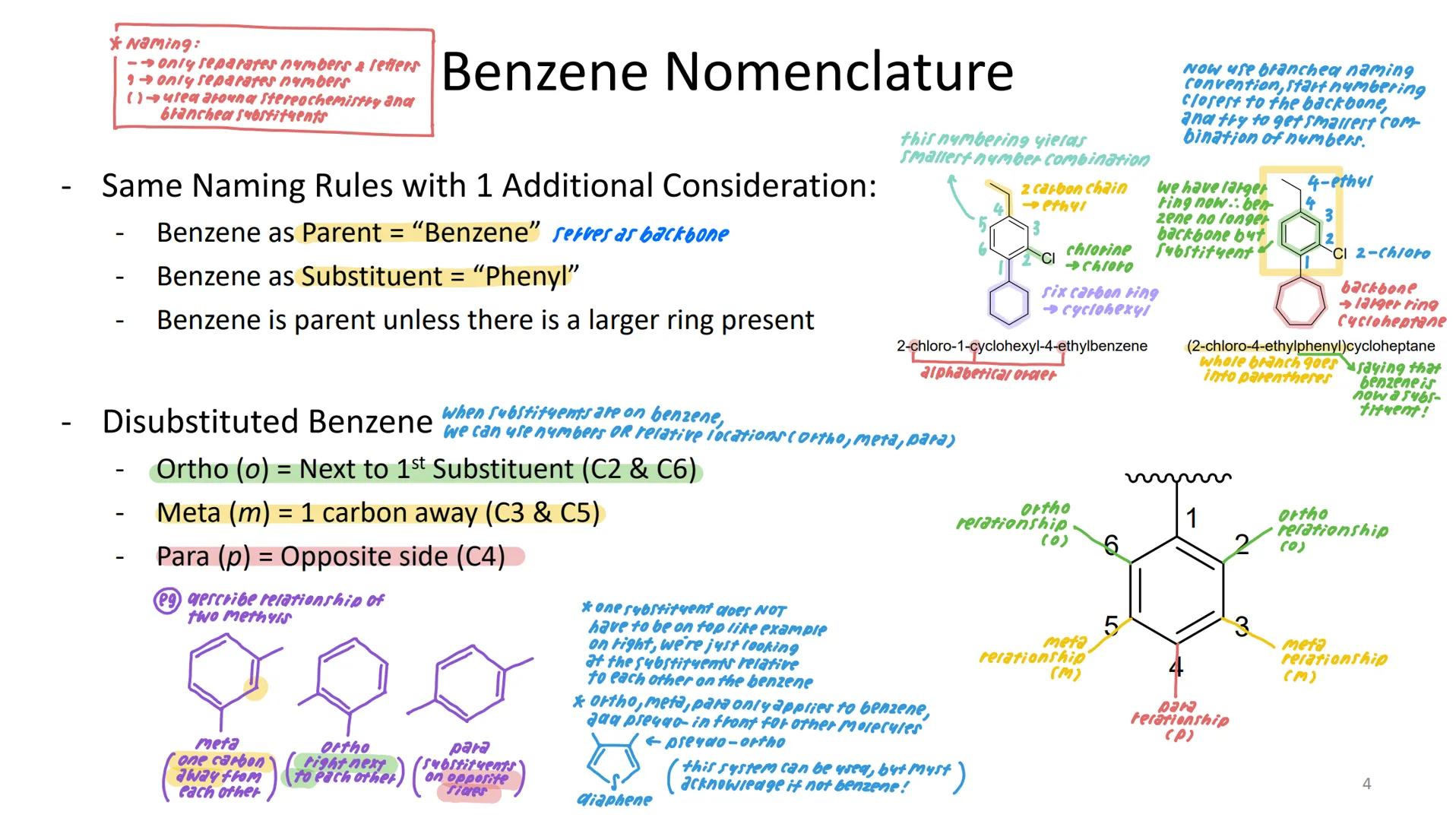

Naming benzene derivatives follows standard organic chemistry rules with some special considerations. When benzene is the parent structure, "benzene" serves as the backbone name. When it's a substituent, it's called "phenyl."

The position of substituents on benzene can be indicated in two ways:

• Using numbers $1,2-dibromobenzene$
• Using relative terms for disubstituted benzenes:
  • Ortho (o): substituents at positions 1,2
  • Meta (m): substituents at positions 1,3
  • Para (p): substituents at positions 1,4

When naming benzene compounds, always start numbering from a substituent to give the smallest possible position numbers. For example, 1,2-dichlorobenzene $not 2,3-dichlorobenzene$.

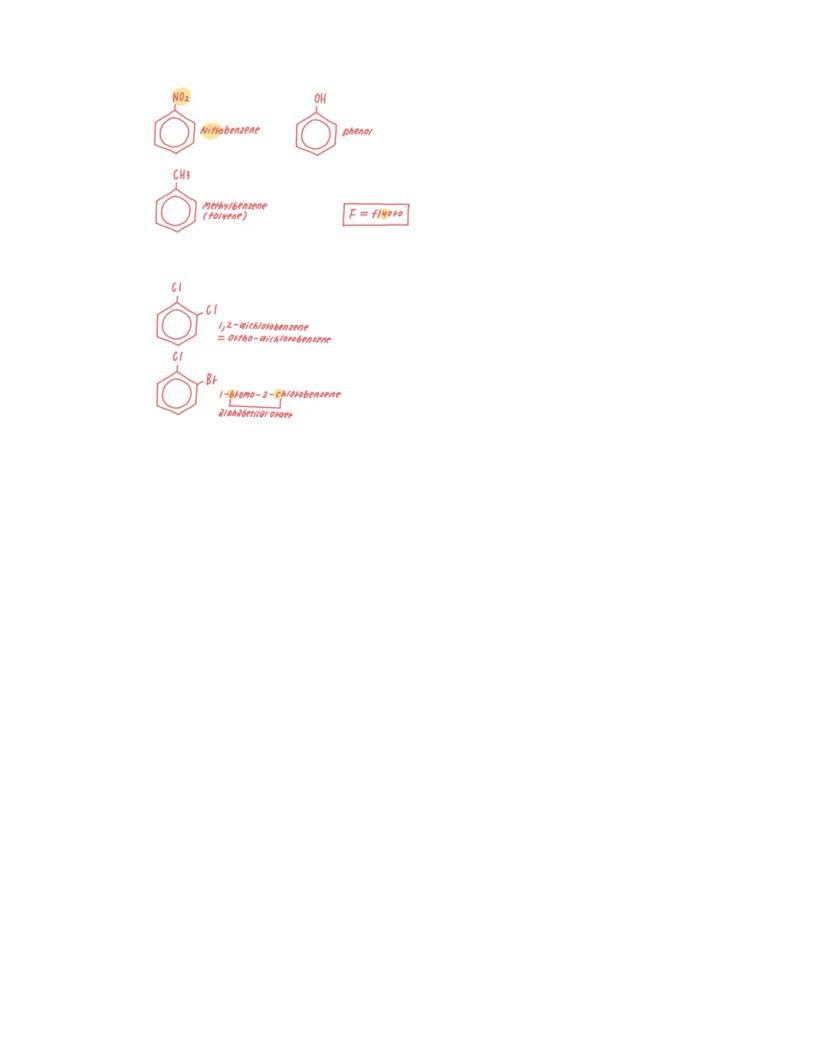

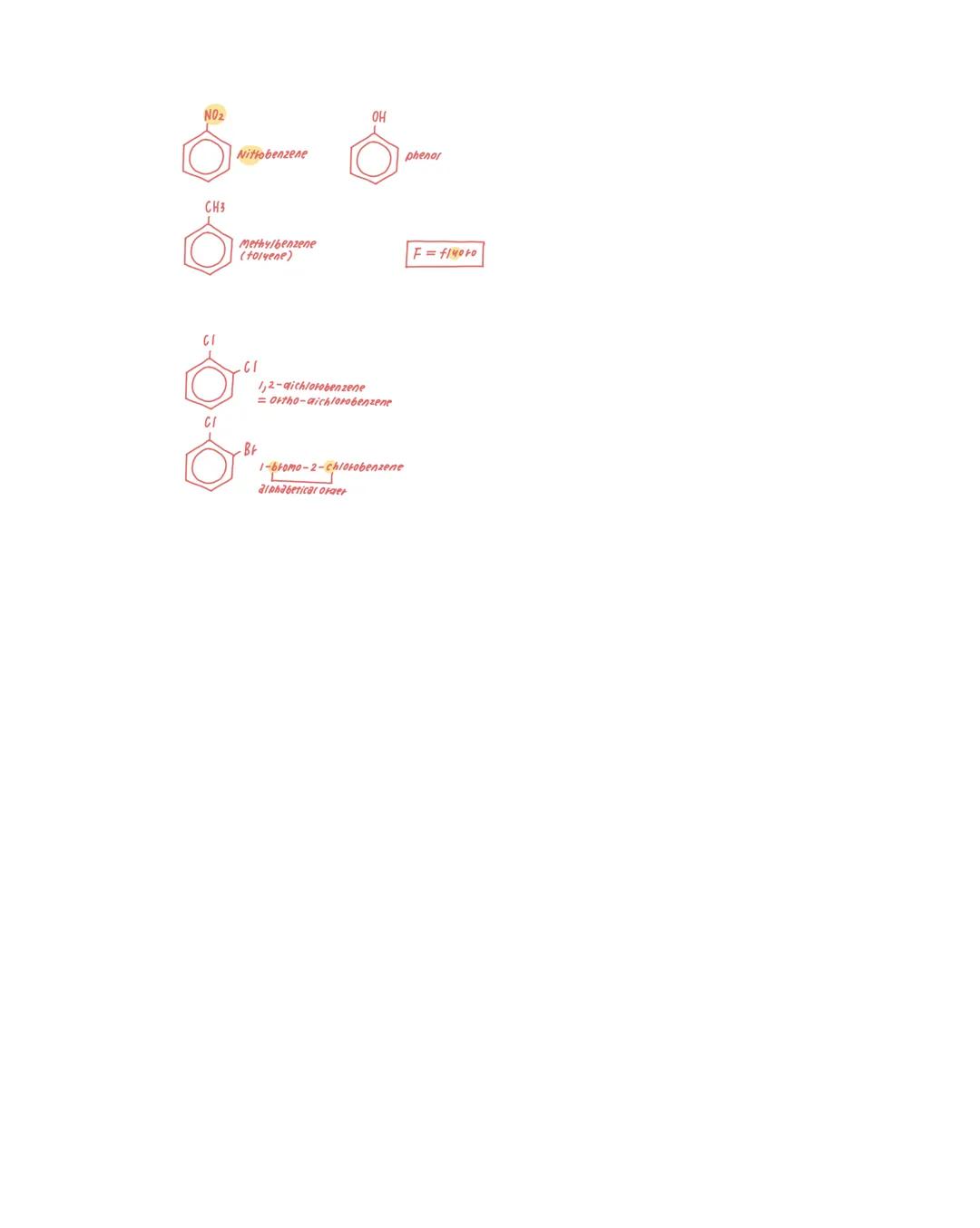

Some common benzene derivatives have special names: methylbenzene is called toluene, hydroxybenzene is phenol, and aminobenzene is aniline. Memorizing these common names will save you time when working with aromatic compounds.

💡 Remember that "ortho," "meta," and "para" terminology only applies to benzene derivatives with exactly two substituents!

Aromaticity and Hückel's Rule

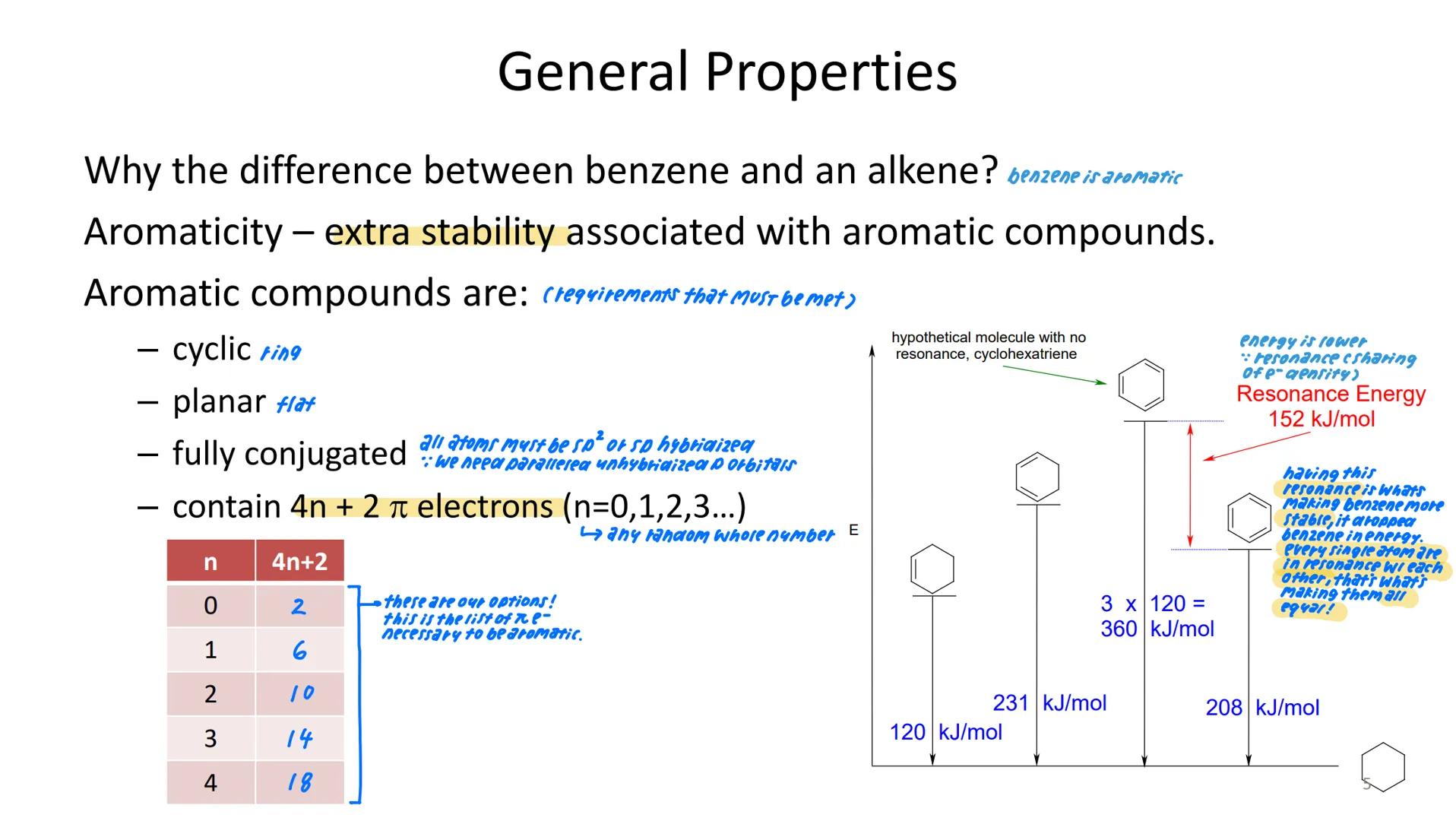

What makes a compound aromatic? Aromaticity refers to the extra stability associated with certain cyclic, conjugated systems and requires these four conditions:

1. The molecule must be cyclic
2. The molecule must be planar
3. The molecule must be fully conjugated (all atoms in the ring must be sp² or sp hybridized)
4. The molecule must have 4n+2 π electrons $where n = 0, 1, 2, 3...$

This last rule, known as Hückel's Rule, gives us the "magic numbers" of 2, 6, 10, 14, or 18 π electrons that can create an aromatic system. Benzene, with 6 π electrons, perfectly satisfies this rule with n=1.

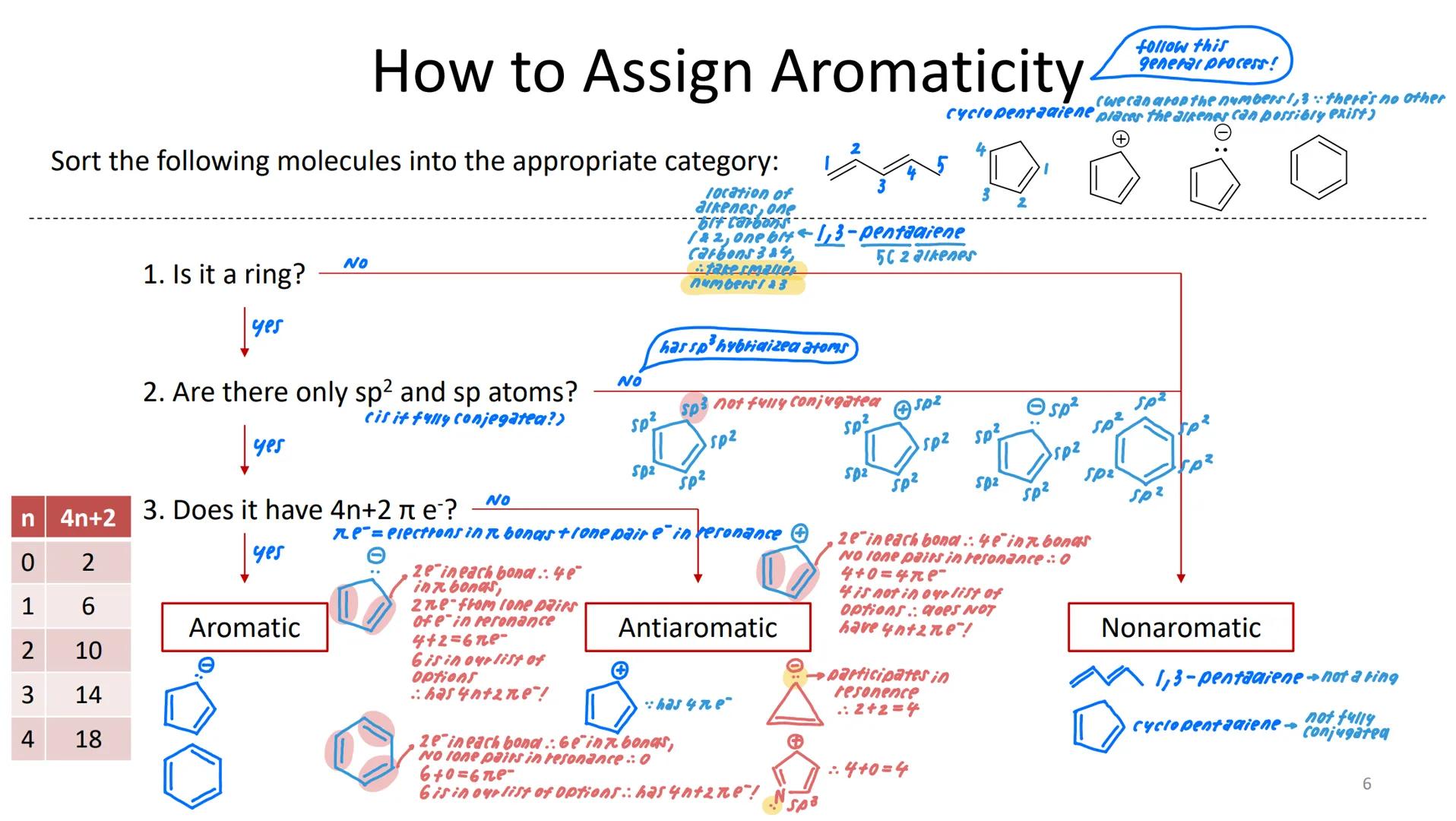

To determine if a molecule is aromatic, first check if it's a ring with all sp² hybridized atoms. Then count the π electrons (2 electrons per π bond plus any lone pairs in p orbitals) and see if the total fits the 4n+2 rule. If it does, the molecule is aromatic. If it has 4n π electrons instead, it's antiaromatic and unusually unstable.

💡 The aromaticity of a molecule explains its stability, with aromatic compounds having about 150-230 kJ/mol of extra stabilization energy compared to hypothetical non-aromatic versions!

Polycyclic and Heterocyclic Aromatics

Aromatic compounds extend beyond simple benzene to include fascinating structures with multiple rings or different atoms in the ring.

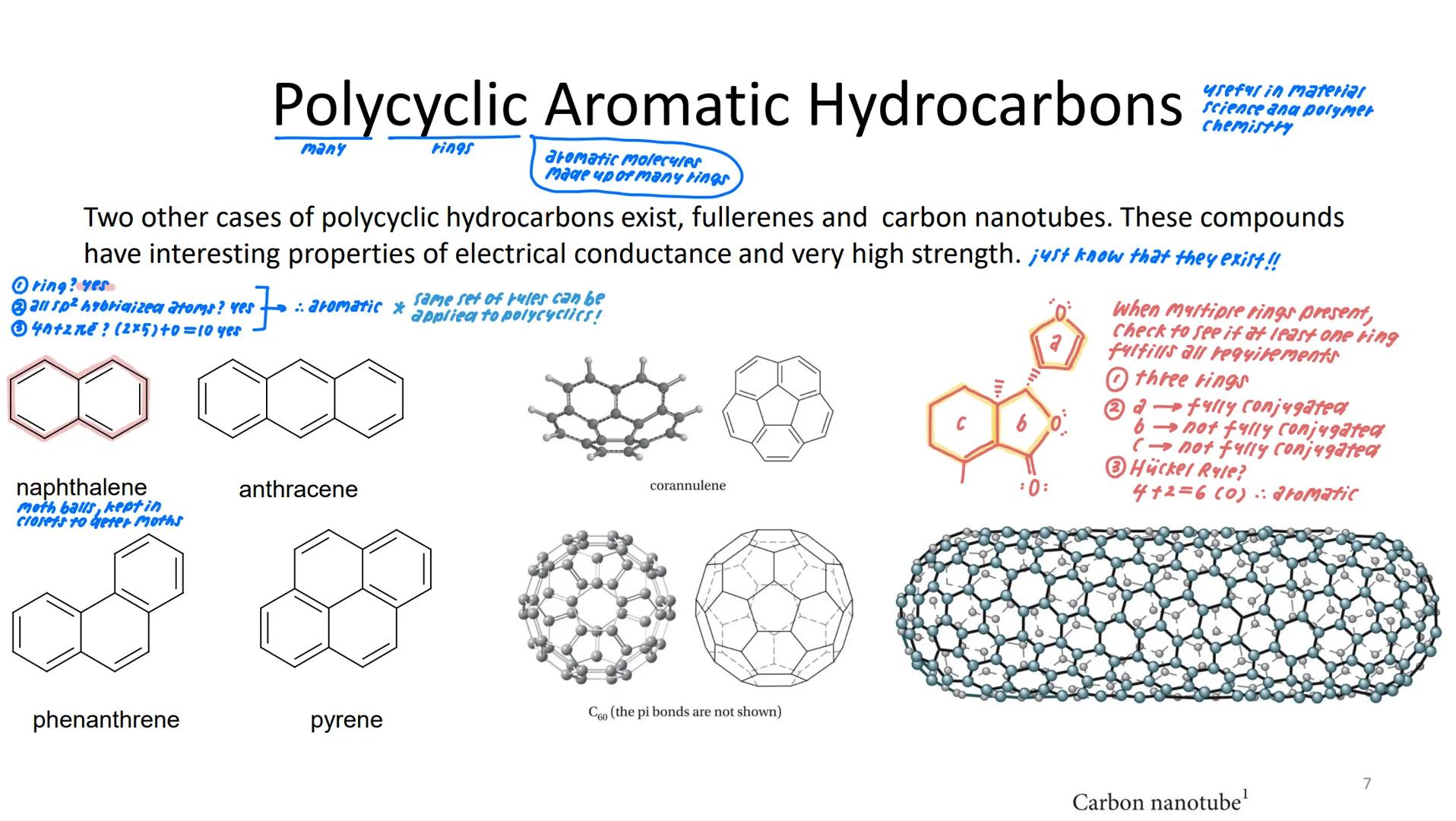

Polycyclic Aromatic Hydrocarbons (PAHs) contain multiple fused benzene rings. Common examples include:

• Naphthalene (two fused rings) - used in mothballs
• Anthracene (three fused rings)
• Pyrene (four fused rings)

These compounds follow the same aromaticity rules, with at least one ring satisfying all requirements. PAHs are important in material science and can be found in coal, tar, and even some foods.

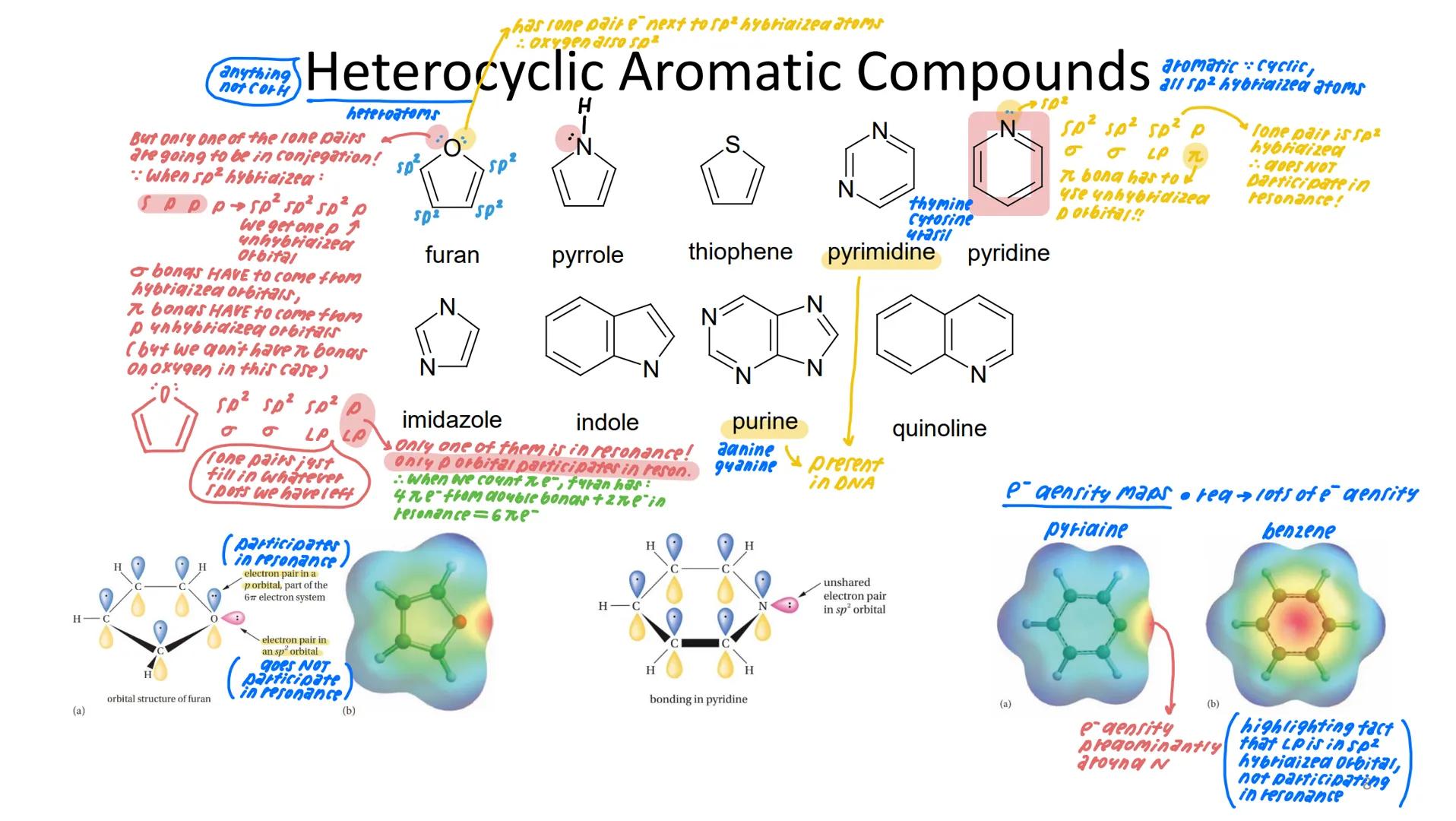

Heterocyclic aromatics contain atoms other than carbon in their rings. Examples include:

• Pyridine (contains nitrogen)
• Furan (contains oxygen)
• Thiophene (contains sulfur)
• Pyrrole (contains nitrogen with a hydrogen)

When determining aromaticity in heterocycles, remember that heteroatoms like N, O, and S can contribute lone pairs to the aromatic π system. However, only one lone pair per heteroatom can participate in aromaticity, as the others remain in sp² hybridized orbitals.

💡 Heterocyclic aromatics are extremely important in biology - nucleic acids in DNA contain pyrimidine and purine bases, which are heterocyclic aromatic compounds!

Electrophilic Aromatic Substitution

Benzene and other aromatics undergo a specific type of reaction called Electrophilic Aromatic Substitution (EAS), where a hydrogen on the ring is replaced by an electrophile. These reactions follow a general three-step mechanism:

1. Formation of the active electrophile (using Lewis or Brønsted acids)
2. Attack by benzene, forming a resonance-stabilized cation (breaks aromaticity temporarily)
3. Deprotonation to restore aromaticity (gives substitution product)

Five important EAS reactions to know:

1. Nitration: HNO₃/H₂SO₄ → adds -NO₂ group
2. Sulfonation: SO₃/H₂SO₄ → adds -SO₃H group
3. Halogenation: X₂/FeX₃ → adds -X (Cl, Br) group
4. Friedel-Crafts Alkylation: RCl/AlCl₃ → adds -R group
5. Friedel-Crafts Acylation: RCOCl/AlCl₃ → adds -COR group

The key difference between alkylation and acylation is that alkylation can lead to carbocation rearrangements and multiple substitutions, while acylation avoids these problems by forming a deactivated product.

💡 Unlike alkenes, benzene doesn't readily undergo addition reactions because that would destroy its aromatic stability. Instead, it prefers substitution reactions that preserve the aromatic ring!

Directing Effects in EAS Reactions

When benzene already has a substituent, the next group typically adds at specific positions based on the electronic effects of the first substituent. This phenomenon is called the directing effect.

Substituents fall into two categories:

1. Ortho/Para Directors: Groups that direct incoming electrophiles to positions 2,6 (ortho) or 4 (para)

   • All electron-donating groups (EDGs): -OH, -NH₂, -OCH₃, -CH₃, -R
   • Halogens $-F, -Cl, -Br, -I$ despite being electron-withdrawing

2. Meta Directors: Groups that direct incoming electrophiles to position 3 (meta)

   • Most electron-withdrawing groups (EWGs): -NO₂, -CN, -SO₃H, -C=O, -COOH, -CF₃

The directing effect is explained by examining the stability of reaction intermediates. For ortho/para directors, the positive charge in the intermediate can be stabilized by resonance or induction. For meta directors, the positive charge would be adjacent to an already electron-poor area if placed at ortho/para positions, which is destabilizing.

Between ortho and para positions, para is usually preferred due to less steric hindrance. Additionally, when working with multiple substituents, the strongest directing group typically controls the outcome.

💡 This seemingly odd behavior of halogens $being electron-withdrawing but ortho/para directing$ is a classic "exception" in organic chemistry that often appears on exams!

Redox Reactions and Functional Group Transformations

Benzene itself is remarkably stable toward oxidation and reduction. Normal oxidizing conditions won't affect the aromatic ring, and reduction requires extreme conditions like high pressure H₂/Pd or Na/NH₃ (Birch reduction).

However, substituents on the ring can be readily transformed using standard conditions:

Reduction transformations:

• Nitro $-NO₂$ → Amine $-NH₂$ using H₂/Pd
• Ketone $-COR$ → Alkyl $-CH₂R$ using Zn(Hg)/HCl

Oxidation transformations:

• Amine $-NH₂$ → Nitro $-NO₂$ using F₃CCO₃H
• Alkyl side chain $-CH₂R$ → Carboxylic acid $-COOH$ using KMnO₄

The benzylic position (carbon adjacent to the aromatic ring) is especially reactive because the ring can stabilize intermediates through resonance. Key reactions at this position include:

• Radical halogenation using Cl₂/light
• Oxidative cleavage using KMnO₄

These transformations are strategically important because they allow you to control regioselectivity by changing directing groups. For example, reducing a nitro group to an amine changes a meta director to an ortho/para director.

💡 The ability to manipulate substituents selectively is crucial for multi-step synthesis. Think of these transformations as your "chess moves" for controlling where the next reaction will occur!

Diazonium Salts and Synthesis Strategies

Diazonium salts are versatile intermediates for introducing various functional groups to aromatic rings. They're formed by treating aromatic amines with sodium nitrite and acid:

Ar-NH₂ + NaNO₂ + H₂SO₄ → Ar-N≡N⁺ + H₂O + HSO₄⁻

Once formed, diazonium salts can be converted to different functional groups:

• Ar-N≡N⁺ + CuX → Ar-X $X = Cl, Br, CN$ [Sandmeyer reaction]
• Ar-N≡N⁺ + H₃PO₂ → Ar-H [Reduction]
• Ar-N≡N⁺ + H₂O → Ar-OH [Hydrolysis]

For multi-step synthesis of aromatic compounds, employ retrosynthetic analysis - working backward from your target molecule to identify the best synthetic route. Key considerations include:

1. Order of substituent addition matters. Adding EWG groups first will direct subsequent additions to meta positions, while adding EDG groups first gives ortho/para products.

2. Functional group interconversions can help achieve desired substitution patterns that may be difficult to obtain directly.

3. Protection/deactivation strategies may be necessary to prevent over-substitution or to control regioselectivity.

When planning a synthesis, identify what bonds need to be formed or broken, then determine the most efficient sequence of reagents and reactions to achieve your target molecule.

💡 Mastering aromatic synthesis requires practice! Try drawing reaction pathways for various target molecules to build your strategic thinking skills.
