# Conic sections • Ellipse v set of all points in a plane such that the sum of the clistances from any point on the curve to the Fi + Fa fo

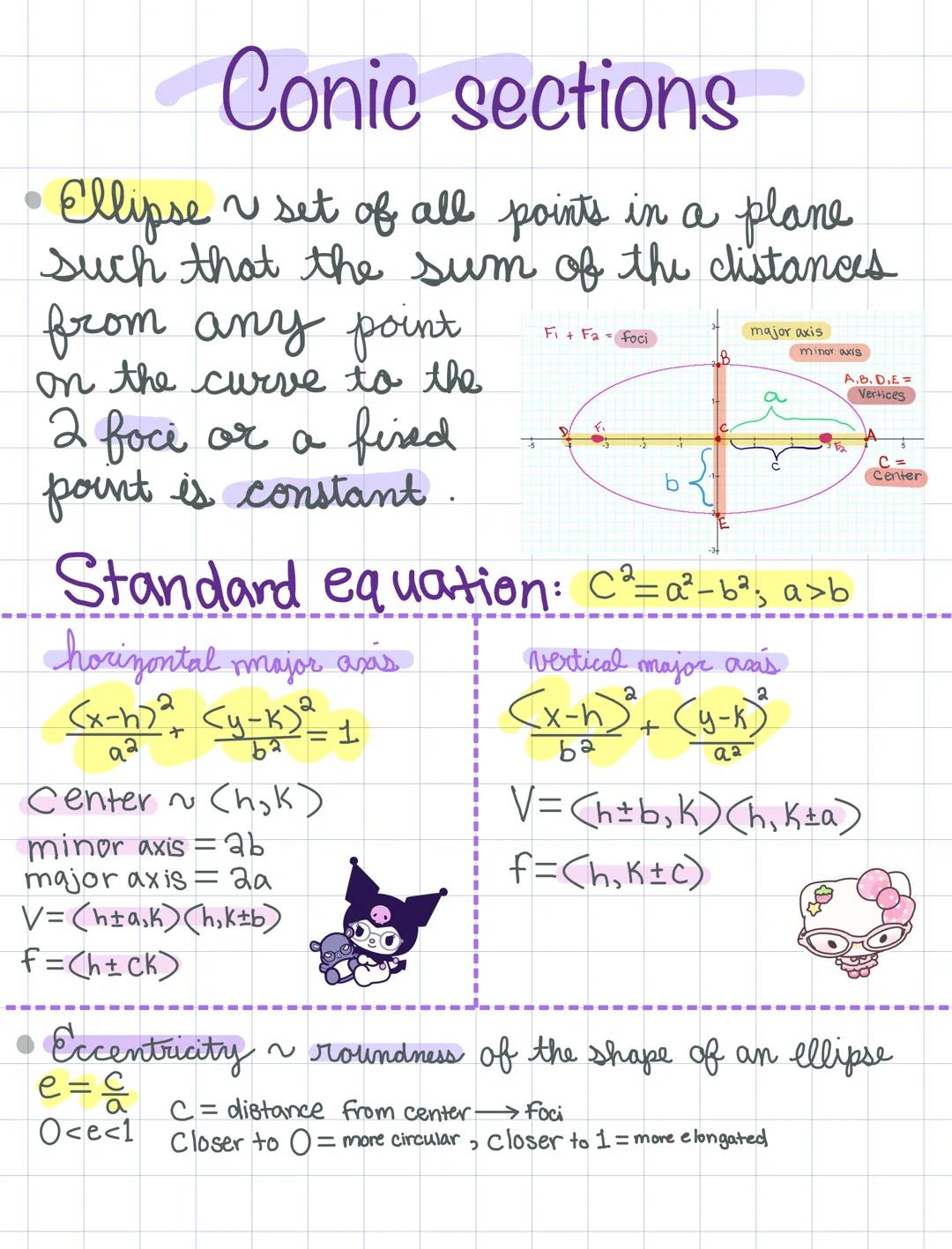

Ellipses: The Oval Wonders

An ellipse is a set of points where the sum of distances from any point on the curve to two fixed points (called foci) remains constant. Think of it as a circle that's been stretched.

The standard equation of an ellipse with center at (h,k) has two forms depending on its orientation. For a horizontal major axis: (x−h)2a2+(y−k)2b2=1\frac{(x-h)^{2}}{a^{2}}+\frac{(y-k)^{2}}{b^{2}}=1, where the vertices are at (h±a,k) and (h,k±b). For a vertical major axis: (x−h)2b2+(y−k)2a2=1\frac{(x-h)^{2}}{b^{2}}+\frac{(y-k)^{2}}{a^{2}}=1, with vertices at (h±b,k) and (h,k±a).

The relationship between variables is always c2=a2−b2c^{2}=a^{2}-b^{2} where a>b and c is the distance from center to focus. The eccentricity (e) measures how "squished" an ellipse is, calculated as e=cae=\frac{c}{a} with values between 0 and 1. An eccentricity close to 0 makes the ellipse nearly circular, while values approaching 1 create a more elongated shape.

Real-world connection: Planetary orbits are elliptical with the sun at one focus. Earth's orbit has an eccentricity of about 0.0167, making it nearly circular, while Pluto's is 0.2488, giving it a more elongated path.

2
of 3
# Conic sections • Ellipse v set of all points in a plane such that the sum of the clistances from any point on the curve to the Fi + Fa fo

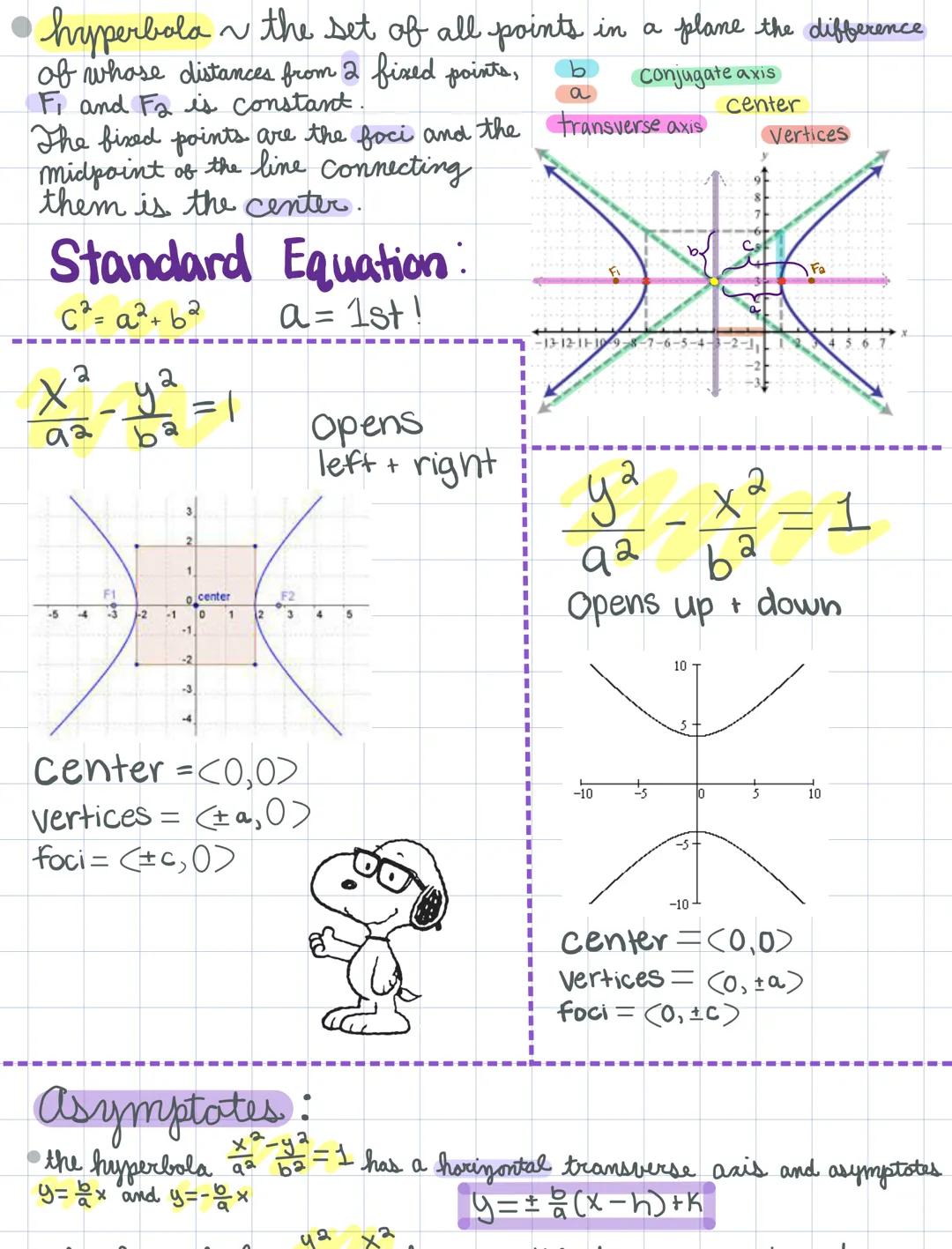

Hyperbolas: The Infinite Curves

A hyperbola is defined as the set of points where the difference of distances from any point to two fixed foci remains constant. Unlike ellipses, hyperbolas consist of two separate branches that extend infinitely.

The standard equation of a hyperbola has two forms. For a horizontal transverse axis: x2a2−y2b2=1\frac{x^{2}}{a^{2}}-\frac{y^{2}}{b^{2}}=1, with center at (0,0), vertices at (±a,0), and foci at (±c,0). For a vertical transverse axis: y2a2−x2b2=1\frac{y^{2}}{a^{2}}-\frac{x^{2}}{b^{2}}=1, with center at (0,0), vertices at (0,±a), and foci at (0,±c).

For hyperbolas, the relationship between variables is c2=a2+b2c^{2}=a^{2}+b^{2}. One of the most important features of hyperbolas are their asymptotes - straight lines that the hyperbola approaches but never touches. For a horizontal hyperbola, the asymptotes are y=±ba(x−h)+ky=\pm\frac{b}{a}(x-h)+k.

Did you know? The cooling towers at nuclear power plants are shaped like hyperbolas! This design provides structural strength while using minimal materials, and helps create the airflow needed for cooling.

3
of 3
# Conic sections • Ellipse v set of all points in a plane such that the sum of the clistances from any point on the curve to the Fi + Fa fo

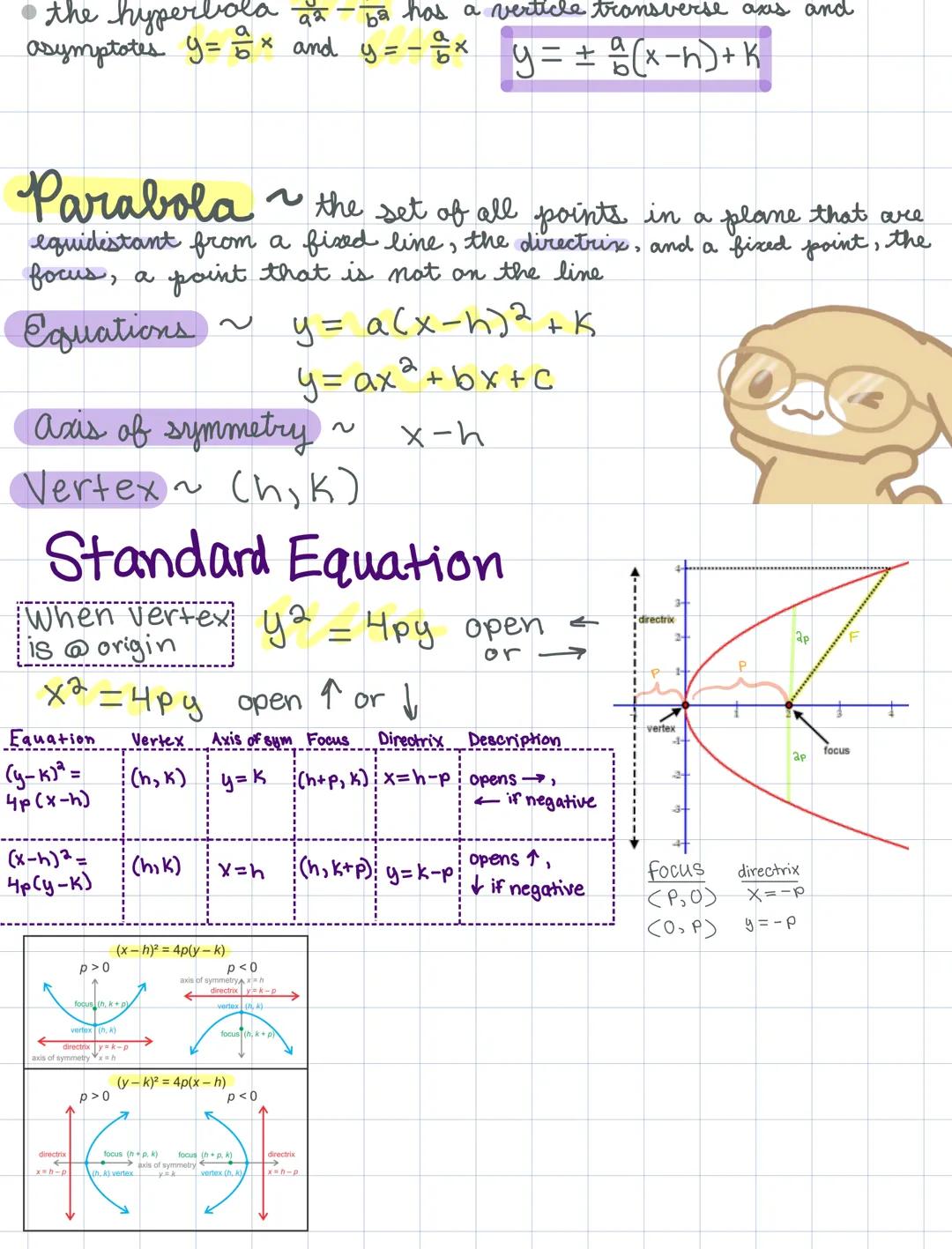

Hyperbolas and Parabolas

For vertical hyperbolas, the asymptotes are given by y=±ab(x−h)+ky=\pm\frac{a}{b}(x-h)+k. These asymptotes act as boundary lines that the hyperbola's branches approach but never cross.

A parabola is the set of points equidistant from a fixed point (the focus) and a fixed line (the directrix). Parabolas always have a perfect U or inverted-U shape with a single vertex at the point of maximum or minimum curvature.

The standard forms of a parabola depend on which way it opens. When opening horizontally, the equation is (y−k)2=4p(x−h)(y-k)^{2}=4p(x-h) with vertex at (h,k), focus at h+p,kh+p,k, and directrix at x=h-p. When opening vertically, we use (x−h)2=4p(y−k)(x-h)^{2}=4p(y-k) with vertex at (h,k), focus at h,k+ph,k+p, and directrix at y=k-p. The value of p determines the direction - positive p means opening right/up, while negative p means opening left/down.

Pro tip: When solving problems involving parabolas, always identify the vertex first. This gives you the point (h,k) for the standard form and makes finding other features much easier.
