Compound Microscope Parts and Functions
Ever wondered how scientists see things too small for our eyes? A compound microscope makes this possible with its many specialized parts working together. Let's break down what each part does!
The microscope's structure includes the arm and base that support the entire instrument. The body tube connects the eyepiece to the objective lens, creating the pathway for light to travel. At the top, the eyepiece magnifies objects 10 times (10x) their actual size.
For viewing specimens, the stage holds your slide in place with stage clips. Light passes through the stage opening and is controlled by the diaphragm, which adjusts brightness. The light comes from either a lamp (in modern microscopes) or a mirror (in older models) that reflects light upward.
Pro Tip: Always start viewing with the low-power objective (4x or 10x) before switching to the high-power objective (40x or 43x) using the revolving nosepiece.
The microscope has two focusing knobs: the coarse adjustment for initial focusing under low power, and the fine adjustment for detailed focusing under high power. Remember that using the coarse adjustment while on high power can damage both the lens and your slide!
2
of 2

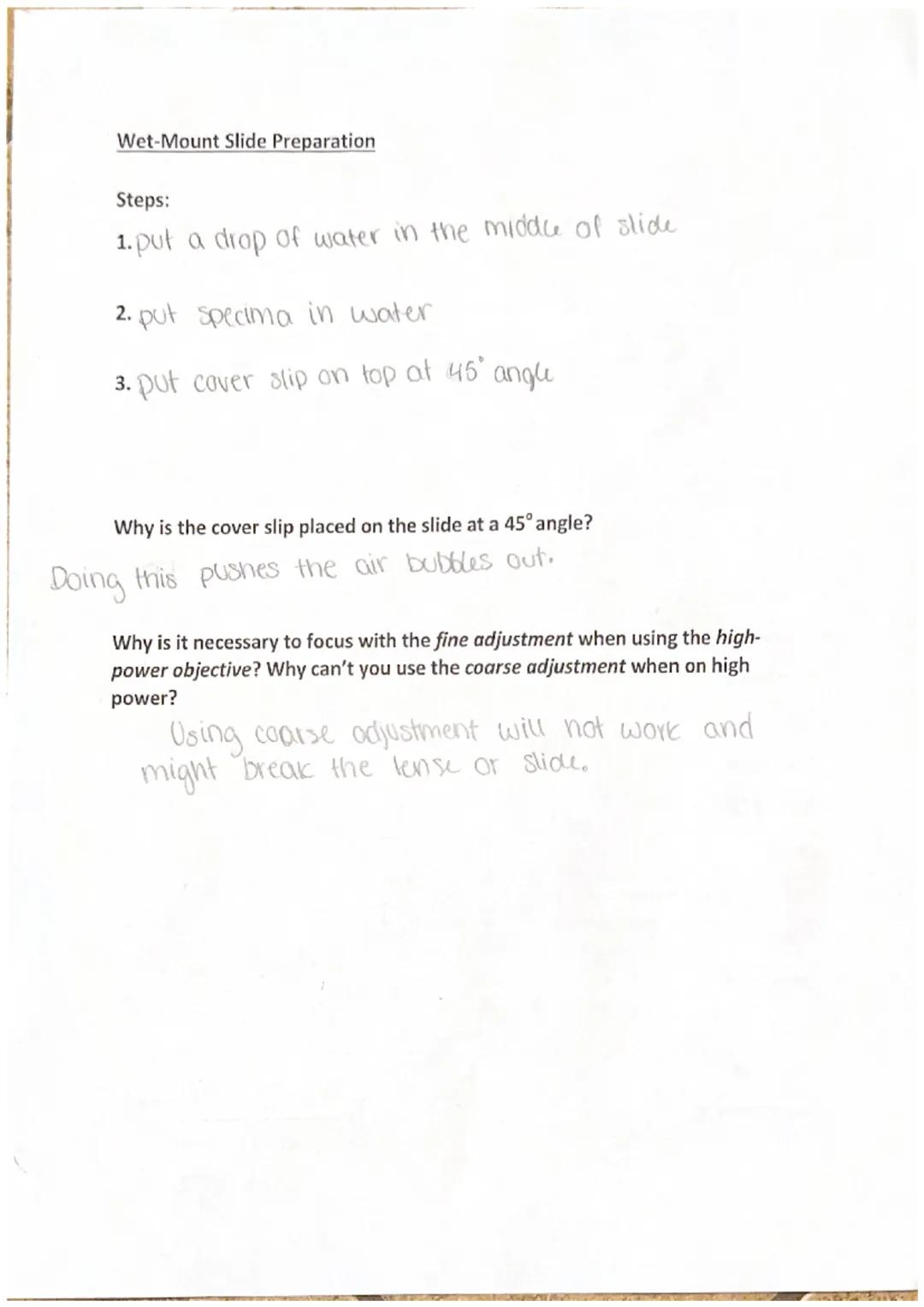

Creating and Using Wet-Mount Slides
Creating your own wet-mount slides is easy once you know the proper technique! This three-step process lets you observe living specimens like pond water organisms or plant cells.
First, place a drop of water in the middle of a clean slide. Next, carefully position your specimen in the water droplet. Finally, place a cover slip at a 45° angle before lowering it completely over the specimen. The angled approach is important because it pushes air bubbles out, giving you a clearer view.
When observing your wet-mount slide, always start with the low-power objective. Once you've found your specimen, you can carefully switch to high power for a more detailed look.
Important Safety Note: When using high power, only use the fine adjustment knob for focusing! The coarse adjustment moves too dramatically and can crack your slide or damage the expensive objective lens.
With practice, you'll become comfortable creating wet-mounts and navigating between different magnification levels. This skill will serve you well throughout your science classes!
