Light Microscope: Parts and Functions

Ever wondered how scientists can see things too small for the human eye? That's where the light microscope comes in! The light microscope uses visible light and a series of lenses to magnify specimens.

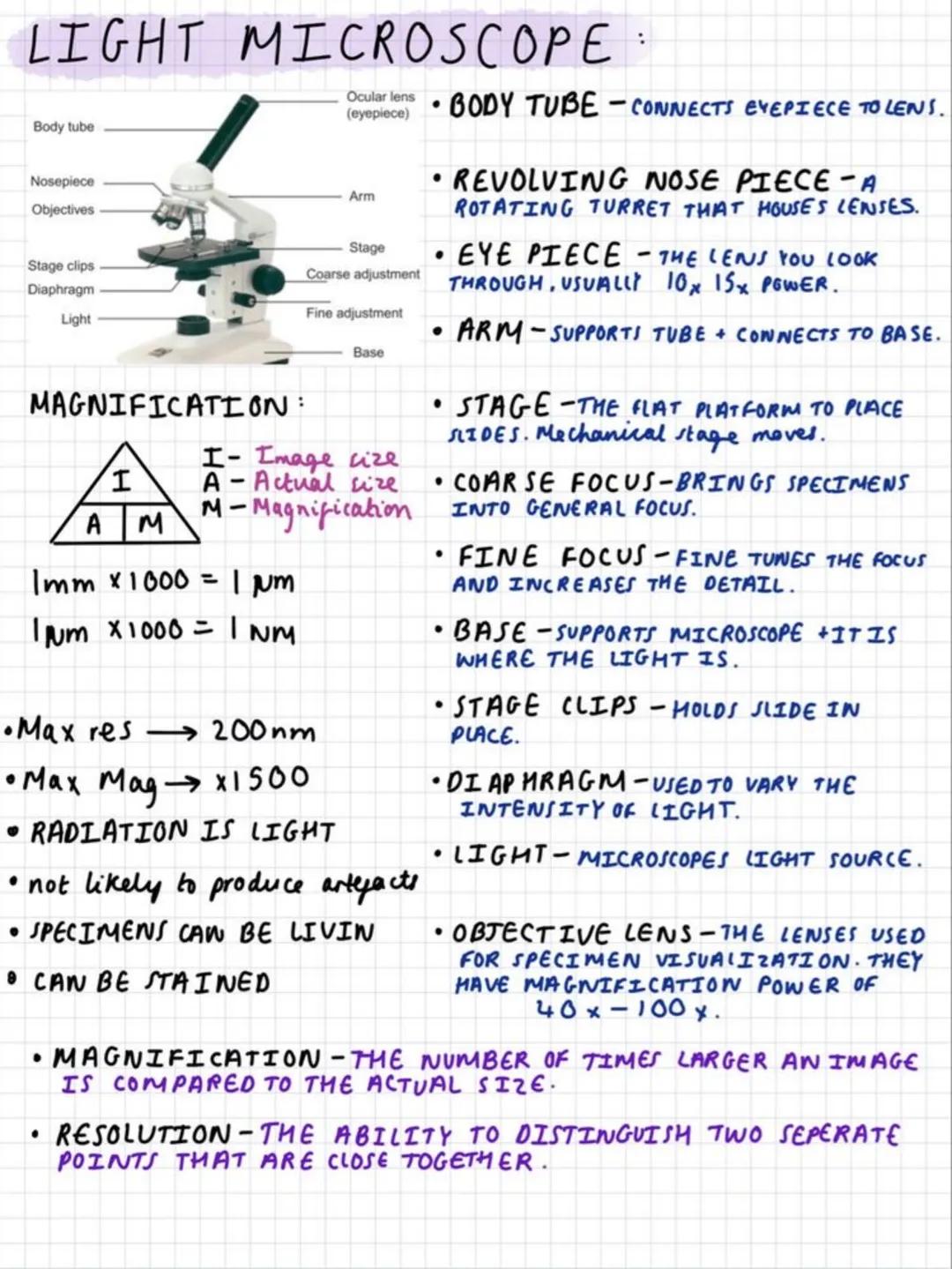

The microscope has several important components. The body tube connects the eyepiece to the lens, while the revolving nosepiece is a rotating turret that houses multiple objective lenses. You look through the eyepiece (ocular lens), which typically provides 10x or 15x magnification. The objective lenses do most of the magnification work, with powers from 40x to 100x.

When viewing specimens, you place slides on the stage and secure them with stage clips. Focus your image using the coarse adjustment knob for general focusing and the fine adjustment knob for detailed viewing. The diaphragm lets you control light intensity coming from the light source in the base.

Pro Tip: To calculate total magnification, multiply the eyepiece magnification by the objective lens magnification. For example: 10x eyepiece × 40x objective = 400x total magnification.

Light microscopes have some impressive capabilities but also limitations. They can magnify up to 1500x and resolve details as small as 200 nanometers (nm). One major advantage is that you can observe living specimens, and you can use stains to highlight specific structures. Remember that 1 millimeter (mm) equals 1000 micrometers (μm), and 1 micrometer equals 1000 nanometers (nm).
