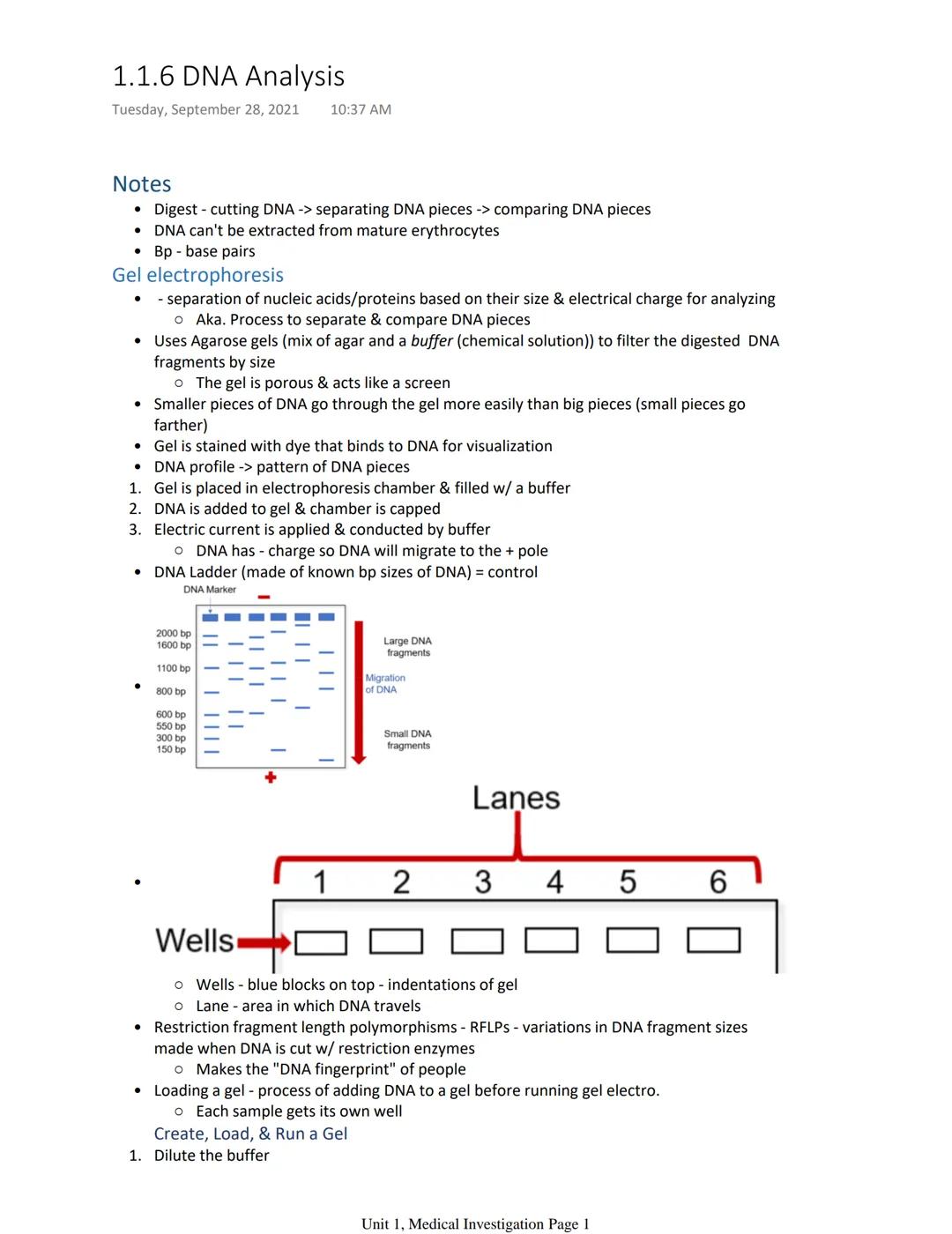

DNA Analysis Fundamentals
Ever wonder how crime scene investigators identify whose blood was at a scene? DNA analysis makes it possible! The process begins with DNA digestion, where genetic material is cut into fragments that create unique patterns for each person.
Gel electrophoresis is the key technique that separates these DNA fragments based on their size and electrical charge. Think of the gel like a molecular sieve - smaller DNA pieces travel further through the gel's porous structure than larger pieces. The gel contains agarose (a mixture of agar and buffer solution) that acts as this filter.
During the process, DNA fragments move through the gel when an electric current is applied. Since DNA has a negative charge, it naturally migrates toward the positive pole. After separation, the gel is stained with a special dye that makes the DNA visible, creating a DNA profile - a pattern as unique as a fingerprint.
Quick Tip: DNA can't be extracted from mature red blood cells (erythrocytes) because they don't contain a nucleus! Investigators must use other blood components for DNA analysis.
2
of 3

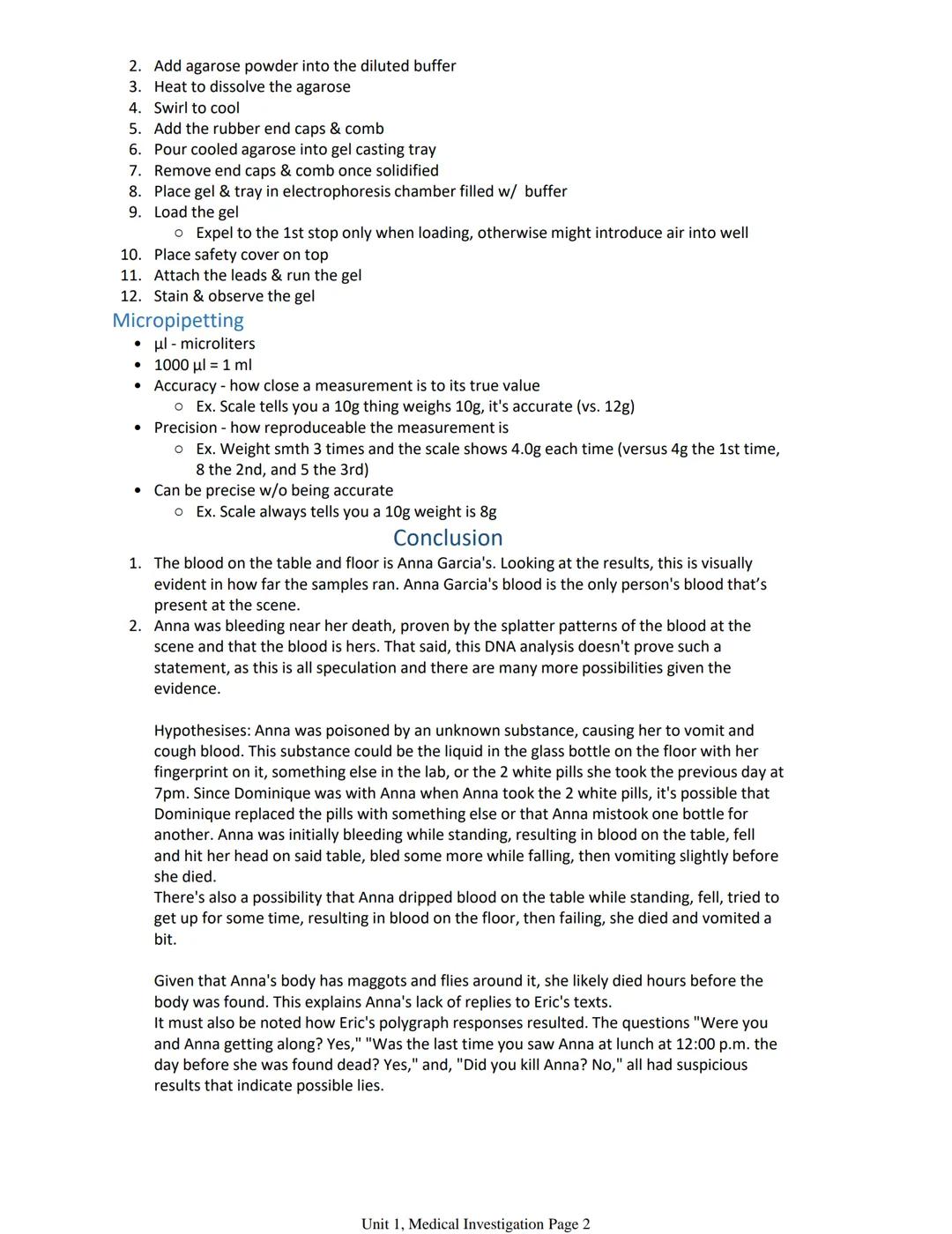

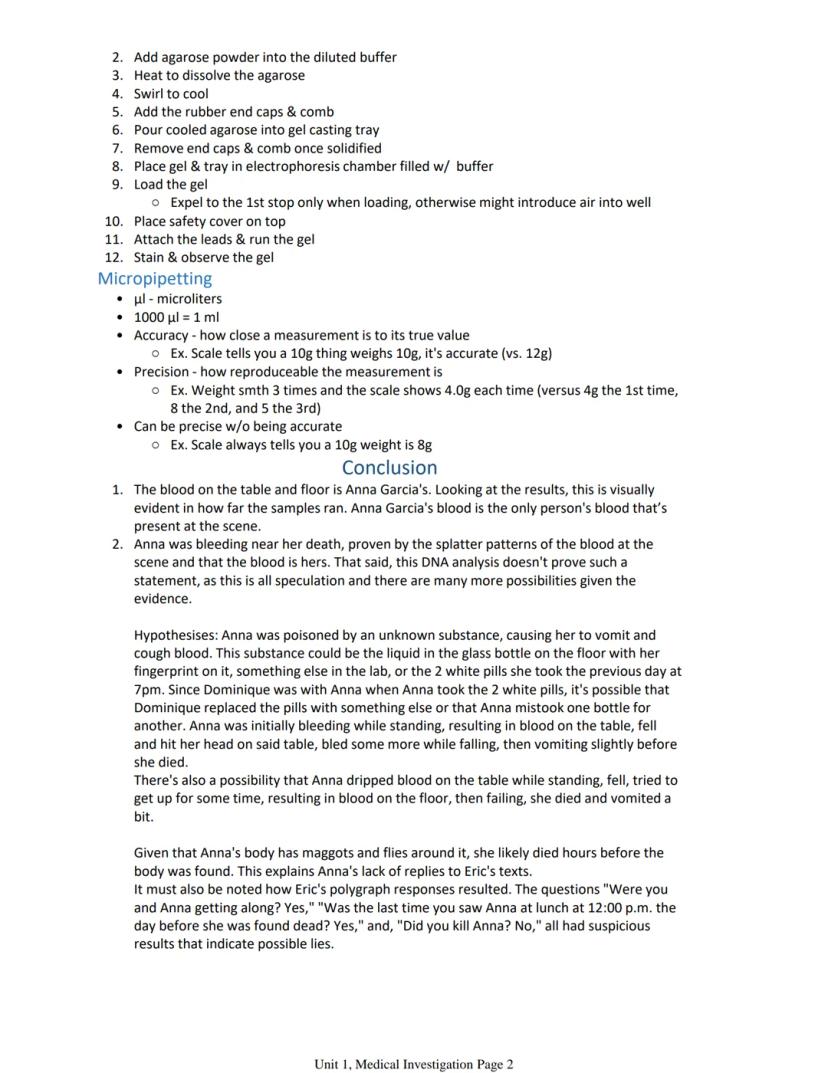

Running Gel Electrophoresis & Analysis
Setting up a gel electrophoresis is like preparing a specialized race track for DNA fragments. The process involves creating an agarose gel, placing it in an electrophoresis chamber filled with buffer solution, and carefully loading DNA samples into small wells at one end of the gel.
When analyzing results, scientists compare unknown samples against a DNA ladder (control) with fragments of known sizes. This comparison helps identify the specific restriction fragment length polymorphisms (RFLPs) - the variations in DNA fragment sizes that make each person's genetic profile unique.
Proper micropipetting skills are essential for accurate DNA analysis. This technique measures tiny liquid volumes in microliters (μl), where precision means getting the same measurement repeatedly and accuracy means getting the correct measurement. You can have precise measurements that aren't accurate (like consistently measuring 8g when something actually weighs 10g).
Remember: When loading a gel, only expel to the first stop on the micropipette to avoid introducing air bubbles into your sample wells!
3
of 3

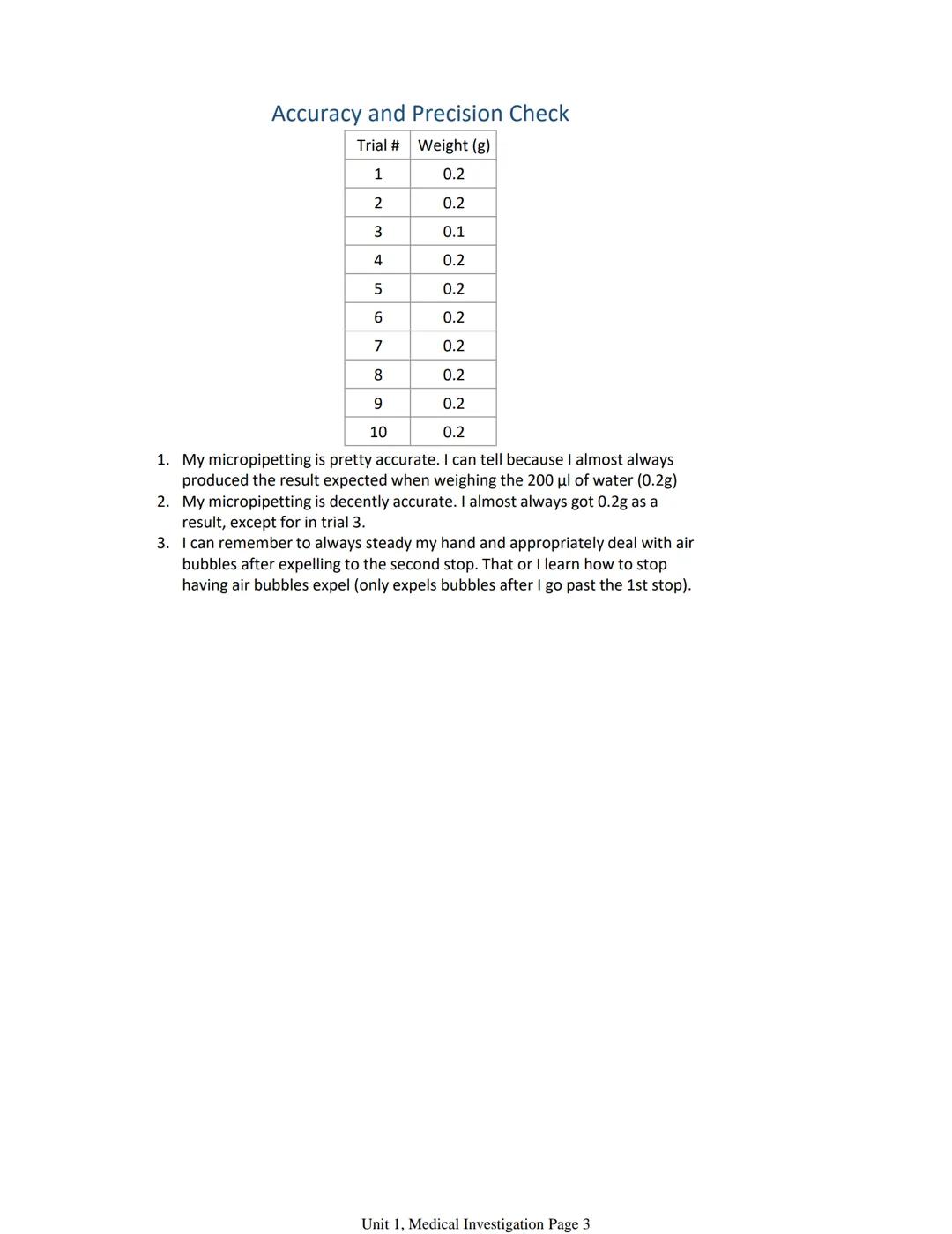

Accuracy in Lab Techniques
Getting reliable DNA analysis results depends on your lab technique skills. The data shows that properly calibrated micropipetting should consistently measure 200 μl of water to weigh 0.2g - which is exactly what happened in 9 out of 10 trials in this experiment.
Mastering micropipetting takes practice, but it's a skill you can definitely learn. Focus on keeping your hand steady and properly managing air bubbles by using the correct two-stop pipetting technique. When you expel liquid, only go to the first stop during sample delivery to avoid pushing air into your sample.
This attention to detail in lab techniques is what makes DNA analysis so powerful in forensic science. As shown in the case study, investigators were able to determine that blood at a crime scene belonged to Anna Garcia by comparing DNA profiles - demonstrating how this technology helps solve real mysteries.
Pro Tip: In forensic work, both accuracy and precision matter! Your measurements need to be both correct (accurate) and consistent (precise) to stand up in court.
