Understanding Work and Force

Ever wonder how much effort it takes to move something? That's what work is in physics! Work happens when a force causes an object to move. It's calculated using the formula W = Fd, where F is force in newtons and d is distance in meters.

Work is measured in joules and is a scalar quantity (it has magnitude but no direction). Remember, work only happens when something actually moves. If you push against a wall and it doesn't budge, you're exerting force but doing zero work!

When forces act at angles, only the component of force parallel to the direction of motion contributes to work. We use W = Fd cosθ where θ is the angle between the force and direction of motion.

Quick Tip: When force and motion go in opposite directions (like friction opposing movement), work is negative! This means energy is being removed from the system.

For example, if someone pulls a 50 kg stone with 250 N of force at a 60° angle for 4 meters, we can calculate the work as W = 250N × 4m × cos(60°) = 500 joules.

Power and Work Problems

Power measures how quickly work is done - it's the rate of doing work. While work tells us the total energy transfer, power tells us how fast that transfer happens. Power is measured in watts (joules per second).

The main equations for power are:

• P = W/t (work divided by time)
• P = Fd/t
• P = Fv (force times velocity)

Let's see this in action: A 65 kg athlete runs 600m up a mountain inclined at 20° in 80 seconds. To find the work done, we need to identify the forces involved. The force moving the athlete uphill is equal to the component of their weight parallel to the slope: mg sin θ.

The work done is calculated as W = Fd cos θ₂ = (mg sin θ)$d$(cos 0°) = 65 kg × 9.8 m/s² × sin(20°) × 600m = 130,720.1 joules.

Remember: In physics problems, breaking forces into their components (like we did with gravity on a slope) makes seemingly complex situations much easier to solve!

The athlete's power is simply work divided by time: P = 130,720.1 J ÷ 80 s = 1,634 watts. This shows the impressive amount of energy the human body can generate!

Force Analysis in Real-World Problems

Physics gets interesting when we apply it to real-world scenarios! In slope problems, gravity always acts downward, but we need to find its component along the incline. For an object on a slope, the force parallel to the incline is mg sin θ.

Consider a truck problem: a 20,000 kg truck travels 500m up a 20° incline in 60 seconds. The work done against gravity is calculated as W = (mg sin θ)$d$ = 20,000 kg × 9.8 m/s² × sin(20°) × 500m = 3.35×10⁶ joules.

The power required is P = W/t = 3.35×10⁶ J ÷ 60 s = 55,833 watts. That's why trucks need powerful engines to climb hills!

Physics Insight: When analyzing forces, always start by identifying ALL forces acting on the object, then determine which ones contribute to the work being done.

In these problems, we consistently break down complex situations by identifying forces (like gravity), determining their relevant components, calculating the work done, and then finding the power when time is involved.

Elevator Physics and Force Analysis

Elevators are perfect for studying forces in action! For an elevator carrying passengers, we need to account for all forces involved: tension in the cable $F_T$, gravity $F_G$, and friction $F_F$.

Consider an elevator with a mass of 1,000 kg carrying 800 kg of passengers (total 1,800 kg) with 4,000 N of friction. If it moves at a constant speed of 3 m/s, the acceleration is zero $a = 0$.

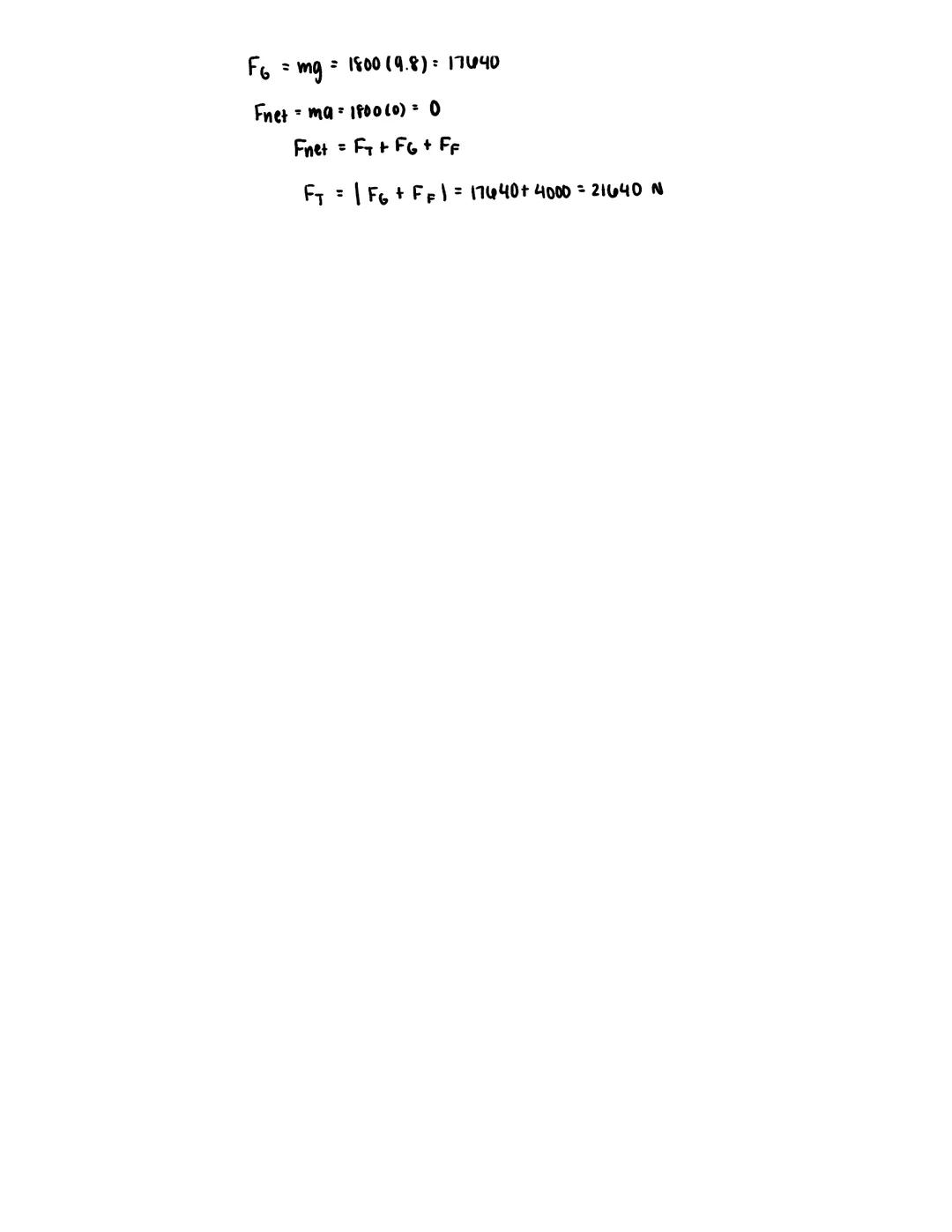

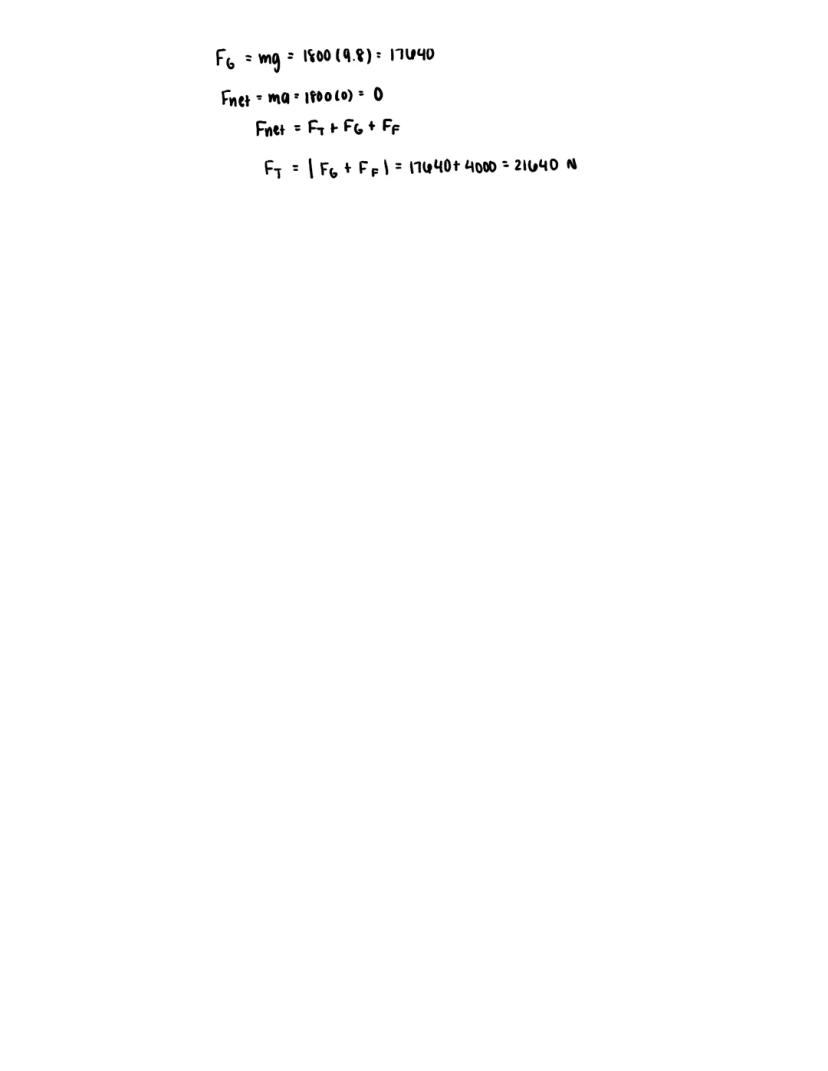

The gravitational force is F_G = mg = 1,800 kg × 9.8 m/s² = 17,640 N, always pulling downward. Since the elevator moves at constant speed, F_net = ma = 0, which means the tension in the cable must balance both gravity and friction.

Therefore, F_T = |F_G + F_F| = 17,640 N + 4,000 N = 21,640 N. The power needed to operate this elevator is P = F_T × v = 21,640 N × 3 m/s = 64,920 watts.

Cool Connection: Next time you're in an elevator, think about the massive forces at work! The cable is supporting not just the weight of the elevator and everyone inside, but also overcoming friction in the system.
