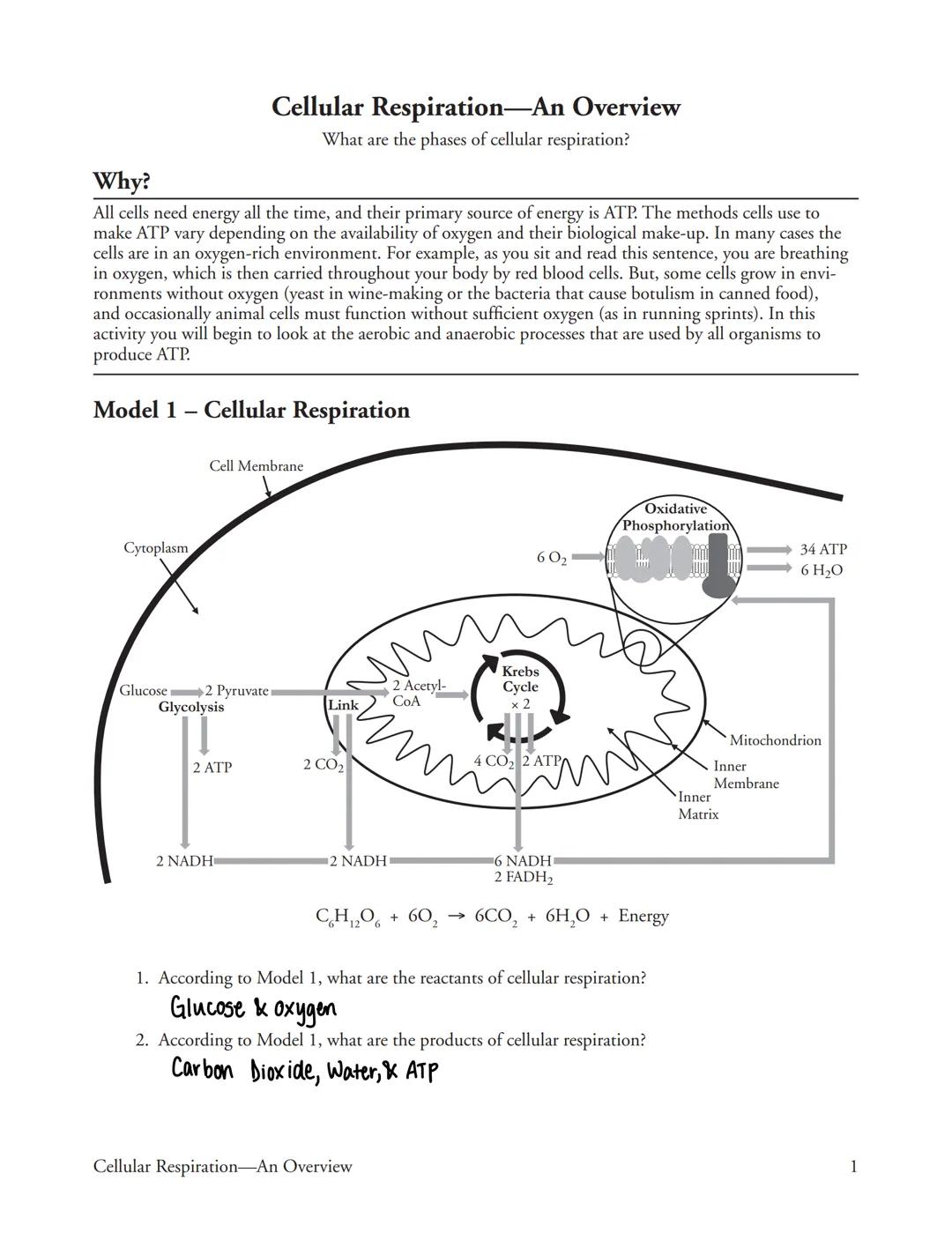

Cellular Respiration Overview
Ever wonder how your body powers everything from thinking to running? It all comes down to cellular respiration! This process breaks down glucose to produce ATP—the energy currency your cells need to function.
Cellular respiration happens in four main phases: glycolysis, the link reaction, the Krebs cycle, and oxidative phosphorylation. These phases occur in different parts of the cell, with glycolysis taking place in the cytoplasm while the other three happen inside specialized structures called mitochondria.
The overall chemical equation for cellular respiration is surprisingly simple: glucose + oxygen → carbon dioxide + water + energy. But don't be fooled—what's actually happening is a carefully controlled series of reactions that gradually release energy in manageable amounts.
💡 Quick Fact: A single glucose molecule can produce up to 38 ATP molecules through cellular respiration. That's like turning a small match into enough energy to power your phone!
2
of 7

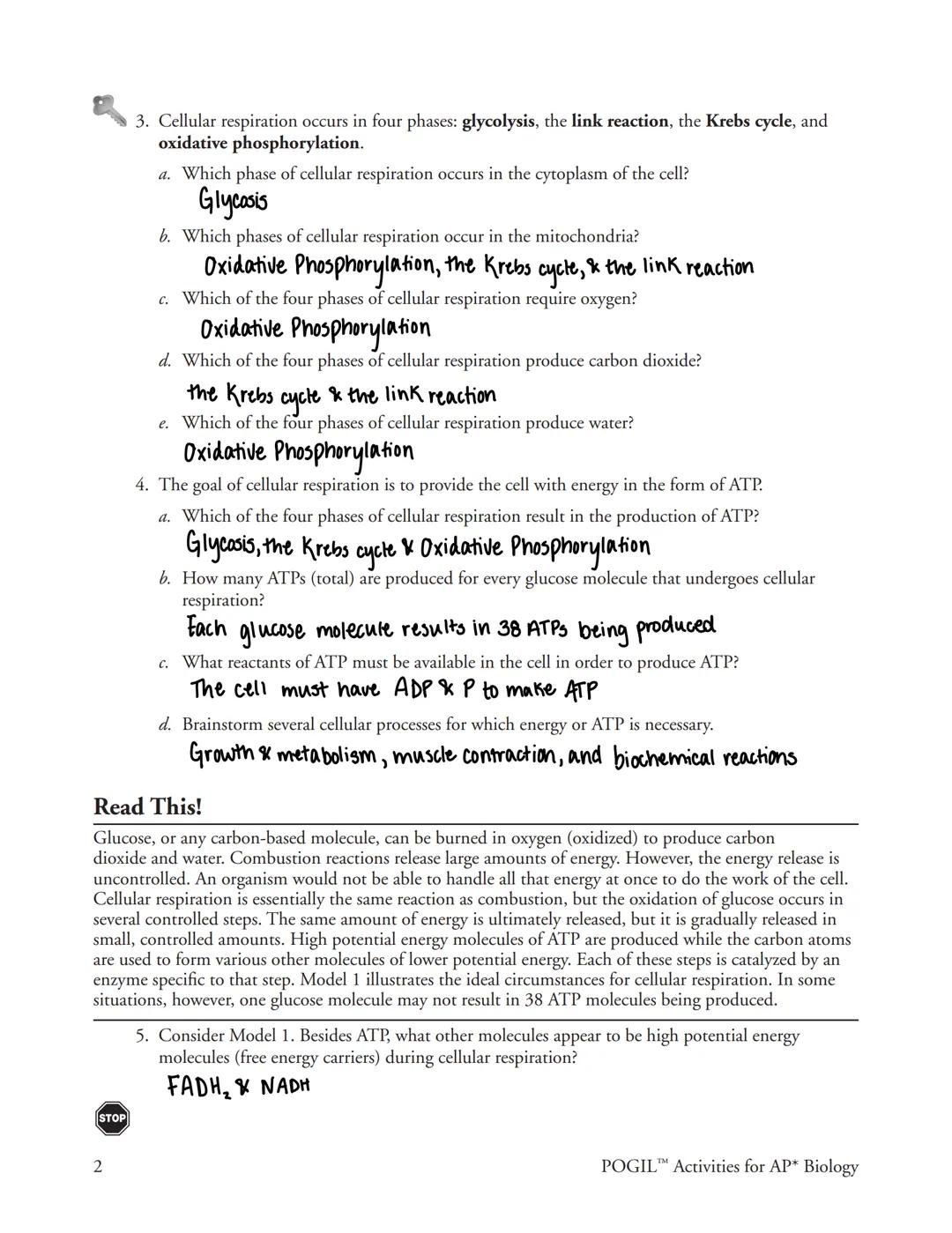

Location and Products of Cellular Respiration
Looking at cellular respiration more closely reveals how organized this process really is. Glycolysis happens in the cytoplasm, while the link reaction, Krebs cycle, and oxidative phosphorylation all occur within the mitochondria—often called the "powerhouse of the cell" for good reason!
Not all phases need oxygen. Only oxidative phosphorylation requires oxygen as the final electron acceptor. Without oxygen, your cells can only complete glycolysis, severely limiting energy production. The Krebs cycle and link reaction produce carbon dioxide as a waste product, while oxidative phosphorylation produces water.
Cellular respiration is essentially a controlled combustion reaction. Instead of burning glucose all at once (which would release too much energy at once), cells break it down gradually through multiple steps. This controlled process allows cells to capture energy efficiently in ATP molecules.
🔑 Remember: Cellular respiration isn't just about making ATP—it's about making ATP efficiently. Your cells can produce 38 ATP from just one glucose molecule under ideal conditions!
3
of 7

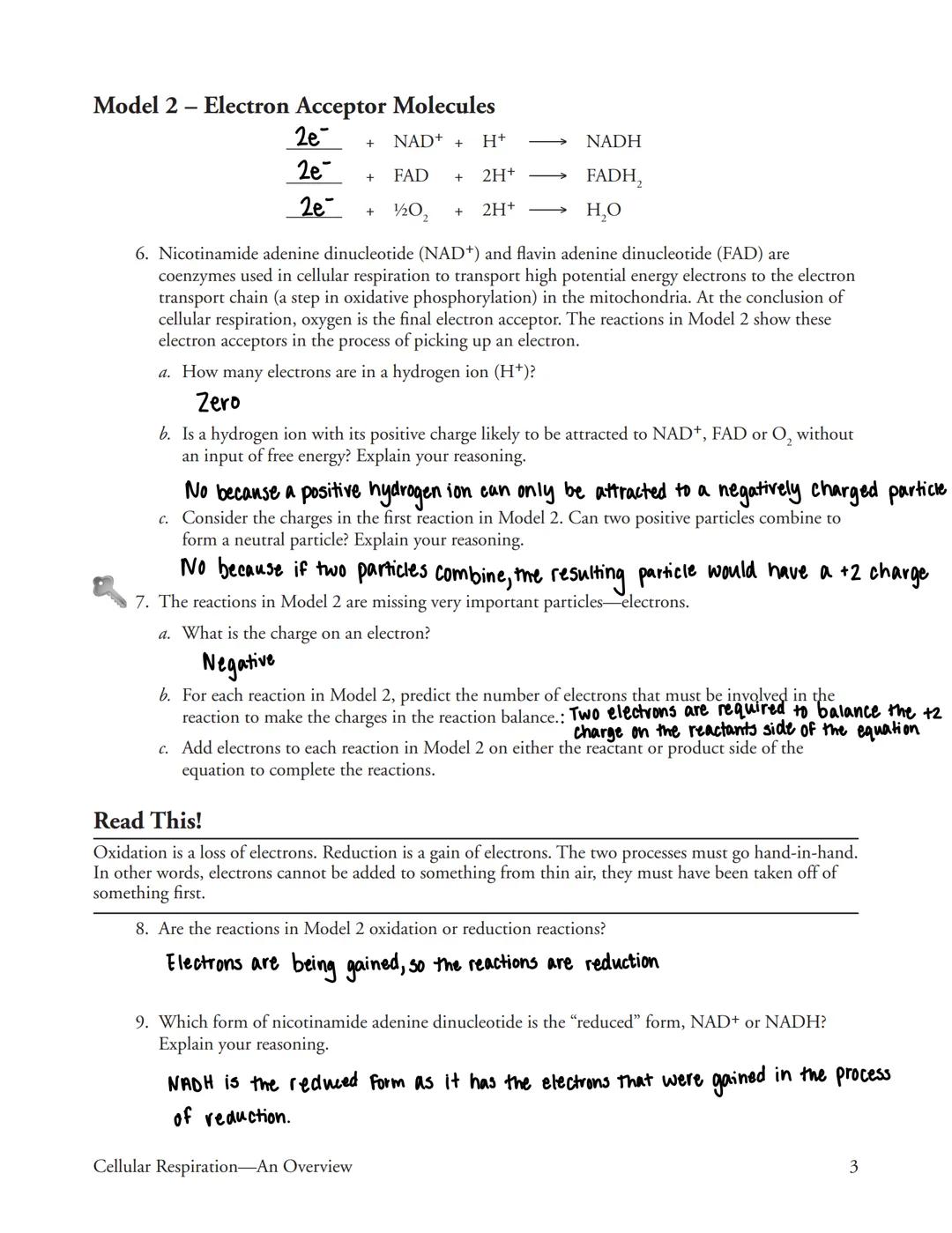

Electron Carriers in Cellular Respiration
The real stars of cellular respiration are electron carriers like NAD+ and FAD that transport high-energy electrons between reactions. These molecules pick up electrons and hydrogen ions from glucose breakdown products, becoming reduced to NADH and FADH₂.
These electron transfers are critical to understand! When molecules gain electrons, they're being reduced. When they lose electrons, they're being oxidized. Remember this with the handy phrase "OIL RIG" (Oxidation Is Loss, Reduction Is Gain). During cellular respiration, glucose gets oxidized (loses electrons) while NAD+ and FAD get reduced (gain electrons).
At the end of the respiratory chain, oxygen serves as the final electron acceptor, combining with electrons and hydrogen ions to form water. This is why we need to breathe oxygen—without it, the whole electron transport process would back up and stop.
💡 Important concept: Oxidation and reduction always happen together—electrons must come from somewhere and go somewhere. That's why these reactions are called "redox" reactions .
4
of 7

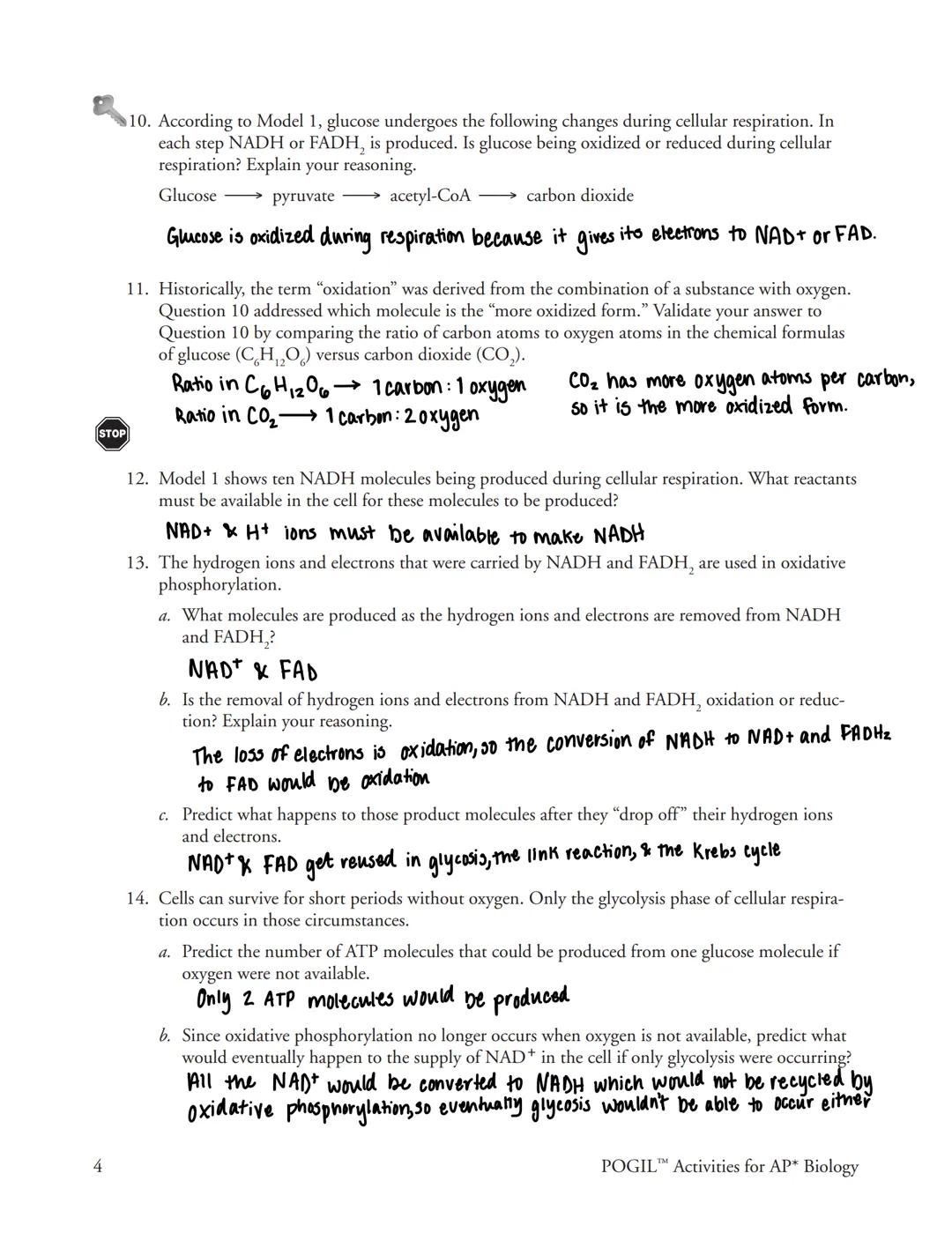

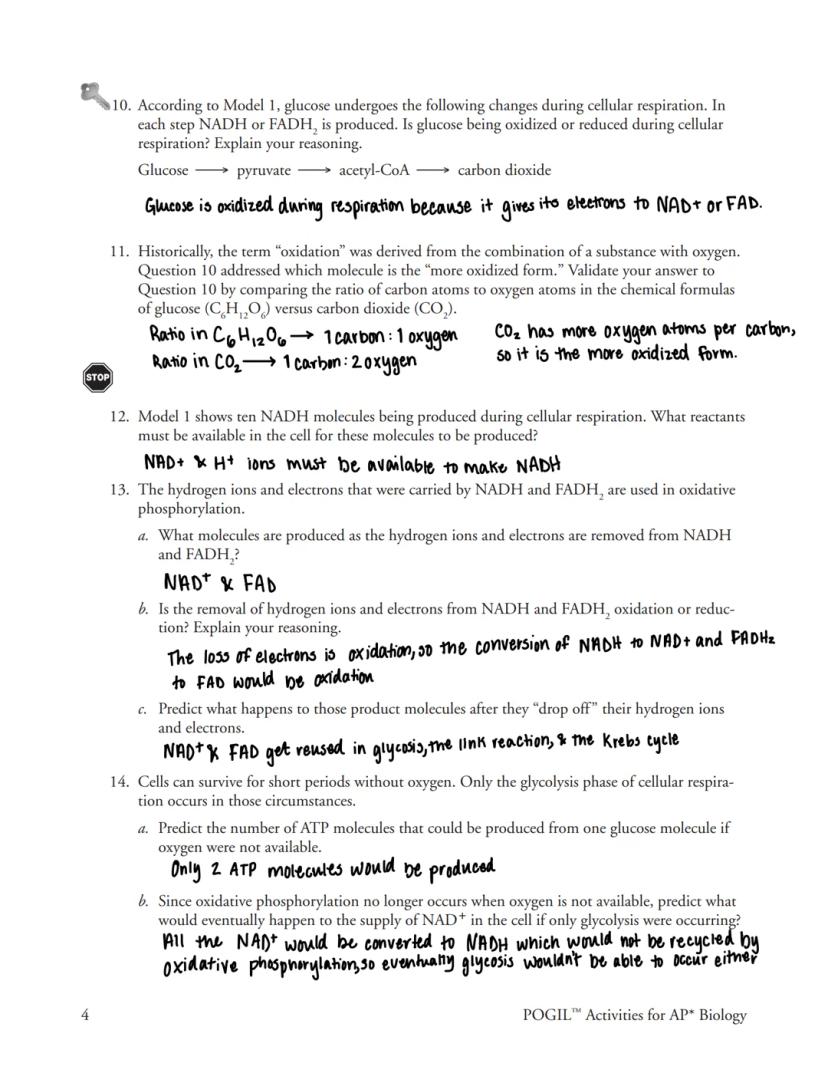

Tracing Electron Flow
As glucose breaks down through cellular respiration, it gradually loses electrons and becomes more oxidized. You can see this by comparing glucose (C₆H₁₂O₆) to the final carbon-containing product, carbon dioxide (CO₂). The ratio of oxygen to carbon increases dramatically, showing that glucose has been highly oxidized.
The cell maintains a careful balance of NAD+ and NADH. When NADH delivers its electrons to the electron transport chain, it gets oxidized back to NAD+, which can then be reused. This recycling is crucial—if all the NAD+ became NADH and couldn't be converted back, cellular respiration would grind to a halt!
Without oxygen, cells can only perform glycolysis, which produces a mere 2 ATP molecules per glucose instead of the 38 possible with complete cellular respiration. This creates a problem: glycolysis still produces NADH, but without oxygen, there's no way to convert it back to NAD+.
🧪 Test yourself: If all the NAD+ in a cell was converted to NADH and couldn't be recycled, what would eventually happen to glycolysis?
5
of 7

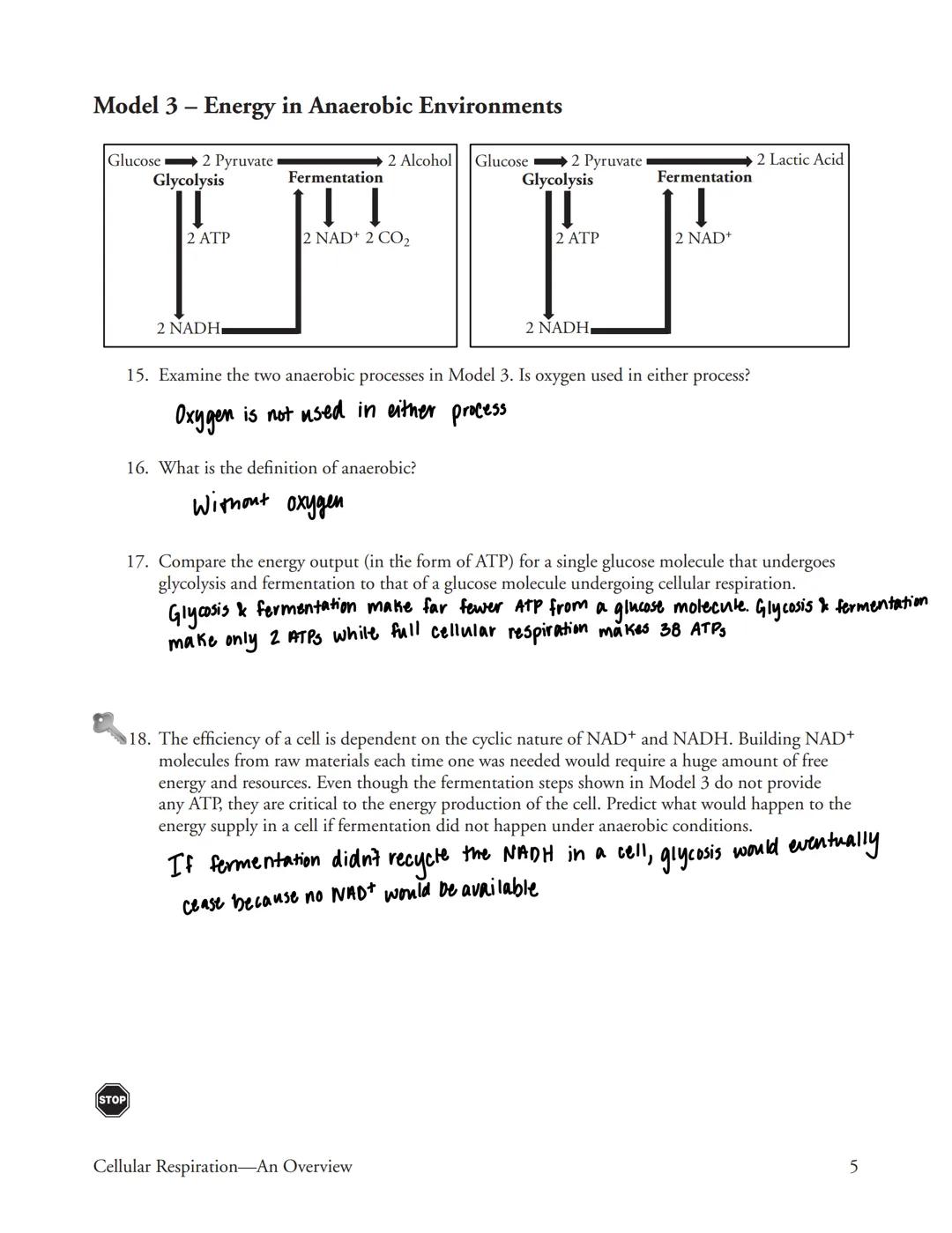

Anaerobic Energy Production
When oxygen isn't available, cells don't just give up—they switch to fermentation. This anaerobic ("without oxygen") process allows cells to regenerate NAD+ so glycolysis can continue. There are two main types: alcoholic fermentation (used by yeast) and lactic acid fermentation (used by your muscle cells).
Fermentation doesn't directly produce any ATP—its real purpose is to recycle NAD+ from NADH. This allows glycolysis to continue producing its modest 2 ATP per glucose. While this isn't much compared to aerobic respiration's 38 ATP, it's better than nothing when oxygen is scarce!
The tradeoff for this emergency energy production is efficiency. Anaerobic processes extract only about 5% of the potential energy in glucose compared to what aerobic respiration can harvest. That's why your muscles fatigue quickly during intense exercise when they rely more on fermentation.
🏃 Real-world connection: The burning sensation in your muscles during intense exercise comes from lactic acid buildup. Your muscle cells are switching to fermentation because they can't get oxygen fast enough for normal cellular respiration!
6
of 7

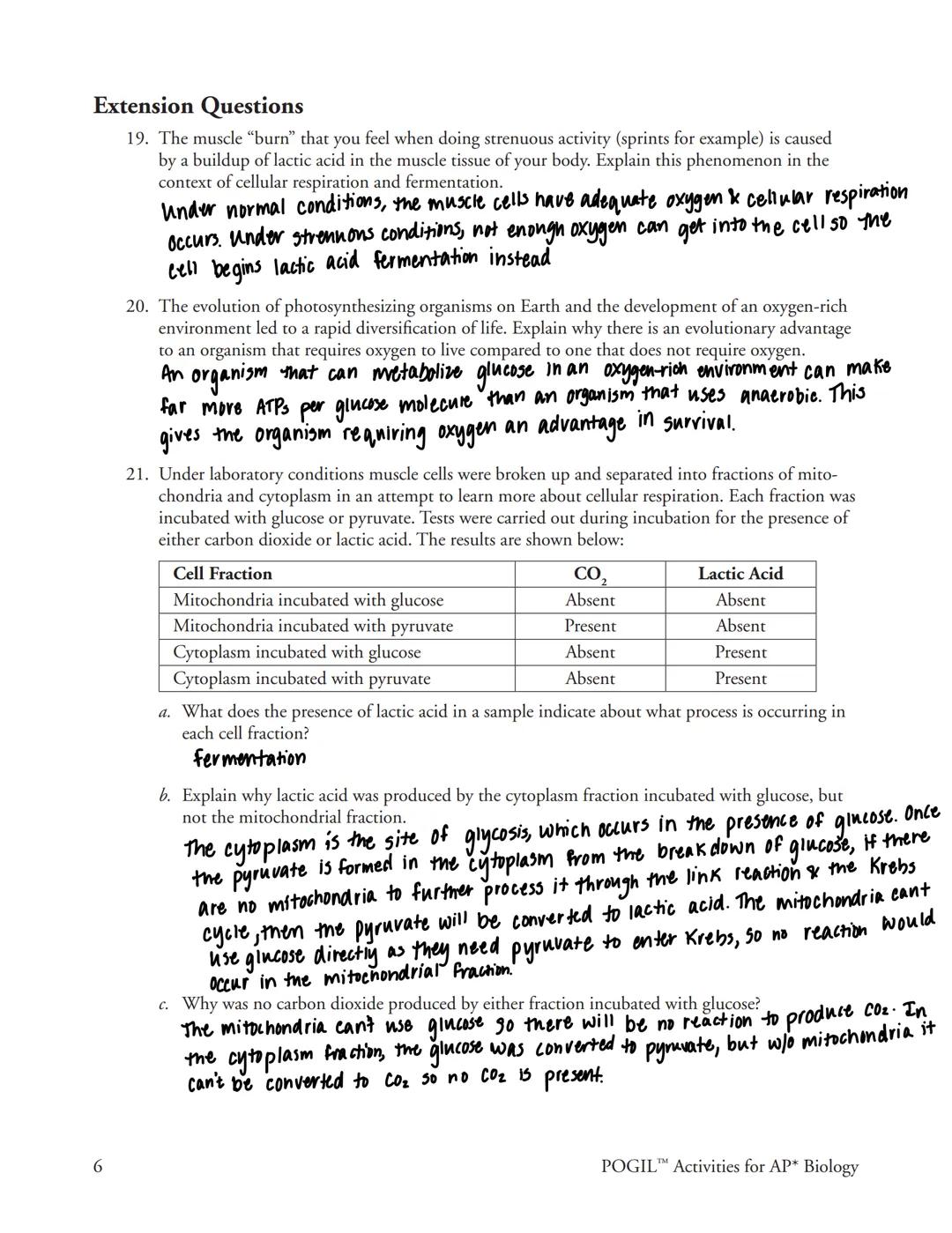

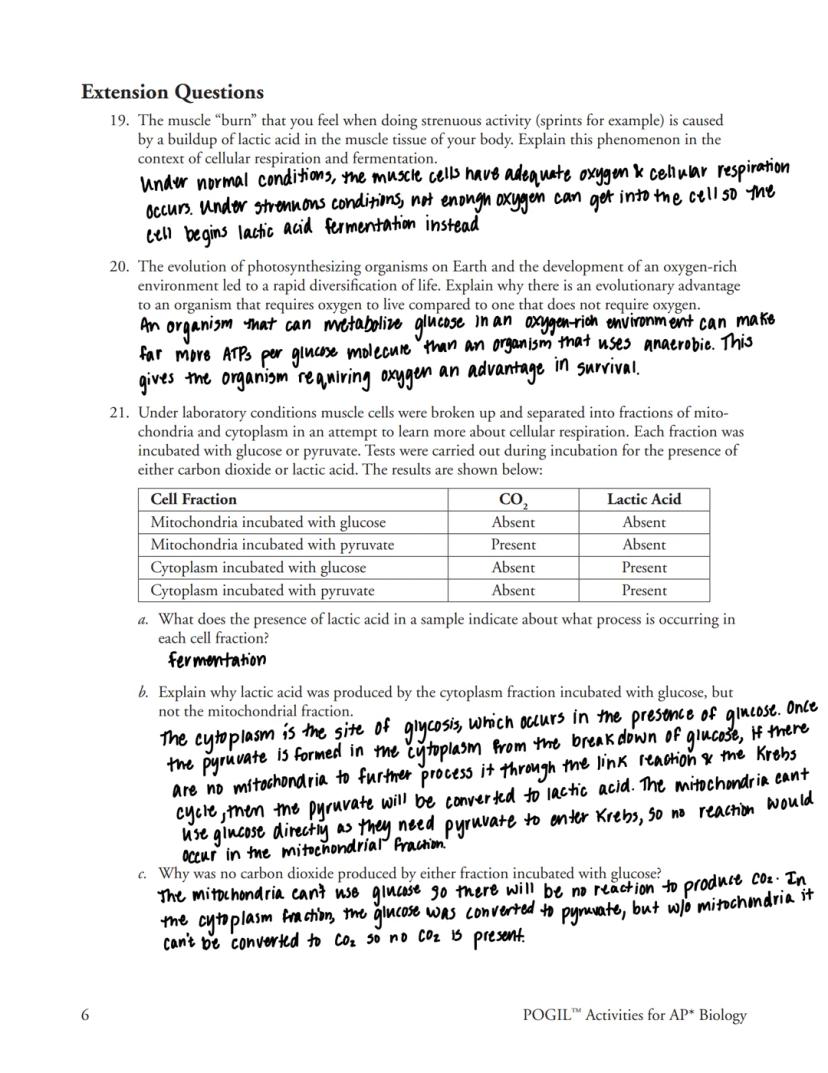

Cellular Respiration in Context
The muscle "burn" you feel during intense exercise directly relates to cellular respiration. When you sprint or lift weights, your muscles need energy faster than your body can deliver oxygen. Without sufficient oxygen, your cells shift from aerobic respiration to anaerobic lactic acid fermentation, causing that familiar burning sensation.
The evolution of oxygen-using organisms represented a major advantage in Earth's history. Organisms that can use oxygen in cellular respiration extract much more energy from each glucose molecule—38 ATP compared to just 2 ATP from fermentation. This energy efficiency allowed for the development of more complex, energy-demanding life forms.
Laboratory experiments help scientists understand these processes better. When researchers separated mitochondria and cytoplasm fractions from cells, they found that only mitochondria could produce carbon dioxide from pyruvate (through the Krebs cycle). Meanwhile, cytoplasm could convert glucose to pyruvate (through glycolysis) and then to lactic acid (through fermentation) when no mitochondria were present.
🔬 Science application: Understanding cellular respiration helps explain why some cancer treatments target mitochondria. Cancer cells often rely heavily on glycolysis even when oxygen is present (called the Warburg effect), making their energy production pathways potential targets for therapy.
7
of 7

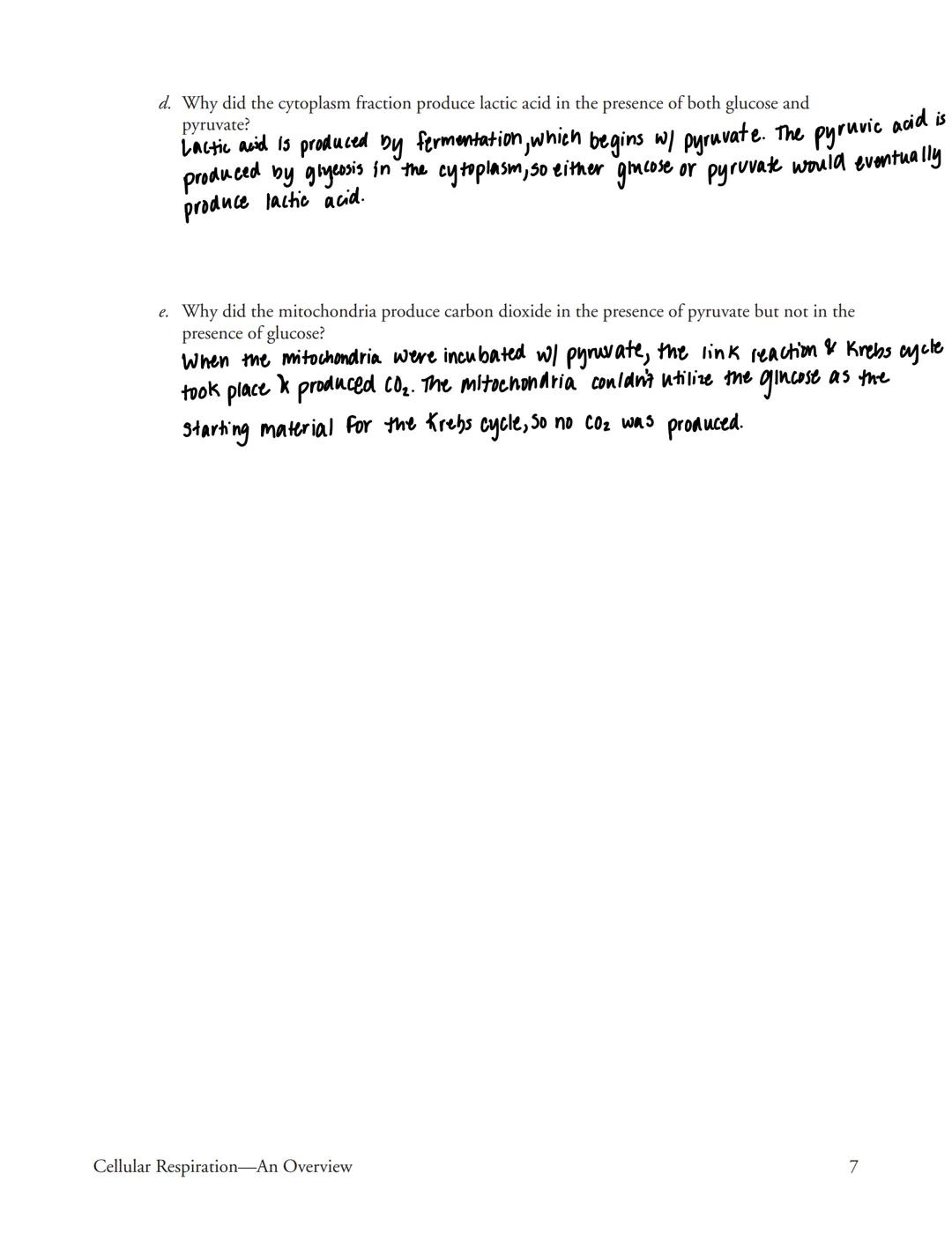

Advanced Cellular Respiration Concepts
Laboratory studies reveal the specialization of different cell components in energy production. The cytoplasm fraction produces lactic acid from both glucose and pyruvate through fermentation because it contains the enzymes for glycolysis but lacks the machinery for aerobic respiration.
Mitochondria, on the other hand, can't directly use glucose—they need pyruvate as their starting material. When given pyruvate, mitochondria run the link reaction and Krebs cycle, producing carbon dioxide as a byproduct. This demonstrates how cellular compartmentalization creates specialized environments for different metabolic processes.
These experiments highlight how cellular respiration is organized spatially within cells. The separation of glycolysis (in the cytoplasm) from the later stages of respiration (in mitochondria) allows for regulatory control and adaptation to different energy needs and oxygen conditions.
🧠 Think deeper: This compartmentalization may have evolutionary origins—mitochondria are thought to have once been free-living bacteria that formed a symbiotic relationship with larger cells, eventually becoming the specialized energy-producing organelles we see today!
