Absolute value functions create V-shaped graphs with distinctive properties that... Show more
Algebra 298 views·Updated May 31, 2026·3 pagesSolving Absolute Value Functions Made Easy
_
_sasc@_sasc
1 / 3
1
of 3

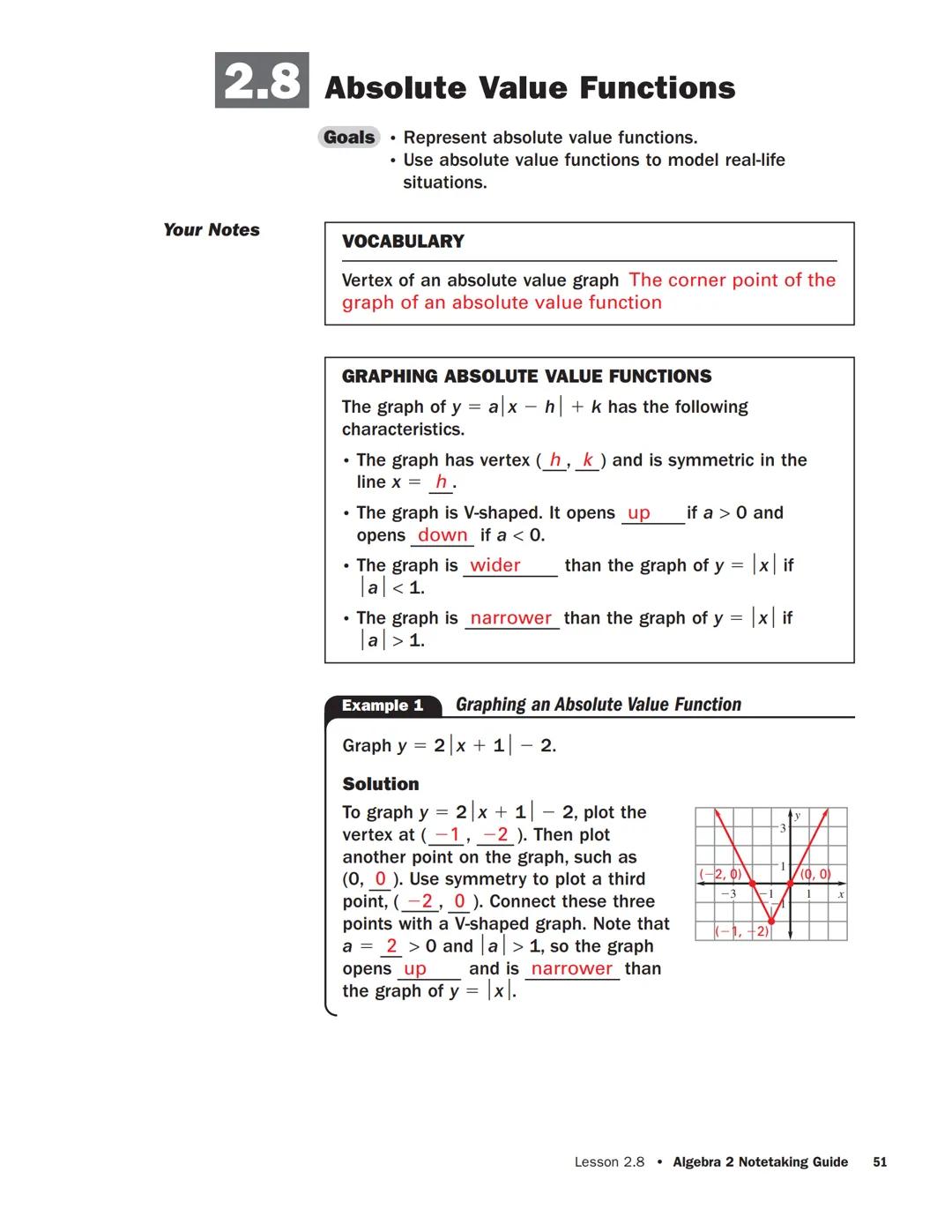

Graphing Absolute Value Functions
Ever wonder what makes those V-shaped graphs tick? Absolute value functions follow the form y = a|x - h| + k, where the point (h, k) serves as the vertex or corner point of the graph. The graph is always symmetric around the vertical line x = h.
The value of 'a' determines both direction and shape. When a > 0, the graph opens upward; when a < 0, it opens downward. The magnitude of 'a' affects the width - when |a| < 1, the graph is wider than y = |x|, and when |a| > 1, it's narrower.
For example, to graph y = 2|x + 1| - 2, identify the vertex at (-1, -2), plot another point like (0, 0), and use symmetry to find a third point at (-2, 0). Connect these points with a V-shape that opens upward and is narrower than y = |x| (since |a| > 1).
Remember: The vertex is the starting point for graphing absolute value functions - it's where the "point" of your V-shape will be!
2
of 3

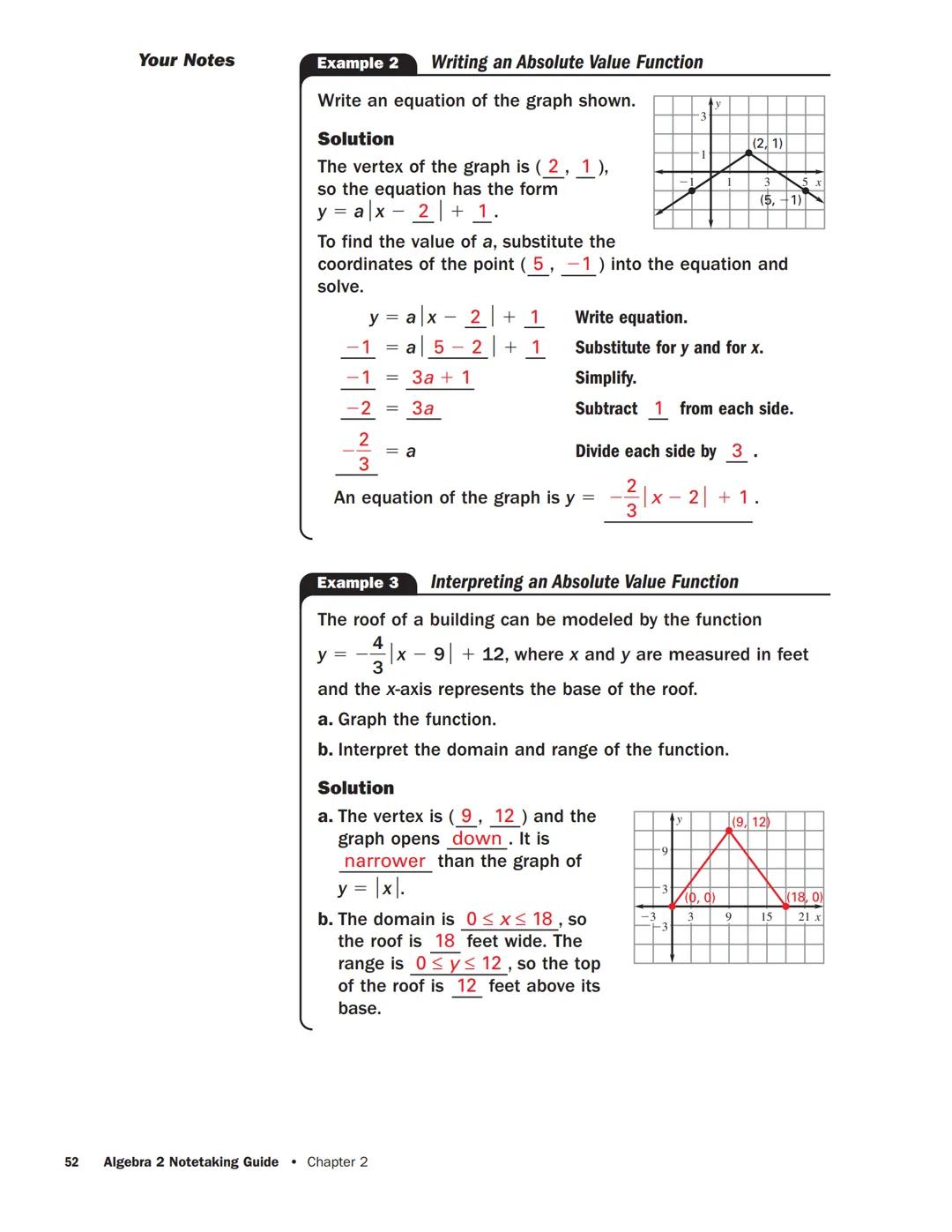

Writing and Interpreting Absolute Value Functions
Finding an equation from a graph might seem tricky, but it's actually straightforward! When you see a V-shaped graph, use the form y = a|x - h| + k where (h, k) is the vertex. To find the value of 'a', simply plug in the coordinates of another point on the graph and solve.
Absolute value functions are perfect for modeling real-world structures. For instance, a roof can be represented by y = -⁴⁄₃|x - 9| + 12, where the vertex (9, 12) represents the highest point of the roof. Since the graph opens downward, it forms an inverted V-shape.
When interpreting these models, pay attention to the domain and range. For the roof example, the domain (0 ≤ x ≤ 18) tells us the roof is 18 feet wide, while the range (0 ≤ y ≤ 12) shows the roof reaches 12 feet at its highest point.
Pro tip: When writing an equation from a graph, always check your work by ensuring your equation produces at least one other point on the original graph!
3
of 3

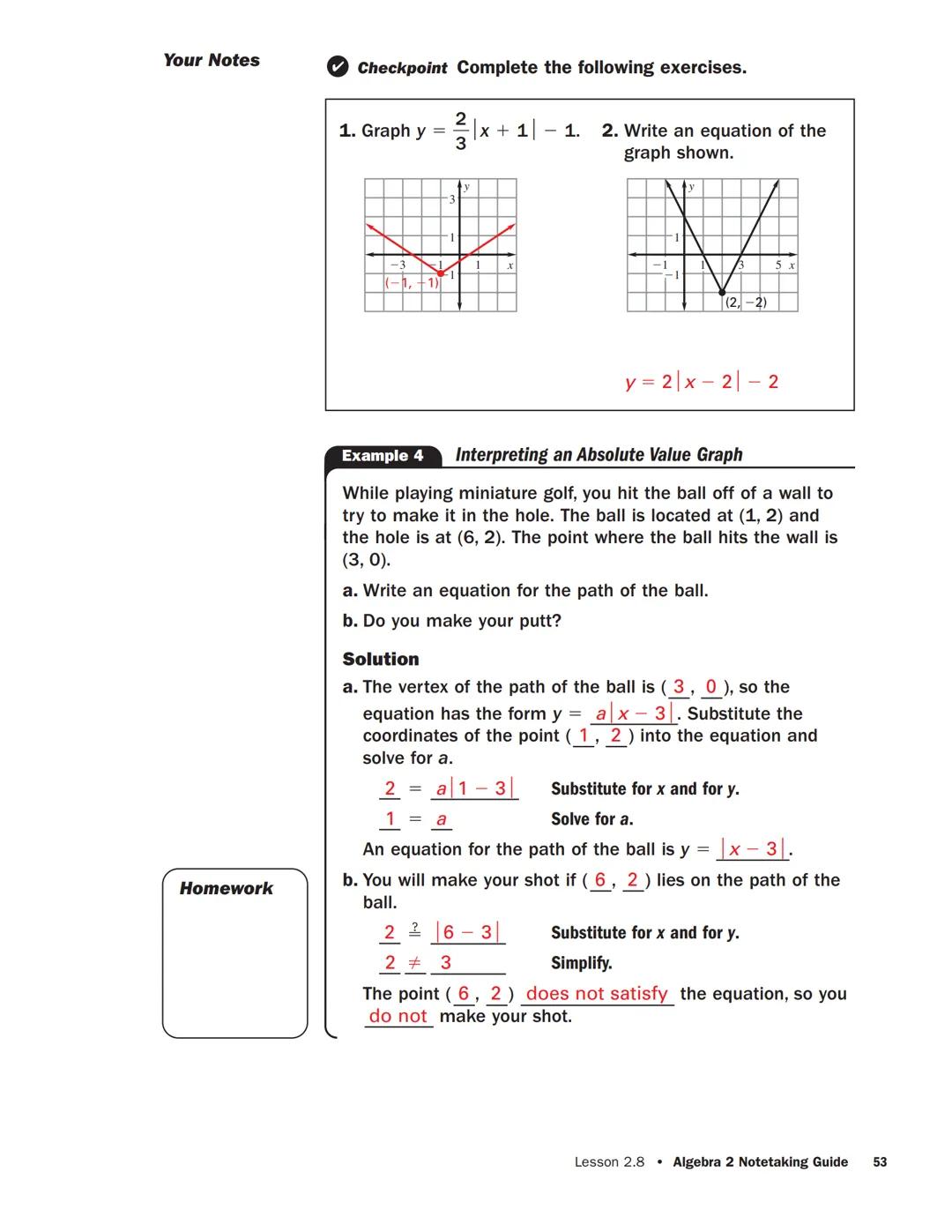

Applications of Absolute Value Functions
Absolute value functions can model paths of objects like golf balls! When a ball bounces off a wall, its path forms a V-shape with the wall as the vertex. The equation takes the form y = a|x - h| + k, where (h, k) is the point where the ball hits the wall.
To find the equation of a path, identify the vertex and use another known point to solve for 'a'. For example, if a ball hits a wall at (3, 0) and was hit from (1, 2), we can write y = a|x - 3| and determine a = 1 by substituting the coordinates.
You can use these equations to predict outcomes. For instance, to see if a golf ball will go into a hole at (6, 2), just check if that point satisfies your equation. If y ≠ |x - 3| when x = 6, then you missed the shot!
Real-world connection: Physics uses absolute value functions to model reflection paths - like light bouncing off mirrors or balls bouncing off surfaces. Understanding these functions helps predict where objects will go!
