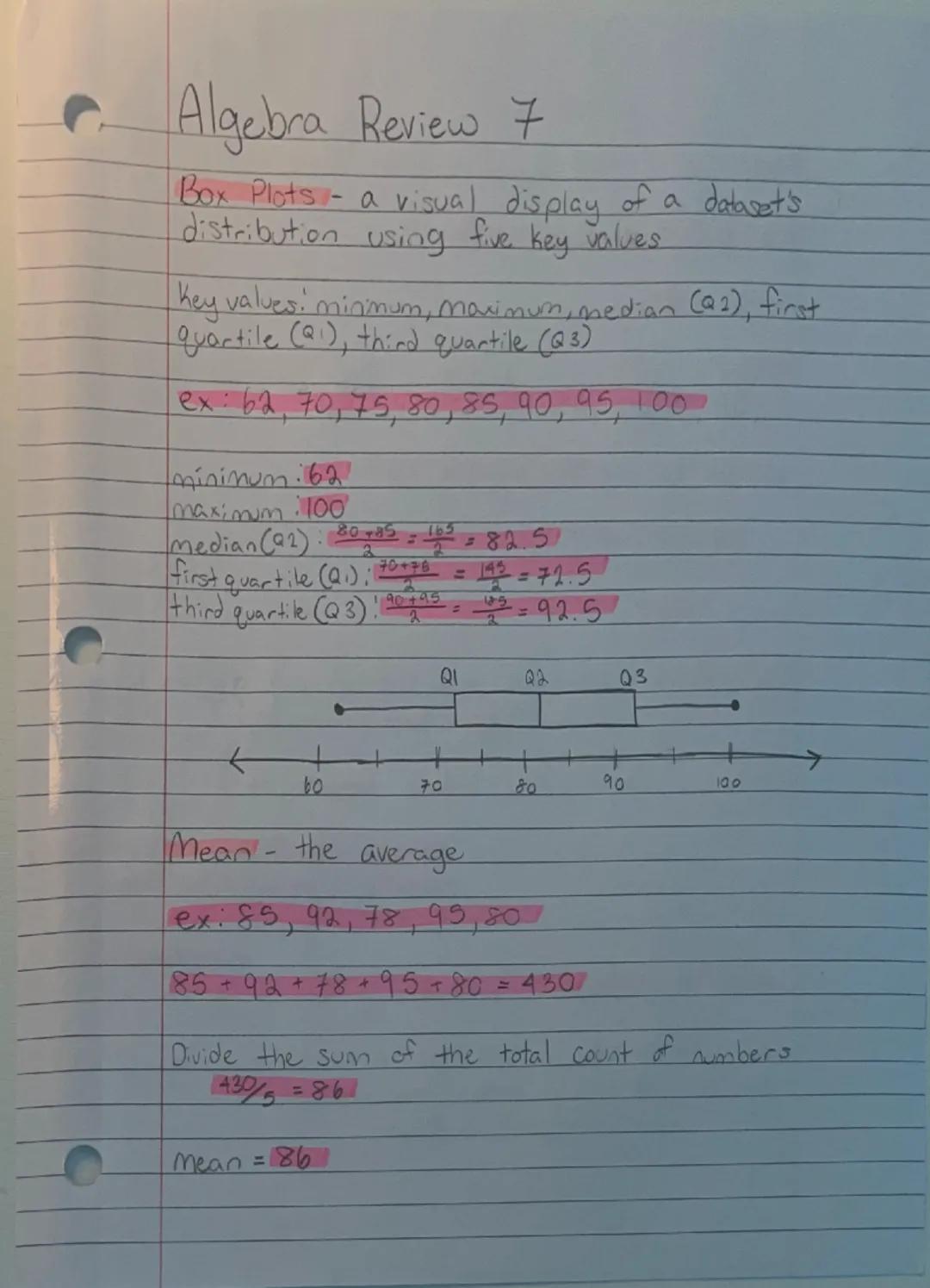

Box Plots and Central Tendency

Box plots help you visualize data distribution using five key points. These points include the minimum (lowest value), maximum (highest value), median (middle value or Q2), first quartile (Q1), and third quartile (Q3). With these five values, you can quickly see how your data is spread out.

For example, with the dataset 62, 70, 75, 80, 85, 90, 95, 100, you'd find the minimum is 62 and maximum is 100. The median (Q2) is 82.5, calculated by averaging the middle values. Q1 (72.5) represents the middle of the lower half, while Q3 (92.5) is the middle of the upper half.

When finding the mean (average), simply add all values and divide by how many numbers you have. Using the example 85, 92, 78, 95, 80: add all numbers (430) and divide by 5 to get 86.

Remember This: Box plots give you the big picture of your data at a glance - showing the spread, center, and any potential outliers without getting lost in individual data points.

Data Relationships and Predictions

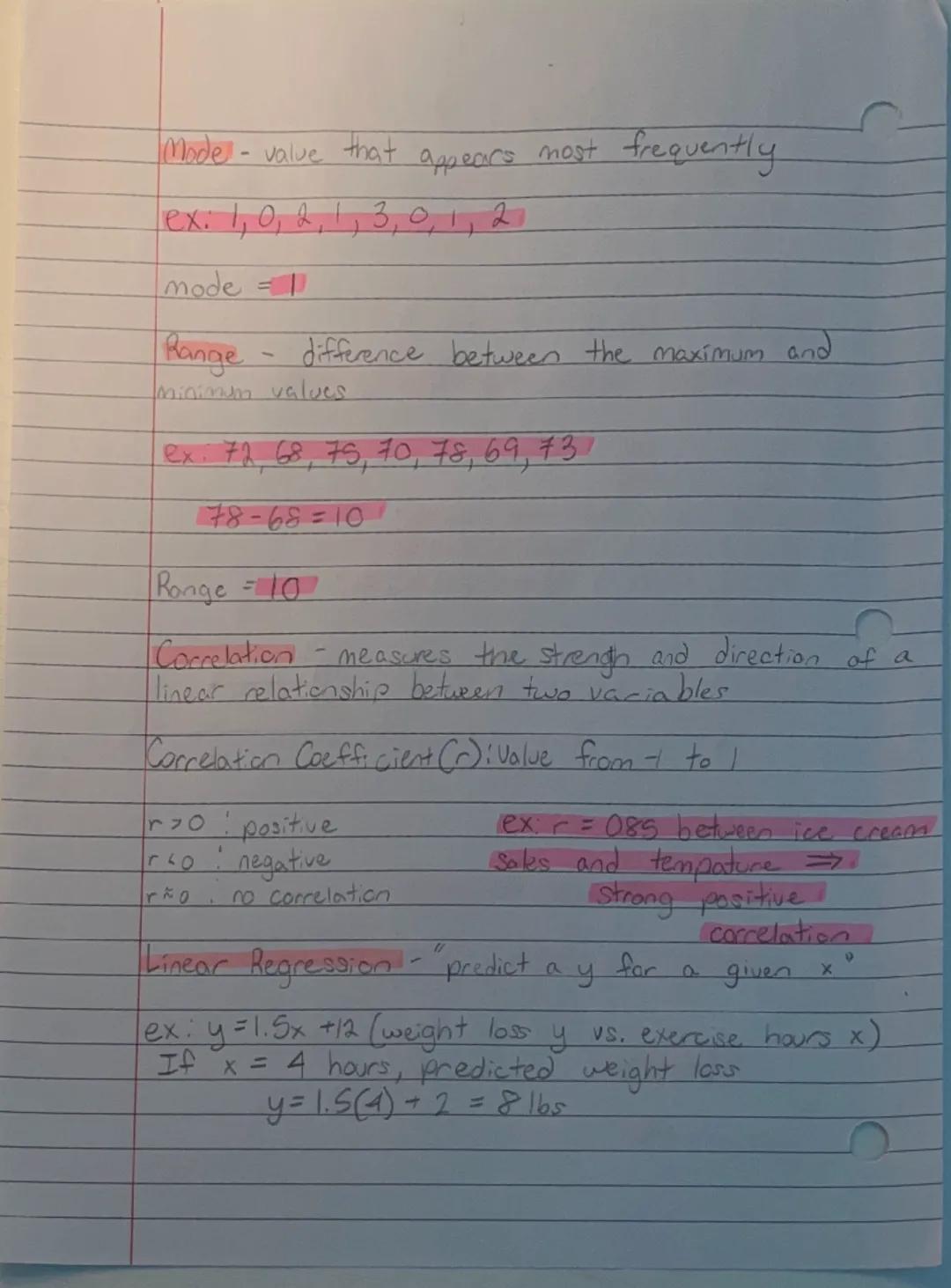

The mode is simply the value that appears most frequently in your dataset. In the set 1, 0, 2, 1, 3, 0, 1, 2, the mode is 1 since it appears three times (more than any other number).

The range measures data spread by calculating the difference between maximum and minimum values. For example, in the set 72, 68, 75, 70, 78, 69, 73, the range is 10 (78 - 68 = 10).

Correlation tells you how strongly two variables relate and in what direction. The coefficient (r) ranges from -1 to +1. A positive r $like +0.85 between ice cream sales and temperature$ shows values increase together. A negative r means one goes up while the other goes down, while r=0 indicates no relationship.

Linear regression helps you make predictions using the relationship between variables. With an equation like y = 1.5x + 2 (where y is weight loss and x is exercise hours), you can predict that exercising 4 hours would lead to 8 pounds of weight loss.

Pro Tip: When analyzing real-world data, look for correlation before making predictions - but remember that correlation doesn't necessarily mean causation!
